Product description Provided by third party: Ultra Slim, Ultra High Definition. The WyreStorm Express EXP-SP-0102-4K 1x2 4K Splitter enables lossless duplication and distribution of a single HDMI UltraHD or HD source to 2 connected outputs for simple, flexible and reliable content replication to multiple display devices supporting resolutions up to 4Kx2K.
Featuring HDMI 1.4a specification supporting data rates up to 10.2Gb/s, for lossless audio/video formats, full 3D and Lip Sync, the EXP-SP-0102-4K also includes 24bit True Color with chroma subsampling rate of 4:2:2 for 4K color palette and 36bit Deep Color for 1080p transmissions.
Automatic HDCP and EDID management continuously negotiates and authenticates communication between connected devices, ensuring simultaneous distribution of source content to all outputs, while also maintaining signal integrity via internal equalization and amplification to output devices.
Systems can be further expanded by cascading multiple EXP-SP-0102-4K units to create larger distributions; with 4K transmissions cascaded twice and 1080p signals up to 12 times to the same model units for flexible, scalable solutions for residential and commercial applications.
Furthermore, with the addition of an in-line WyreStorm EXP-SCL-DAC-4K scaler/Dolby downmixer between splitter and display device, combined 4K, HD and multichannel or stereo audio distributions can be created without risking resolution or audio disparity between devices.
As such, the EXP-SP-0102-4K represents an ideal solution wherever simple-yet-reliable distribution of single HDMI source to multiple outputs is required, with the versatility and cost-efficiency to ensure systems are just as easily expanded or adjusted to meet the needs of any application.
- Key Features
-
- 1 HDMI Input to 2 simultaneous HDMI Outputs
- Fully 4K compatible - 3840 (UHD) and 4096 (DCI) 2160 @ 30Hz with 4K color palette 4:2:2
- Plug and Play connectivity - automatic EDID and HDCP device communication
- Low profile 18mm/0.7 for greater installation convenience
- Create combined 4K/HD distributions with additional WyreStorm inline scaler (sold separately)
- Supports 4K resolutions up to 4096x2160@30Hz and HD resolutions up to 1080p@60Hz
- 4K 24bit True Color 4K chroma subsampling color palette 4:2:2, 1080p 36bit Deep Color
- Supports HD resolutions up to 1080p@60Hz
- Transmission distances up to 10m/33ft (4K/1080p input, 4K output), 15m/49ft (1080p output) using standard HDMI cables
- Multichannel audio supported (mirrors source)
- Full 3D compatibility up to 1080p - frame packing/ sequential (Blu-ray) and interlaced stereoscopic (satellite/cable broadcasts)

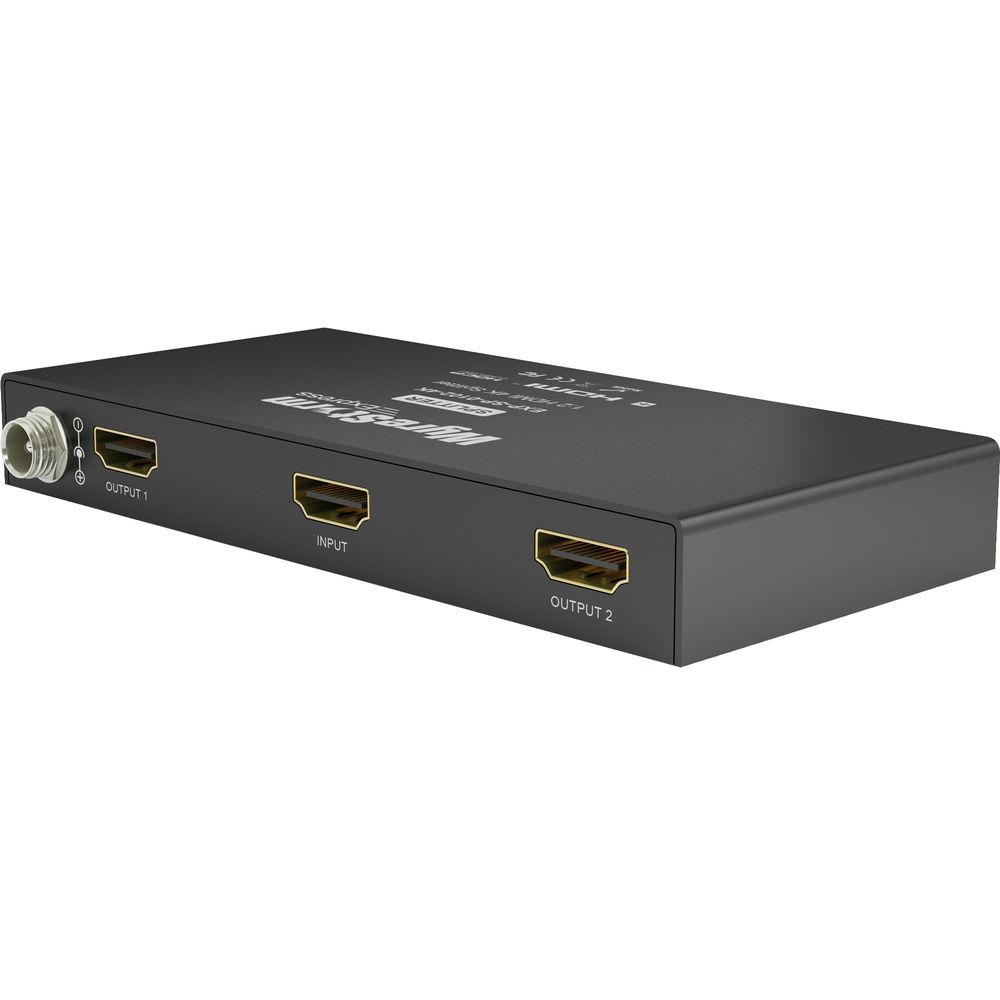

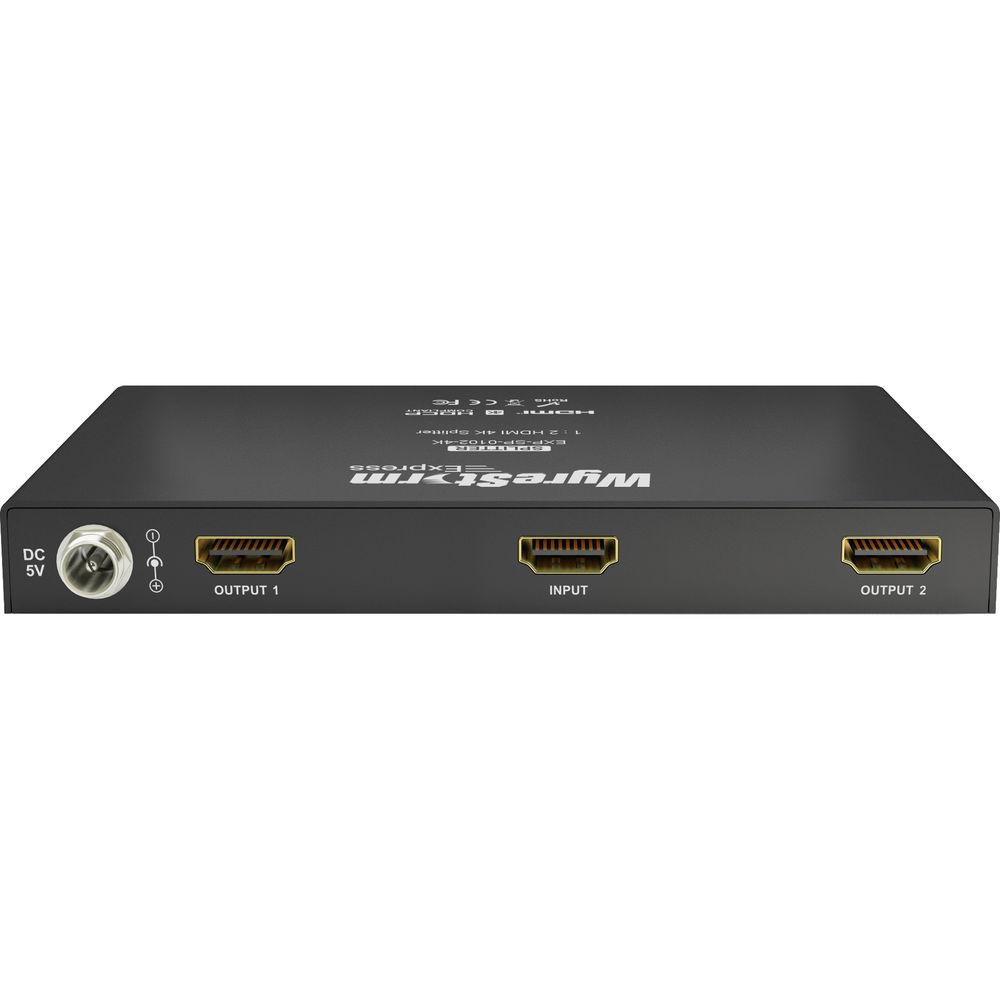

- Threaded power port for locking or standard 5v DC connection

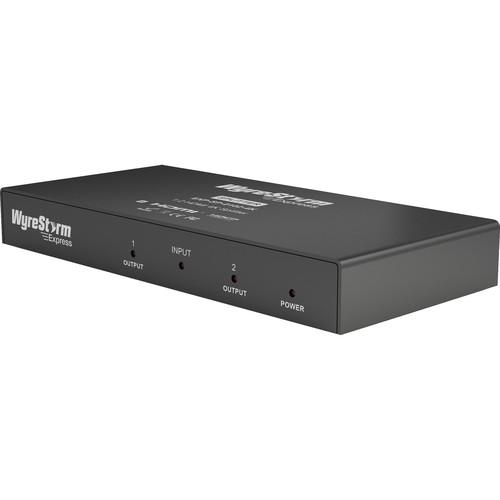

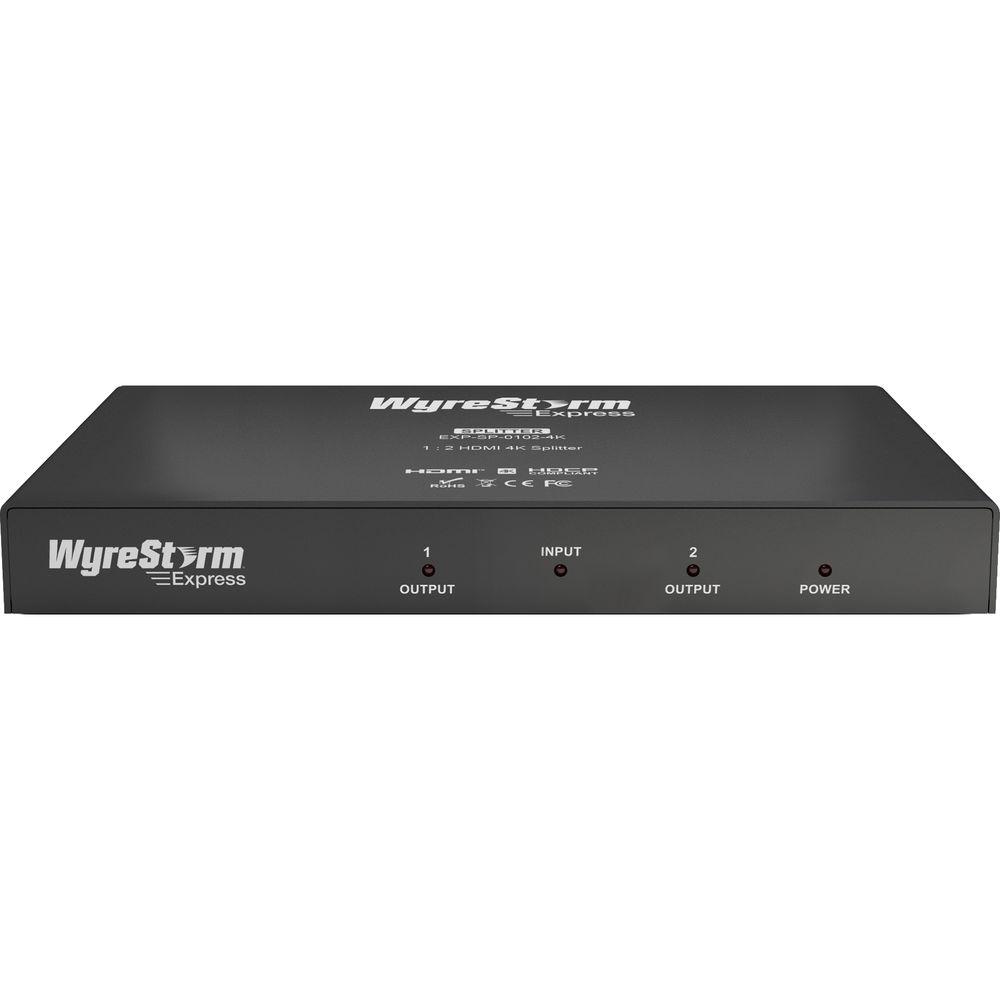

- Front panel LED indication for I/O and Power connectivity
- Slimline chassis for space-saving local installation
- Supports HDMI 1.4a with automatic HDCP and EDID management between devices
- Automatically adjusts signal feedback, equalization and amplification for easy, reliable installation
- Units cascadable to create larger systems: 1080p up to 12 times, UHD 4K up to two times
UPC: 814303013007 In the Box WyreStorm Express 1 x 2 4K HDMI Splitter WyreStorm Express EXP-SP-0102-4K Mounting brackets Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the WyreStorm Express 1 x 2 4K HDMI Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the WyreStorm Express 1 x 2 4K HDMI Splitter can be downloaded in PDF format at the link stated below.
Technical parametersWyreStorm EXP-SP-0102-4K Specs | | | Device Type | Video/audio splitter - 2 ports | | Enclosure Type | Desktop | | Subtype | HDMI | | Ports | 2 x HDMI | | Performance | Throughput: 10.2 Gbps | | Max Resolution | 4096 x 2160 @ 30 Hz | | Max Video Bandwidth | 340 MHz | | Features | HDCP compliant, 3D support, 4K resolution support | | Compliant Standards | DVI 1.0 | | Status Indicators | Port status, power | | | | Interfaces | 2 x HDMI output
1 x HDMI input | | | | Power Device | External power adapter | | Power Consumption Operational | 1.7 Watt | | | | Included Accessories | Mounting brackets | | Compliant Standards | FCC, RoHS | | | | Width | 5.5 in | | Depth | 2.6 in | | Height | 0.7 in | | Weight | 9.17 oz | | | | Service & Support | Limited warranty - 1 year | | | | Min Operating Temperature | 32
