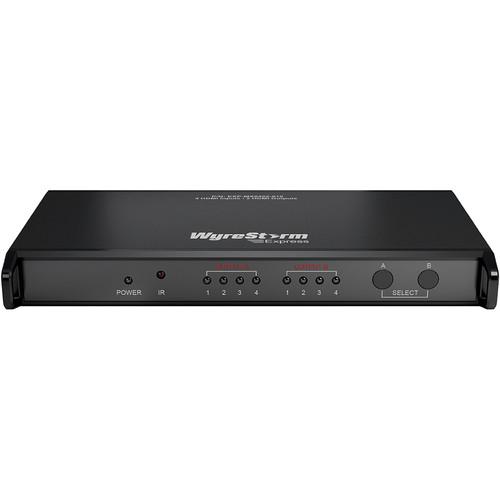

Product description The WyreStorm Express 4 x 2 HDMI Matrix Switcher allows you to cross-switch four HDMI sources to two HDMI displays and distribute independent stereo audio for output A. Connect sources with up to a Full HD 1080p resolution signal and switch between them using the front panel push-buttons or the included IR remote control.
The Express 4 x 2 is HDCP compliant and features automatic EDID handling. It works plug-and-play with no setup required. - Key Features
-
- Cross-switch four HDMI sources to two HDMI displays
- Run independent RCA stereo audio for output A
- Supports up to Full HD 1080p resolution signals
- Automatically negotiates EDID signals from display
- HDCP compliant
- Full 3D support
- Front panel push-button and remote control source selection (IR remote included)
- LED source selection indicators
- Plug-and-play connection - no setup, drivers, or software required
UPC: 814303012703 In the Box WyreStorm Express 4 x 2 HDMI Matrix Switcher 5 VDC Power Supply Remote Control Installation Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WyreStorm Express 4 x 2 HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWyreStorm EXP-MX0402-010 Specs | Video Amplifier Bandwidth | 6.75 Gbps | | Input Video Signal | 0.5 to 1 Vpp | | Input DDC Signal | 5 Vpp (TTL) | | Maximum Single Link Range | 1080p 24-bit Color depth | | HDMI Transmission Range | Up to 49 ft / 15 m, with 24 AWG HDMI cable
Up to 33 ft / 10 m, with 28 AWG HDMI cable*Optional WyreStorm HDMI Repeater or WyreStorm HDMI Extender can be used to further extend distance. | | Supported Video Formats | DTV/HDTV: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i | | Output Video | HDMI 1.3b with Full 3D support | | Supported Audio Formats | DTS-HD, Dolby HD, analog stereo | | Power Supply | 5 VDC (from mains) | | Power Consumption | 10 W, maximum | | BTU | 34.1 | | Operating Temperature | -41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 90% RH (no condensation) | | Dimensions | 7.8 x 1.0 x 4.3" / 20.0 x 2.4 x 11.0 cm (with front handles) | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 1.54 lb | | Box Dimensions (LxWxH) | 11.5 x 9.0 x 1.9" |
