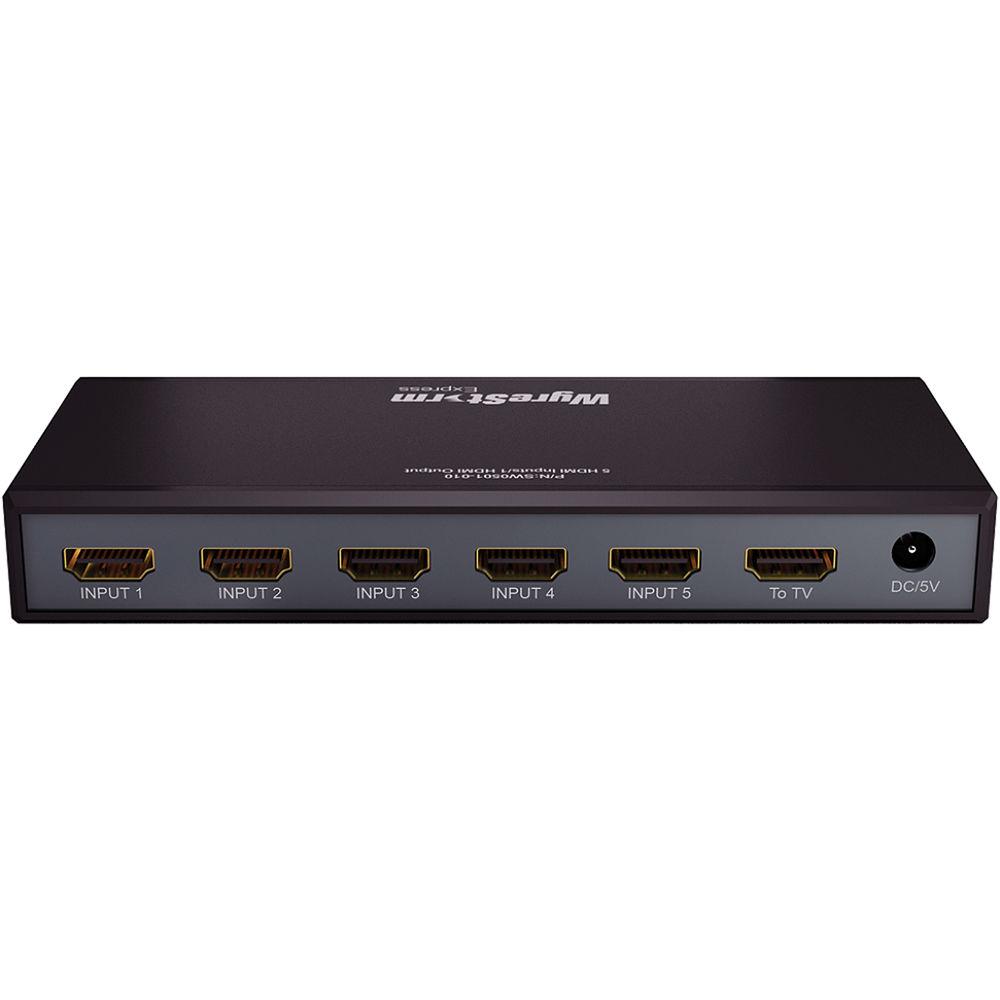

Product description Switch between five HDMI sources to a single HDMI display with the Express 5 x 1 HDMI Switcher from WyreStorm. Connect your sources and HDMI display plug-and-play and operate the switcher using an included remote control or from the front panel.
The switcher supports up to 1080p60 video sources, UXVGA computer resolutions up to 1920 x 1200, 3D video including from Blu-ray and satellite devices, and up to 7.1 DTS-HD and Dolby HD audio. All the HDMI ports can also be converted to DVI connections via optional adapters to support DVI sources. The Express 5 x 1 is also fully HDCP and EDID compliant. - Key Features
-
- 5 x 1 plug-and-play HDMI switcher

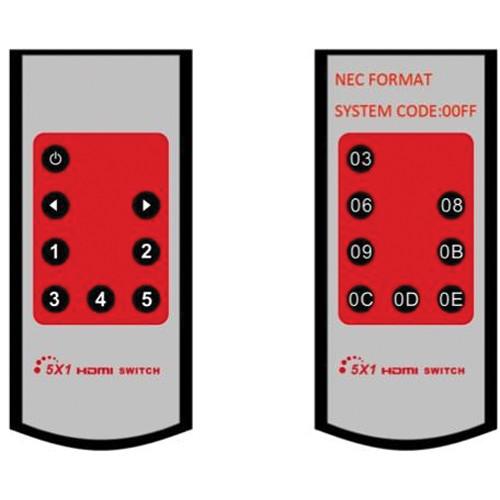

- Controllable via an included remote control or from the front panel
- Supports up to 1080p60 video sources and up to 7.1 DTS-HD and Dolby HD audio
- DVI adapters supported
- HDCP and EDID compliant
UPC: 814303012505 In the Box WyreStorm Express 5 x 1 HDMI Switcher Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the WyreStorm Express 5 x 1 HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWyreStorm EXP-SW-0501 Specs | Input | 5 x HDMI type A 1.3b | | Output | 1 x HDMI type A 1.3b | | Video Amplifier Bandwidth | 6.75 Gbps | | Input Video Signal | 0.5-1 V p-p, Resistance: 75 Q | | Input DDC Signal | 5 V p-p (TTL) | | Supported Input Resolutions | Up to 1080p60, 1080i, 720p, 576p, 480p, 576i, 480i, and UXVGA resolutions up to 1920 x 1200 | | Color Depth | 1080p 24-bit color depth | | Audio Formats Supported | Up to 7.1 DTS-HD Master Audio and Dolby TrueHD | | Maximum Pixel Clock | 297 MHz | | Transmission Distance | HDMI: 49 ft (15 m) max. using 24 AWG HDMI cable), 33 ft (10 m) using 28 AWG HDMI cable
For further distances, HDMI repeater or extenders are supported, such as those from WyreStorm | | EDID Learning | Yes | | HDCP Compliance | Yes | | Power Supply | Input: 100- 240 VAC, 50/60 Hz
Output: 5 VDC, 1 A | | Max Power Consumption | 4 W | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Operating Humidity | 5 - 90%, non-condensing | | Dimensions | 6.4 x 0.75 x 2.7" (16 x 2 x 7 cm) | | Weight | 2.1 lb (1 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 10.9 x 8.6 x 1.8" |
