Product description Provided by third party: The WyreStorm Express EXP-EX-HDBT-50 extender features Class B HDBaseT technology for an even more affordable HDBaseT extender solution over shorter distances up to 25 m/82 ft for 4K or 50 m/164 ft for 1080p transmissions.
Designed for smaller projects that may not require the feature set of full Class A HDBaseT yet still benefit from the signal stability and functions offered by this powerful technology, the EXP-EX-HDBT-50 extender comprises of a transmitter and receiver to distribute full, uncompressed HD and UHD video, HD multichannel audio with bidirectional IR control over distances of up to 25 m/82 ft for 4K or 50 m/164 ft for 1080p using a single shielded or unshielded Cat5e/6 cable.

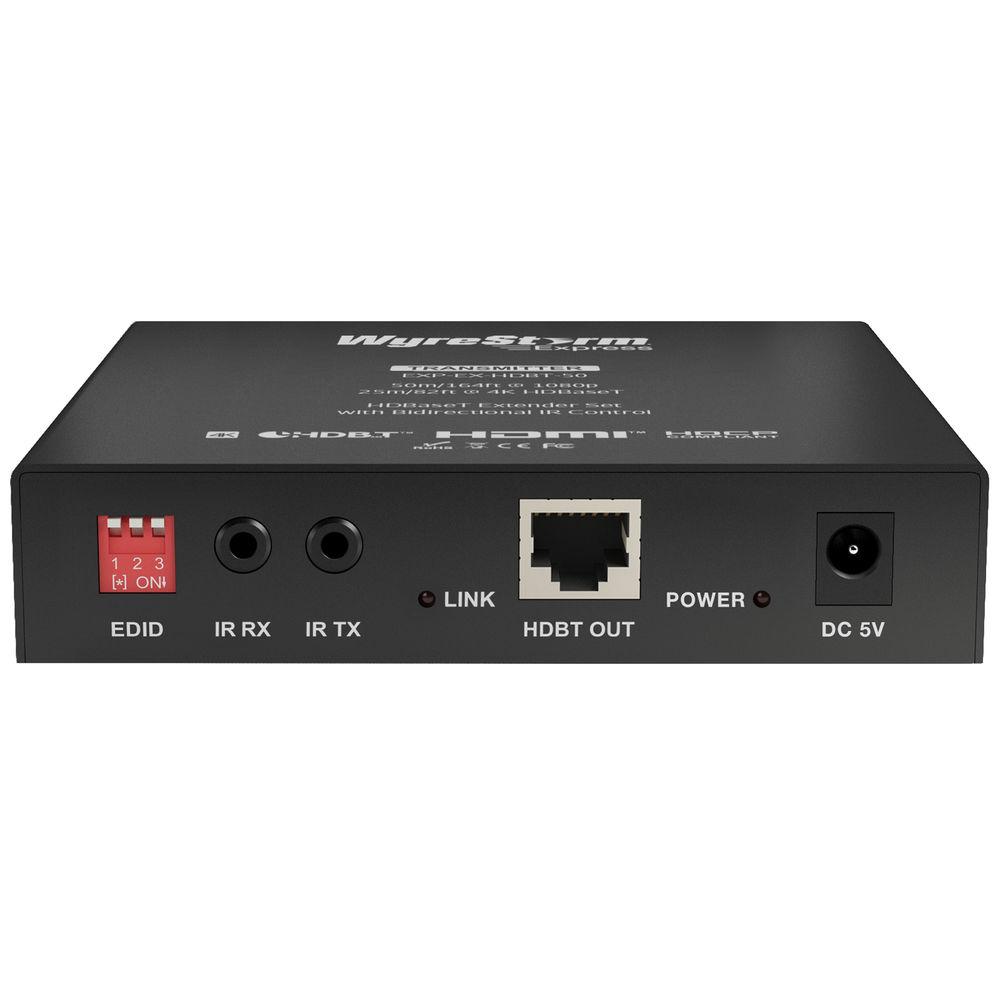

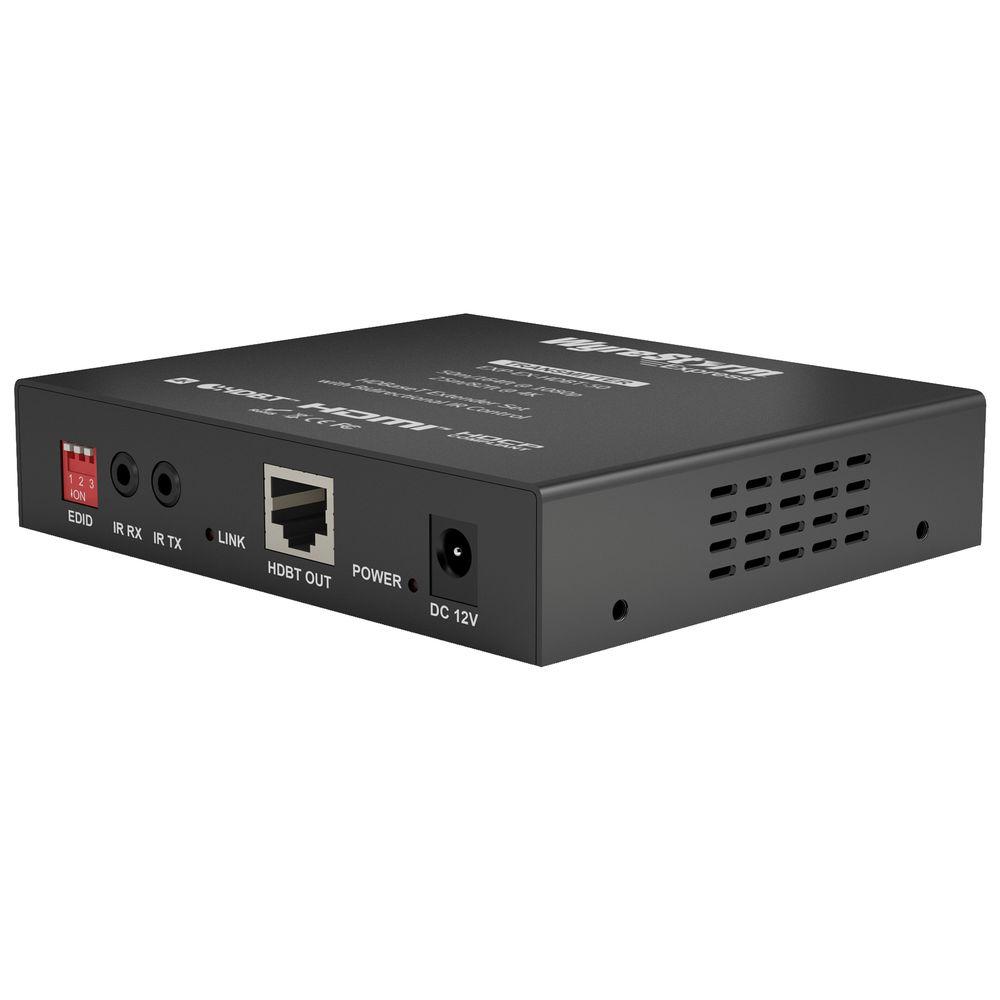

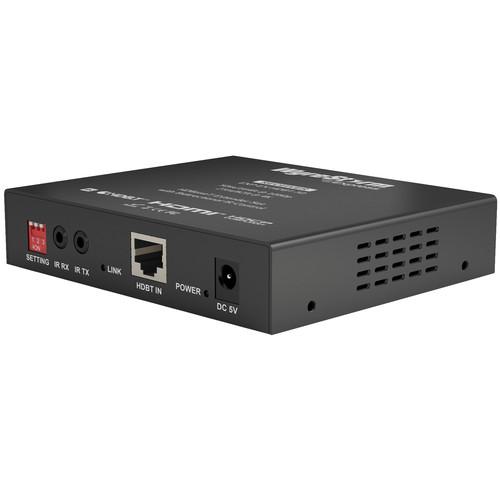

The EXP-EX-HDBT-50 transmitter includes EDID management to manually handle device communication via DIP switch setting, with receivers containing cable distance setting mode to encourage successful transmission if the distance of the cable run is an issue.
Both transmitters and receivers feature protection against ESD (electrostatic discharge) to further stabilize transmission with LED indication on the unit housing providing clear confirmation of power and signal link status.
The WyreStorm Express EXP-EX-HDBT-50 is also fully cascadable with distribution increased by connecting multiple extenders for greater flexibility, whatever the application.
- Key Features
-
- HDBaseT Class B extenders capable of the following transmissions over single Cat5e/6 under recommended conditions
- Transmits discrete wide-band two-way IR control signal together within the HDMI signal
- Fully supports 3D applications - frame packing/sequential (Blu-ray) and Interlaced stereoscopic (satellite/cable broadcasts)
- Supports 24 bit True Color @ 4K, 36 bit Deep Color @ 1080p
- HDCP 2.2 compliant
- Automatically adjusts feedback, equalization and amplification of signal for easy installation
- EDID management on transmitter and DIP setting on receiver tfor improved communication and compatibility between devices
- LED indication for visual power and HDMI/HDBaseT video signal status
- Fully cascadable to further lengthen transmission and increase your distribution capabilities
UPC: 814303013038 Table of Contents
|
Upload User Manual
Have you got an user manual for the WyreStorm Express HDBaseT 4K Extender with 2-Way IR Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersWyreStorm EXP-EX-HDBT-50 Specs | | | Device Type | Video/audio/infrared extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Data Link Protocol | HDMI | | Data Transfer Rate | 6.75 Gbps | | Max Resolution | 4096 x 2160 @ 30 Hz | | Max Transfer Distance | 164 ft | | Status Indicators | Link/activity | | Features | HDCP compliant, 3D support, HDBaseT technology | | | | Interfaces | 1 x HDMI - 19 pin HDMI Type A
1 x IrDA (input) - mini jack
1 x IrDA (output) - mini jack | | | | Power Device | External power adapter | | Installed Qty | 2 | | Max Supported Qty | 2 | | Power Consumption Operational | 5 Watt | | | | Min Operating Temperature | 23
