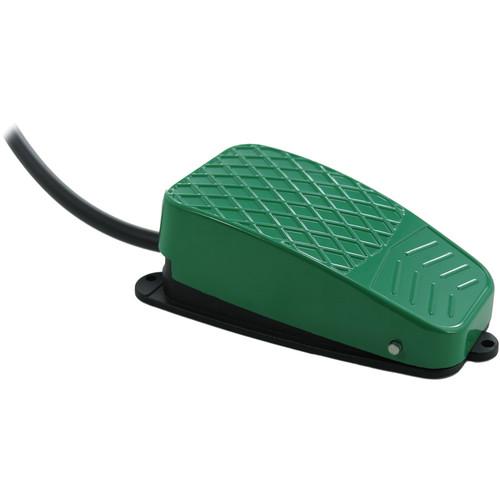

User Manual for X-keys Commercial Foot Switch Click to enlarge the picture
Contents of the user manual for the X-keys Commercial Foot Switch
- Product category: Foot Switches X-keys
- Brand: X-keys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for X-keys Foot Switches
|
User manual for the X-keys Commercial Foot Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any X-keys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official X-keys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a X-keys product will considerably shorten its lifespan!
|
Product description The green Commercial Foot Switch from X-keys is a commercial-grade foot switch made to work with the optionally purchased X-keys USB 12 Switch and USB 3 Switch Interfaces. The hinge in the front of the pedal is designed to allow a foot to rest on the pedal without activating it. With slight additional pressure, the switch is activated with an audible click and allows hands-free control in the office, lab, or studio. Additionally, the powder-coated cast aluminum body and pedal comes equipped with a mounting flange.
The Commercial Foot Switch is suitable for Assistive Technology or industrial applications where a mouse click, key press, or other operation when momentary activation is required. - Mates with either the optionally purchased X-keys USB 12 Switch Interface and USB 3 Switch Interface
USB 12 - # XKEUSBSI, MFR # XK-1202-UHS12-R
USB Three-Switch Interface - # XK1283UJS3R, MFR # XK-1283-UJS3-R - Microswitch with audible click, guaranteed for over 1 million operations
- Up to 12 pedals can be used on a single USB connection and can be combined with other pedals and buttons
- Suitable for use in studios, labs, and offices for use with:
Assistive Tech
Transcription
Prompting - When connected to the X-keys USB 12 Switch Interface, the Foot Switch can control many computer-based applications:
CuePrompter
Windows
Dragon Naturally Speaking
DocWrite UPC: 703273012434 In the Box X-keys Commercial Foot Switch (Green) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the X-keys Commercial Foot Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersX-keys XK-A-1243-SKC1GN-R Specs | Construction Material | Painted (green) cast aluminum body | | Switch Type | Microswitch with audible click | | Actuation Force | Approx. 3.5 lb (1.6kg) depending on distance from hinge | | Connecting Cable | Wired to 1/8" (3.5 mm) mono plug on a 114" (2.9 m) ruggedized cord | | Voltage | < 30 V | | Current | < 1 A | | Dimensions | 6.3 x 2.9 x 2.1" (16 x 7.4 x 5.3 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.4 x 4.7 x 2.6" |
