User Manual for X-keys Orby Switch Controller Click to enlarge the picture
Contents of the user manual for the X-keys Orby Switch Controller
- Product category: Foot Switches X-keys
- Brand: X-keys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for X-keys Foot Switches
 |
User manual for the X-keys Orby Switch Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any X-keys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official X-keys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a X-keys product will considerably shorten its lifespan!
|

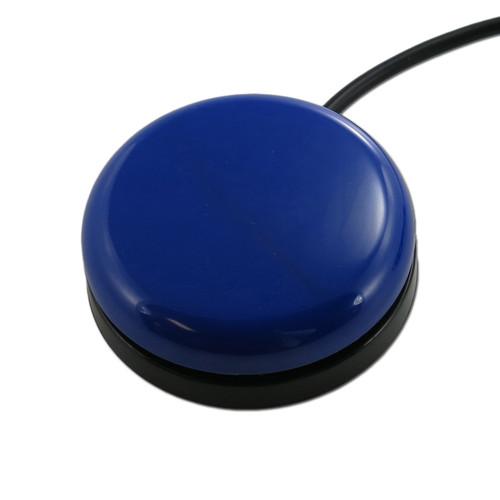

Product description The blue XK-A-1220-R Orby Switch Controller from X-keys can control any computer-based application and works with either the X-keys USB 3 or 12 Switch Interfaces. It is designed for assistive technology or industrial applications, such as assistive touch, transcription, and prompting, and can be triggered with fingers, toes, knees or elbows. The Orby Switch is capable of working in studios, labs, and offices, as well as with programs such as CuePrompter, Windows, Dragon Naturally Speaking, and DocWrite. The Orby is suitable for mouse click, key press, or other operations where a momentary activation is required.
Orby utilizes the industry standard 3.5mm plug. Simply plug it into the 3.5mm jack on a switch-activated device. - Pressure activated with auditory click
- For use with the X-keys USB Switch Interface
- Suitable for Assistive Technology or industrial applications
- Trigger computer commands with fingers, toes, knees, or elbows
UPC: 703273012205 In the Box X-keys Orby Switch Controller (Blue) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the X-keys Orby Switch Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersX-keys XK-A-1220-R Specs | Actuation Force | 3.5 oz (100 gr) | | Switch Travel | Activation: 0.02" (0.5 mm)
Full travel: 0.05" (1.3 mm) | | Cord Length | 5' (1.5 m) | | Connector Type | 1/8" (3.5 mm) right angle mono plug | | Threaded Inserts | #6-32, brass x 2 | | Insert Spacing | 1.1" (28 mm) O.C. - centered on switch body | | Friction Pad | 0.0625" (1.6 mm) thick | | Internal Dampers | High-density urethane | | Voltage | Less than 32 V | | Current | Less than 1 A | | Conductors | Rated for severe duty | | Dimensions (Diam. x H) | 2.5" x 0.87" (64 x 22 mm) | | RoHS | Compliant | | Weight | 2.75 oz (80 g) with cord and pad | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 8.1 x 5.1 x 0.4" |
