User Manual for X-keys USB 3-Switch Interface for KVM Switches Click to enlarge the picture
Contents of the user manual for the X-keys USB 3-Switch Interface for KVM
- Product category: Keyboards X-keys
- Brand: X-keys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for X-keys Keyboards
 |
User manual for the X-keys USB 3-Switch Interface for KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any X-keys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official X-keys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a X-keys product will considerably shorten its lifespan!
|

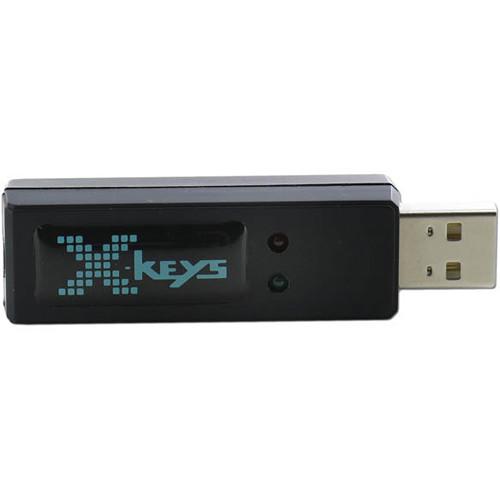

Product description The USB 3-Switch Interface from X-keys is configured to work with KVM switches to control multiple computers from a single work station. Any switch can trigger an action on your computer. Any keyboard shortcut your software uses can have a designated switch (start, stop, next, save, and more). Switches are easily set up to launch applications, open files, or type short lines of text like names, addresses, and account numbers. Programming may be saved as a file and easily duplicated to multiple X-keys for multi-station installations. Dedicated keys maximize efficiency and lower operator training time. Any keyboard command used by the operator can also be replicated and assigned to one button. - Compatibility
- Any KVM switch with USB keyboard support
Hardware - Includes MacroWorks 3.1 programming software for Windows

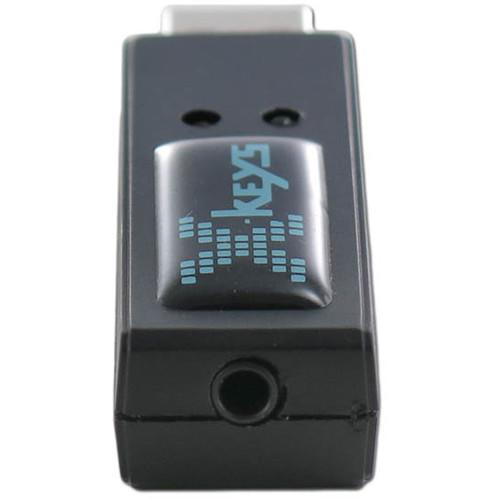

- One 3.5mm TRRS port connects up to three switches using optional adapters
- Accepts 3.5mm mono, stereo, or TRRS plugs
- Any contact closure can be converted to a USB HID command

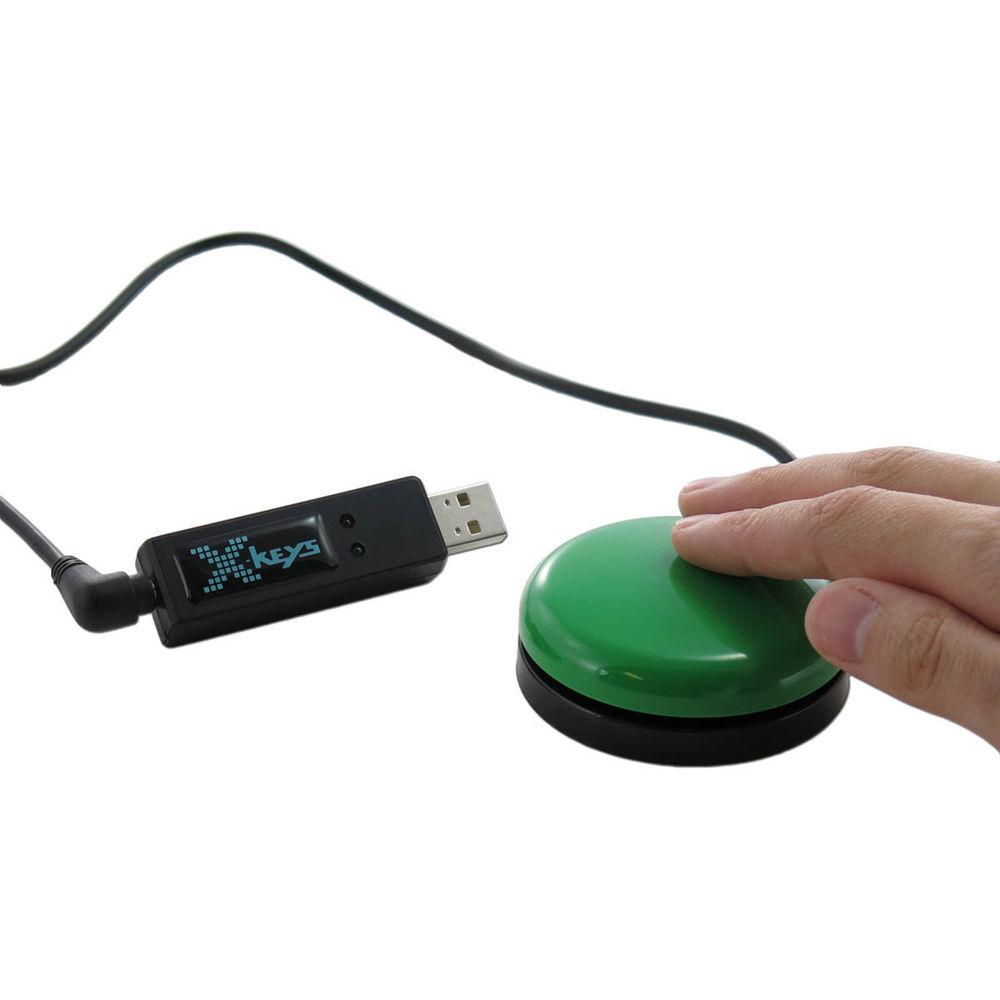

- Can be used with any hand or foot operated trigger switch (available separately)
MacroWorks 3.1 Programming Software - Programs and edits keystrokes and macros
- Reads and writes to X-keys memory
- Easily reproduce the same layout on multiple devices

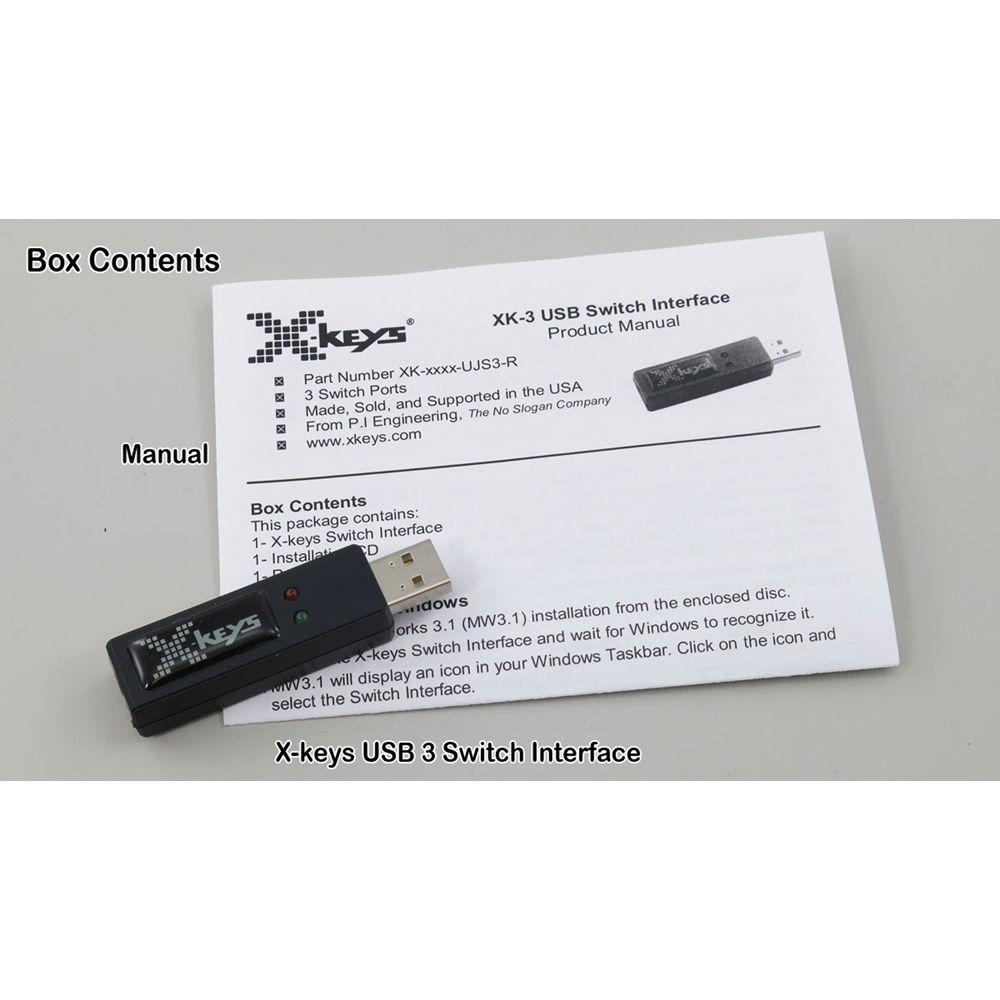

UPC: 703273014469 In the Box X-keys USB 3-Switch Interface for KVM Switches Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the X-keys USB 3-Switch Interface for KVM Switches in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersX-keys XK-1446-UKVM3-SO Specs | Operating System | Any OS supporting USB HID keyboard: Windows, Mac, Linux, Android | | Programming Software | MacroWorks 3.1
Software Requirement:
Windows 10, 8, 7, or Vista (32 or 64 bit) or Windows XP (32 bit only)

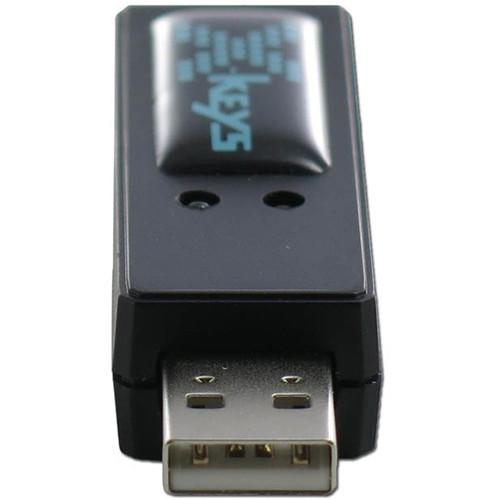

Microsoft .NET Framework 3.5.1 | | Emulation Modes | HID keyboard | | Port | 1 x 3.5 mm TRRS accepts 3.5 mm mono, stereo, or TRRS plug (may be split to accept up to three switches) | | Connector | USB 2.0 Type A plug | | Wiring Distance | Up to 1,000' (300 m) from switch to port | | Power Source | USB port
Nominal Voltage: 5 VDC | | Power Consumption | 21 mA @ 5 VDC | | Temperature Range | -4 to 140°F (-20 to 60°C) | | Memory Capacity | Approximately 1000 keystrokes or commands | | Memory Type | EEPROM, non-volatile memory (X-keys retains memory for over 200 years) | | Environmental Rating | IP40, typical indoor office environment | | Certifications | FCC class B, CE, RoHS, WEEE compliant | | Dimensions | 2.8 x 0.75 x 0.5" (71 x 19 x 13 mm) | | Weight | 0.8 oz (23 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 7.2 x 5.4 x 1.7" |
