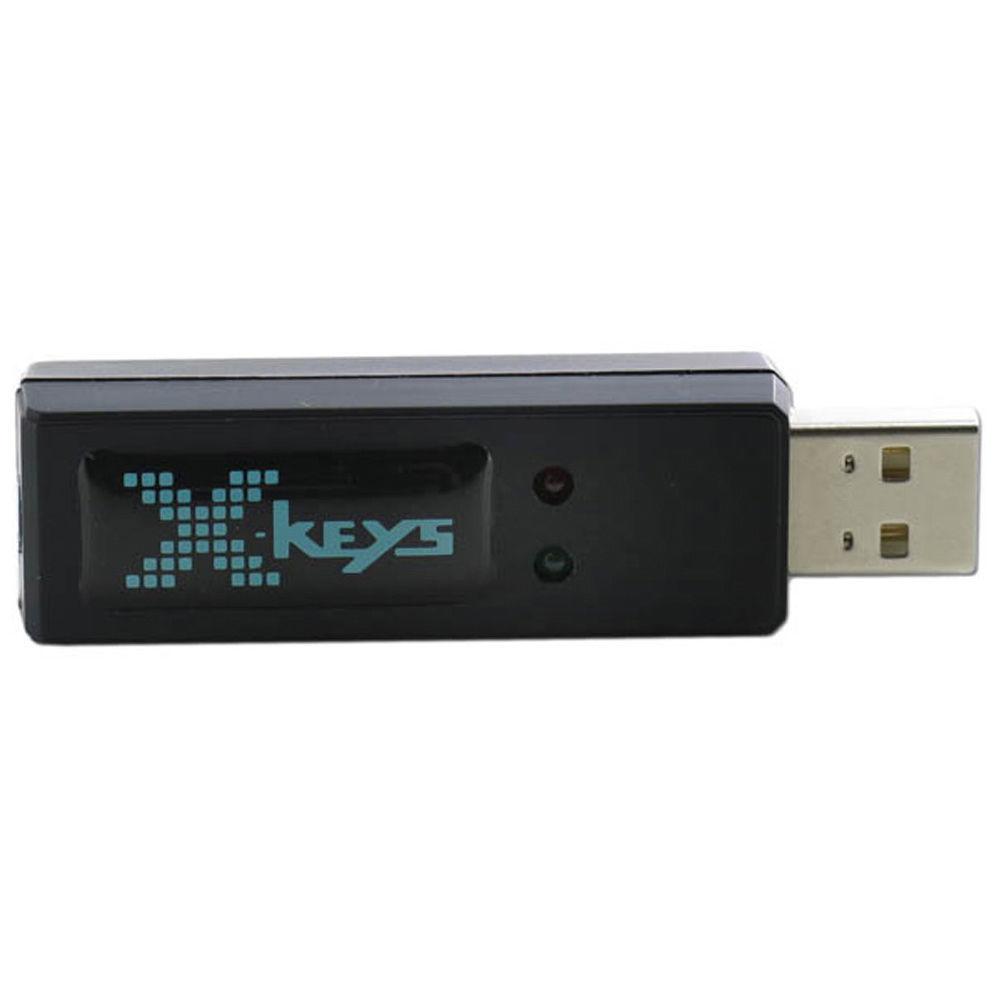

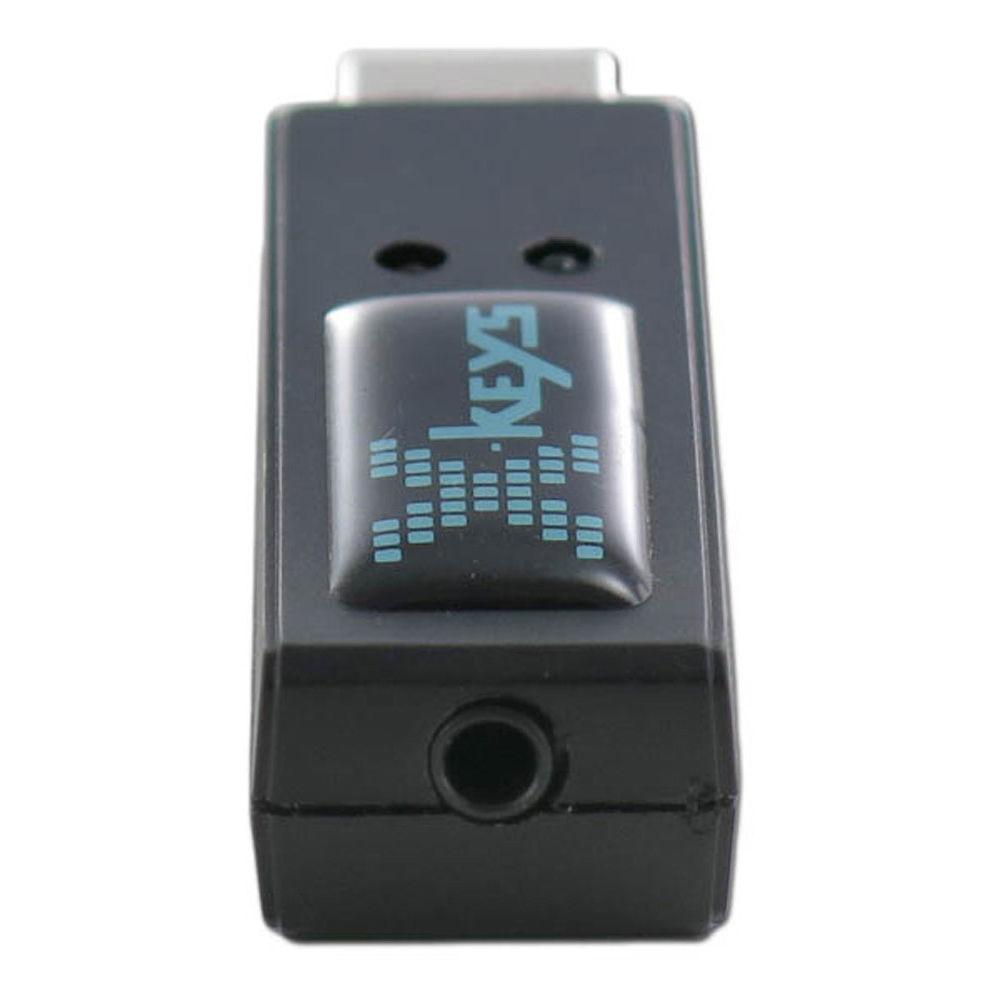

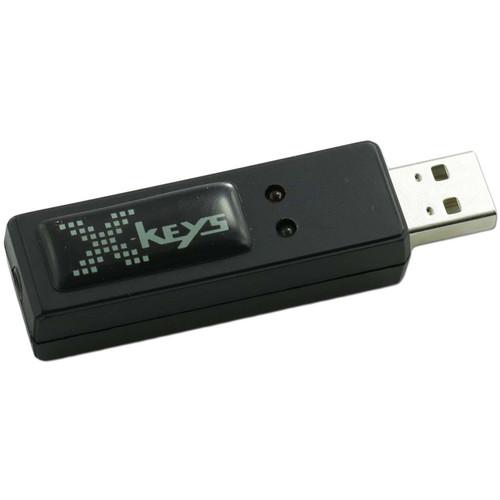

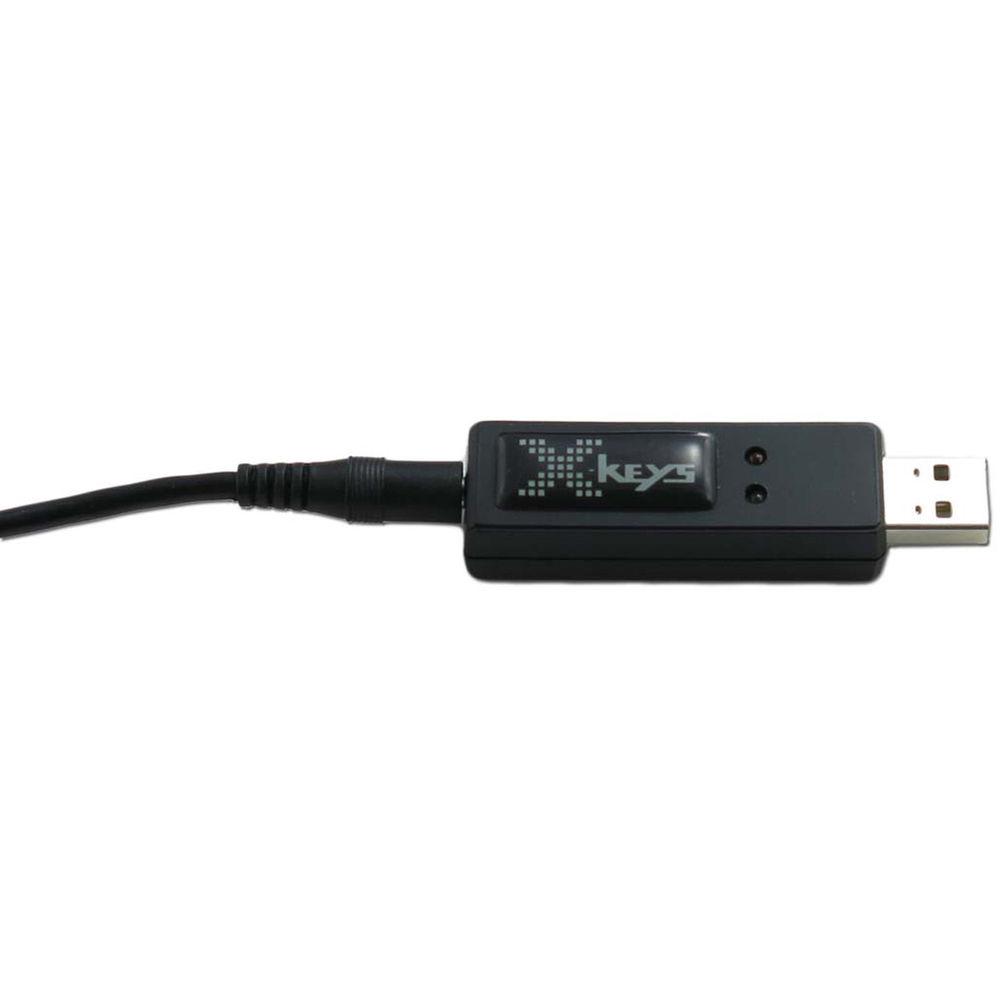

Product description The small, versatile USB Three-Switch Interface from X-keys is capable of supporting up to three wired switches or pedals using an optional adapter (sold separately). The USB interface comes equipped with a single USB connector and a single 3.5 mm jack which supports a variety of USB codecs including HID keyboard, HID mouse, HID game controller, and HID multimedia. - Accepts up to three switches via 3.5mm TRRS port with optional adapter
- Connects to USBs port like a USB keyboard
- Accepts 3.5mm mono, stereo, or TRRS plugs
- Any contact closure can be converted to a USB HID command
- Choose from our selection of hand or foot operated switches or use your own
UPC: 703273012830 In the Box X-keys USB Three-Switch Interface Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the X-keys USB Three-Switch Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersX-keys XK-1283-UJS3-R Specs | Operating system | Any OS via USB HID | Programming: Windows XP through 8, Mac OS X 10.4 through 10.10 | | Programming Software | Windows: MacroWorks 3.1
Android: X-keys Android
Mac OS X: ControllerMate
| | Software Development Kits | Windows (C++, C#, VB.NET)
Linux (C++)
Android (Java)
Raw HID (any language/OS)
USB Codes Supported: HID keyboard, HID mouse, HID game controller, HID multimedia | | Ports | 1x 3.5mm TRRS (Tip-Ring-Ring-Sleeve) accepts 3.5mm mono, stereo, or TRRS plug; May be split to accept up to three switches
| | Connector | USB 2.0 standard "A" plug
USB 1.1, compatible through 3.0 | | Wiring Distance | Up to 1,000' (300 m) from switch to port | | Memory | Memory Capacity: Approximately 1000 keystrokes or commands
Memory Type: EEPROM, non volatile memory (X-keys retains memory for over 200 years) | | Power | Power Source: USB port, nominal voltage = 5 VDC
Power Consumption: 21 mA @ 5 VDC | | Environmental | Temperature Range: -4 to 140°F / -20 to 60°C
Environmental Rating: IP 40, typical indoor office environment | | Certification | FCC class B, CE, RoHS, WEEE compliant | | Dimensions | 2.8 x 0.75 x 0.5" (71 x 19 x 13 mm) | | Weight | 0.8 oz (23 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 7.323 x 5.433 x 1.732" |
