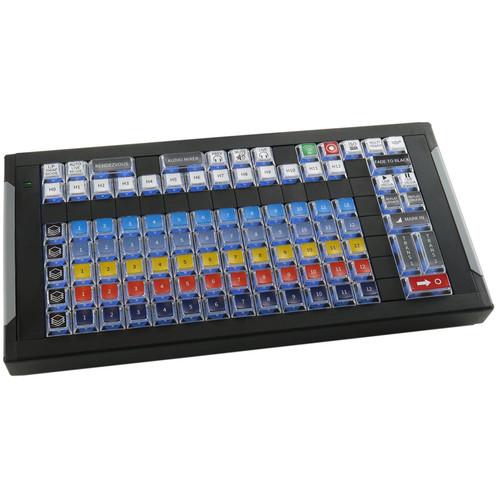

User Manual for X-keys Wirecast Control Surface for Wirecast 9 Click to enlarge the picture
Contents of the user manual for the X-keys Wirecast Control Surface for Wirecast
- Product category: Streaming Media Accessories X-keys
- Brand: X-keys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for X-keys Streaming Media Accessories
 |
User manual for the X-keys Wirecast Control Surface for Wirecast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any X-keys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official X-keys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a X-keys product will considerably shorten its lifespan!
|

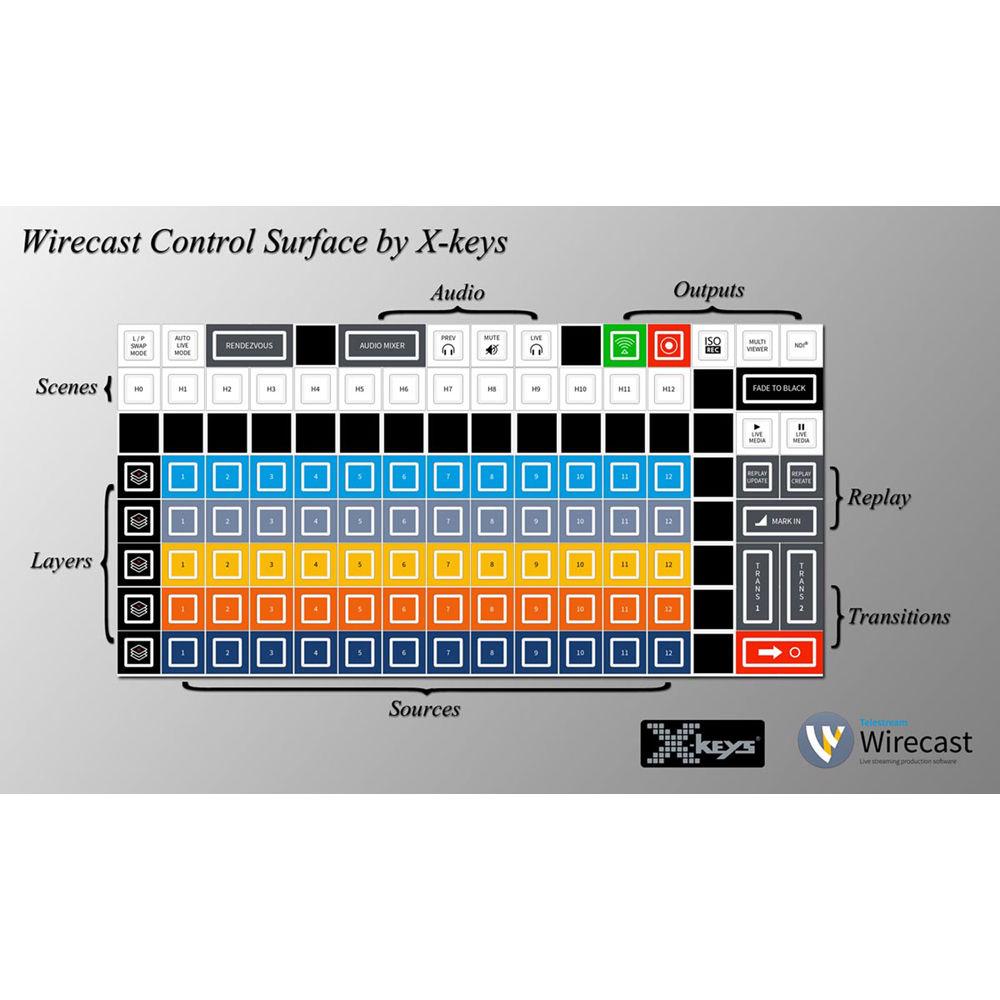

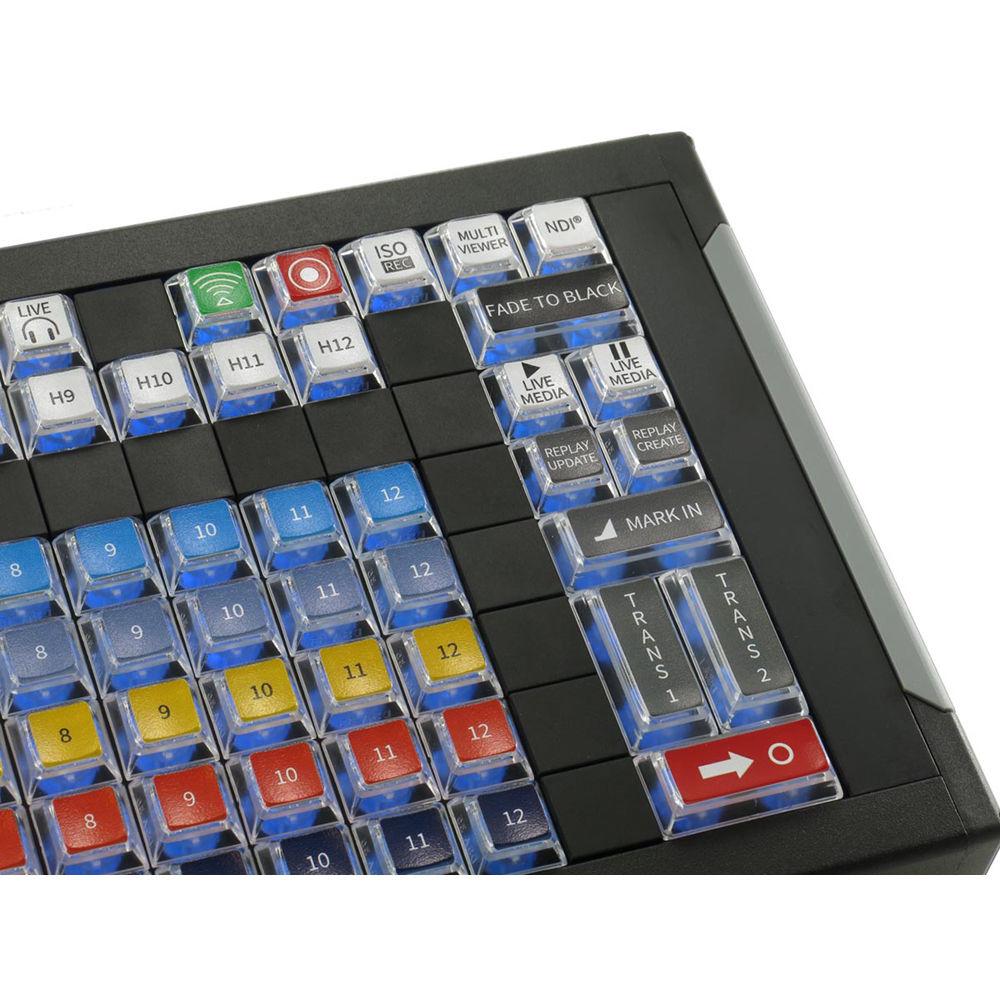

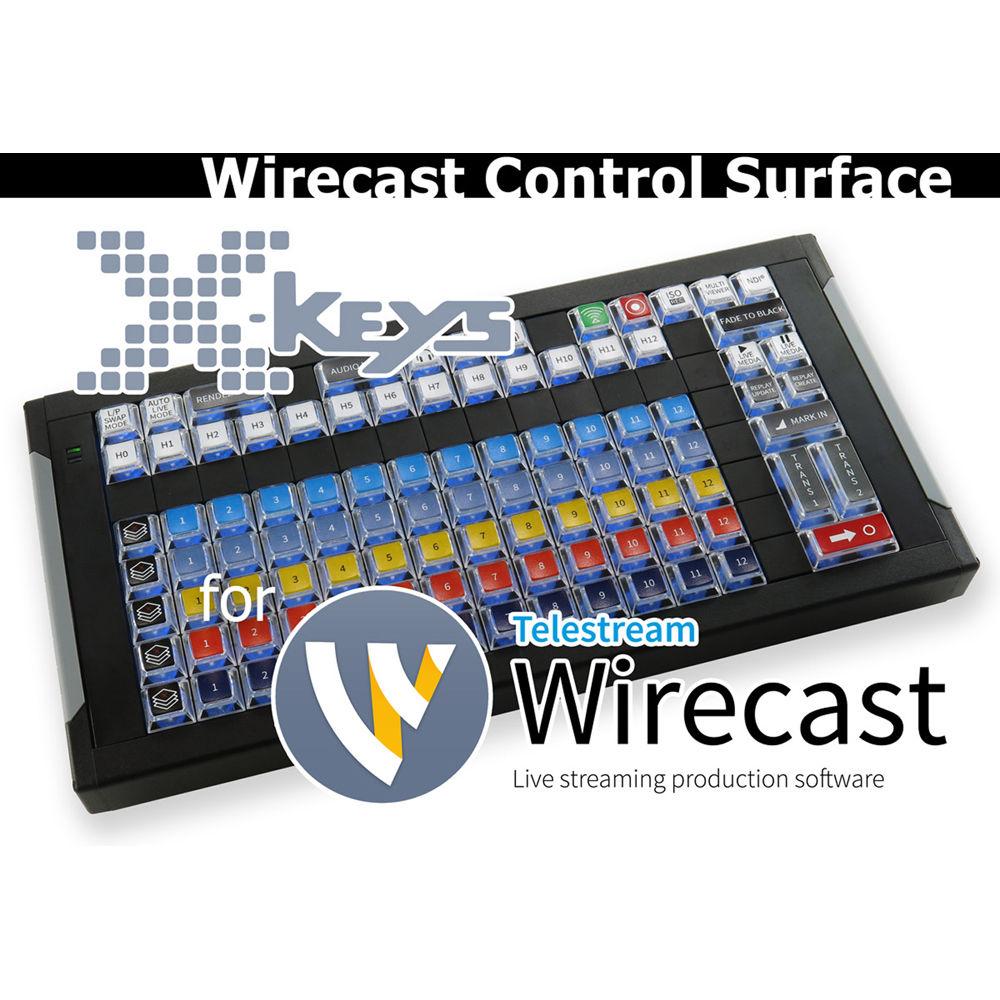

Product description The X-keys Wirecast Control Surface for Wirecast 9 supports both the Windows and Mac versions of Wirecast Studio and Pro version 9 and later. The layout of the keyboard was designed by Telestream to work seamlessly with their software. The keyboard provides full control of layers, sources, transitions, and direct selection of 12 sources on five layers.
The keyboard comes with an integrated USB cable, that connects to your computer's USB 3.0 port. This provides both communication between your computer and the keyboard, as well as power to the keyboard. Blue and red backlighting helps you identify the keys in dim environments, and the backlight is addressable to individual keys. UPC: 703273015060 In the Box X-keys Wirecast Control Surface for Wirecast 9 Set Angled Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the X-keys Wirecast Control Surface for Wirecast 9 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersX-keys Wirecast Control Surface Specs | Operating System | Windows
7, 8, 10
Mac
macOS Sierra
Mac OS X El Capitan | | Switch Type | Full-travel rubber dome
Carbon on gold contacts | | Actuation Force | Break-Over: Approx. 2.5 oz / 72 g
Hold: Approx. 1.5 oz / 42 g | | Keys | Key Cap Type: UV cured acrylic legends with Cherry MX compatible stem
Key Cap Size: 0.625" / 16 mm sq.
Key Spacing: 0.75" / 1.91 cm O.C.
Optional Keys: 2x1, 1x2, 2x2
Backlighting: 128 blue and 128 red LEDs, individually addressable | | Power | Source: USB port
Voltage: 5 VDC
Current Draw
No Backlight: 37 mA
Blue Backlight Full: 176 mA
Red Backlight Full: 265 mA
All Backlights Full: 358 mA | | Connector | USB 3.0 type-A | | Cord Length | 118" / 299.72 cm | | Temperature & Humidity | Temperature: -4 to 140°F / -20 to 60°C
Humidity: 80% Rh, non-condensing | | Environmental Rating | IP 40 | | Certifications | FCC class B, CE, RoHS, WEEE compliant | | Dimensions | 14 x 7.3 x 1.8" / 35.56 x 18.54 x 4.57 cm | | Weight | 4.7 lb / 2.1 kg | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 16.0 x 11.0 x 2.0" |
