Product description
Macroworks 3.1 Tour
Text Feature
Keystroke Feature
Shortcut Feature
X-keys XKE-128 Product Video

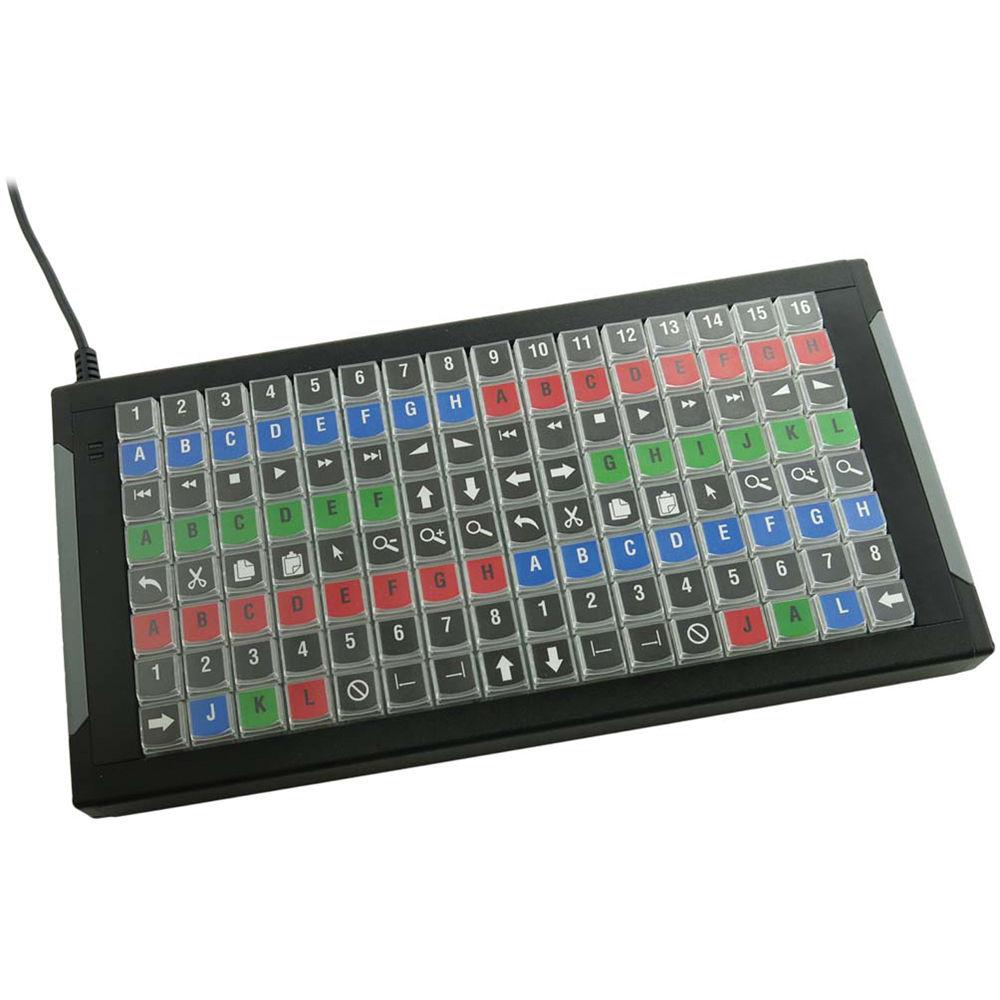

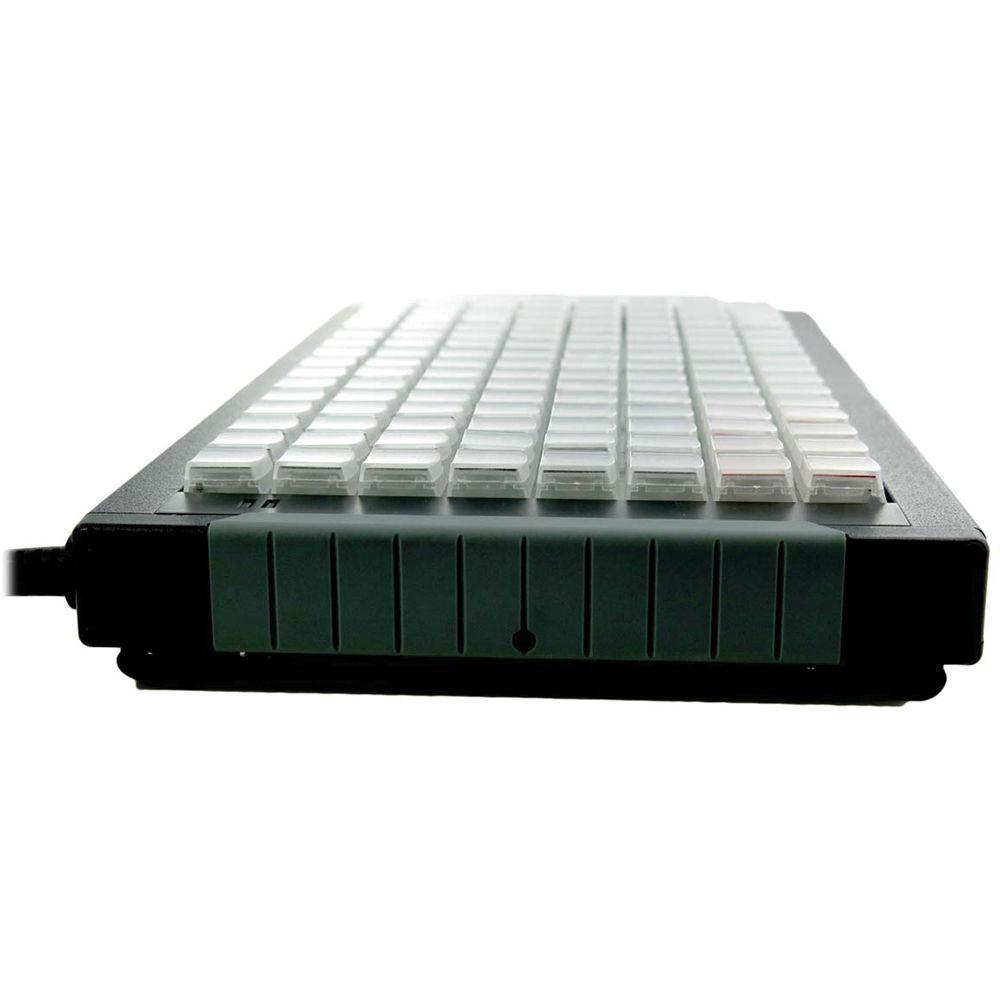

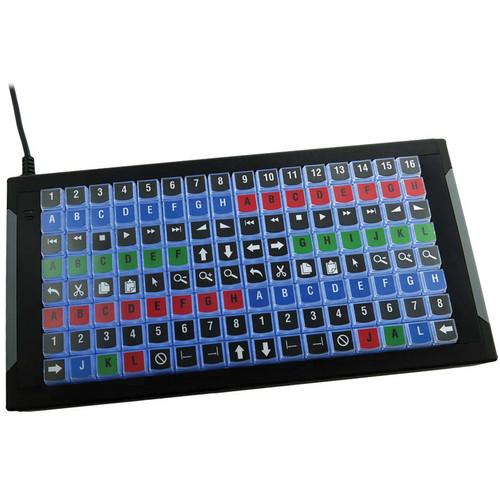

The XK-128 Customizable USB Keyboard is a universal control surface from X-keys that features 128 keys as well as a programming button. The keys can be configured to take the place of any keyboard shortcut or macro available within the application you are using. It includes programming software for Windows and OS X, however can be used with any operating system that supports HID USB devices. For customized applications there are also SDKs available for Windows, OS X, and Linux. It is compatible with USB 1.1 and later and receives its power from the computer. A 56" integrated USB cable is included.

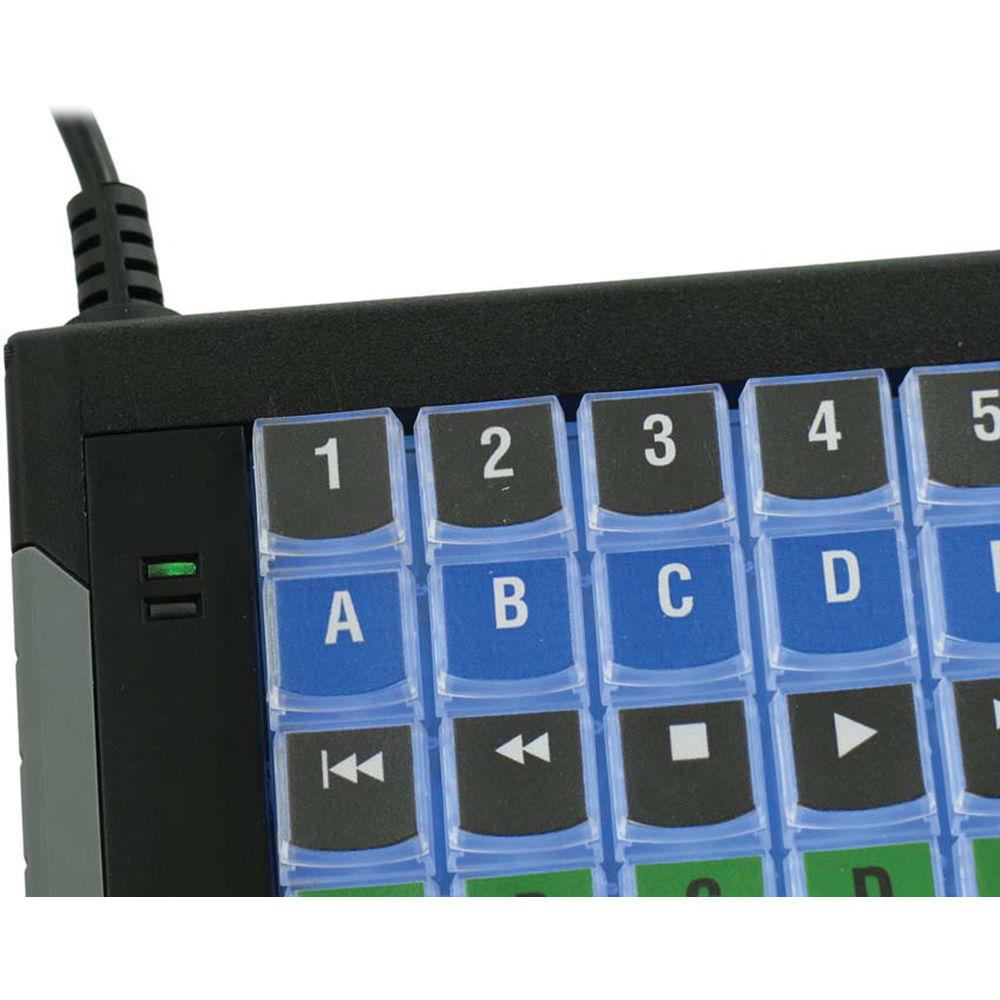

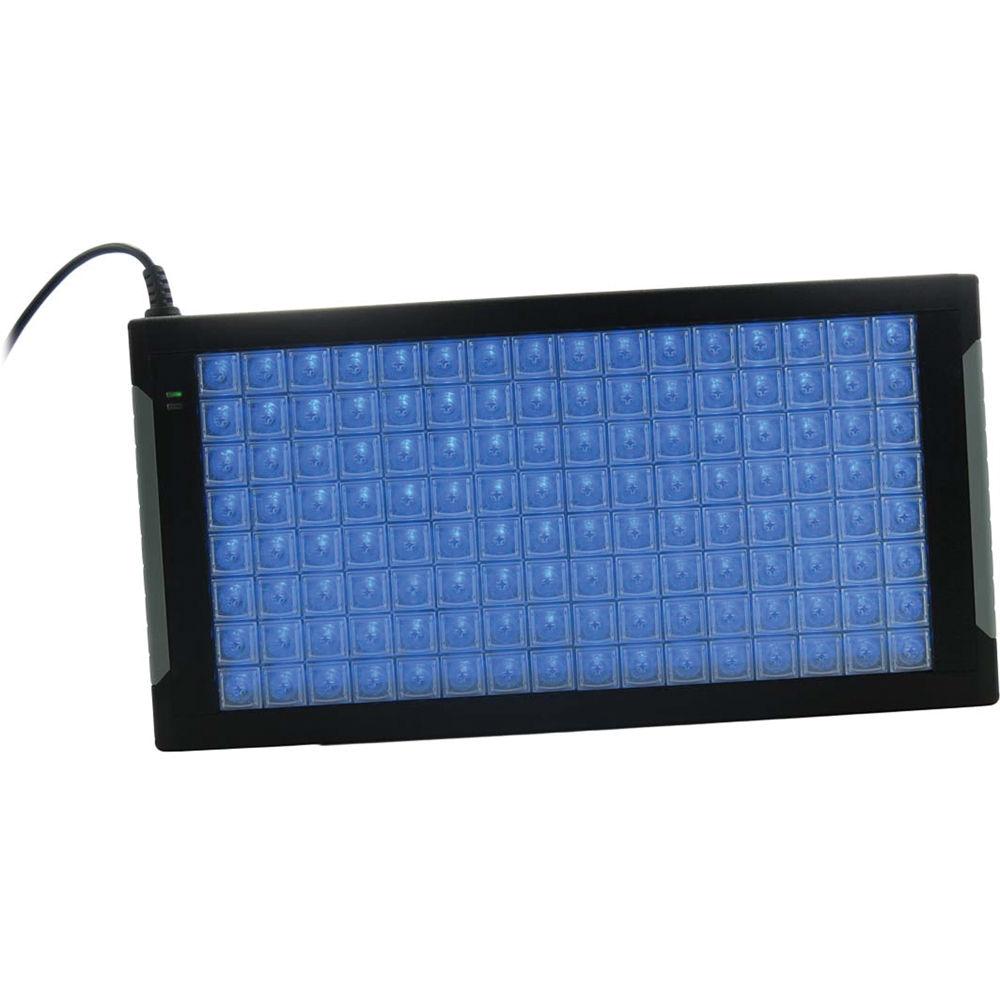

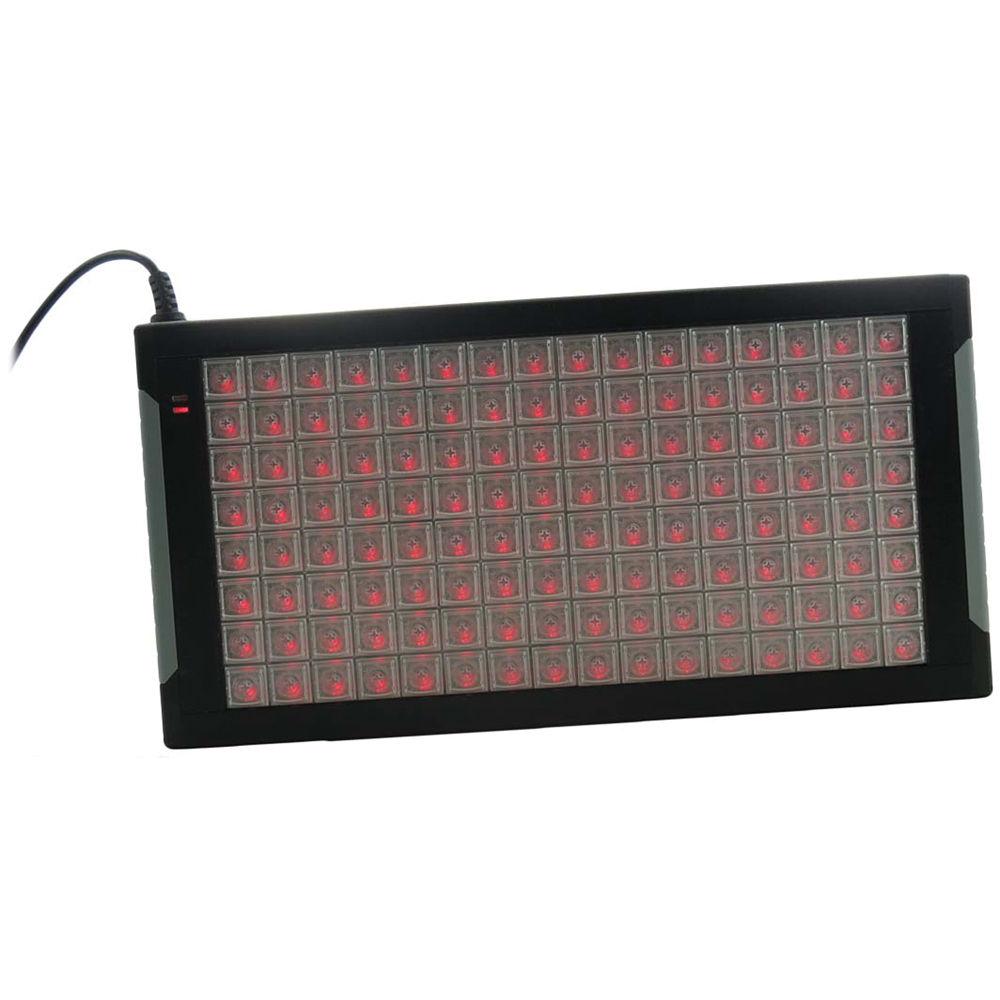

LED Backlit Relegendable Key Caps
Each key is backlit with both a red and blue LED. The ledgends and keycaps can be customized to suit your specific requirements, and replacements of both are available as accessories
Suits Diverse User Groups
Compatible with a wide variety of software and platforms, the control surface is adaptable to a diverse range of industries. Some examples include: broadcasting, sports data, video editing, audio engineering, photo editing, trading, live media control, and digital content creation
Emulations Modes
Emulates keyboard, mouse, game controller, and media commands
Additional Features

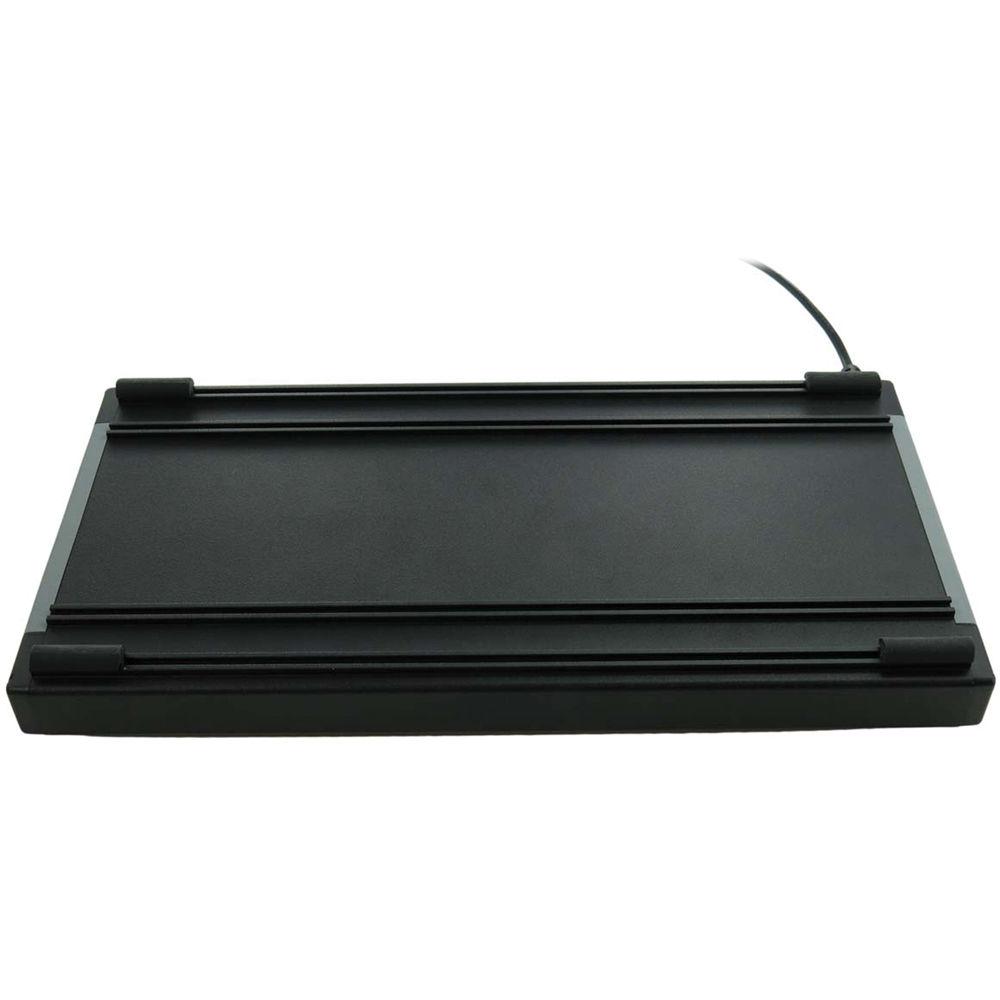

Removable feet allows the control surface to sit at an angle
Bus powers through USB
Integrated 56" USB cable
Optional rackmount kit available
Software Features
MacroWorks 3.1 for Windows (Included)
Launch programs, insert Unicode, open files and directories, select tools and more
Controls backlighting on individual keys
Supports custom scripting with Visual Basic
Supports most X-keys SE, MWII, and Pi3 USB devices
ControllerMate for Mac OS X (Included)
Launch programs, open files and directories, select tools and more
Controls backlighting on individual keys
Supports most X-keys Pi3 devices
P.I. Engineering SDK (Free Download)
Code examples in Visual Studio C# 2008 Express, C++ 2005, and Visual Basic 2008 Express
Supports all X-keys SE, MWII, and Pi3 USB devices
Linux SDK (Free Download)
Supports all X-keys Pi3 devices
A cross platform solution for Linux, Windows, and Mac
Reads all keys and controls
Sets backlighting levels and states
Android Code Samples (Free Download)
Supports all X-keys Pi3 devices
Reads all keys and controls
Java-based
Sets backlighting levels and states

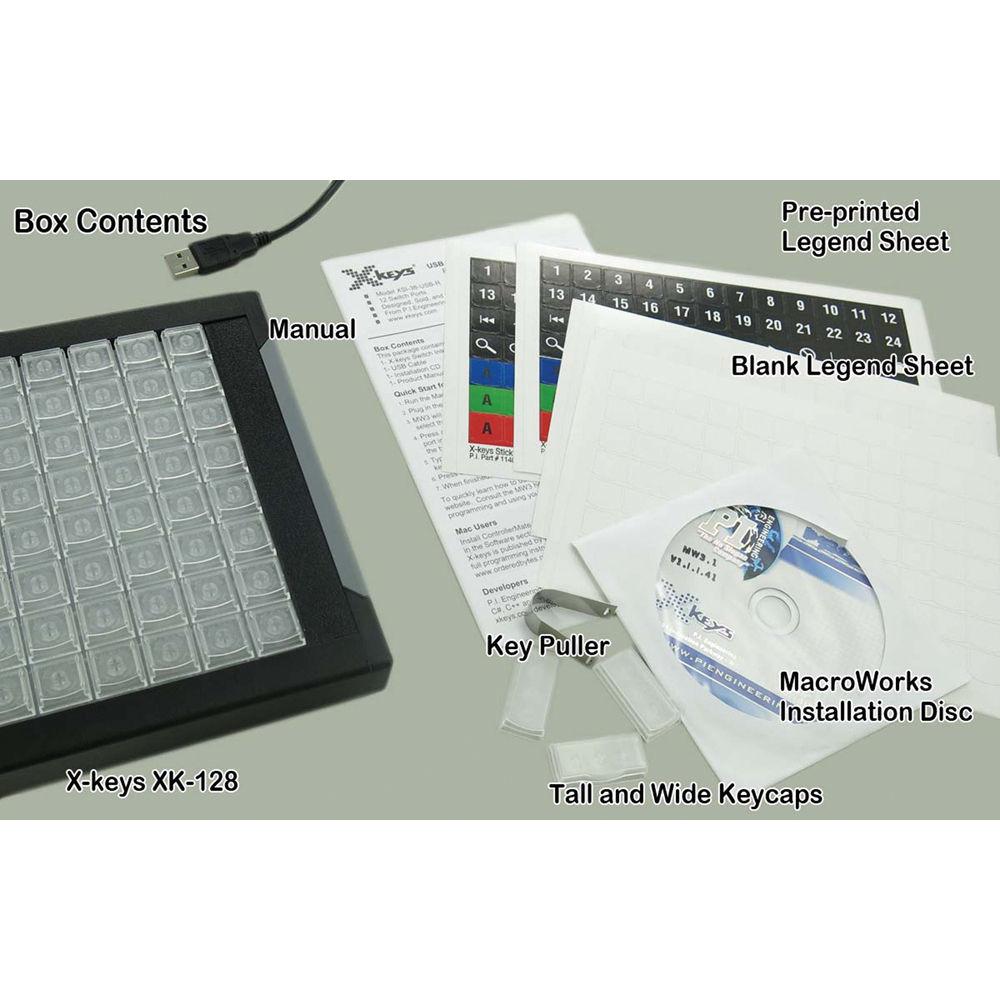

UPC: 703273012250 In the Box X-keys XK-128 Customizable USB Keyboard
Limited 1-Year Warranty
User Manual PDF 238.5kbrubvbfcqdsuvcdwqwyxsctss Table of Contents
Upload User Manual
Have you got an user manual for the X-keys XK-128 Customizable USB Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
X-keys XK-128 Specs
Number of Keys
129
Switch Type
Rubber Dome
Actuation Force
72 g
Key Size
0.62" / 16 mm
Connection Type
Wired
System Connection
USB Type-A
Backlight
Yes, Individually Lit
LED Colors
Blue, Red
Built-In Control Device
None
Maximum Current Consumption
358 mA
Operating Temperature
-4 to 140°F / -20 to 60°C
Cable Length
56" / 142 cm
Dimensions (L x W x H)
14.0 x 7.3 x 1.8" / 279.0 x 185.0 x 46.0 mm
Weight
3.7 lb / 1.7 kg
Package Weight
4.95 lb
Box Dimensions (LxWxH)
16.1 x 11.4 x 2.2"
