Product description The XK-1443-OYRG-BU Bundle from X-keys includes the USB 3-switch interface, three Orby switches (red, green, and yellow), and a TRRS 3-way splitter cord. The USB 3-switch interface easily converts any switch closure to a keyboard, multimedia, or mouse command. It connects to the three wired switches using the TRRS splitter cord. The splitter cord features one 3.5mm TRRS plug split to three 3.5mm mono jacks. Each switch can be programmed with a function to trigger an action on your computer or tablet. - USB Three-Switch Interface The small, versatile USB Three-Switch Interface from X-keys is capable of supporting up to three wired switches or pedals using an optional adapter (sold separately). The USB interface comes equipped with a single USB connector and a single 3.5 mm jack which supports a variety of USB codecs including HID keyboard, HID mouse, HID game controller, and HID multimedia.
- Accepts up to three switches via 3.5mm TRRS port with optional adapter
- Connects to USBs port like a USB keyboard
- Accepts 3.5mm mono, stereo, or TRRS plugs
- Any contact closure can be converted to a USB HID command
- Choose from our selection of hand or foot operated switches or use your own

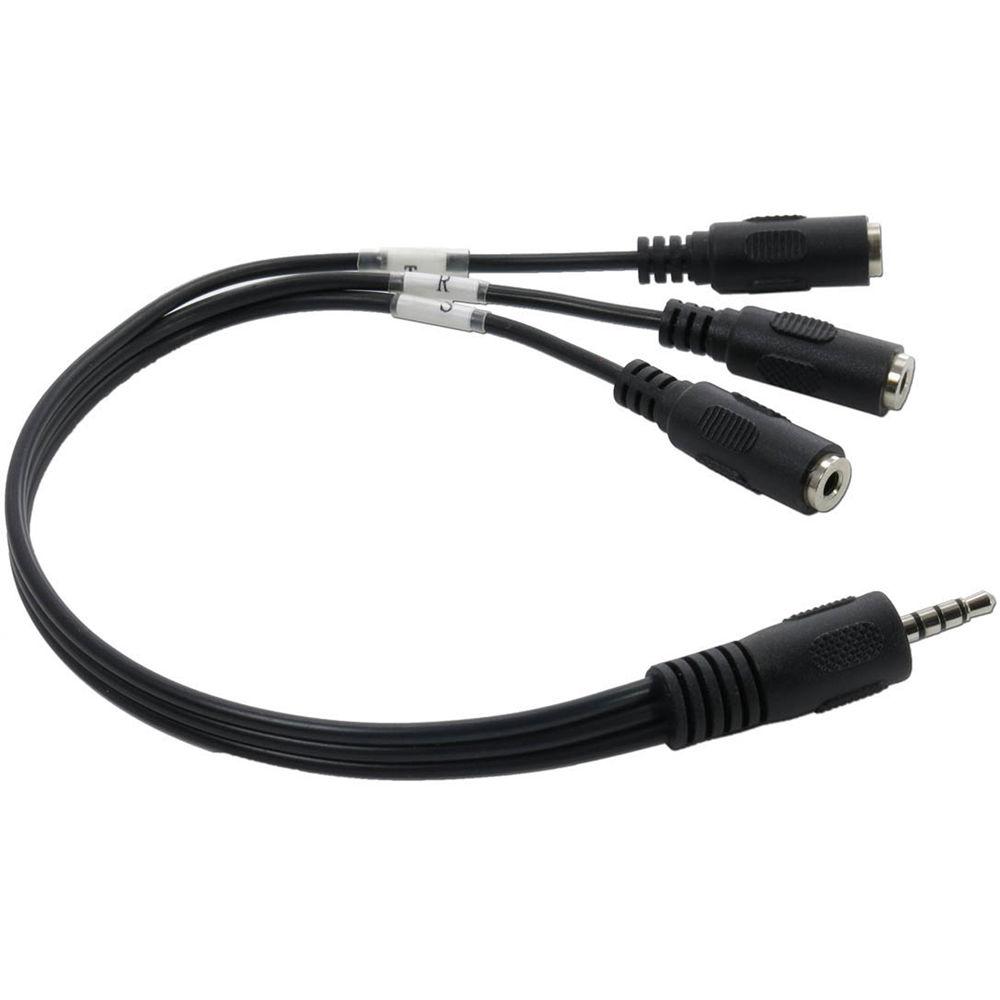

UPC: 703273012830 - TRRS 3-Way Splitter The TRRS-R 3-Way Splitter adapter cable from X-keys is a switch-interface cord splitter which allows three switches to connect to the X-keys USB 3-Switch Interface. It features a 3.5mm TRRS (3-way) connection plug and splits the signal into three 3.5mm mono jacks. UPC: 703273013103

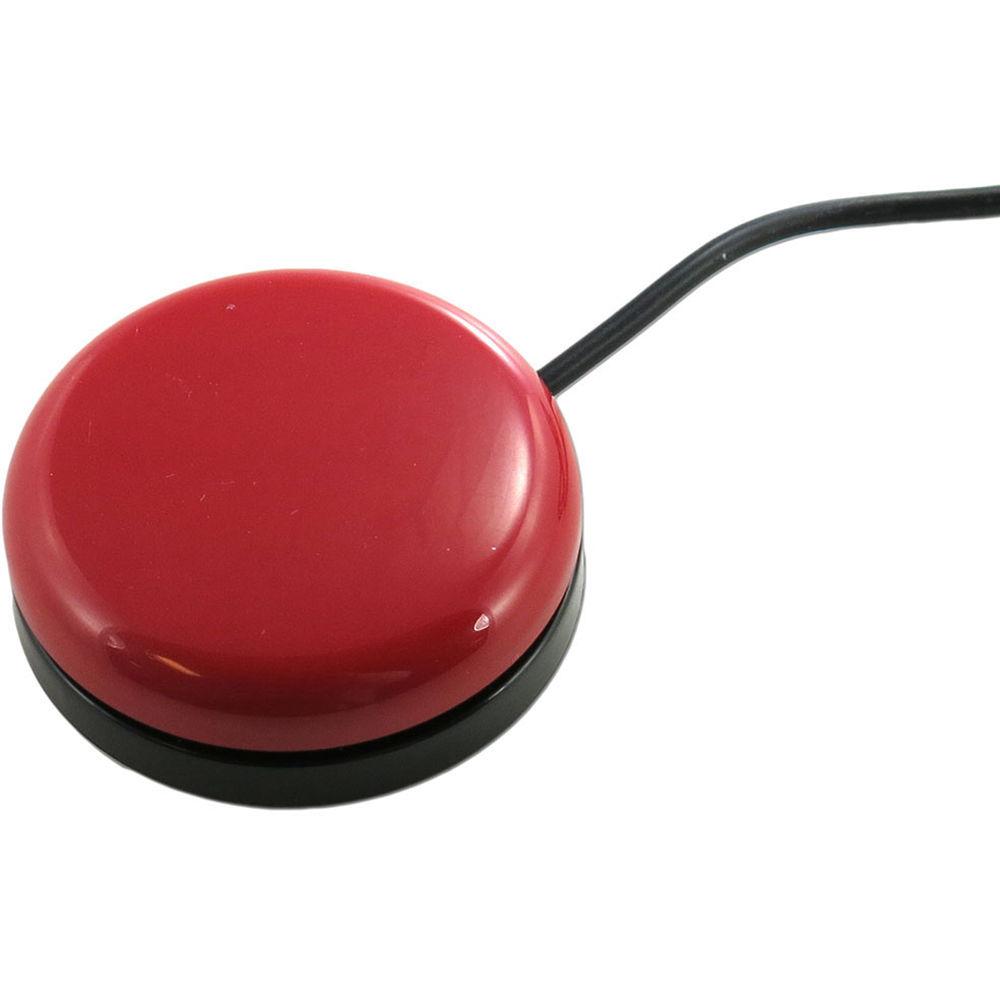

- Orby Switch Controller (Red) The red XK-A-1218-R Orby Switch Controller from X-keys can control any computer-based application and works with either the X-keys USB 3 or 12 Switch Interfaces. It is designed for assistive technology or industrial applications, such as assistive touch, transcription, and prompting, and can be triggered with fingers, toes, knees or elbows. The Orby Switch is capable of working in studios, labs, and offices, as well as with programs such as CuePrompter, Windows, Dragon Naturally Speaking, and DocWrite. The Orby is suitable for mouse click, key press, or other operations where a momentary activation is required.
Orby utilizes the industry standard 3.5mm plug. Simply plug it into the 3.5mm jack on a switch-activated device. - Pressure activated with auditory click
- For use with the X-keys USB Switch Interface
- Suitable for Assistive Technology or industrial applications
- Trigger computer commands with fingers, toes, knees, or elbows

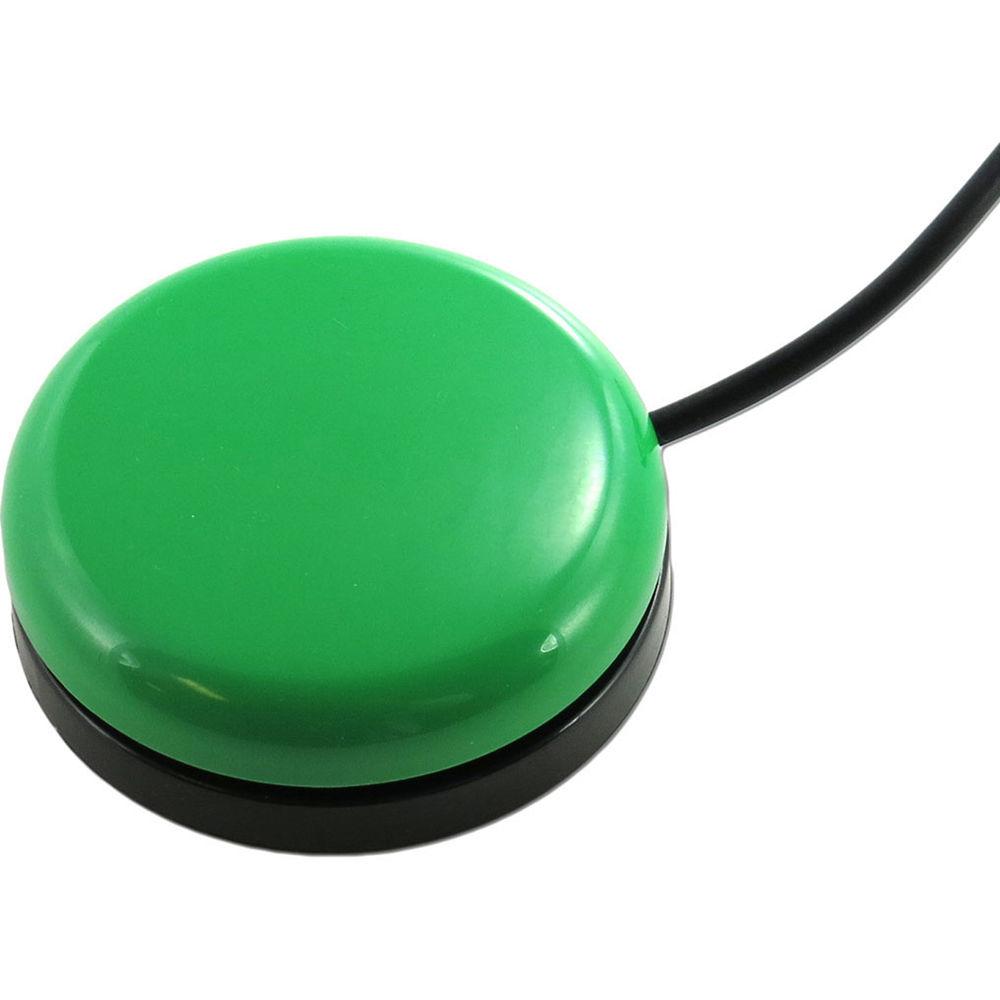

UPC: 703273012182 - Orby Switch Controller (Green) The green XK-A-1221-R Orby Switch Controller from X-keys can control any computer-based application and works with either the X-keys USB 3 or 12 Switch Interfaces. It is designed for assistive technology or industrial applications, such as assistive touch, transcription, and prompting, and can be triggered with fingers, toes, knees or elbows. The Orby Switch is capable of working in studios, labs, and offices, as well as with programs such as CuePrompter, Windows, Dragon Naturally Speaking, and DocWrite. The Orby is suitable for mouse click, key press, or other operations where a momentary activation is required.
Orby utilizes the industry standard 3.5mm plug. Simply plug it into the 3.5mm jack on a switch-activated device. - Pressure activated with auditory click
- For use with the X-keys USB Switch Interface
- Suitable for Assistive Technology or industrial applications
- Trigger computer commands with fingers, toes, knees, or elbows

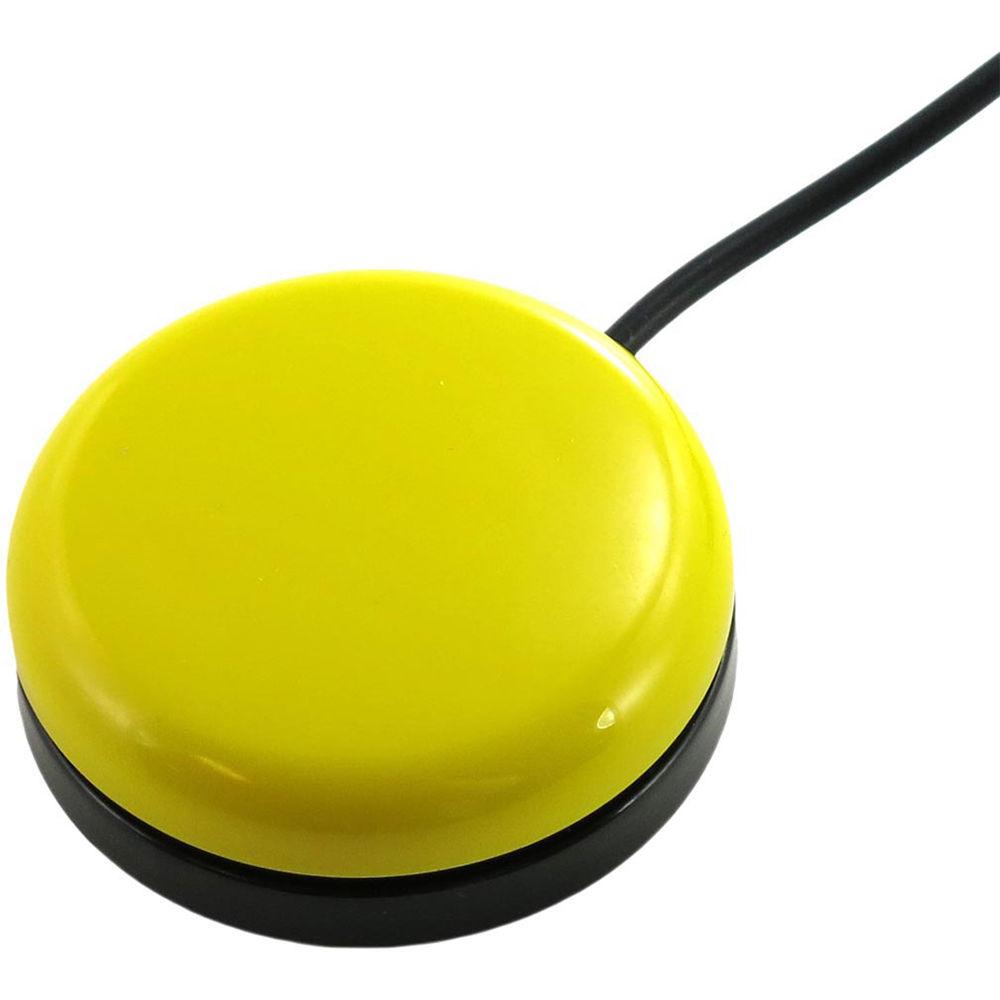

UPC: 703273012212 - Orby Switch Controller (Yellow) The yellow XK-A-1219-R Orby Switch Controller from X-keys can control any computer-based application and works with either the X-keys USB 3 or 12 Switch Interfaces. It is designed for assistive technology or industrial applications, such as assistive touch, transcription, and prompting, and can be triggered with fingers, toes, knees or elbows. The Orby Switch is capable of working in studios, labs, and offices, as well as with programs such as CuePrompter, Windows, Dragon Naturally Speaking, and DocWrite. The Orby is suitable for mouse click, key press, or other operations where a momentary activation is required.
Orby utilizes the industry standard 3.5mm plug. Simply plug it into the 3.5mm jack on a switch-activated device. - Pressure activated with auditory click
- For use with the X-keys USB Switch Interface
- Suitable for Assistive Technology or industrial applications
- Trigger computer commands with fingers, toes, knees, or elbows

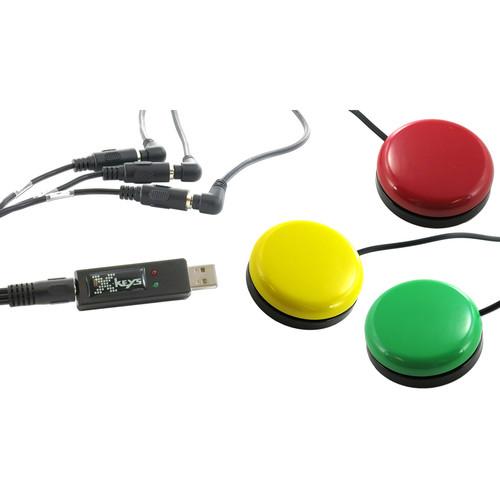

UPC: 703273012199 In the Box Bundle Items USB Three-Switch Interface sfrwbqzxsserbzettdxysue TRRS 3-Way Splitter Orby Switch Controller (Red) Orby Switch Controller (Green) Orby Switch Controller (Yellow) Table of Contents
|
Upload User Manual
Have you got an user manual for the X-keys XK-1443-OYRG-BU USB 3-Switch Interface Bundle with 3 Orby Switches & TRRS 3-Way Splitter Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - USB Three-Switch Interface
| Operating system | Any OS via USB HID | Programming: Windows XP through 8, Mac OS X 10.4 through 10.10 | | Programming Software | Windows: MacroWorks 3.1
Android: X-keys Android
Mac OS X: ControllerMate
| | Software Development Kits | Windows (C++, C#, VB.NET)
Linux (C++)
Android (Java)
Raw HID (any language/OS)
USB Codes Supported: HID keyboard, HID mouse, HID game controller, HID multimedia | | Ports | 1x 3.5mm TRRS (Tip-Ring-Ring-Sleeve) accepts 3.5mm mono, stereo, or TRRS plug; May be split to accept up to three switches
| | Connector | USB 2.0 standard "A" plug
USB 1.1, compatible through 3.0 | | Wiring Distance | Up to 1,000' (300 m) from switch to port | | Memory | Memory Capacity: Approximately 1000 keystrokes or commands
Memory Type: EEPROM, non volatile memory (X-keys retains memory for over 200 years) | | Power | Power Source: USB port, nominal voltage = 5 VDC
Power Consumption: 21 mA @ 5 VDC | | Environmental | Temperature Range: -4 to 140°F / -20 to 60°C
Environmental Rating: IP 40, typical indoor office environment | | Certification | FCC class B, CE, RoHS, WEEE compliant | | Dimensions | 2.8 x 0.75 x 0.5" (71 x 19 x 13 mm) | | Weight | 0.8 oz (23 g) | | | | Box Dimensions (LxWxH) | 7.323 x 5.433 x 1.732" | - TRRS 3-Way Splitter
| Cable Type | Splits a 3-way 1/8" / 3.5 mm TRRS into 3 separated 1/8" / 3.5 mm mono signals | | | | Box Dimensions (LxWxH) | 5.5 x 3.2 x 0.5" | - Orby Switch Controller (Red)
| Actuation Force | 3.5 oz (100 gr) | | Switch Travel | Activation: 0.02" (0.5 mm)
Full travel: 0.05" (1.3 mm) | | Cord Length | 5' (1.5 m) | | Connector Type | 1/8" (3.5 mm) right angle mono plug | | Threaded Inserts | #6-32, brass x 2 | | Insert Spacing | 1.1" (28 mm) O.C. - centered on switch body | | Friction Pad | 0.0625" (1.6 mm) thick | | Internal Dampers | High-density urethane | | Voltage | Less than 32 V | | Current | Less than 1 A | | Conductors | Rated for severe duty | | Dimensions (Diam. x H) | 2.5" x 0.87" (64 x 22 mm) | | RoHS | Compliant | | Weight | 2.75 oz (80 g) with cord and pad | | | | Box Dimensions (LxWxH) | 8.25 x 5.3 x 0.8" | - Orby Switch Controller (Green)
| Actuation Force | 3.5 oz (100 gr) | | Switch Travel | Activation: 0.02" (0.5 mm)
Full travel: 0.05" (1.3 mm) | | Cord Length | 5' (1.5 m) | | Connector Type | 1/8" (3.5 mm) right angle mono plug | | Threaded Inserts | #6-32, brass x 2 | | Insert Spacing | 1.1" (28 mm) O.C. - centered on switch body | | Friction Pad | 0.0625" (1.6 mm) thick | | Internal Dampers | High-density urethane | | Voltage | Less than 32 V | | Current | Less than 1 A | | Conductors | Rated for severe duty | | Dimensions (Diam. x H) | 2.5" x 0.87" (64 x 22 mm) | | RoHS | Compliant | | Weight | 2.75 oz (80 g) with cord and pad | | | | Box Dimensions (LxWxH) | 7.7 x 6.0 x 0.3" | - Orby Switch Controller (Yellow)
| Actuation Force | 3.5 oz (100 gr) | | Switch Travel | Activation: 0.02" (0.5 mm)
Full travel: 0.05" (1.3 mm) | | Cord Length | 5' (1.5 m) | | Connector Type | 1/8" (3.5 mm) right angle mono plug | | Threaded Inserts | #6-32, brass x 2 | | Insert Spacing | 1.1" (28 mm) O.C. - centered on switch body | | Friction Pad | 0.0625" (1.6 mm) thick | | Internal Dampers | High-density urethane | | Voltage | Less than 32 V | | Current | Less than 1 A | | Conductors | Rated for severe duty | | Dimensions (Diam. x H) | 2.5" x 0.87" (64 x 22 mm) | | RoHS | Compliant | | Weight | 2.75 oz (80 g) with cord and pad | | | | Box Dimensions (LxWxH) | 5.3 x 4.2 x 0.9" |
