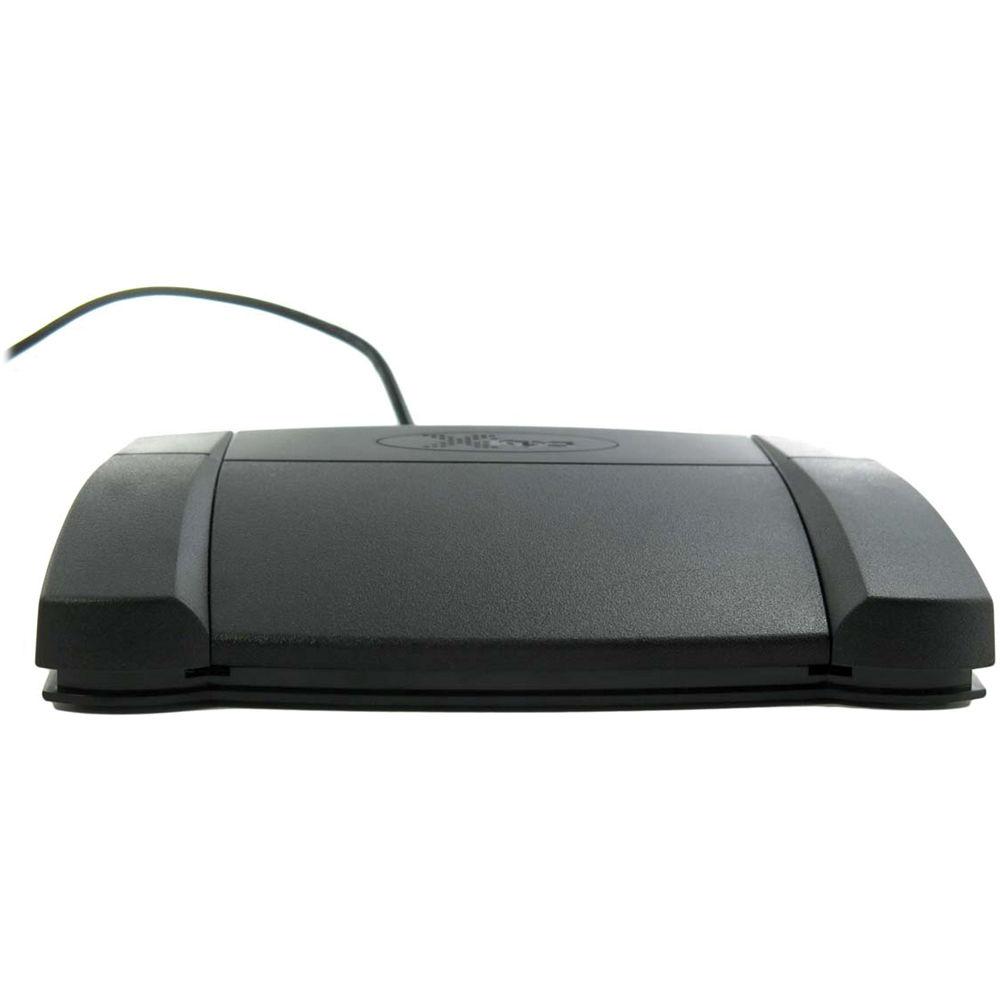

User Manual for X-keys XK-3 Rear Hinged Foot Pedal Click to enlarge the picture
Contents of the user manual for the X-keys XK-3 Rear Hinged Foot Pedal
- Product category: Gaming Controllers X-keys
- Brand: X-keys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for X-keys Gaming Controllers
 |
User manual for the X-keys XK-3 Rear Hinged Foot Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any X-keys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official X-keys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a X-keys product will considerably shorten its lifespan!
|

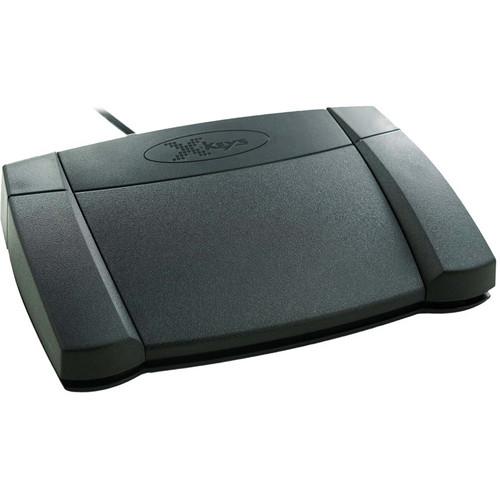

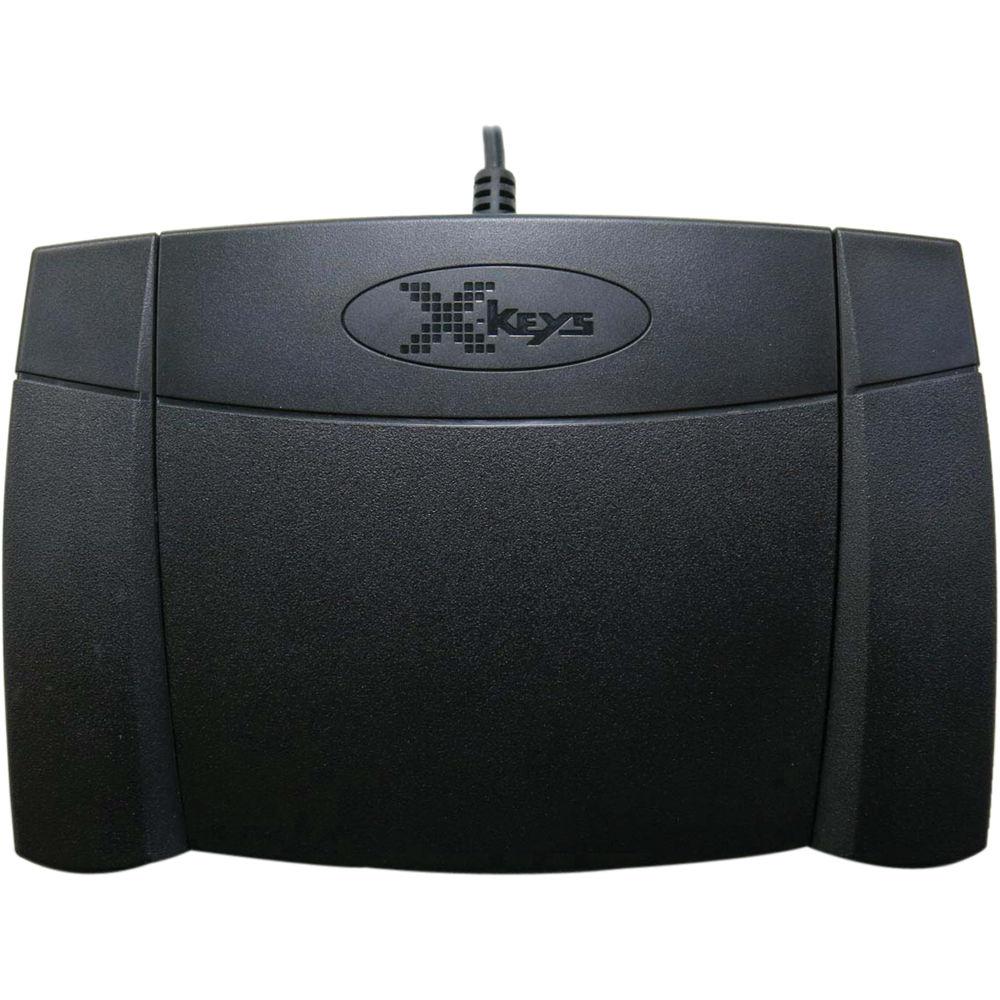

Product description The XK-3 Rear Hinged Foot Pedal from X-keys is a computer navigation device that provides the same functionality as pressing buttons on a mouse. It is USB plug-and-play with virtually all operating systems, and also supports programming on Windows and OS X for use in custom applications.
This version is rear-hinged, and is ideal for functions where continuous activation serves the task (transcription playback for example). There is also a front-hinged version for functions where momentary activation serves the task (mouse clicking for example). - Use Instead of a Mouse
- Holding the center pedal down keeps the mouse button active to allow for drag and drop operations. Clicking with a foot can help alleviate RSI (repetitive stress) issues if the operator experiences pain performing mouse click operations by hand
- Three Programmable Pedals

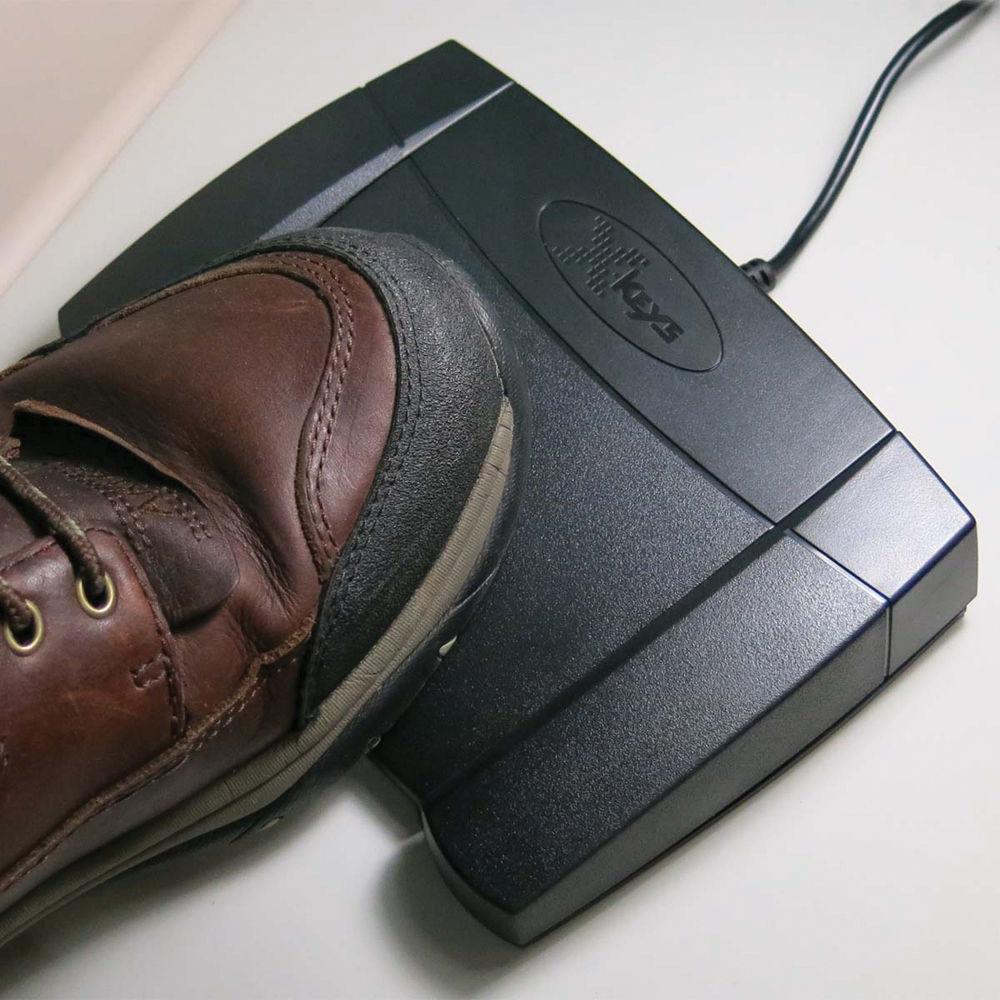

- This version features rear-hinge pedals; resting a foot on the center pedal activates a command. This design is optimized for dictation playback, microphone activation, or media playback. The outside pedals provide additional functions and are easily reached to the left or right of the main pedal
- Software Reprogramming and SDK Support
- Although the XK-3 works universally with any operating system or software that accepts mouse inputs, you may want to program it for custom applications. To this end, X-keys provides free tools downloadable from their website. For Windows they offer MacroWorks 3.1 and for OS X they offer ControllerMate. In addition, SDKs (software developer kits) are available with support for multiple programming languages for Windows, Linux, Android, and Raw HID, the latter supporting any language and OS

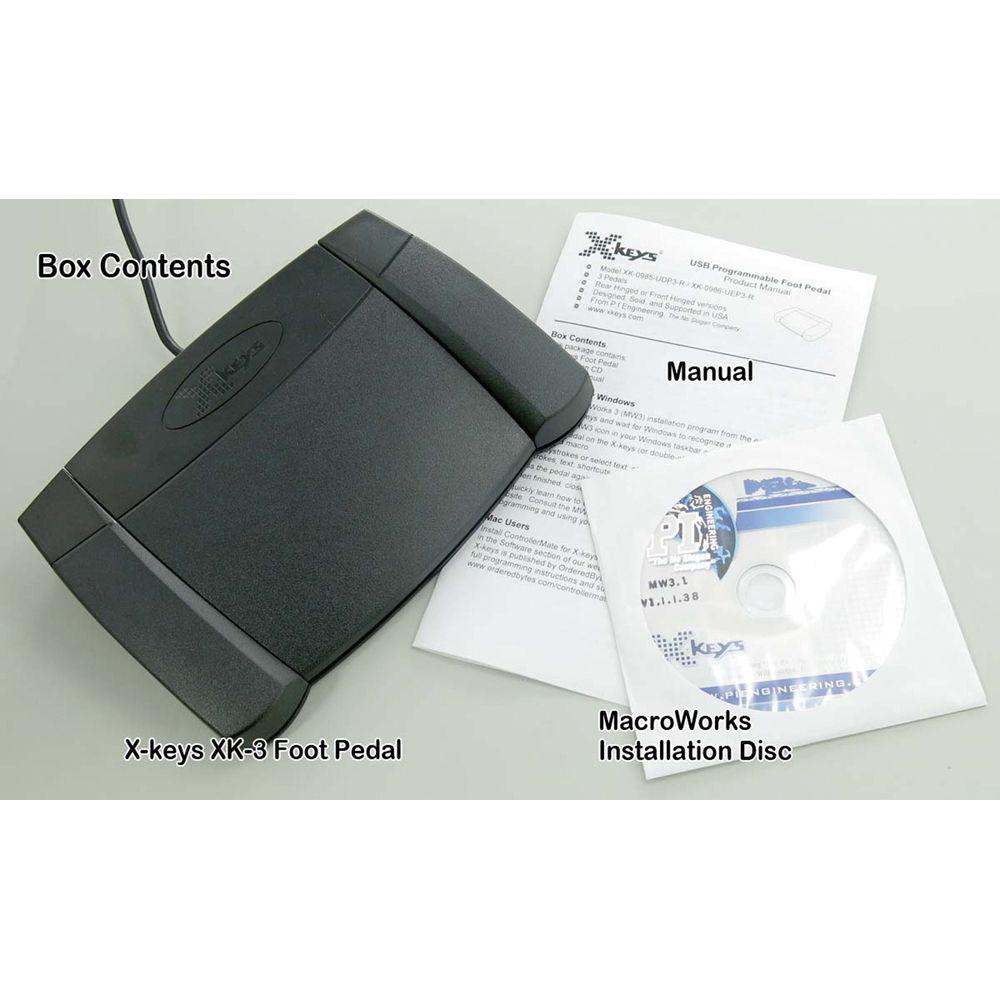

UPC: 703273009861 In the Box X-keys XK-3 Rear Hinged Foot Pedal Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the X-keys XK-3 Rear Hinged Foot Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersX-keys XK-0986-UEP3-R Specs | System Requirements | Operating System
Operation: Any OS via USB HID
Programming: Windows XP to 8; Mac OS X 10.4 to 10.8 | | Emulation Modes | HID keyboard, HID mouse, HID game controller | | Switch Type | Microswitch with audible click; rated for over 1 million operations | | Number of Pedals | 3 x Programmable pedals | | Actuation Force | Approximately 34 to 90 oz (1.0 to 2.5 kg), depending on distance from hinge | | Memory | Type: EEPROM, non volatile memory
Capacity: Approximately 1000 keystrokes or commands | | USB | Connector: 1 x USB 2.0 type A -- integrated 92" (234 cm) USB cable
Standard: USB 1.1 (compatible through 3.0) | | Power Requirements | 5 VDC via USB interface | | Power Consumption | 18 mA at 5 VDC | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 8.1 x 5.5 x 1.6" / 20.6 x 14.0 x 4.1 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 8.7 x 7.6 x 1.9" |
