User Manual for X-keys XK-68 Joystick Click to enlarge the picture
Contents of the user manual for the X-keys XK-68 Joystick
- Product category: Keyboards X-keys
- Brand: X-keys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for X-keys Keyboards
 |
User manual for the X-keys XK-68 Joystick contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any X-keys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official X-keys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a X-keys product will considerably shorten its lifespan!
|
Product description - Macroworks 3.1 Tour
- Text Feature
- Keystroke Feature
- Shortcut Feature

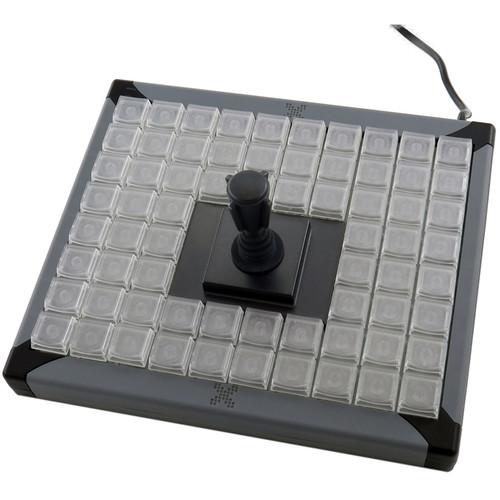

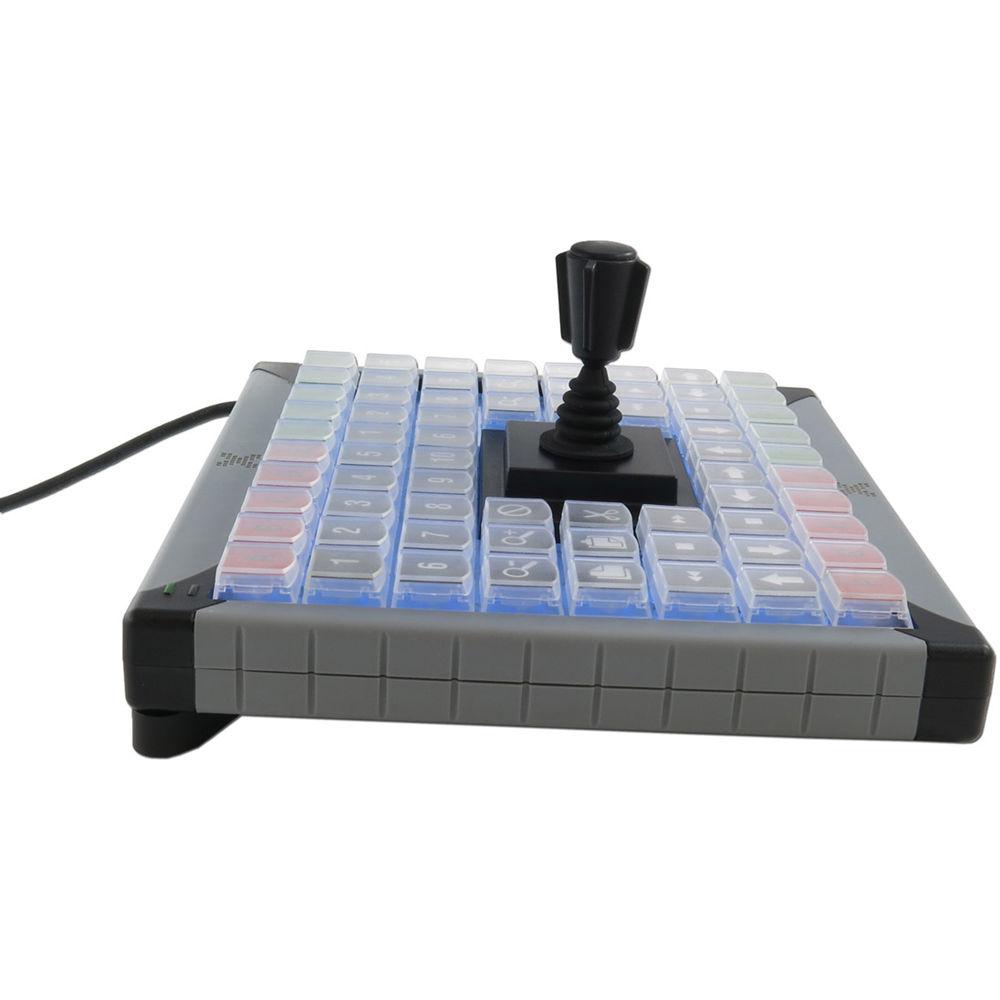

The XK-68+Joystick is a universal control surface from X-keys that features 68 keys, a programming button, and a Joystick. The keys can be configured to take the place of any keyboard shortcut or macro available within the application you are using. It includes programming software for Windows and OS X, however can be used with any operating system that supports HID USB devices. For customized applications there are also SDKs available for Windows, OS X, and Linux. It is compatible with USB 1.1 and later and receives its power from the computer. A 56" integrated USB cable is included.

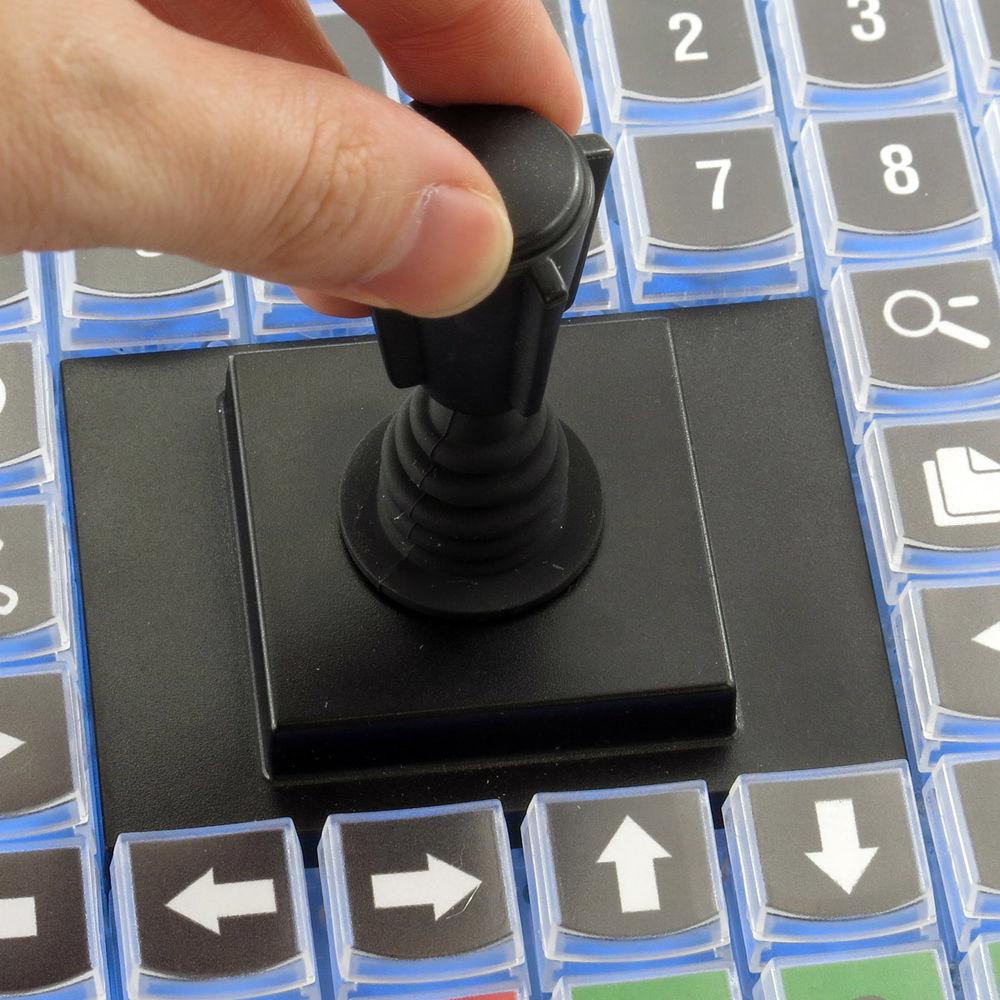

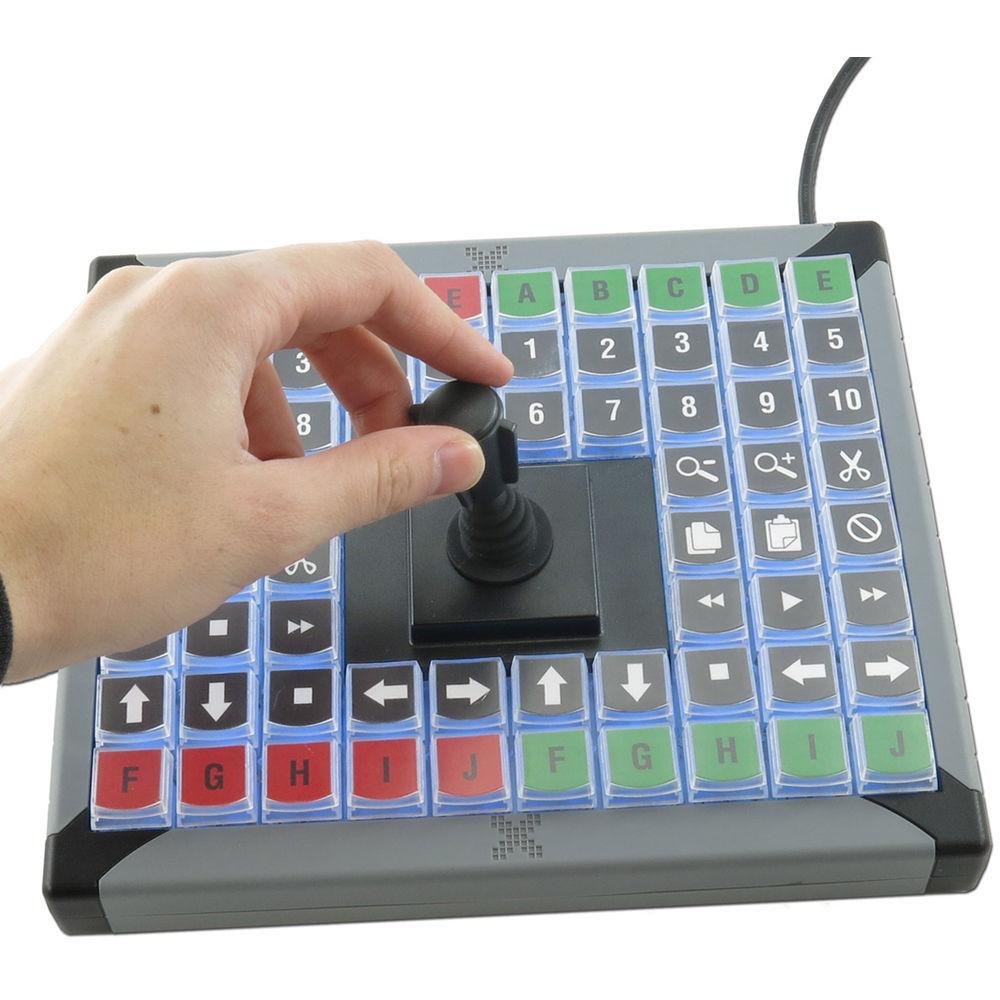

In addition to keys, in the center of this control surface you will find a 3-Axis Joystick. The joystick allows you to operate pan, tilt, and zoom (PTZ) cameras, scanning platforms, or other devices that can move along up to three axes. Z axis control is provided via infinite rotation of the stick. - LED Backlit Relegendable Key Caps
- Each key is backlit with both a red and blue LED. The ledgends and keycaps can be customized to suit your specific requirements, and replacements of both are available as accessories
- Suits Diverse User Groups
- Compatible with a wide variety of software and platforms, the control surface is adaptable to a diverse range of industries. Some examples include: broadcasting, sports data, video editing, audio engineering, photo editing, trading, live media control, and digital content creation
- Emulations Modes
- Emulates keyboard, mouse, game controller, and media commands
- Additional Features
-
- Removable feet allows the control surface to sit at an angle
- Bus powers through USB
- Integrated 56" USB cable
- Optional rackmount kit available
- Software Features
- MacroWorks 3.1 for Windows (Included)
- Launch programs, insert Unicode, open files and directories, select tools and more
- Controls backlighting on individual keys
- Supports custom scripting with Visual Basic
- Supports most X-keys SE, MWII, and Pi3 USB devices
ControllerMate for Mac OS X (Included) - Launch programs, open files and directories, select tools and more
- Controls backlighting on individual keys
- Supports most X-keys Pi3 devices
P.I. Engineering SDK (Free Download) - Code examples in Visual Studio C# 2008 Express, C++ 2005, and Visual Basic 2008 Express
- Supports all X-keys SE, MWII, and Pi3 USB devices
Linux SDK (Free Download) - Supports all X-keys Pi3 devices
- A cross platform solution for Linux, Windows, and Mac
- Reads all keys and controls
- Sets backlighting levels and states
Android Code Samples (Free Download) - Supports all X-keys Pi3 devices
- Reads all keys and controls
- Java-based
- Sets backlighting levels and states

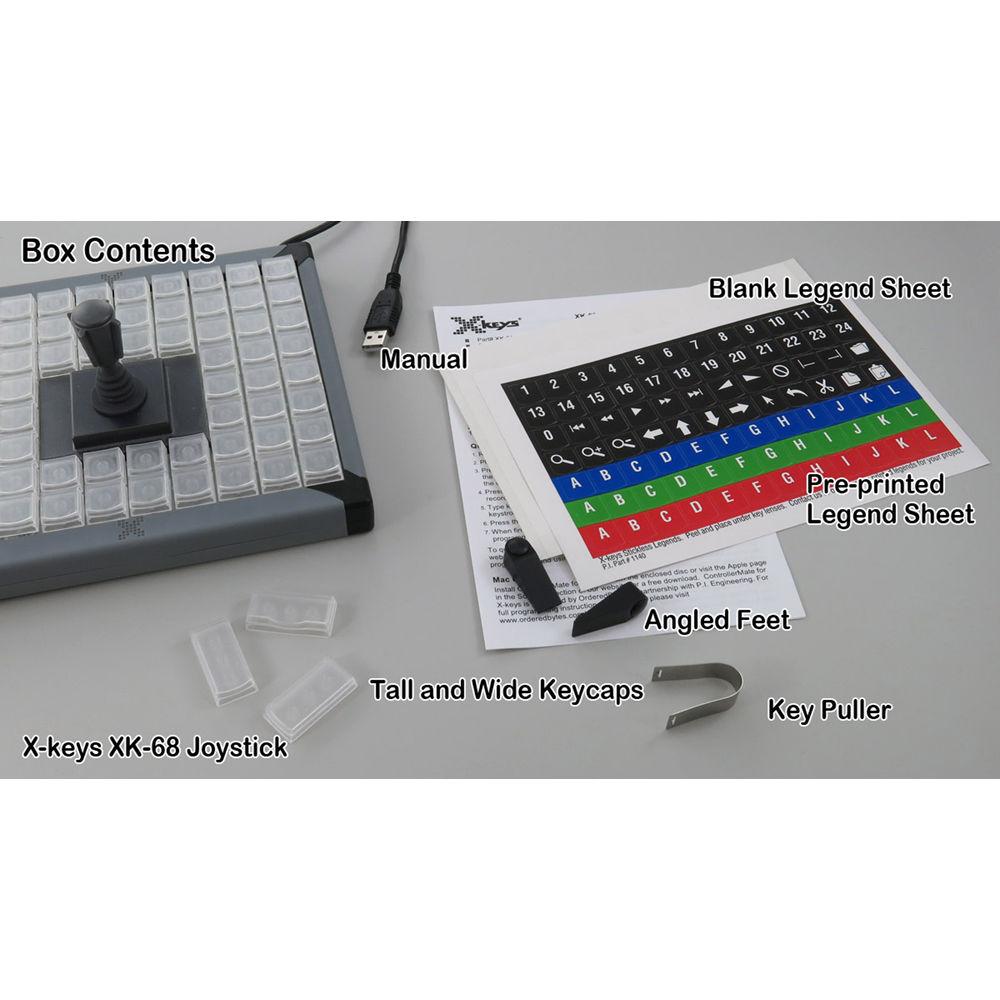

UPC: 703273009892 In the Box X-keys XK-68+Joystick Limited 1-Year Warranty User Manual PDF 251.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the X-keys XK-68 Joystick in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersX-keys XK-68 Specs | | | Number of Keys | 69 | | Switch Type | Rubber Dome | | Actuation Force | 72 g | | Key Size | 0.62" / 16 mm | | | | Connection Type | Wired | | System Connection | USB Type-A | | | | Backlight | Yes, Individually Lit | | LED Colors | Blue, Red | | Built-In Control Device | Joystick | | | | Maximum Current Consumption | 75 mA | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | | | Cable Length | 56" / 142 cm | | Dimensions (L x W x H) | 8.3 x 7.3 x 0.9" / 210.0 x 184.0 x 24.0 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 11.4 x 8.9 x 4.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
