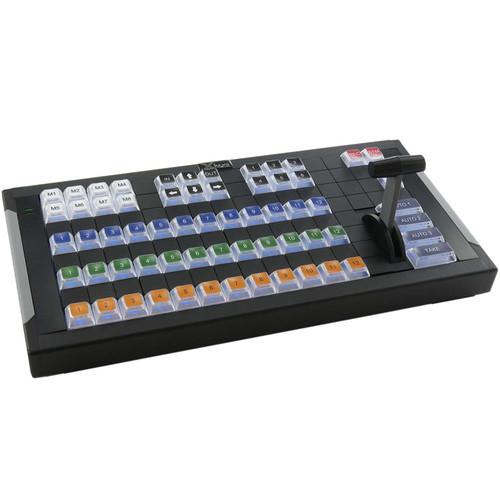

User Manual for X-keys XKE-124 T-Bar Video Switcher Kit Click to enlarge the picture
Contents of the user manual for the X-keys XKE-124 T-Bar Video Switcher Kit
- Product category: Keyboards X-keys
- Brand: X-keys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for X-keys Keyboards
|
User manual for the X-keys XKE-124 T-Bar Video Switcher Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any X-keys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official X-keys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a X-keys product will considerably shorten its lifespan!
|
Product description The X-Keys XKE-124 T-Bar Video Switcher Kit includes the XKE-124 T-Bar USB Keyboard and a video switcher key set, so you can quickly create a video switching controller designed for vMix, Newtek Tricaster, or other types of streaming software. This kit lets you design a custom layout that's well-suited for meeting your daily workflows by providing a key set, which is installed over the XKE-124 T-Bar keyboard's blank keys. To issue commands swiftly, the keys come pre-labeled and in various background colors. For unused keys on the XKE-124 T-Bar, 61 key blockers are included along with a black paper mask that covers the key deck to reduce backlighting bleed-over. - XKE-124 T-Bar USB Keyboard The XKE-124 T-Bar USB Keyboard from X-keys provides you with 124 programmable keys and a smooth, solid T-bar so you can create a control panel for any application. Each of the keys has blue and red backlighting as well as relegendable keycaps. You can also add optional large keys and key blockers to adjust it to your preference. The XKE also comes with free software development kits, available for download on their website, to assist you with further commands and data collection.
-
- 124 programmable keys + T-bar control
- Clear, removable key caps for applying and changing legends
- Includes programming software for Windows and Mac
- Two color addressable backlighting (red and blue)
UPC: 703273013707 - Video Switcher Keys The Video Switcher Keys from X-keys can be used to turn into an X-key into a video switching controller for vMix, NewTek TriCaster, or your favorite streaming software. Note: Not compatible with X-keys Stick
- Numbers 1 to 12 on single clear acrylic keys with a blue, green, red, and orange background
- M1 to M8 on single clear acrylic keys with a white background
- IN, OUT, four arrows, and 1 to 6 on single clear acrylic keys with a black background
- REC and STM on single clear acrylic keys with a red background
- FTB on single clear acrylic keys with a gray background
- Wide clear acrylic keys with gray background and AUTO 1 to AUTO 3, and TAKE printed
- A black paper mask to cover the key deck and reduce backlighting bleed-over
UPC: 703273014544 In the Box Bundle Items XKE-124 T-Bar USB Keyboard etzsrvrysvudbrzctcfctewevy - Double Key Set (2 x Tall, 1 x Wide, 1 x Key Puller)
- 4 x Legend Sheets (2 x Pre-Printed, 2 x Blank)
Video Switcher Keys - 1 to 12 Number Key Set (Blue)
- 1 to 12 Number Key Set (Green)
- 1 to 12 Number Key Set (Red)
- 1 to 12 Number Key Set (Orange)
- 1 to 6 Number Key Set (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the X-keys XKE-124 T-Bar Video Switcher Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - XKE-124 T-Bar USB Keyboard
| | | Number of Keys | 124 | | Switch Type | Rubber Dome | | Actuation Force | 72 g | | Key Size | 0.62" / 16 mm | | Keystroke Life Span | 1 Million | | | | Connection Type | Wired | | System Connection | USB Type-A | | | | Backlight | Yes, Individually Lit | | LED Colors | Blue, Red | | Built-In Control Device | None | | | | Maximum Current Consumption | 358 mA | | | | Certifications | RoHS, WEEE, as per Manufacturer | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 80% | | | | Cable Length | 4.7' / 1.4 m | | IP Rating | IP40 | | Dimensions (L x W x H) | 14.0 x 7.3 x 1.8" / 279.0 x 185.0 x 46.0 mm | | Weight | 4.7 lb / 2.1 kg | | | | Box Dimensions (LxWxH) | 16.1 x 10.7 x 4.9" | - Video Switcher Keys
| | | Box Dimensions (LxWxH) | 8.4 x 3.5 x 1.7" |
