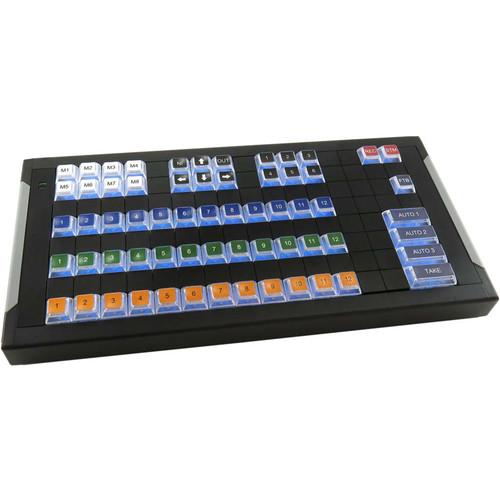

User Manual for X-keys XKE-128 Video Switcher Kit Click to enlarge the picture
Contents of the user manual for the X-keys XKE-128 Video Switcher Kit
- Product category: Keyboards X-keys
- Brand: X-keys
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for X-keys Keyboards
|
User manual for the X-keys XKE-128 Video Switcher Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any X-keys product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official X-keys user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a X-keys product will considerably shorten its lifespan!
|
Product description The XKE-128 Video Switcher Kit from X-Keys includes the X-keys XKE-128 USB Keyboard, a key set, and an 8x16 grid for keys and blockers. Designed for video switching and control, the kit provides all parts required to build the unit as required and includes a mask to reduce backlight bleed-over. - XK-128 Customizable USB Keyboard The XK-128 Customizable USB Keyboard is a universal control surface from X-keys that features 128 keys as well as a programming button. The keys can be configured to take the place of any keyboard shortcut or macro available within the application you are using. It includes programming software for Windows and OS X, however can be used with any operating system that supports HID USB devices. For customized applications there are also SDKs available for Windows, OS X, and Linux. It is compatible with USB 1.1 and later and receives its power from the computer. A 56" integrated USB cable is included.
- LED Backlit Relegendable Key Caps
- Each key is backlit with both a red and blue LED. The ledgends and keycaps can be customized to suit your specific requirements, and replacements of both are available as accessories
- Suits Diverse User Groups
- Compatible with a wide variety of software and platforms, the control surface is adaptable to a diverse range of industries. Some examples include: broadcasting, sports data, video editing, audio engineering, photo editing, trading, live media control, and digital content creation
- Emulations Modes
- Emulates keyboard, mouse, game controller, and media commands
- Additional Features
-
- Removable feet allows the control surface to sit at an angle
- Bus powers through USB
- Integrated 56" USB cable
- Optional rackmount kit available
- Software Features
- MacroWorks 3.1 for Windows (Included)
- Launch programs, insert Unicode, open files and directories, select tools and more
- Controls backlighting on individual keys
- Supports custom scripting with Visual Basic
- Supports most X-keys SE, MWII, and Pi3 USB devices
ControllerMate for Mac OS X (Included) - Launch programs, open files and directories, select tools and more
- Controls backlighting on individual keys
- Supports most X-keys Pi3 devices
P.I. Engineering SDK (Free Download) - Code examples in Visual Studio C# 2008 Express, C++ 2005, and Visual Basic 2008 Express
- Supports all X-keys SE, MWII, and Pi3 USB devices
Linux SDK (Free Download) - Supports all X-keys Pi3 devices
- A cross platform solution for Linux, Windows, and Mac
- Reads all keys and controls
- Sets backlighting levels and states
Android Code Samples (Free Download) - Supports all X-keys Pi3 devices
- Reads all keys and controls
- Java-based
- Sets backlighting levels and states
UPC: 703273012250 - Video Switcher Keys The Video Switcher Keys from X-keys can be used to turn into an X-key into a video switching controller for vMix, NewTek TriCaster, or your favorite streaming software. Note: Not compatible with X-keys Stick
- Numbers 1 to 12 on single clear acrylic keys with a blue, green, red, and orange background
- M1 to M8 on single clear acrylic keys with a white background
- IN, OUT, four arrows, and 1 to 6 on single clear acrylic keys with a black background
- REC and STM on single clear acrylic keys with a red background
- FTB on single clear acrylic keys with a gray background
- Wide clear acrylic keys with gray background and AUTO 1 to AUTO 3, and TAKE printed
- A black paper mask to cover the key deck and reduce backlighting bleed-over
UPC: 703273014544 In the Box Bundle Items XK-128 Customizable USB Keyboard Video Switcher Keys - 1 to 12 Number Key Set (Blue)
- 1 to 12 Number Key Set (Green)
- 1 to 12 Number Key Set (Red)
- 1 to 12 Number Key Set (Orange)
- 1 to 6 Number Key Set (Black)
Also Includes - 8x16 Grid for Keys and Blockers
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the X-keys XKE-128 Video Switcher Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - XK-128 Customizable USB Keyboard
| | | Number of Keys | 129 | | Switch Type | Rubber Dome | | Actuation Force | 72 g | | Key Size | 0.62" / 16 mm | | | | Connection Type | Wired | | System Connection | USB Type-A | | | | Backlight | Yes, Individually Lit | | LED Colors | Blue, Red | | Built-In Control Device | None | | | | Maximum Current Consumption | 358 mA | | | | Operating Temperature | -4 to 140°F / -20 to 60°C | | | | Cable Length | 56" / 142 cm | | Dimensions (L x W x H) | 14.0 x 7.3 x 1.8" / 279.0 x 185.0 x 46.0 mm | | Weight | 3.7 lb / 1.7 kg | | | | Box Dimensions (LxWxH) | 16.1 x 11.4 x 2.2" | - Video Switcher Keys
| | | Box Dimensions (LxWxH) | 8.4 x 3.5 x 1.7" |
