Product description

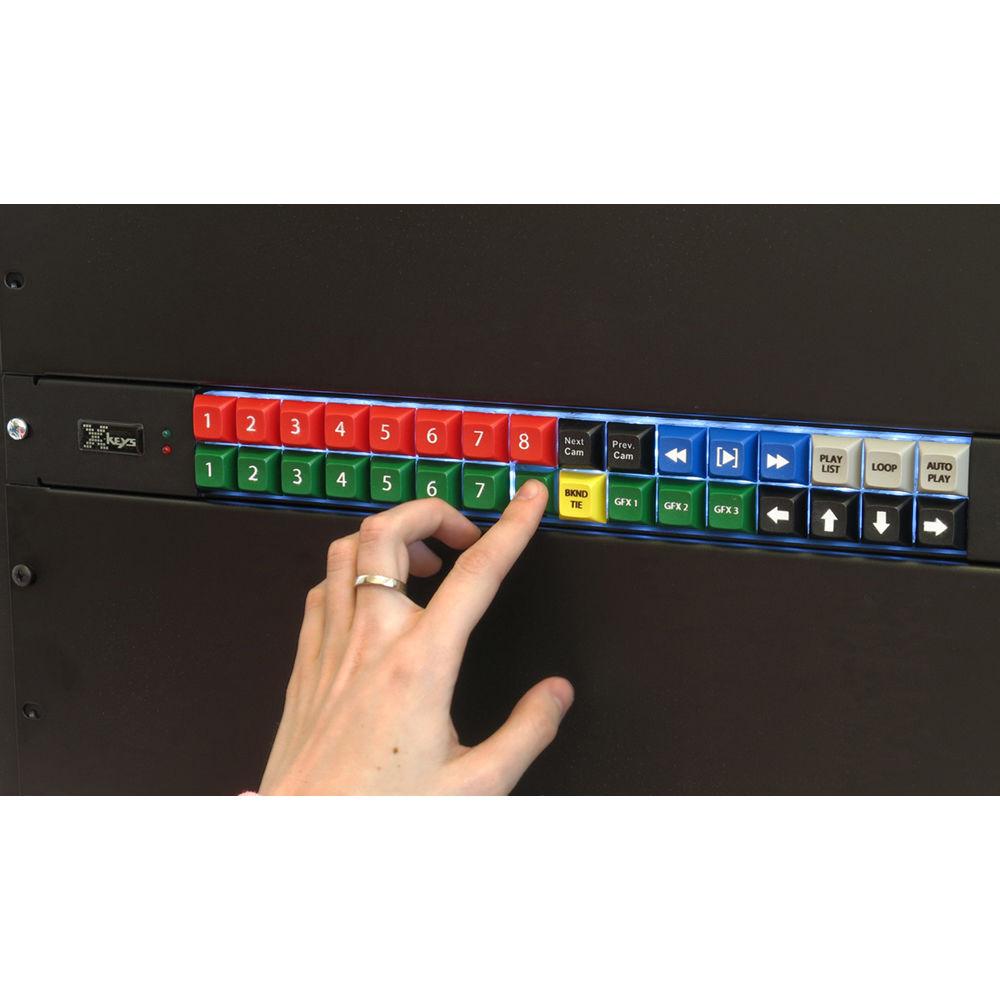

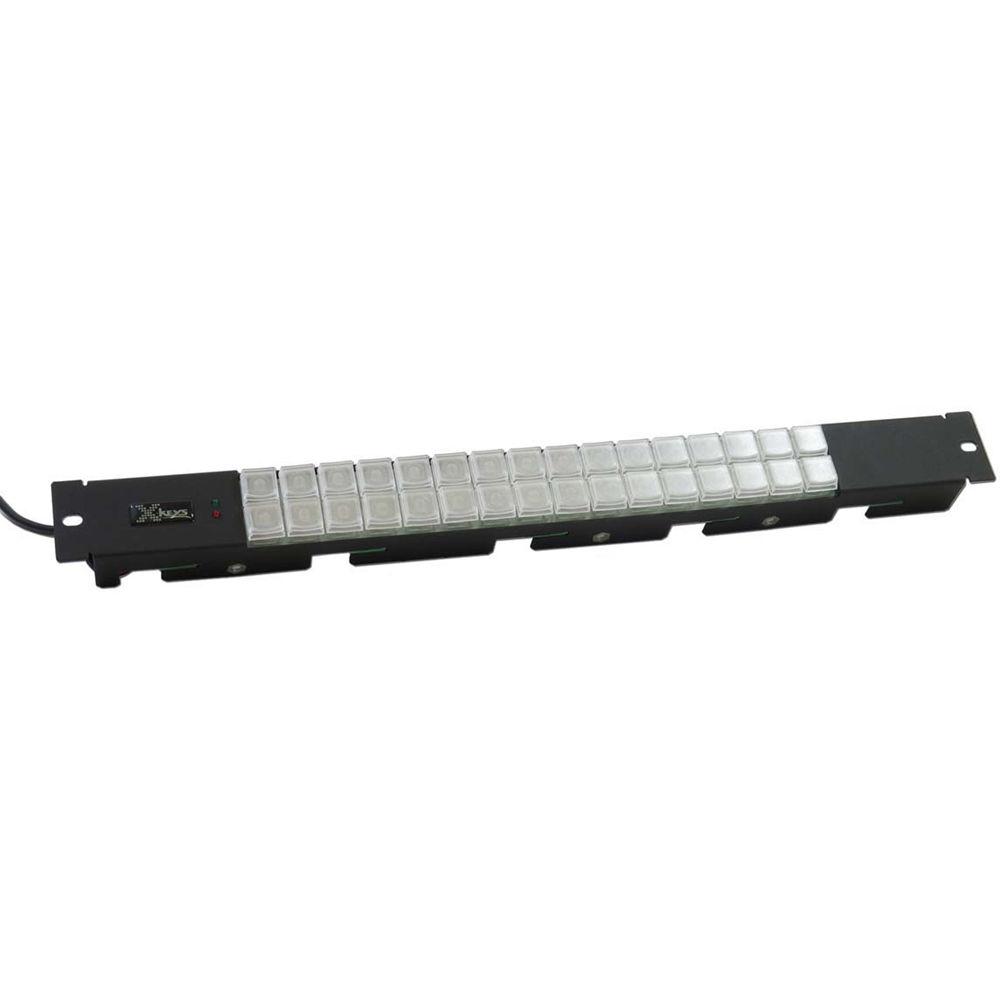

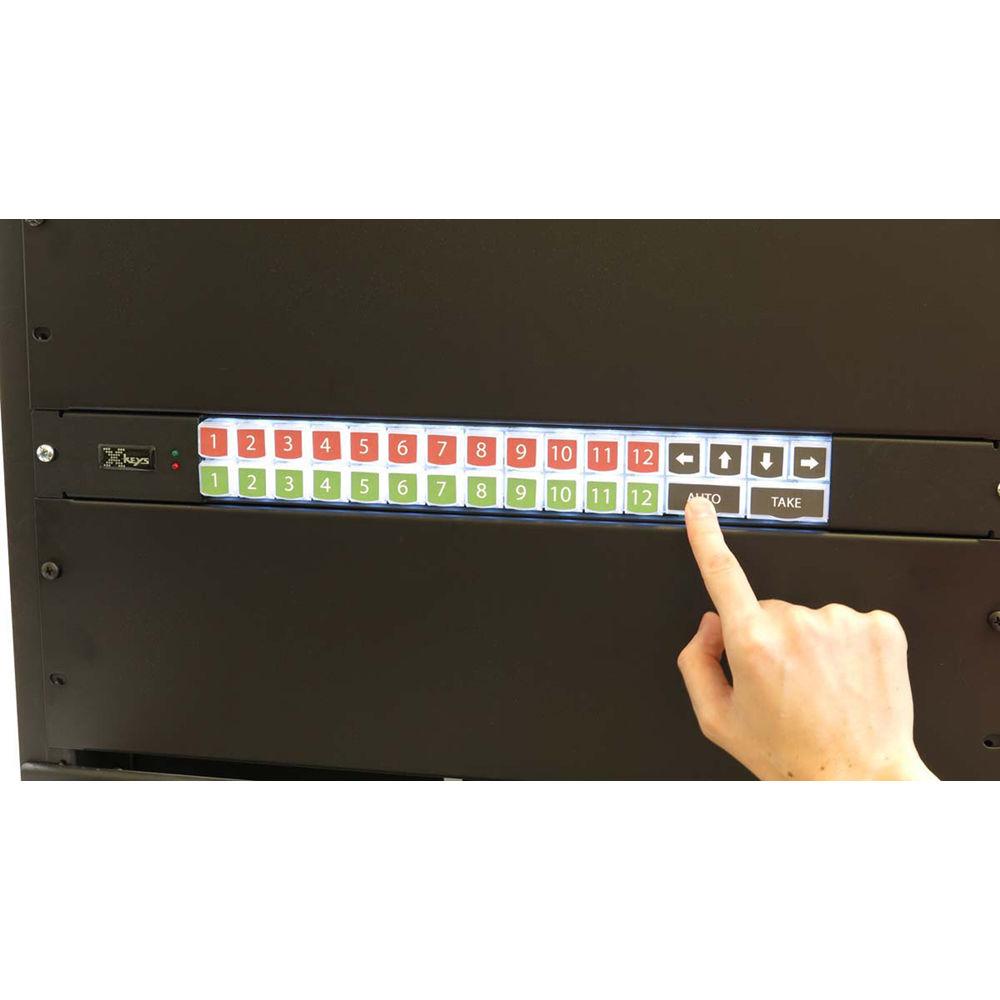

The XKR-32 Rack-Mounted Keys for KVM Switches from X-keys features two rows of sixteen keys in a steel powder-coated 1 RU rackmount. It is optimized for controlling KVM switches to control multiple computers from a single workstation. The included Windows-based programming utility makes it easy to assign keystrokes, key combinations, and strings (with or without modifiers) to clearly labeled, dedicated keys. These programmable keys can send any key combination or string of keystrokes, and lower operator error, and training time. Dedicated keys maximize efficiency and lower operator training time. Programming may be saved as a file and easily duplicated to multiple X-keys for multi-station installations. Any keyboard command used by the operator can also be replicated and assigned to a clearly labeled key. Programming includes backlighting level and color (blue, red, or combination). You can easily customize the X-keys with professionally printed keys, blockers, or molded keycaps (available separately).
    Compatibility
  • Any KVM switch with USB keyboard support

Hardware

  • X-keys USB devices are compatible with any computer or host system which supports USB HID keyboard input
  • Works with the free, downloadable MacroWorks 3.1 programming software for Windows
  • 32 relegendable, low-profile keys
  • Blue and red addressable backlighting
  • Accepts tall, wide, and 2 x 2 keys
  • Easy to program and duplicate
  • No software required for operation
  • USB connection to Mac or Windows PCs

MacroWorks 3.1 Programming Software

  • Programs and edits keystrokes and macros
  • Reads and writes to X-keys memory
  • Easily reproduce the same layout on multiple devices

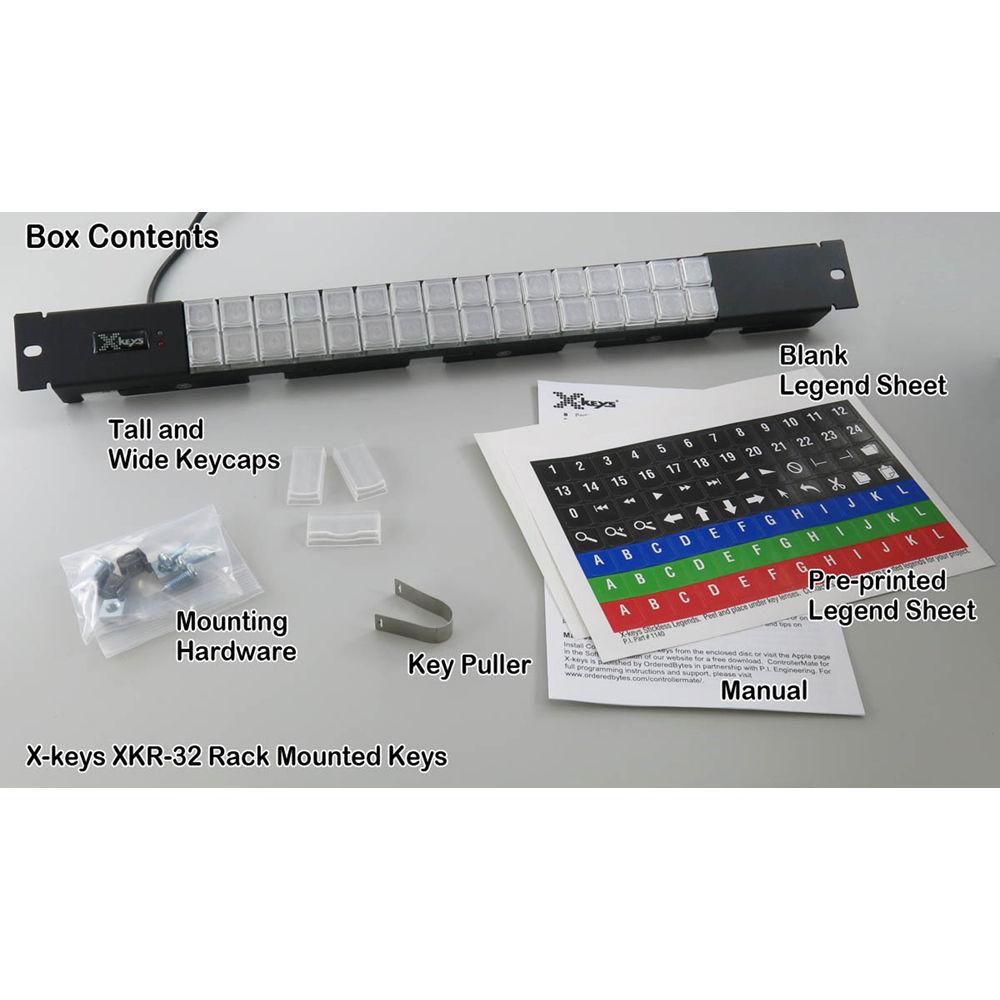

UPC: 703273014209 In the Box X-keys XKR-32 Rack-Mounted Keys for KVM Switches
  • Tall and Wide Keycaps
  • Key Puller
  • Blank Legend Sheet
  • Pre-Printed Legend Sheet
  • Mounting Hardware
  • MacroWorks 3.1 Programming Software
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the X-keys XKR-32 Rack-Mounted Keys for KVM Switches in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    X-keys XK-1420-UKVM32-SO Specs

    Operating System Any OS supporting USB HID keyboard: Windows, Mac, Linux, Android
    Programming Software MacroWorks 3.1

    Software Requirement:
    Windows 10, 8, 7, or Vista (32 or 64 bit) or Windows XP (32 bit only)
    Microsoft .NET Framework 3.5.1
    Emulation Modes HID keyboard
    Switch Type Full-travel elastomeric dome, carbon on gold contacts, guaranteed for over 1 million operations
    Number of Keys 32 single keys
    Actuation Force Approximately 2.5 oz (72 g) break-over
    Approximately 1.5 oz (42 g) hold
    Keycaps 0.625" (16 mm) square; relegendable with Cherry MX compatible stem
    Key Spacing 0.75" (19.05 mm) O.C.
    Backlighting 32 blue and 32 red LEDs, individually addressable
    Connector Wired USB 2.0 Type A plug
    USB Type USB 1.1 (compatible through 3.0)
    Power Source USB port
    Nominal Voltage: 5 VDC
    Temperature Range -4 to 140°F (-20 to 60°C)
    Memory Capacity Approximately 21,000 keystrokes or commands in onboard memory
    Memory Type EEPROM, non-volatile memory (X-keys retains memory for over 200 years)
    Environmental Rating IP40, typical indoor office environment
    Certifications FCC class B, CE, RoHS, WEEE compliant
    Cord Length 7.5" (2.3 m)
    Dimensions 19 x 1.75 x 1.4" (483 x 44 x 10 mm)
    Weight 21 oz (600 g)
    Package Weight 2.05 lb
    Box Dimensions (LxWxH) 21.0 x 5.0 x 3.5"
