User Manual for X-Rite ColorChecker Video XL with Protective Sleeve Click to enlarge the picture
Contents of the user manual for the X-Rite ColorChecker Video XL with Protective
- Product category: Calibration X-Rite
- Brand: X-Rite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for X-Rite Calibration
 |
User manual for the X-Rite ColorChecker Video XL with Protective contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any X-Rite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official X-Rite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a X-Rite product will considerably shorten its lifespan!
|

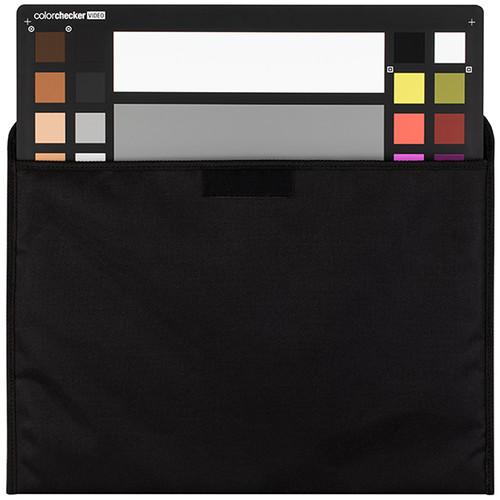

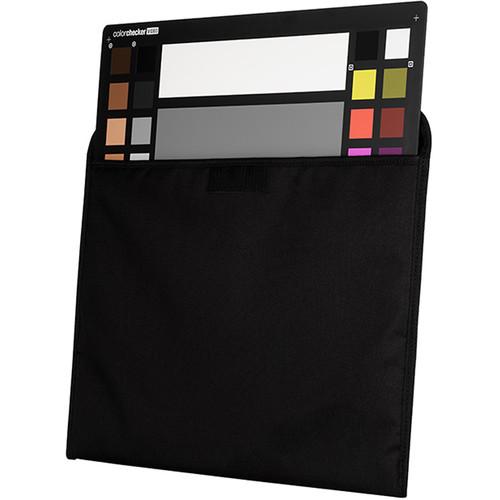

Product description Bundling the extra-large format target with a dedicated sheath, the ColorChecker Video XL with Protective Sleeve from X-Rite includes the large-scale version of the ColorChecker to help ensure accurate color balance and exposure, as well as a polyester sleeve for protecting it when not in use. - ColorChecker Video XL Helping to achieve accurate and consistent colors, the ColorChecker Video XL from X-Rite is an extra-large format color and exposure target well-suited for working at greater distances and wider shooting angles. Twice as large as the standard ColorChecker Video, this XL version eliminates the need to move your camera or adjust the focal length simply to record the target in the scene. Besides its larger size, this XL target contains the same chromatic colors, skin tones, and gray chips as the other versions, making it suitable for use with waveforms, vectorscopes, zebras, and other tools for affecting color and exposure.
- Chromatic Colors
- Two rows of six chromatic colors are featured, with both saturated and desaturated values, which are designed to align with the primary color axis on a vectorscope. These colors provides two levels of color information for quickly removing color casts and producing an ideal and even color balance.
- Skin Tones
- Positioned on the edge of the target is a range of color chips designed to represent various skin tones from light to dark with subtle undertones.
- Gray Levels
- In the center of the target are four larger gray steps to aid in gray balancing, and include white, 40IRE gray, deep gray, and high gloss black. These levels can be used to determine proper exposure when using a waveform, zebras, or false colors and can be especially useful in multiple camera setups to ensure consistent exposure and mid-tone rendition.
- Linear Grayscale
- Six chips are used to display a linear gray scale to help in achieving an accurate gray balance, especially in regard to the highlight and shadow regions.
- Illumination Check Chips
- Black and white chips are located at two of the corners to aid in determining even illumination across the target.
- Software Support
- The ColorChecker Video XL target is supported in both DaVinci Resolve and 3DLUT Creator for greater efficiency when color grading.

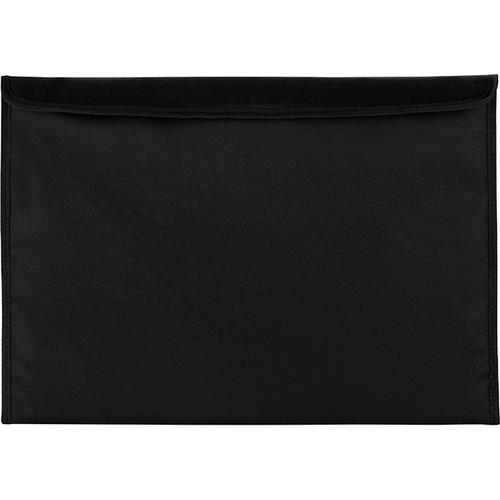

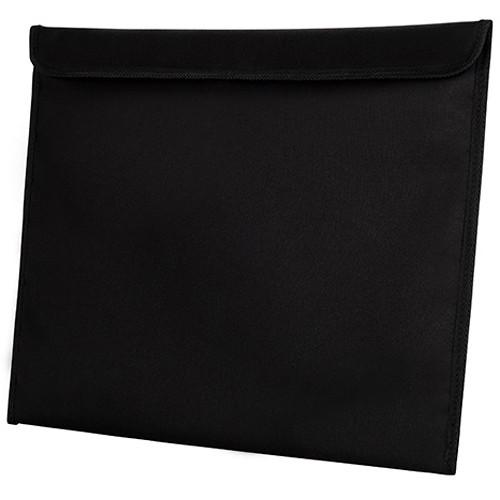

- Protective Sleeve for ColorChecker Video XL A simple means for protecting and storing your X-Rite ColorChecker Video XL, this Protective Sleeve is a durable, fitted sheath for the XL target. The sleeve has a black polyester exterior with a soft tricot lining, and it is designed to fit within a hard shell travel case alongside other equipment.
In the Box Bundle Items ColorChecker Video XL Protective Sleeve for ColorChecker Video XL Table of Contents
|
Upload User Manual
Have you got an user manual for the X-Rite ColorChecker Video XL with Protective Sleeve in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ColorChecker Video XL
| Environmental Requirements | Humidity: 85% or less, non-condensing | | Dimensions | Outside Dimensions: 21.0 x 14.75" / 53.3 x 37.5 cm
Color Chip Area: 19.8 x 13.05" / 50.3 x 33.1 cm
Thickness: 0.12" / 0.3 cm | | | | Box Dimensions (LxWxH) | 24.5 x 20.0 x 3.0" | - Protective Sleeve for ColorChecker Video XL
| Materials | Exterior: Black Denier PVC Backed Polyester
Interior: Black Soft Tricot | | Dimensions | 22.0 x 15.25 x 0.5" / 55.9 x 38.7 x 1.3 cm | | | | Box Dimensions (LxWxH) | 22.1 x 15.11 x 0.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
