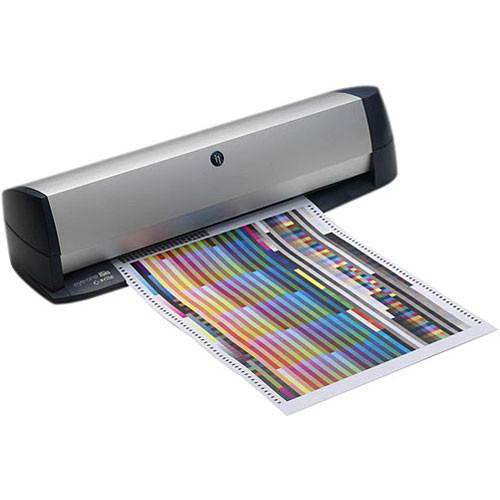

User Manual for X-Rite i1iSis Automated Chart Reader Click to enlarge the picture
Contents of the user manual for the X-Rite i1iSis Automated Chart Reader
- Product category: Laser Printers Accessories X-Rite
- Brand: X-Rite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for X-Rite Laser Printers Accessories
|
User manual for the X-Rite i1iSis Automated Chart Reader contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any X-Rite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official X-Rite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a X-Rite product will considerably shorten its lifespan!
|
Product description The Xrite i1iSis is a fully automated, high-speed chart reader which can read A4+ or letter size color charts, and is based on XRite's award winning i1 technology. It is perfect for professionals in prepress, high-speed digital printing, proofing, photo processing and large format printing who need to measure many charts or create ICC profiles in quantity. Plus, it is so simple to use, there is not even a button to press - just load and go. With the automated i1iSis you'll no longer waste your valuable time hand scanning rows or reading individual color patches. The iSis has a sleek form factor and small footprint, which allows users to fit color management technology into their workflow wherever needed. Furthermore, the iSis is designed to be used with XRite's high-end profiling software, including ProfileMaker 5 and Monaco Profiler. XRite has also made iSis easy for third party software makers to add support for iSis in their RIPs and other color products. - Designed for Automation
- A sleek, precise reader with a tightly engineered form factor and small footprint, iSis can put automated color into your workflow at any point. Automation is one of the key benefits of iSis, and you'll find its load and go simplicity amazing. A unique built-in vision system automatically corrects for chart misalignment so media handling errors and misfeeds are a thing of the past. iSis also interprets bar codes to prevent chart ID problems, plus it recognizes the size and type of chart without conversing with your software
- Versatile Reading Capability
- The iSis can accept charts as wide as 9" (23cm) or the width of an A4+ or letter size sheet, but it can also read a variety of sizes ranging from 2.4 x 6.7" (6 x 17cm) to 9 x 26" (23 x 66cm).
- Precision Measurement
- Because the i1iSis is based on i1 spectral technology, you'll capture the full spectral data of the charts you measure, assuring the most accurate measurements and profiles. In a single chart measurement cycle you can read both UV-cut and measurements with no filter.
- Speedy Operation
- i1iSis is so fast your color will practically fly off the page. If you're in a high-production environment or have a need to do lots of calibrations or profiles, iSis is for you. It can measure both UV-Cut and No-Filter on 1,500 patches in eight minutes. It's three times faster than an iCColor and 6 times faster than a DTP-41.
- Flexible Software Options
- i1iSis works with all major high-end profiling software, such as ProfileMaker 5 and Monaco Profiler. You'll also be able to use it with a wide-variety of color-enabled workflow solutions and RIPs. Check online for the latest list of third-party support for iSis.
In the Box X-Rite i1iSis (A4+) Automated Chart Reader User Guide 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the X-Rite i1iSis Automated Chart Reader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersX-Rite i1iSis Specs | Optical | Optical Characteristics- Spectral Engine: i1 technology (holographic diffraction grating with diode array)
- Spectral range: 380 - 730 nm
- Optical bandwidth: 10 nm
- Sampling interval: 3.5 nm (100 bands)
- Spectral reporting: 10 nm
- Inter-instrument agreement: 0.4 DE*94
- Short-term repeatability: 0.1 DE*94 (D50, 2°), on white
Chart Characteristics- Paper Width: 2.4" (6cm) - 9.0" (23cm)
- Paper Length: 6.7" (17cm) - 26" (66cm)
- Paper Thickness: 0.08 - 0.45mm
- Supported Materials: Coated Paper, Uncoated Paper, Copier Paper, Photo Paper and others
- Minimal patch size: 6 x 6mm
- Patches/Chart: 1 - 3000 patches
Physical Characteristics- Computer Interface: USB
- Dimensions: 6.5 x 6.3 x 4.7" (420 x 160 x 120mm)
- Weight: 7.1 lb. (3.2kg)
| | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 24.0 x 10.0 x 8.0" |
