User Manual for Xcellon 22,800mAh Power Bank for Laptops and USB Devices Click to enlarge the picture
Contents of the user manual for the Xcellon 22,800mAh Power Bank for Laptops
- Product category: Portable Battery Packs Xcellon
- Brand: Xcellon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xcellon Portable Battery Packs
 |
User manual for the Xcellon 22,800mAh Power Bank for Laptops contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xcellon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xcellon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xcellon product will considerably shorten its lifespan!
|

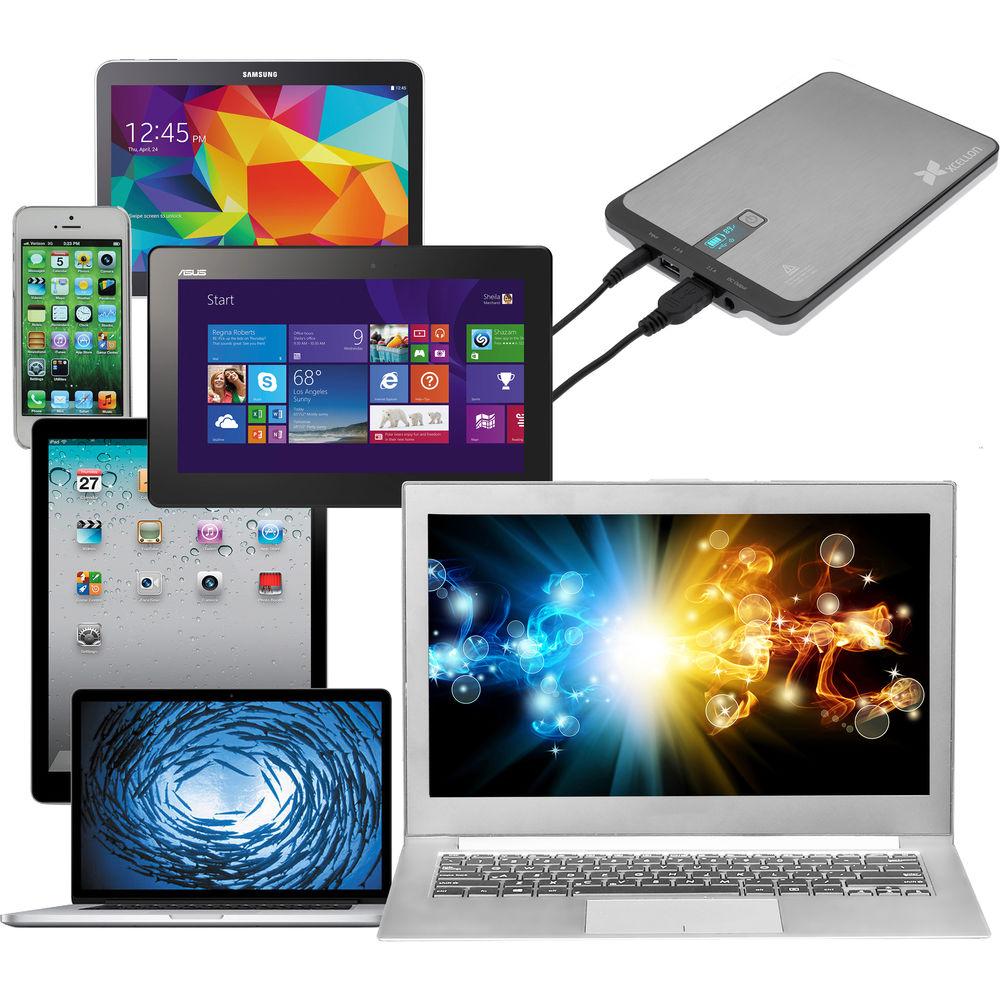

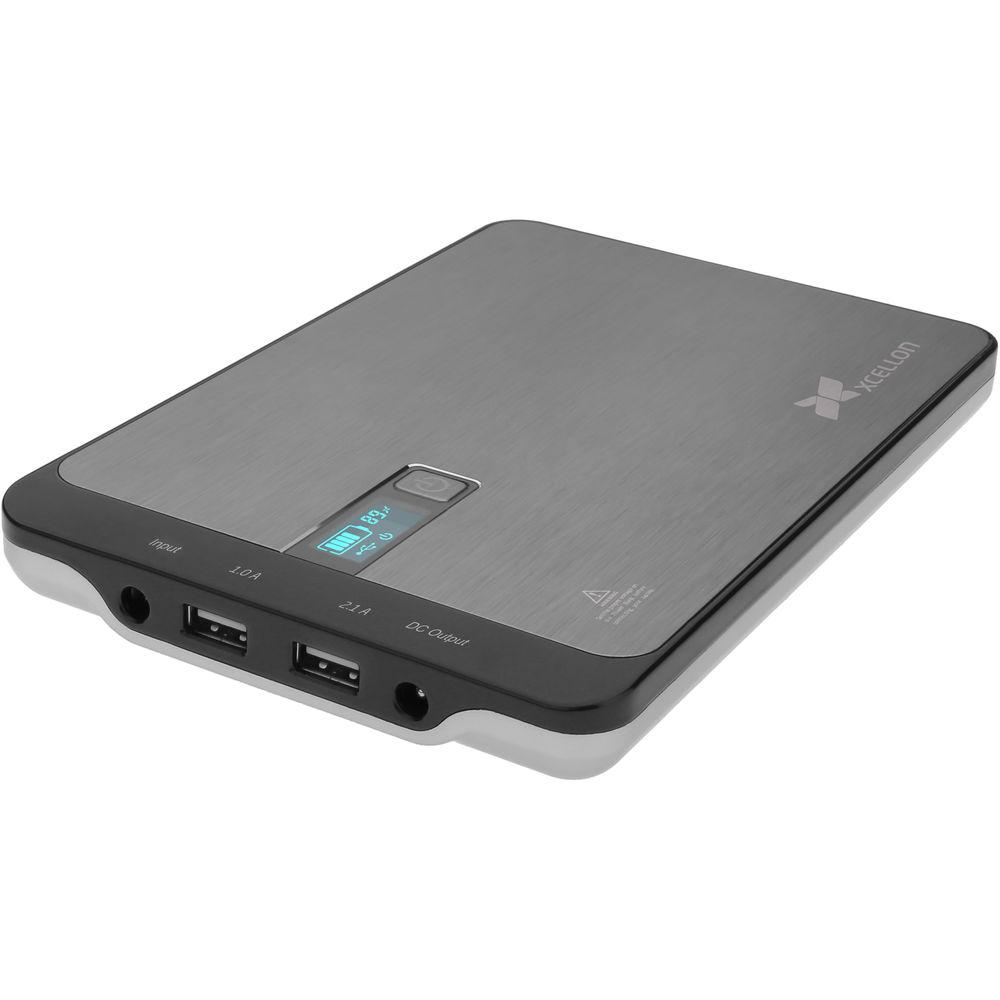

Product description Charge your laptop and up to two USB devices, such as your tablet and smartphone, with the 22,800mAh Power Bank from Xcellon. This rechargeable battery pack comes with ten different tips that attach to the charging tip of the DC output cable for a wide range of compatibility with laptops, and it features an adjustable voltage setting to safely charge your laptop – choose between 9, 12, 16, 19, and 20V voltage settings with the push of a button. An LCD display shows battery capacity and voltage output as well as DC output and USB status.

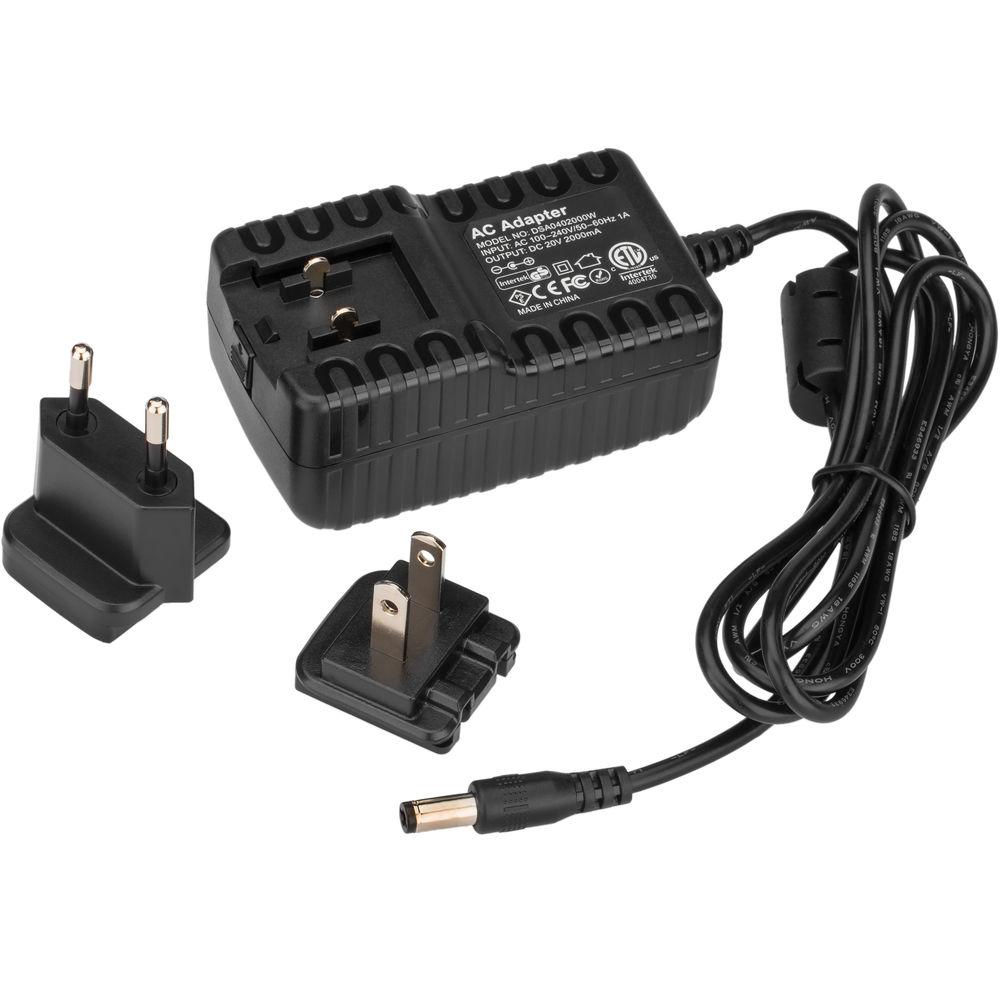

Two USB ports allow you to charge a tablet and smartphone at the same time without a drop in power to other outputs. Use the 2.1A USB port to quickly charge a tablet and the 1.0A USB port to charge a smartphone or other USB device. An AC international power adapter cable, a DC output cable, and a USB cable are included. - Power
- Charges a laptop and two USB devices without a drop in power
- Battery
- 22,800mAh rechargeable lithium-ion polymer battery
- Adjustable Voltage Levels
- Five button-selectable voltage levels (9, 12, 16,19, and 20V) for use with most laptops

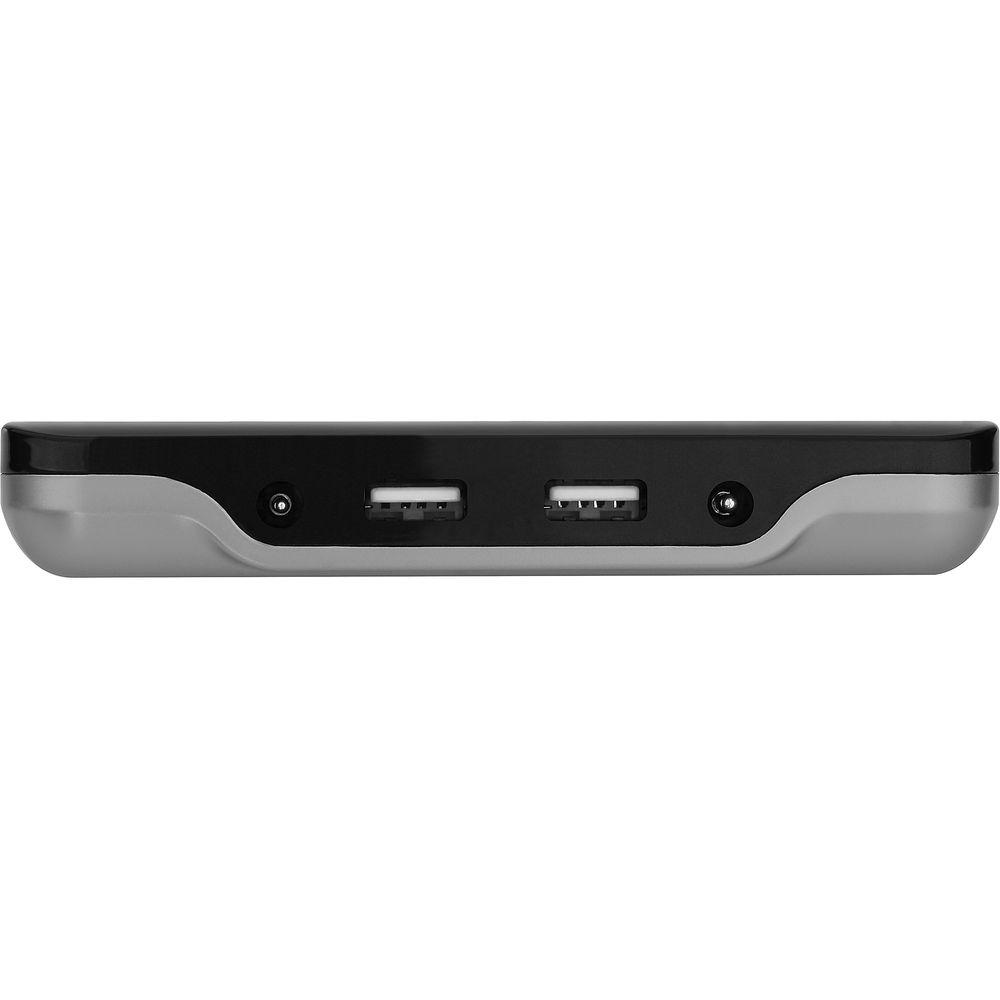

- USB Charging Ports
- One 2.1A USB port for quickly charging tablets and one 1.0A USB port for charging smartphones and other USB devices

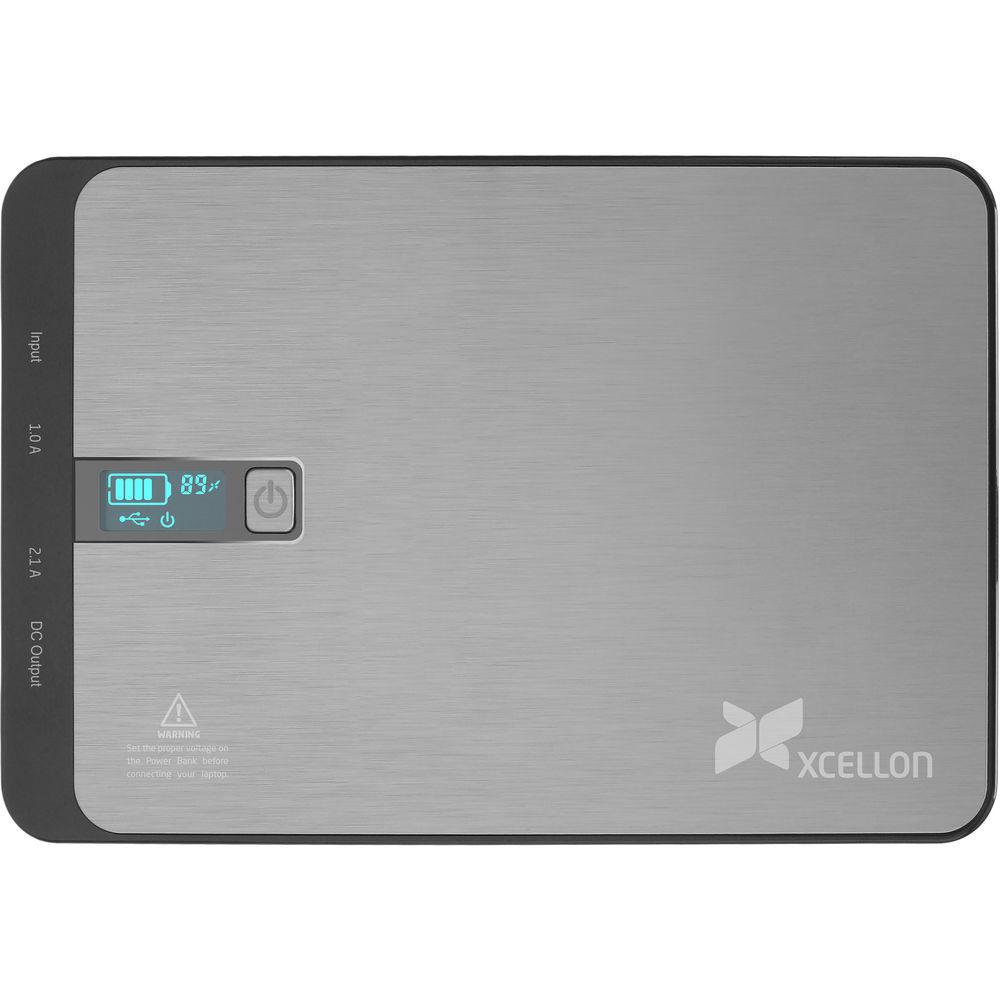

- LCD Display
- LCD display shows battery capacity and voltage output as well as DC and USB port status

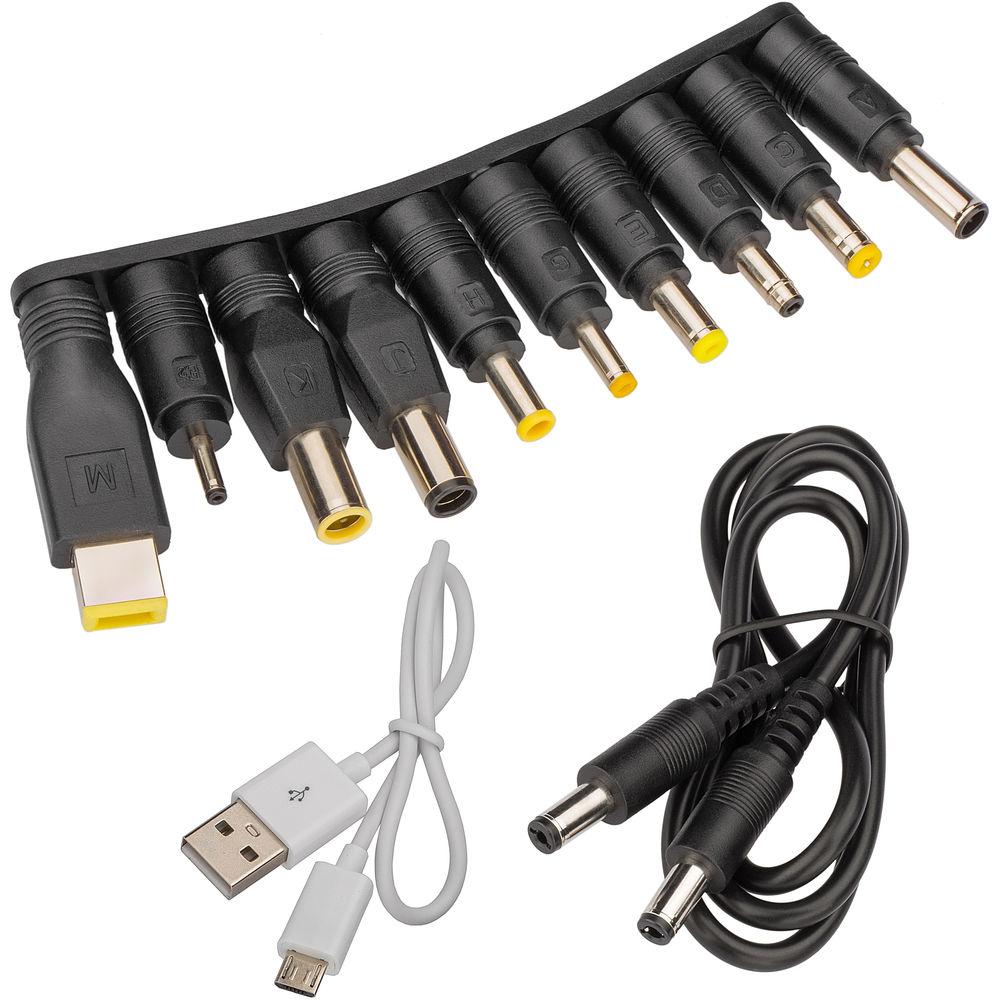

- 10 Charging Tips
- Includes ten charging tips that attach to the charging end of the DC cable for compatibility with most laptops
UPC: 847628594685 In the Box Xcellon 22,800mAh Power Bank for Laptops and USB Devices Universal AC Power Adapter and Cable DC Output Cable USB Cable 10 x Charging Tips Limited 1-Year Warranty User Manual PDF 530kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Xcellon 22,800mAh Power Bank for Laptops and USB Devices in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXcellon PB-22800LT Specs | | | Input Charging Port | Barrel, Micro-USB | | Output Ports | 2 x USB Type-A | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity (Wh) | 84.4 Wh | | Capacity (mAh) | 22,800 mAh | | | | Port Output Power | 9 V, 4 A
12 V, 4 A
16 V, 4 A
19 V, 3.5 A
20 V, 3 A
5 V, 1 A
5 V, 2.1 A | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1 A | | Power Rating | 20 VDC, 2 A | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (W x H x D) | 0.8 x 4.9 x 7.3" / 2.0 x 12.4 x 18.5 cm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 8.819 x 6.142 x 2.52" |
