User Manual for Xcellon 3-Port USB 3.0 Type-C Hub with Gigabit Ethernet Port Click to enlarge the picture
Contents of the user manual for the Xcellon 3-Port USB 3.0 Type-C Hub
- Product category: Hubs Xcellon
- Brand: Xcellon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xcellon Hubs
 |
User manual for the Xcellon 3-Port USB 3.0 Type-C Hub contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xcellon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xcellon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xcellon product will considerably shorten its lifespan!
|

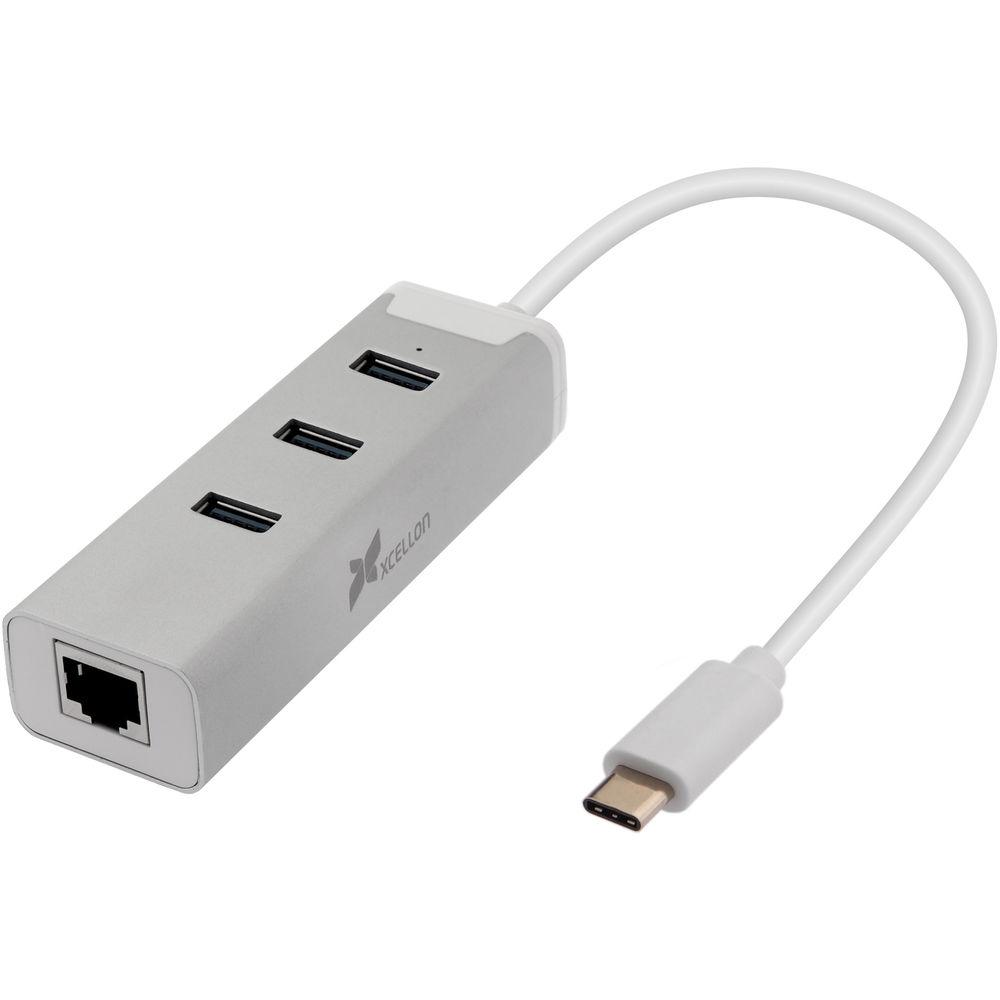

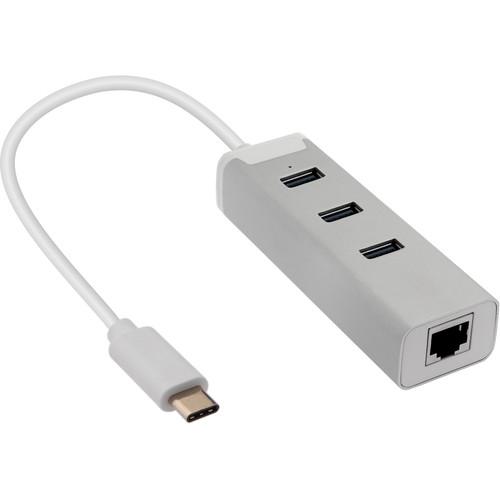

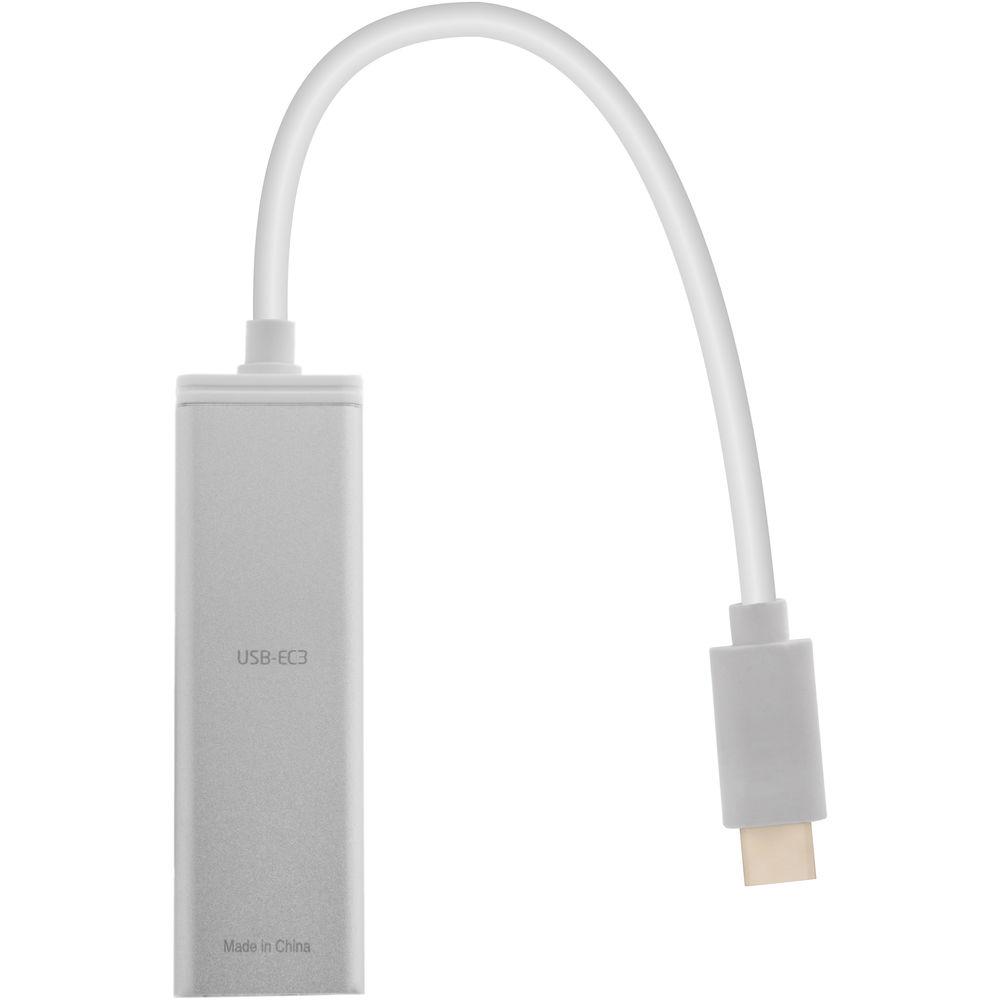

Product description Expand the connectivity options on your notebook or desktop with the 3-Port USB 3.0 Type-C Hub with Gigabit Ethernet Port from Xcellon. This hub connects to your Windows, Mac, and Linux systems via an integrated 7.3" cable that sports a USB 3.0 Type-C connector, which features a reversible design so you can connect the first try. It provides three USB 3.0 Type-A data ports as well as a Gigabit Ethernet port utilizing your system's single USB 3.0 port. This setup lets you quickly hook up printers, mice, and other USB devices to your computer.
Each of the three USB 3.0 ports transmits data at a combined rate of up to 5 Gb/s and provides 0.9A of power. To quickly and reliably access the Internet and networks, the Gigabit Ethernet port supports full-duplex operation and 10/100/1000 speeds.
For portability, the hub draws power from a USB bus-powered port without the need for carrying an external power adapter. An LED status indicator is on board to notify you that the hub is receiving power. Furthermore, Xcellon has outfitted the adapter with a compact aluminum housing that protects it and lets you easily take it on your travels. - Ethernet Connection
- Ideal for laptop models equipped with USB-C ports, the USB-EC3 adds a reliable, wired Gigabit Ethernet connection to the Internet. You can connect to the Internet with this easy-to-use hub in locations where there is no Wi-Fi signal, even if your computer doesn't have an Ethernet port.
- Expanded Connectivity
- With a single connection to your computer's USB port, the USB-EC3 provides a single Ethernet port for a wired connection to the Internet and three integrated USB ports so you can connect your peripherals. 1
Please Note: The USB-EC3 hub is not intended to charge devices, and it is not intended for use with devices that require a lot of power, such as larger hard drives. close - Supports USB 3.0/2.0/1.1
- The adapter supports SuperSpeed USB with data transfer speeds up to 5 Gb/s. Backwards compatibility with Hi-Speed USB 2.0 and USB 1.1 allow greater support with older systems.
- Full-Duplex Operation
- The advantage of a wired internet connection is sending and receiving data at the same time, thanks to full-duplex support. The USB-EC3 hub provides you with a wired connection that assures you fast data transfer speeds, letting you stream HD content smoothly and game without lag.
- Bus Powered
- The USB-EC3 uses the power from your USB port. No other power source is necessary. Just plug it in to a powered USB port on your computer, and you're ready to go.
- Compact Aluminum Housing
- The compact aluminum housing can withstand the rigors of travel whether you carry the adapter in a computer bag or in your pocket.
- LED Status Indicator
- The blue LED indicator lets you know that the hub is receiving power.
- Windows/Mac/Linux Compatible
- The hub can be used with a wide variety of operating systems. Simple instructions are included for downloading and installing the drivers for Windows, Mac, or Linux operating systems.
- Additional Features
- The adapter supports a wide variety of additional features, including IPv4/IPv6 checksum offload, crossover detection and auto-correction, TCP large send offload and IEEE802.3az EEE (Energy Efficient Ethernet) that allows for a low power idle state. It also has Jumbo frame support and IEEE 802.1Q VLAN tagging support.
UPC: 847628596634 In the Box Xcellon 3-Port USB 3.0 Type-C Hub with Gigabit Ethernet Port Driver CD Limited 1-Year Warranty User Manual PDF 262kbtqbqyrewstuebqteevbzuq Table of Contents
|
Upload User Manual
Have you got an user manual for the Xcellon 3-Port USB 3.0 Type-C Hub with Gigabit Ethernet Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXcellon USB-EC3 Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | | | System Connection | USB 3.1 Gen 1 Type-C Male | | Connection Type | Integrated Cable | | | | Certifications | RoHS, WEEE, as per Manufacturer | | | | Cable Length | 7.3" / 18.5 cm | | Enclosure Material | Aluminum | | Dimensions | 1.2 x 1.7 x 4.7" / 3 x 4.3 x 11.9 cm | | Weight | 2.6 oz / 73.7 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.0 x 3.6 x 0.9" |
