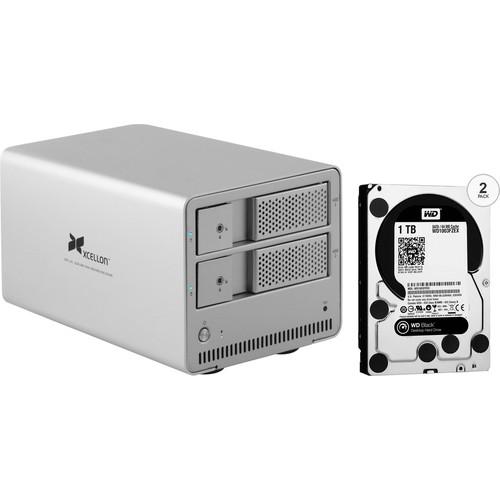

Xcellon DRD-101 2TB Dual-Bay Enclosure Kit

User Manual for Xcellon DRD-101 2TB Dual-Bay Enclosure Kit with Drives

• Product category: Hard Drive Arrays Xcellon
• Brand: Xcellon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Xcellon Hard Drive Arrays

Product description

• Xcellon DRD-101 Dual-Bay System for 3.5" SATA Hard Disk Drives The Xcellon DRD-101 Dual-Bay RAID System is a convenient solution for large-data storage needs. It houses up to two internal-type 3.5" I/II/III SATA hard disk drives, consolidating them in a single enclosure. Two tray-less, front-loading drive bays enable easy access with simple, tool-free installation. Four RAID modes deliver a variety of options when it comes to read/write functions, data storage, and backup, and are configurable via the DIP switches located on the rear of the device or the included software. The software also offers advanced RAID configuration, firmware updates, and event logging.

  The DRD-101 is equipped with eSATA and USB 3.0 ports and comes with the necessary interface cables. Connected to compatible devices, the USB 3.0 port can attain maximum transfer rates of up to 5.0 Gbps.
  Houses up to Two 3.5" SATA I/II/III Hard Disk Drives
  • The Xcellon DRD-101 Dual-Bay RAID System houses up to two 3.5" SATA I/II/III hard disk drives, making it a great solution for large-data storage needs. It helps maintain a tidy workstation by consolidating your disks in a single enclosure instead of cluttering your desk with individual external drives.
  Four RAID Modes Configurable by DIP Switches or Software
  • Four RAID modes, configurable by the DIP switches on the rear of the enclosure or via the included software, offer a variety of options for managing and backing up your data. Choose from RAID 0 and 1, as well as Normal (JBOD), Span (Big/Large), and Clone modes, to handle striping, mirroring, redundancy, and parity.
  Software for Advanced Operations
  • Included software helps you manage your RAID systems and installed hardware. View information about the current RAID mode and the hard disks installed in the enclosure, set multiple RAID modes in an enclosure, view and save event logs, update firmware, and configure RAID settings. The software is available for both Windows and Mac operating systems.
  USB 3.0 and eSATA Ports
  • The DRD-101 is equipped with USB 3.0 and eSATA ports and comes with high-speed connection cables, making it easy to connect the enclosure to most computers.
  Maximum Transfer Rates of up to 5.0 Gbps
  • When plugged into your computer's USB 3.0 port, the DRD-101 can attain transfer rates of up to 5.0 Gbps via the included USB 3.0 cable.
  Aluminum Construction and Large Quiet Fan
  • The DRD-101 employs a dual-element cooling system to prevent overheating when working for long periods of time. The aluminum construction dissipates heat, while a single large fan cools the drives with maximum efficiency and minimum noise.
  Hot Swapping
  • The DRD-101 allows hot swapping, so you won't have to shut down your computer every time you install a hard disk.
  Front-Loading, Tray-Less Drive Bays
  • Installing your hard disks is easy. Instead of dismantling your computer, just pop the disk drives into the easily accessible, front-loading drive bays. The bays are tray-less, eliminating the need for drive carriers, screwdrivers, or other installation tools. When removing your disks from the enclosure, the bay doors prevent jams by automatically ejecting the disk as you open the door.
  Locking Bay Doors
  • As an added security measure, the bay doors lock with the included hex key to prevent them from inadvertently opening.
  LED Status Indicators
  • Each drive bay is furnished with a status LED to indicate when the corresponding disk drive is powered or reading and writing.
  Integrated Chipset
  • The DRD-101 beeps continuously to let you know if one of your disks is damaged. As an extra security measure for your data backup, an integrated chipset can automatically rebuild your RAID 1 system when you replace the damaged disk with a new one.
  Intelligent Sleep Mode
  • The DRD-101 is programmed with an intelligent sleep mode to save energy and reduce wear and tear on your disk drives. If there's no read/write activity on the installed disk drives for five minutes, the DRD-101 will automatically enter sleep mode and the fan will power down.
  UPC: 847628571426
• 2 x WD 1TB Desktop Performance Caviar Black HDD Retail Kit (WD1003FZEX) The 1TB Desktop Performance Caviar Black HDD Retail Kit from WD formerly known as the WD Caviar Black HDD features a SATA 6 Gb/s interface along with a large 1TB storage capacity giving you fast access to a large amount of data. This WD drive is designed for demanding environments where enhanced performance is crucial such as photo and video editing and gaming. With a dual processor and dynamic cache you can rest assured this drive will be there when you need it.
  Enhanced Performance
  • Take advantage of enhanced performance in this 7200rpm drive delivering the speed necessary for some of the most demanding applications like photo and video editing and Internet gaming.
  Improved Processing Power
  • The dual processor and dynamic cache improve the drive's performance overall. Take advantage of twice the processing power and optimized read and write speeds for less throughput congestion and faster performance.
  StableTrac
  • The motor shaft is secured at both ends to reduce system-induced vibration and increase stability enabling consistently higher performance.
  NoTouch Ramp Load Technology
  • The recording head never touches the disk media ensuring significantly less wear as well as better drive protection in transit.
  UPC: 718037822501

• DRD-101 Dual-Bay System for 3.5" SATA Hard Disk Drives zqcwzxwrrycr
• eSATA Cable
• USB 3.0 Cable
• AC Power Cable
• DC Power Supply
• Hex Key
• Limited 3-Year Warranty

• 2 x WD - 1TB Desktop Performance Caviar Black HDD Retail Kit (WD1003FZEX)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Xcellon DRD-101 Dual-Bay System for 3.5" SATA Hard Disk Drives

  Number of Bays	2 x 3.5"
  Connections	1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s)) 1 x eSATA (SATA II (3 Gb/s))
  Compatible Drive Interface	SATA III
  Form Factor	Desktop
  RAID Modes	RAID 0, 1, JBOD, SPAN
  Hot-Swap Support	Yes
  Operating System Support	Windows, macOS/OS X

  Power Source	AC Adapter
  AC Input Power	100 to 240 VAC, 50 / 60 Hz at 1.5 A
  DC Input Power	12 VDC at 4 A

  Operating Temperature	41 to 104°F / 5 to 40°C
  Storage Temperature	-4 to 158°F / -20 to 70°C

  Material of Construction	Aluminum
  Cooling	1 x 50 mm Fan
  Status Monitoring	LED Indicator
  Dimensions (W x H x D)	5.1 x 5.8 x 7.6" / 12.9 x 14.7 x 19.3 cm
  Weight	3.2 lb / 1.5 kg

  Box Dimensions (LxWxH)	11.9 x 7.8 x 7.0"

• 2 x WD 1TB Desktop Performance Caviar Black HDD Retail Kit (WD1003FZEX)

  Drive Capacity	1.0 TB
  Cache Memory	64 MB

  Interface	SATA III (6 Gb/s)

  Drive Type	HDD
  Form Factor	3.5"

  Spindle Speed (RPM)	7200 RPM

  Certifications	ENERGY STAR, as per Manufacturer
  Dimensions (W x H x D)	4.0 x 1.0 x 5.8" / 101.6 x 26.1 x 147.0 mm
  Weight	1.5 lb / 0.7 kg

  Box Dimensions (LxWxH)	7.6 x 5.1 x 2.6"
