User Manual for Xcellon DRD-101 Dual-Bay System for 3.5" SATA Hard Disk Drives Click to enlarge the picture
Contents of the user manual for the Xcellon DRD-101 Dual-Bay System for 3.5"
- Product category: Hard Drive Enclosures & Docks Xcellon
- Brand: Xcellon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xcellon Hard Drive Enclosures & Docks
|
User manual for the Xcellon DRD-101 Dual-Bay System for 3.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xcellon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xcellon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xcellon product will considerably shorten its lifespan!
|

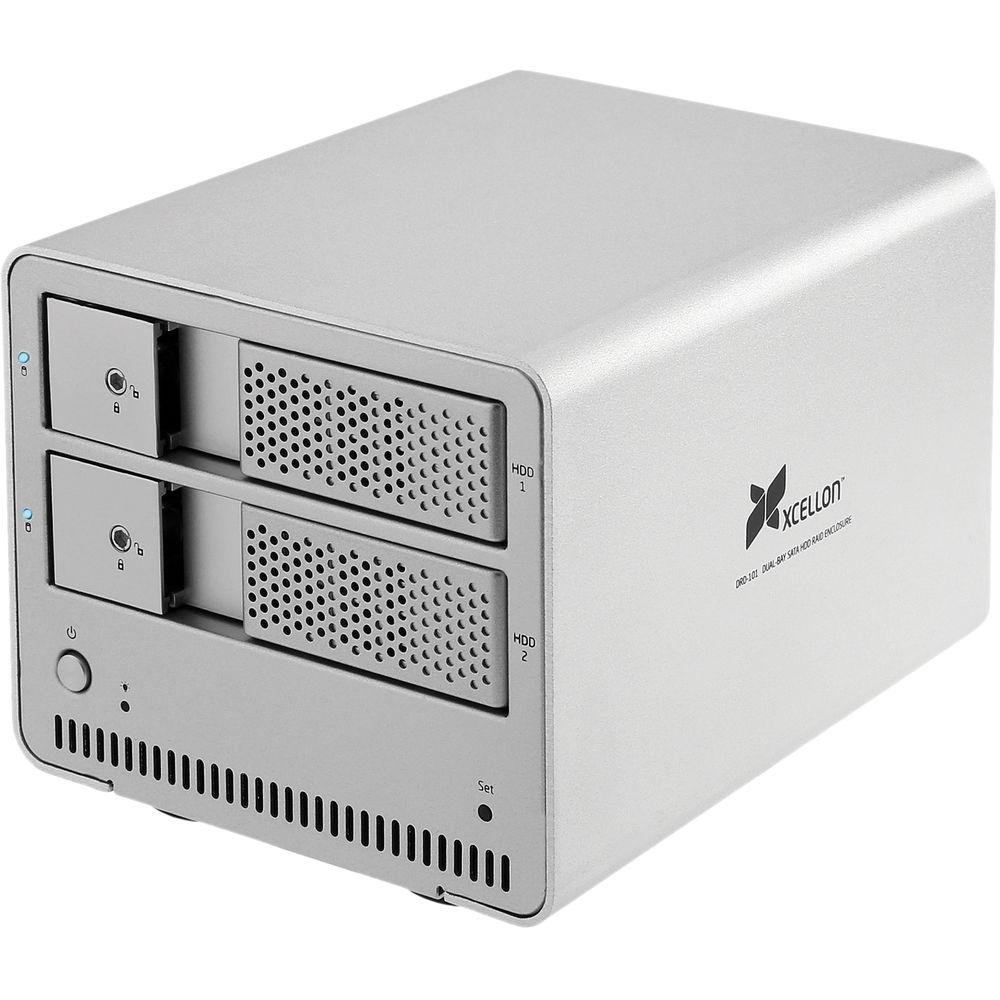

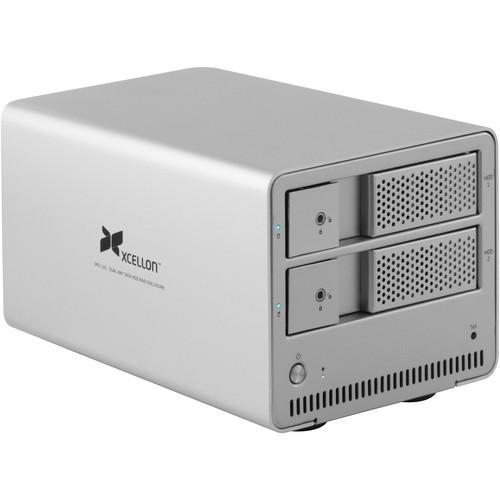

Product description The Xcellon DRD-101 Dual-Bay RAID System is a convenient solution for large-data storage needs. It houses up to two internal-type 3.5" I/II/III SATA hard disk drives, consolidating them in a single enclosure. Two tray-less, front-loading drive bays enable easy access with simple, tool-free installation. Four RAID modes deliver a variety of options when it comes to read/write functions, data storage, and backup, and are configurable via the DIP switches located on the rear of the device or the included software. The software also offers advanced RAID configuration, firmware updates, and event logging.
The DRD-101 is equipped with eSATA and USB 3.0 ports and comes with the necessary interface cables. Connected to compatible devices, the USB 3.0 port can attain maximum transfer rates of up to 5.0 Gbps. - Houses up to Two 3.5" SATA I/II/III Hard Disk Drives
- The Xcellon DRD-101 Dual-Bay RAID System houses up to two 3.5" SATA I/II/III hard disk drives, making it a great solution for large-data storage needs. It helps maintain a tidy workstation by consolidating your disks in a single enclosure instead of cluttering your desk with individual external drives.
- Four RAID Modes Configurable by DIP Switches or Software

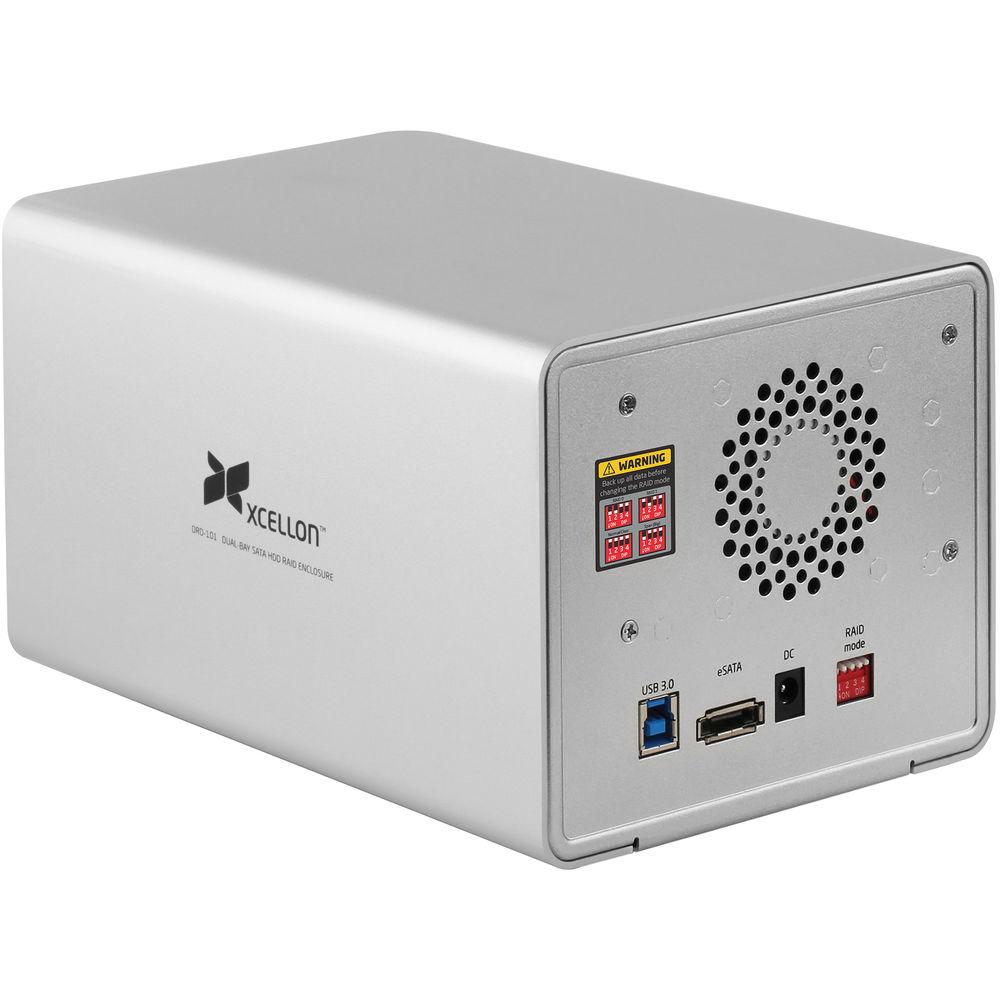

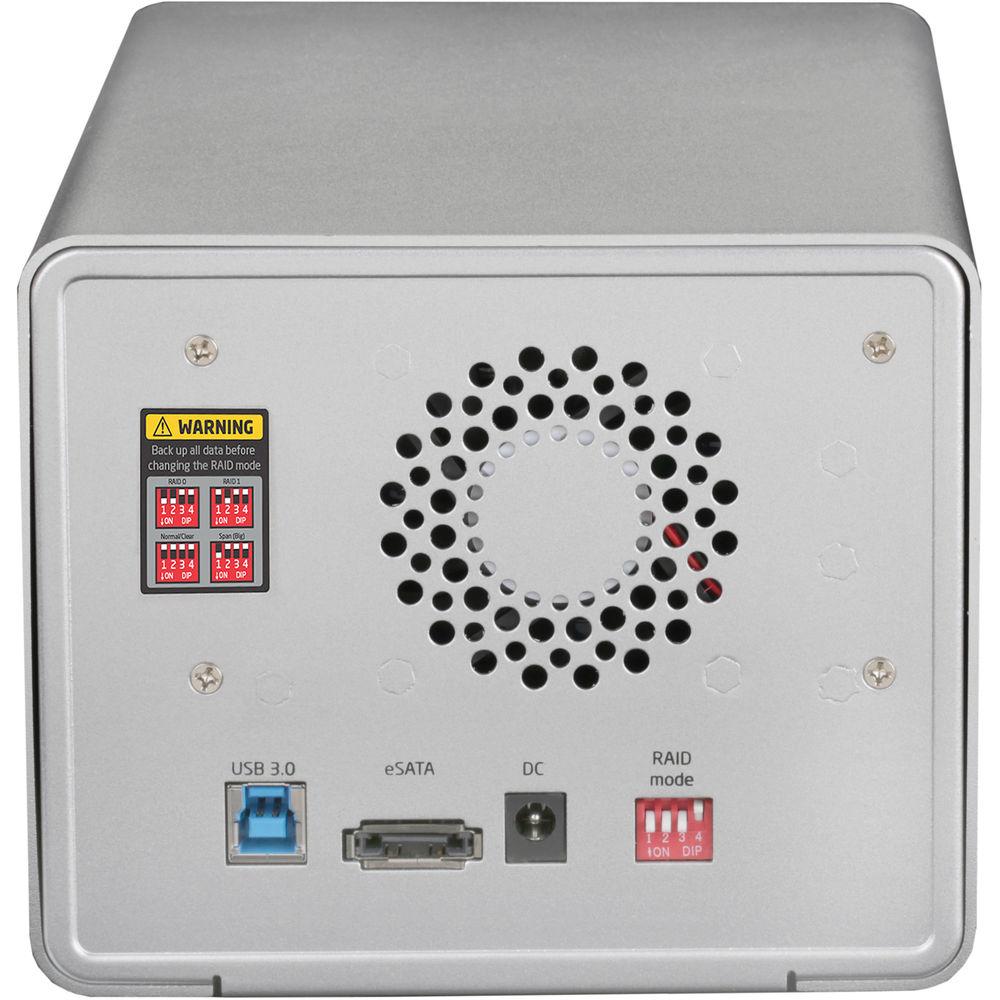

- Four RAID modes, configurable by the DIP switches on the rear of the enclosure or via the included software, offer a variety of options for managing and backing up your data. Choose from RAID 0 and 1, as well as Normal (JBOD), Span (Big/Large), and Clone modes, to handle striping, mirroring, redundancy, and parity.
- Software for Advanced Operations
- Included software helps you manage your RAID systems and installed hardware. View information about the current RAID mode and the hard disks installed in the enclosure, set multiple RAID modes in an enclosure, view and save event logs, update firmware, and configure RAID settings. The software is available for both Windows and Mac operating systems.
- USB 3.0 and eSATA Ports
- The DRD-101 is equipped with USB 3.0 and eSATA ports and comes with high-speed connection cables, making it easy to connect the enclosure to most computers.
- Maximum Transfer Rates of up to 5.0 Gbps
- When plugged into your computer's USB 3.0 port, the DRD-101 can attain transfer rates of up to 5.0 Gbps via the included USB 3.0 cable.
- Aluminum Construction and Large Quiet Fan
- The DRD-101 employs a dual-element cooling system to prevent overheating when working for long periods of time. The aluminum construction dissipates heat, while a single large fan cools the drives with maximum efficiency and minimum noise.
- Hot Swapping
- The DRD-101 allows hot swapping, so you won't have to shut down your computer every time you install a hard disk.
- Front-Loading, Tray-Less Drive Bays

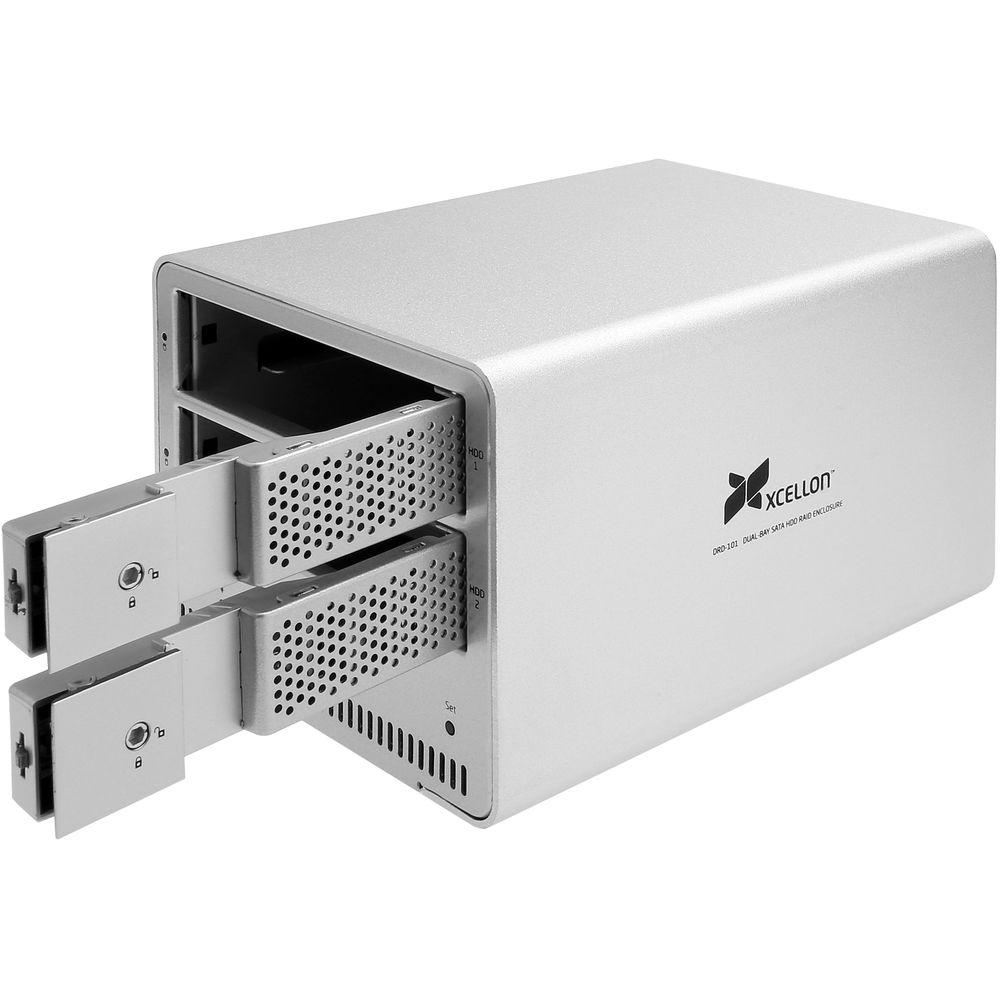

- Installing your hard disks is easy. Instead of dismantling your computer, just pop the disk drives into the easily accessible, front-loading drive bays. The bays are tray-less, eliminating the need for drive carriers, screwdrivers, or other installation tools. When removing your disks from the enclosure, the bay doors prevent jams by automatically ejecting the disk as you open the door.
- Locking Bay Doors

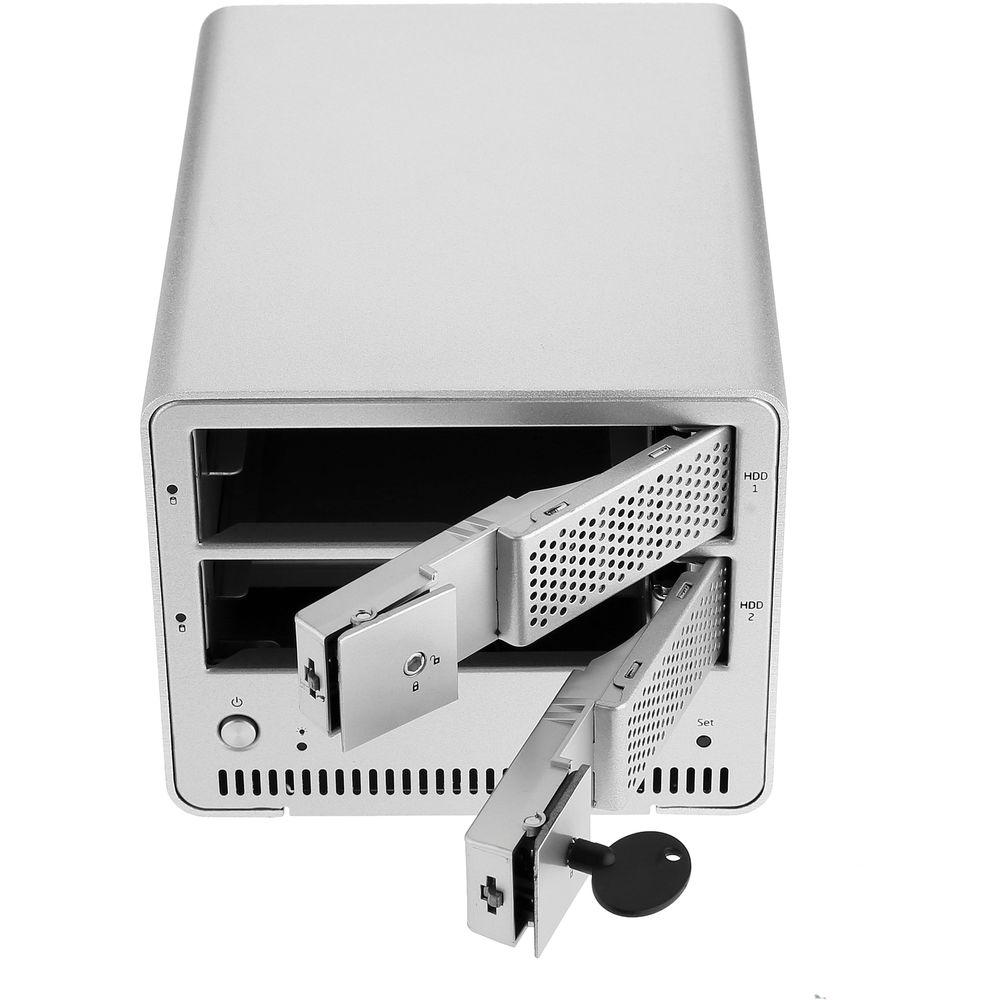

- As an added security measure, the bay doors lock with the included hex key to prevent them from inadvertently opening.

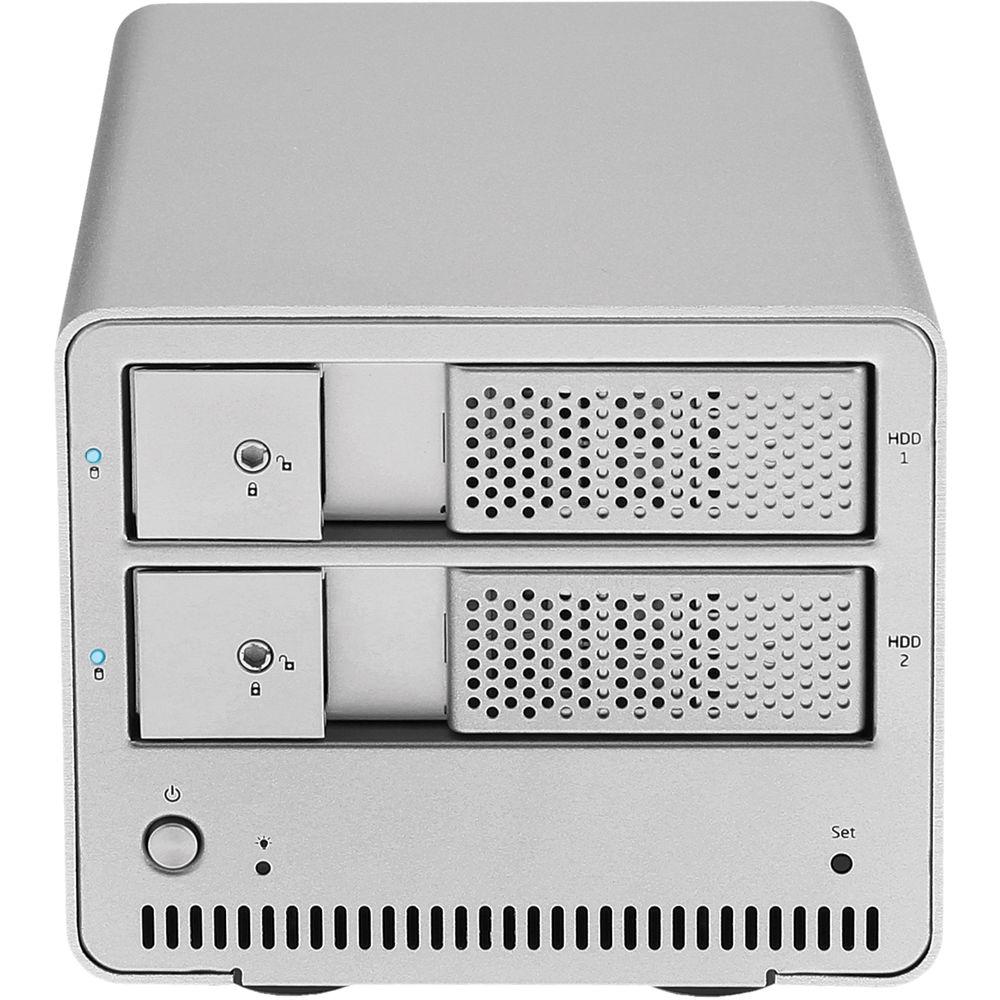

- LED Status Indicators
- Each drive bay is furnished with a status LED to indicate when the corresponding disk drive is powered or reading and writing.
- Integrated Chipset
- The DRD-101 beeps continuously to let you know if one of your disks is damaged. As an extra security measure for your data backup, an integrated chipset can automatically rebuild your RAID 1 system when you replace the damaged disk with a new one.
- Intelligent Sleep Mode
- The DRD-101 is programmed with an intelligent sleep mode to save energy and reduce wear and tear on your disk drives. If there's no read/write activity on the installed disk drives for five minutes, the DRD-101 will automatically enter sleep mode and the fan will power down.

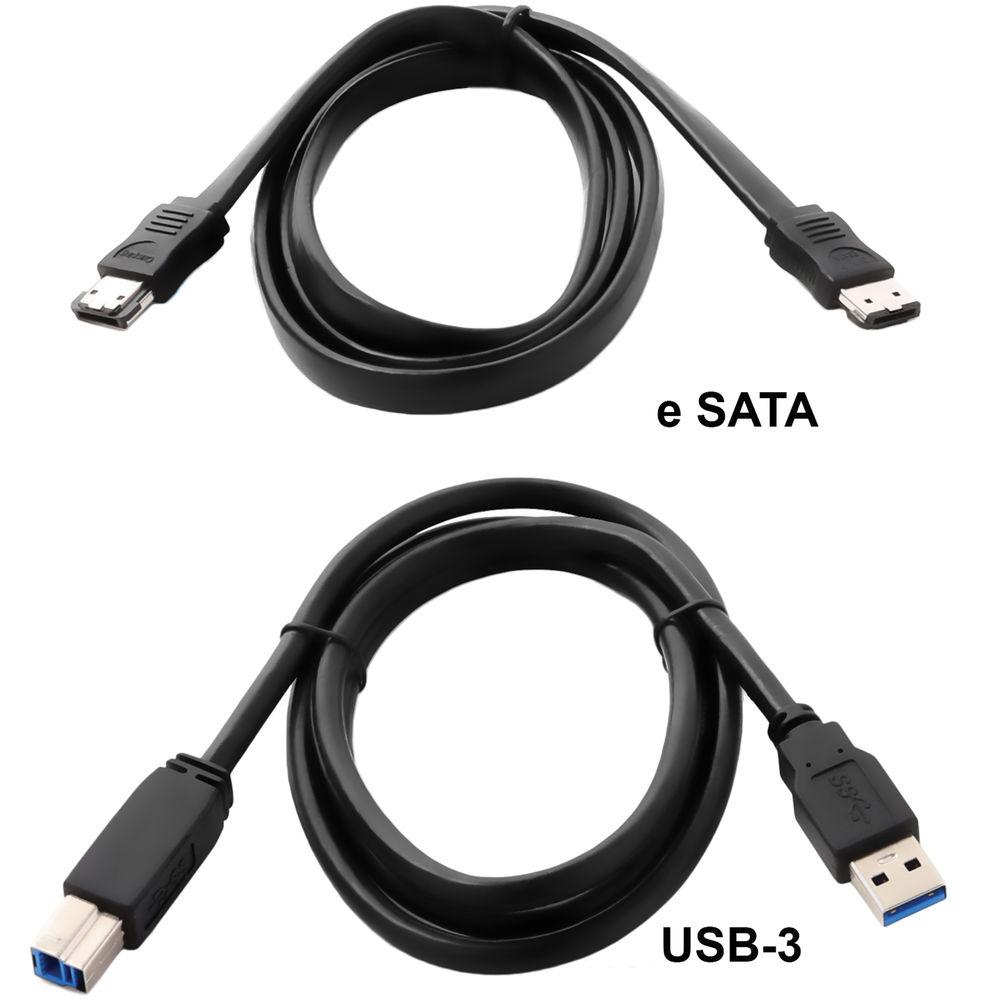

UPC: 847628571426 In the Box Xcellon DRD-101 Dual-Bay System for 3.5" SATA Hard Disk Drives eSATA Cable USB 3.0 Cable AC Power Cable DC Power Supply Hex Key Limited 3-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Xcellon DRD-101 Dual-Bay System for 3.5" SATA Hard Disk Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXcellon DRD-101 Specs Number of Bays | 2 x 3.5" | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s)) 1 x eSATA (SATA II (3 Gb/s)) | Compatible Drive Interface | SATA III | Form Factor | Desktop | RAID Modes | RAID 0, 1, JBOD, SPAN | Hot-Swap Support | Yes | Operating System Support | Windows, macOS/OS X | | Power Source | AC Adapter | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | DC Input Power | 12 VDC at 4 A | | Operating Temperature | 41 to 104°F / 5 to 40°C | Storage Temperature | -4 to 158°F / -20 to 70°C | | Material of Construction | Aluminum | Cooling | 1 x 50 mm Fan | Status Monitoring | LED Indicator | Dimensions (W x H x D) | 5.1 x 5.8 x 7.6" / 12.9 x 14.7 x 19.3 cm | Weight | 3.2 lb / 1.5 kg | | Package Weight | 5.0 lb | Box Dimensions (LxWxH) | 11.9 x 7.8 x 7.0" |
