User Manual for Xcellon HDD-202 USB Type-C to Dual 2.5 3.5" HDD SSD Docking Station Click to enlarge the picture
Contents of the user manual for the Xcellon HDD-202 USB Type-C to Dual
- Product category: Hard Drive Enclosures & Docks Xcellon
- Brand: Xcellon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xcellon Hard Drive Enclosures & Docks
 |
User manual for the Xcellon HDD-202 USB Type-C to Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xcellon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xcellon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xcellon product will considerably shorten its lifespan!
|

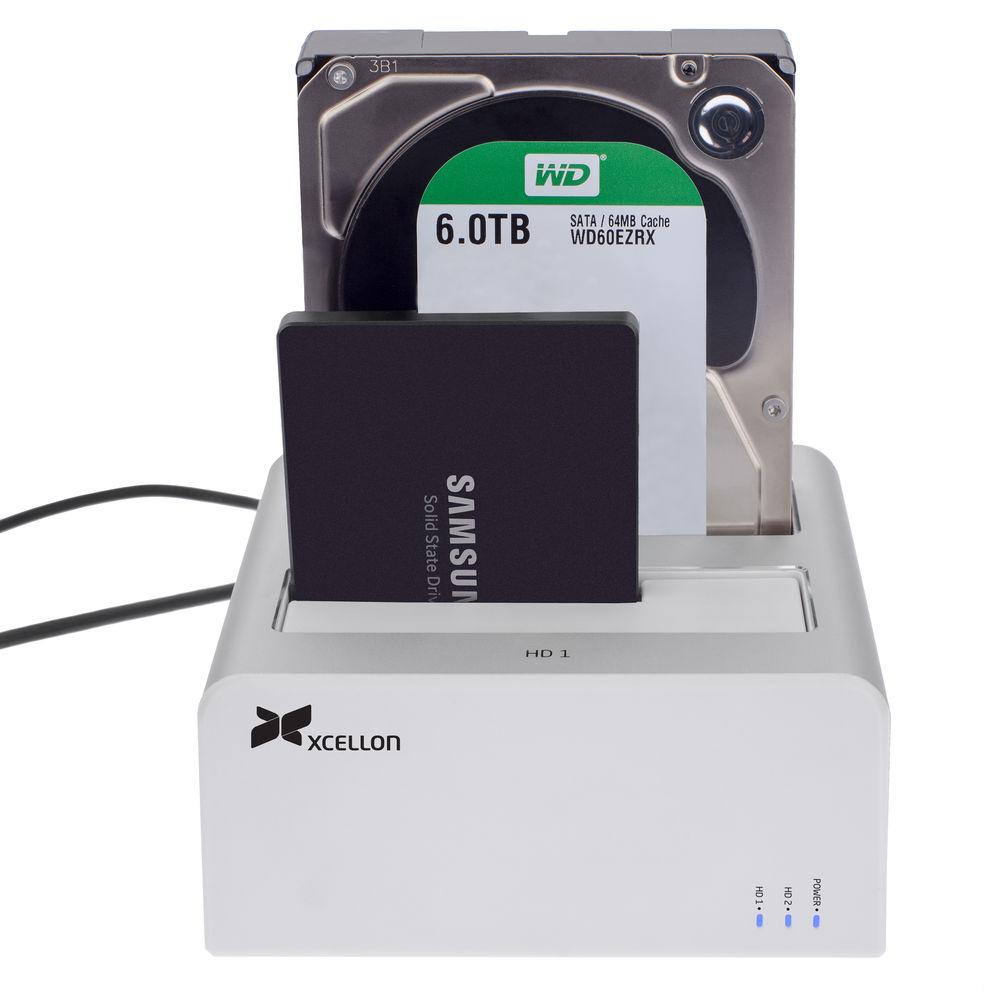

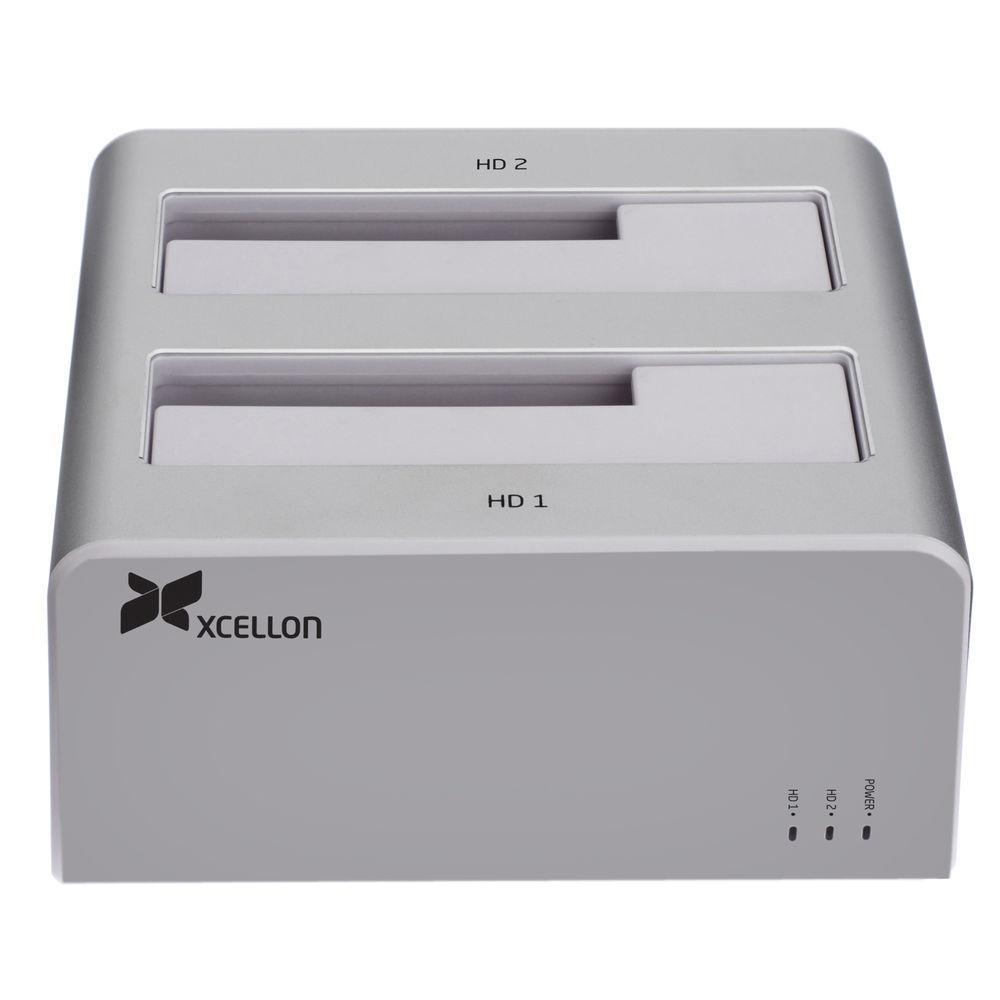

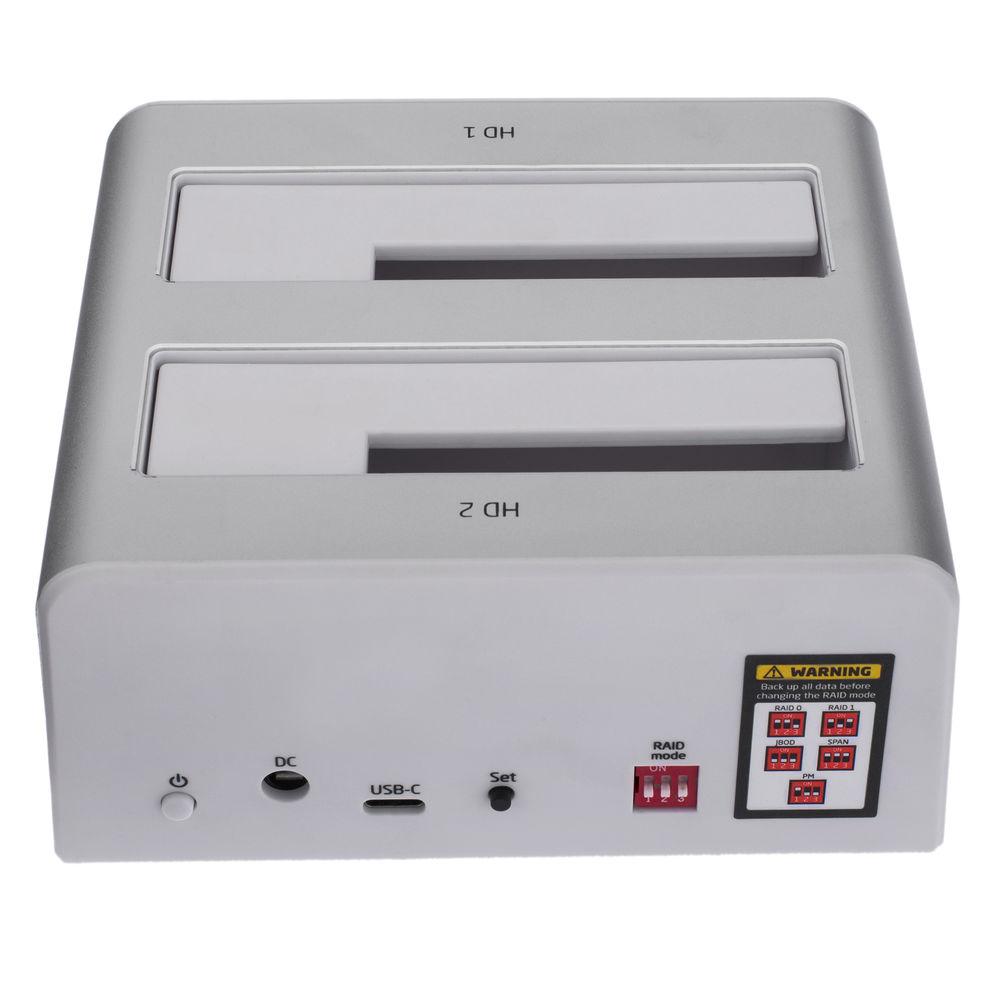

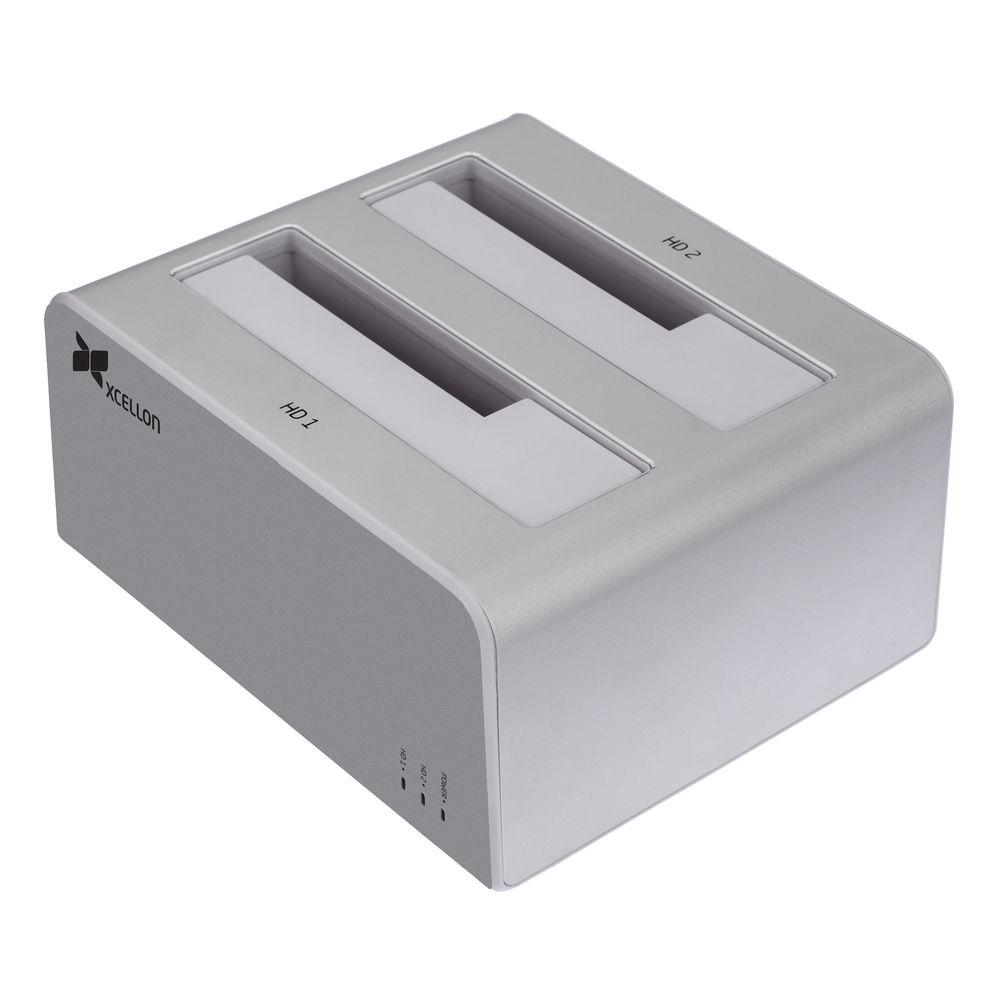

Product description Xcellon 2-Bay Hard Drive Dock Read More ucaevedubrytrubqavyy With a sturdy aluminum housing and two 2.5"/3.5" SATA drive bays, the HDD-202 2-Bay Hard Drive Dock from Xcellon makes it easy to create your own RAID configuration. Simply insert two SATA hard drives in capacities up to 8TB for a total storage capacity of up to 16TB, and configure the RAID setting via the hardware RAID controller located on the back of the dock to RAID 0, 1, JBOD, Span, or Port Multiplier to suit your specific storage needs. Once configured, data is transferred to and from the drives and a Windows, Mac, or Linux based computer via the USB Type-C port also located on the back of the dock. Once connected, users benefit from maximum data transfer rates of up to 10 Gbps to transfer even large files quickly and efficiently. - Top-loading bays provide a convenient way to create a two-disk RAID system with internal-type SATA drives.
- Capable of attaining SuperSpeed USB 10 Gbps transfer rates via the USB-C port when connected to compatible devices.
- Accommodates 2.5" laptop-sized and 3.5" desktop-sized SATA I/II/III drives with capacities up to 8TB per drive.
- Supports UASP for enhanced random read and write speeds.
- Plug-and-Play and hot swapping offer seamless operation.

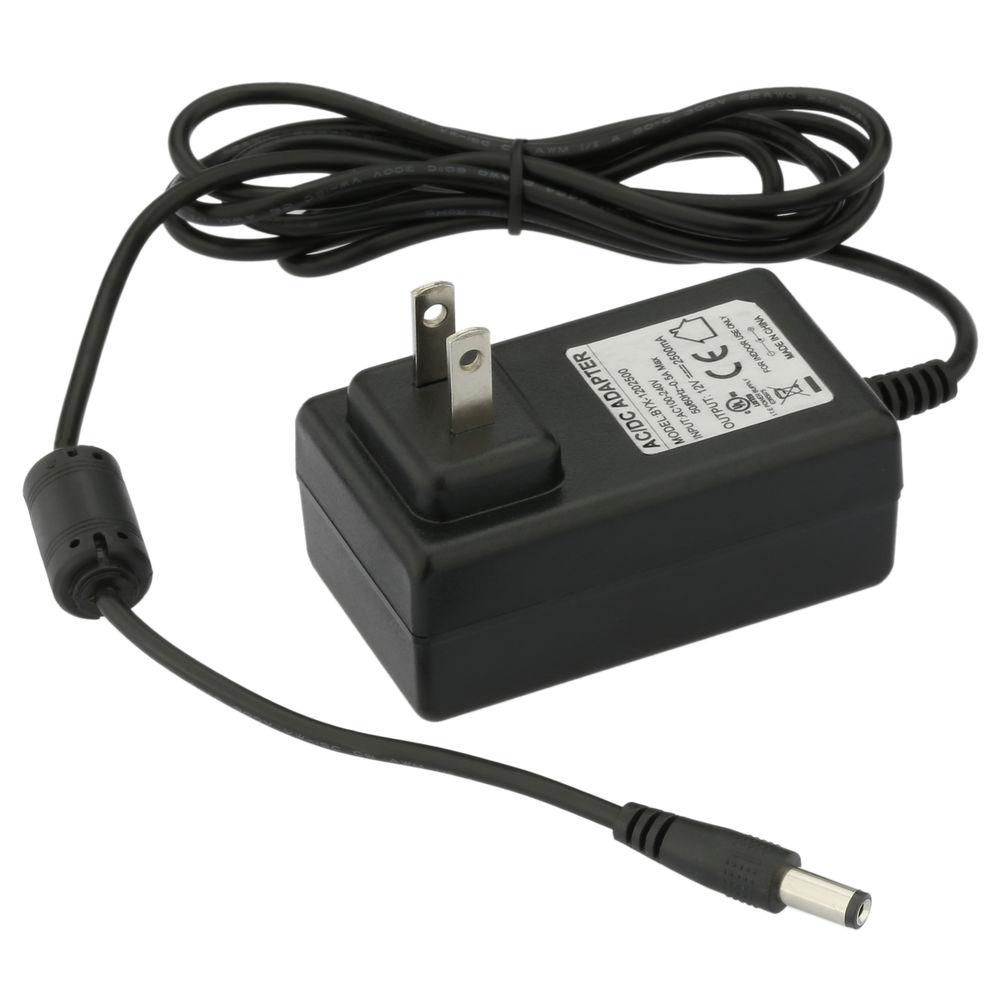

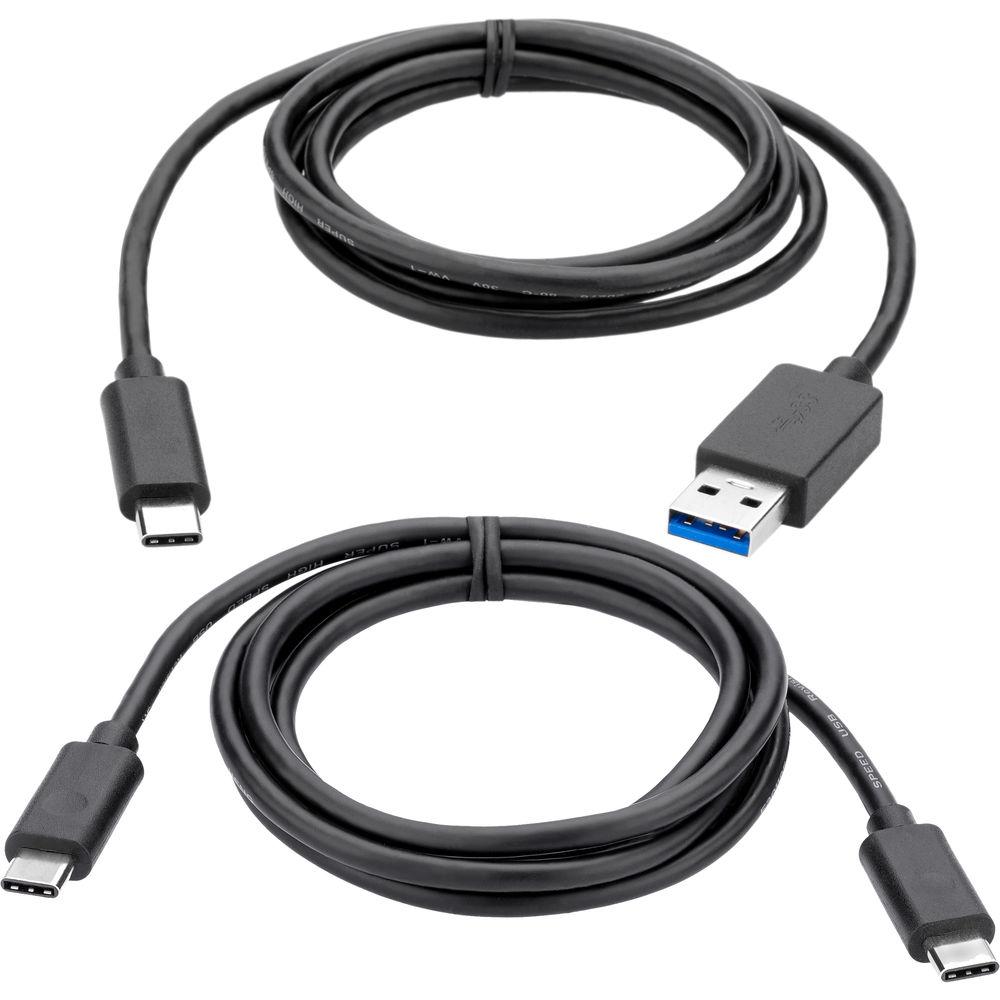

UPC: 847628589780 In the Box Xcellon HDD-202 USB Type-C to Dual 2.5/3.5" HDD/SSD Docking Station USB Type-C to Standard-A Cable USB Type-C to Type-C Cable DC Power Adapter Limited 1-Year Warranty User Manual PDF 656.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Xcellon HDD-202 USB Type-C to Dual 2.5 3.5" HDD SSD Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXcellon HDD-202 Specs | Number of Bays | 2 x 2.5"/3.5" | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s)) | | Compatible Drive Interface | SATA III | | Form Factor | Portable | | RAID Modes | RAID 0, 1, JBOD, SPAN | | UASP Support | Yes | | Hot-Swap Support | Yes | | Operating System Support | Linux, Windows, macOS/OS X OS X 10.6.7 or higher | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.5 A | | DC Input Power | 12 VDC at 2.5 A | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | | | Material of Construction | Aluminum, Plastic | | Cooling | None | | Bridge Chipset | ASMedia ASM1352R | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.3 x 2.6 x 4.6" / 13.5 x 6.6 x 11.7 cm | | Weight | 1.2 lb / 544.3 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 10.8 x 5.8 x 3.8" |
