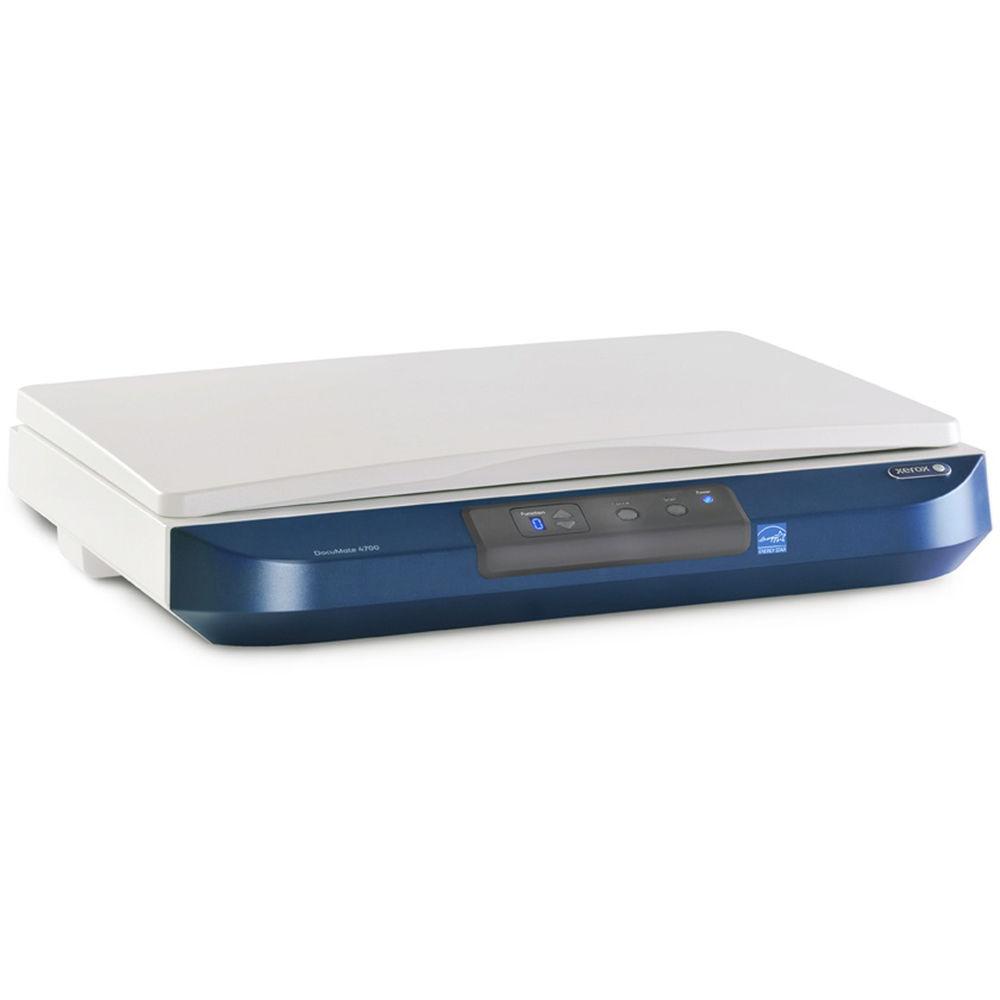

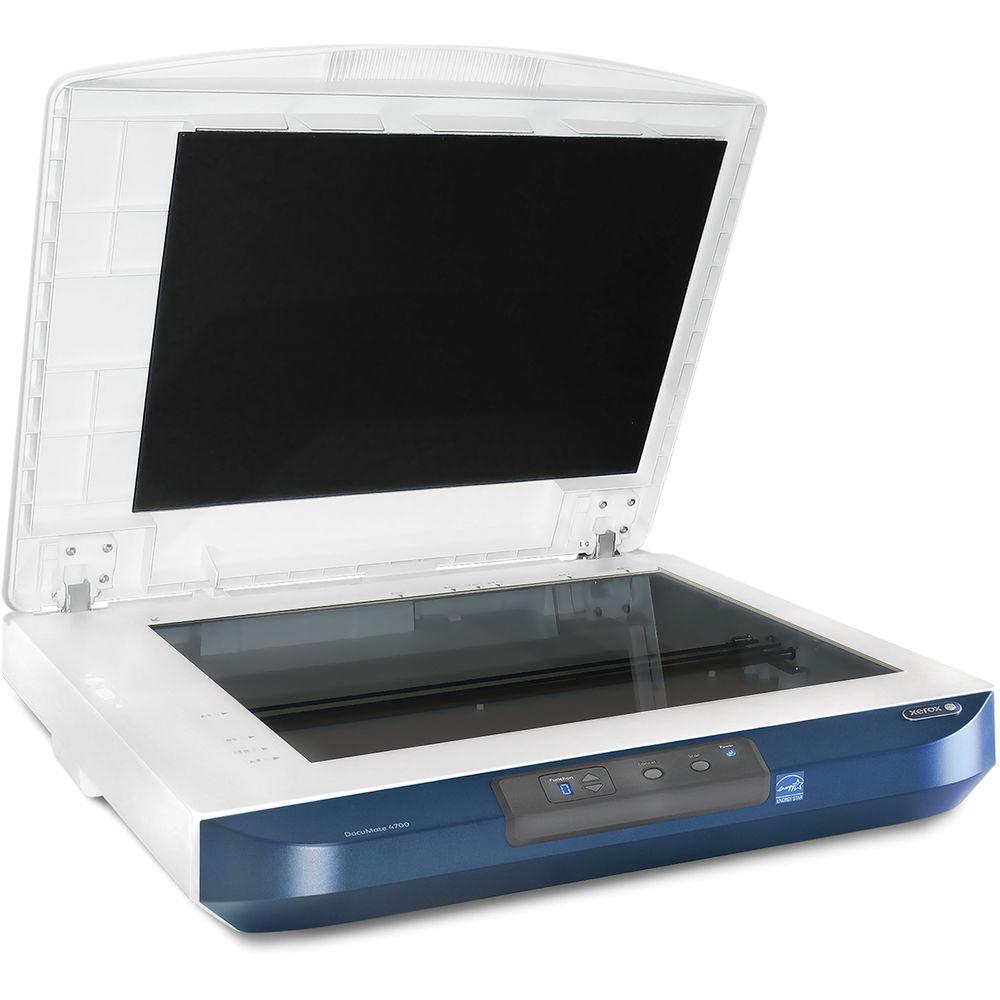

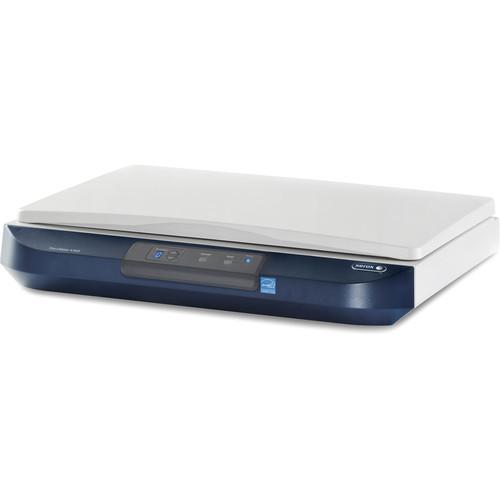

User Manual for Xerox DocuMate 4700 Color Flatbed Scanner Click to enlarge the picture
Contents of the user manual for the Xerox DocuMate 4700 Color Flatbed Scanner
- Product category: Flatbed & Document Scanners Xerox
- Brand: Xerox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xerox Flatbed & Document Scanners
 |
User manual for the Xerox DocuMate 4700 Color Flatbed Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xerox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xerox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xerox product will considerably shorten its lifespan!
|
Product description Designed for quick and smooth performance, the DocuMate 4700 from Xerox is a color flatbed scanner well-suited for large documents and bound copy such as books and magazines. Featuring an optical resolution of 600 dpi, the unit can scan an A4 page in as little as 2.5 seconds when set to 200 dpi and handle documents up to 11.7 x 17" in size. It can be used as a standalone model, or serve as an add-on to select Xerox ADF scanners by connecting to them via a dedicated USB slot. Once connected, the ADF and flatbed combination can be addressed as a single scanner for seamless operation and improved workflow. The DocuMate 4700 uses a USB 2.0 slot for connecting to your computer and is capable of exporting 24-bit color images in PDF, JPEG, or TIFF formats. A host of software is provided in an included DVD for easy editing of your images, including Visioneer Acuity which can automatically brighten and straighten your pictures at the touch of a button. Additionally, this unit is made to be durable with a rated duty cycle of up to 1000 pages per day. - Features
-
- Flatbed scanner uses Contact Image Sensor (CIS) for producing high quality images at 600 dpi resolution or lower
- Can be used by itself, or connected to a compatible ADF scanner via USB for combined use and better versatility
- Handles documents as small as 0.15 x 0.15" all the way up to 11.7 x 17"
- Reaches impressive scan speeds of 2.5 seconds for one A4 sheet and 3.5 seconds for an A3 page when set to 200 dpi
- Reliable operation with a rated duty cycle of 1000 pages per day
- Exports scanned documents in PDF, JPEG, and TIFF file formats via USB 2.0 computer connection
- Included Software
-
- Visioneer OneTouch allows your document to be sent to an email, printer, specific folder, or several cloud destinations
- Visioneer Acuity enables your scanner to improve the clarity of your scan, as well as automatically crop and straighten it
- Visioneer DriverPLUS is based on TWAIN 2.1 specifications and provides advanced scanning features
- Nuance PaperPort can be used to organize and manage all your scanned files, allowing for improved workflow
- Nuance PDF Converter Pro provides a host of tools for creating, editing, and sharing PDF files and offers Microsoft Office support
- Nuance OmniPage Pro is an optical character recognition (OCR) software designed for turning your scanned images into editable, formatted text
- Compatible ADF Scanners for Add-On Operation
-
- Xerox DocuMate 3115
- Xerox DocuMate 3125
- Xerox DocuMate 3120
- Xerox DocuMate 4440
- Xerox DocuMate 4760
- Xerox DocuMate 5460
- Xerox DocuMate 4799
- Xerox DocuMate 5445
- Xerox DocuMate 4790
UPC: 785414114146 In the Box Xerox DocuMate 4700 Color Flatbed Scanner USB Cable Power Supply DVD with Drivers and Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Xerox DocuMate 4700 Color Flatbed Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXerox DocuMate 4700 Specs | Optical Resolution | 600 dpi | | Maximum Document Width | 11.7" / 29.7 cm | | Maximum Document Length | 17" / 43.2 cm | | Color Depth | 24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (External) | | Duplex Scanning | No | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | Flatbed | | Life Expectancy | 1000 Sheets per Day | | Connectivity | USB 2.0 | | Wireless Connectivity | None | | File Formats | BMP, JPEG, PDF, TIFF | | Operating System Compatibility | Windows | | Light Source | LED | | Image Sensor | 1 x Contact Image Sensor (CIS) | | Control Panel | 3 Buttons | | Drivers | TWAIN, WIA, ISIS | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, WEEE, RoHS | | Operating Humidity | 10 to 85% | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Maximum Power Consumption | 22 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 2 A | | Power Source | AC Adapter | | Dimensions | 22.8 x 19.5 x 4.5" / 58.0 x 49.5 x 11.5 cm | | Weight | 15.43 lb / 7 kg | | | | Package Weight | 21.8 lb | | Box Dimensions (LxWxH) | 27.0 x 24.25 x 9.25" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
