Xerox DocuMate 4799 Duplex Scanner

Search your instruction manual in PDF to download

User Manual for Xerox DocuMate 4799 Duplex Scanner

Click to enlarge the picture
Xerox DocuMate 4799 Duplex Scanner Contents of the user manual for the Xerox DocuMate 4799 Duplex Scanner
  • Product category: Flatbed & Document Scanners Xerox
  • Brand: Xerox
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Xerox Flatbed & Document Scanners

User manual for the Xerox DocuMate 4799 Duplex Scanner contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Xerox product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Xerox user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Xerox product will considerably shorten its lifespan!



Product description

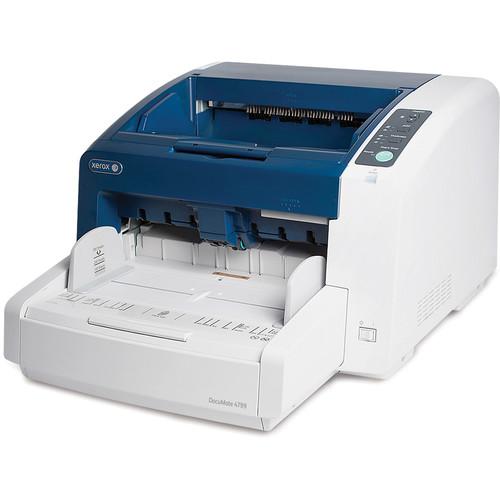

Designed for efficient high-volume scanning, the DocuMate 4799 from Xerox is a duplex ADF scanner with a spacious input tray that can hold up to 350 sheets at a time. It can produce PDF, JPEG, and TIFF files at optical resolutions of up to 600 dpi, accepting documents as large as 11.9 x 100" down to 1.9 x 2.8". With very impressive scan speeds, the unit digitizes dual-sided A4 documents as fast as 224 ipm when set to 300 dpi resolution or lower.The DocuMate 4799 uses dual CIS sensors for scanning, offering an external color depth of 24-bit to help ensure high image quality. Thanks to Visioneer image-enhancement technology, you can improve the clarity of your image and automatically crop and straighten it at the touch of a button. Additional editing can be done with other bundled software, all of which is included with the product on a DVD. This unit connects to your computer via USB 2.0 for quick data transfer and has a rated duty cycle of 40,000 pages per day.
    Features
    • Duplex ADF scanner with an optical resolution of 600 dpi and color depth of 24-bit for crisp imaging
    • Accepts documents as big as 11.9 x 100" and as small as 1.9 x 2.8"
    • Reaches impressive duplex scanning speeds of 224 ipm, for either color or black and white A4 prints at resolutions of up to 300 dpi
    • High-capacity input tray at the top can hold up to 350 regular paper pages for sequential scanning
    • Reliable operation with a rated duty cycle of 40,000 pages per day
    • Exports scanned documents in PDF, JPEG, GIF, BMP, or TIFF file formats
    • Powered via AC adapter, uses an included USB 2.0 cable for transferring files
    Included Software
    • Visioneer OneTouch is integrated with Visioneer Acuity and Kofax VRS Basic to improve the clarity of your scan and apply intelligent corrections to the image
    • Nuance PDF Converter provides a host of tools for creating, editing, and sharing PDF files and offers Microsoft Office support
    • Nuance OmniPage is an optical character recognition (OCR) software designed for turning your scanned images into editable, formatted text
    • Office Gemini Dokmee Capture allows you to export scanned files into a different format and transform data in your documents into searchable information, among other business-centric features
UPC: 785414113224 In the Box Xerox DocuMate 4799 Duplex Scanner
  • Blower with Brush
  • Roller Cleaning Paper
  • Shading Sheet
  • Double Feed Prevention Roller
  • USB Cable
  • AC Power Cord
  • DVD with Manual, Drivers, and Software
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Xerox DocuMate 4799 Duplex Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Xerox DocuMate 4799 Specs

    Optical Resolution 600 dpi
    Duplex Speed 224 ipm (Color)
    Simplex Speed 112 ppm (Color)
    Maximum Document Width 11.9" / 30.2 cm
    Maximum Document Length 100" / 254 cm
    Color Depth 24-Bit (External)
    Grayscale Bit-Depth 8-Bit (External)
    Duplex Scanning Yes
    Single Pass Duplex Yes
    Multi-Feed Detection Yes
    Scan Modes Color, Grayscale, Monochrome
    Document Feeding ADF
    Life Expectancy 40000 Sheets per Day
    Connectivity USB 2.0
    Wireless Connectivity None
    File Formats BMP, GIF, JPEG, PDF, TIFF
    Media Types Business Card, Photo, Plain Paper
    Paper Weight 5 to 56 lb / 20 to 209 gsm
    Maximum Paper Thickness 7.9 mil / 0.2 mm
    Operating System Compatibility Windows
    Image Sensor 2 x Contact Image Sensor (CIS)
    Control Panel 5 Buttons
    Drivers TWAIN, WIA, ISIS
    Maximum Sheet Capacity 350
    Automatic Image Corrections Yes
    Environmental Compliance ENERGY STAR, WEEE, RoHS
    Operating Humidity 30 to 80%
    Operating Temperature 59 to 86°F / 15 to 30°C
    Maximum Power Consumption 150 W
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Power Source AC Adapter
    Dimensions 18.7 x 13.0 x 23.0" / 47.4 x 32.9 x 58.5 cm
    Weight 55.12 lb / 25 kg
