User Manual for Xerox DocuMate 4830 Duplex Color Scanner Click to enlarge the picture
Contents of the user manual for the Xerox DocuMate 4830 Duplex Color Scanner
- Product category: Flatbed & Document Scanners Xerox
- Brand: Xerox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xerox Flatbed & Document Scanners
|
User manual for the Xerox DocuMate 4830 Duplex Color Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xerox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xerox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xerox product will considerably shorten its lifespan!
|

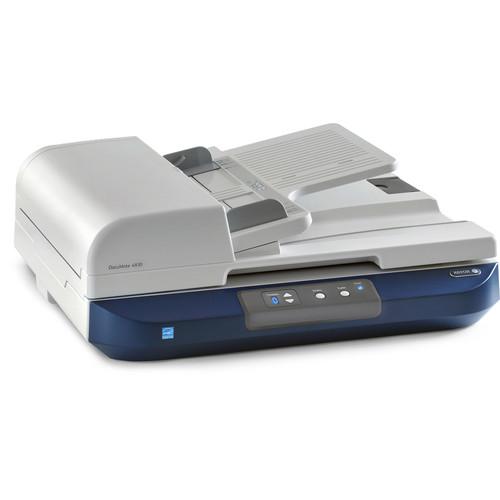

Product description Designed for efficient high-volume scanning, the DocuMate 4830 from Xerox is a duplex scanner that offers both a spacious flatbed and a 75-sheet automatic document feeder for improved versatility. The ADF is ideal for loose pages, accepting documents as large as 11.7 x 118" down to 4 x 4.13" in size. It is also more efficient than the flatbed, digitizing a US Letter color page as fast as 60 ipm while reaching speeds of up to 100 ipm when set to black and white or grayscale. For smaller pages or bound copy such as books and magazines, the flatbed can individually scan media as big as 11.7 x 16.5" A3 paper in high-quality 600-dpi resolution.The DocuMate 4830 uses a USB 2.0 slot for connecting to your computer and is capable of exporting 24-bit color images in PDF, JPEG, or TIFF formats. A host of software is provided in an included DVD for easy editing of your images, including Visioneer Acuity, which can automatically brighten and straighten your pictures at the touch of a button. Additionally, this unit is made to be durable with a rated duty cycle of up to 3000 pages per day. - Features
-
- Duplex ADF tray can hold up to 75 sheets at a time, supporting media sizes from 4 x 4.13" to 11.7 x 118"
- Flatbed available for individual scanning, accepts documents all the way up to 11.7 x 16.5" A3 paper
- 600 dpi optical resolution and 24-bit color depth make for crisp, high-quality imaging
- Reaches impressive duplex scan speeds of 100 ipm for grayscale and 60 ipm for color with the ADF
- Reliable operation with a rated duty cycle of 3000 pages per day
- Exports scanned documents in PDF, JPEG, or TIFF file formats via USB 2.0 computer connection
- Included Software
-
- Visioneer OneTouch allows your document to be sent to an email, printer, specific folder, or several cloud destinations
- Visioneer Acuity enables your scanner to improve the clarity of your scan, as well as automatically crop and straighten it
- Visioneer DriverPLUS offers driver technology based on TWAIN 2.1 specifications and provides advanced scanning features in a sophisticated interface
- Nuance Power PDF provides a host of tools for creating, editing, and sharing PDF files and offers Microsoft Office support
- Nuance OmniPage Ultimate is an optical character recognition (OCR) software designed for turning your scanned images into editable, formatted text
- Office Gemini Dokmee Capture allows you to export scanned files into a different format and transform data in your documents into searchable information, among other business-centric features
UPC: 785414117079 In the Box Xerox DocuMate 4830 Duplex Color Scanner USB Cable Power Supply DVD with Drivers, Manual, and Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Xerox DocuMate 4830 Duplex Color Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXerox DocuMate 4830 Specs | Optical Resolution | 600 dpi | | Duplex Speed | 60 ipm (Color)
100 ipm (Grayscale) | | Simplex Speed | 30 ppm (Color)
50 ppm (Grayscale) | | Maximum Document Width | 11.7" / 29.7 cm | | Maximum Document Length | 118" / 299.7 cm | | Color Depth | 24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Multi-Feed Detection | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF, Flatbed | | Life Expectancy | 3000 Sheets per Day | | Connectivity | USB 2.0 | | Wireless Connectivity | None | | File Formats | BMP, JPEG, PDF, TIFF | | Paper Weight | 14 to 28 lb / 53 to 105 gsm | | Operating System Compatibility | Windows | | Light Source | LED | | Image Sensor | 1 x Contact Image Sensor (CIS) | | Control Panel | 5 Buttons | | Drivers | TWAIN, WIA, ISIS | | Maximum Sheet Capacity | 75 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, WEEE, RoHS | | Operating Humidity | 15 to 85% | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Maximum Power Consumption | 40 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 2 A | | Power Source | AC Adapter | | Dimensions | 22.9 x 7.6 x 19.6" / 58.1 x 19.4 x 49.9 cm | | Weight | 26.46 lb / 12 kg | | | | Package Weight | 40.8 lb | | Box Dimensions (LxWxH) | 27.25 x 24.0 x 13.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
