User Manual for Xerox DocuMate 6480 Duplex Scanner Click to enlarge the picture
Contents of the user manual for the Xerox DocuMate 6480 Duplex Scanner
- Product category: Flatbed & Document Scanners Xerox
- Brand: Xerox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xerox Flatbed & Document Scanners
 |
User manual for the Xerox DocuMate 6480 Duplex Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xerox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xerox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xerox product will considerably shorten its lifespan!
|

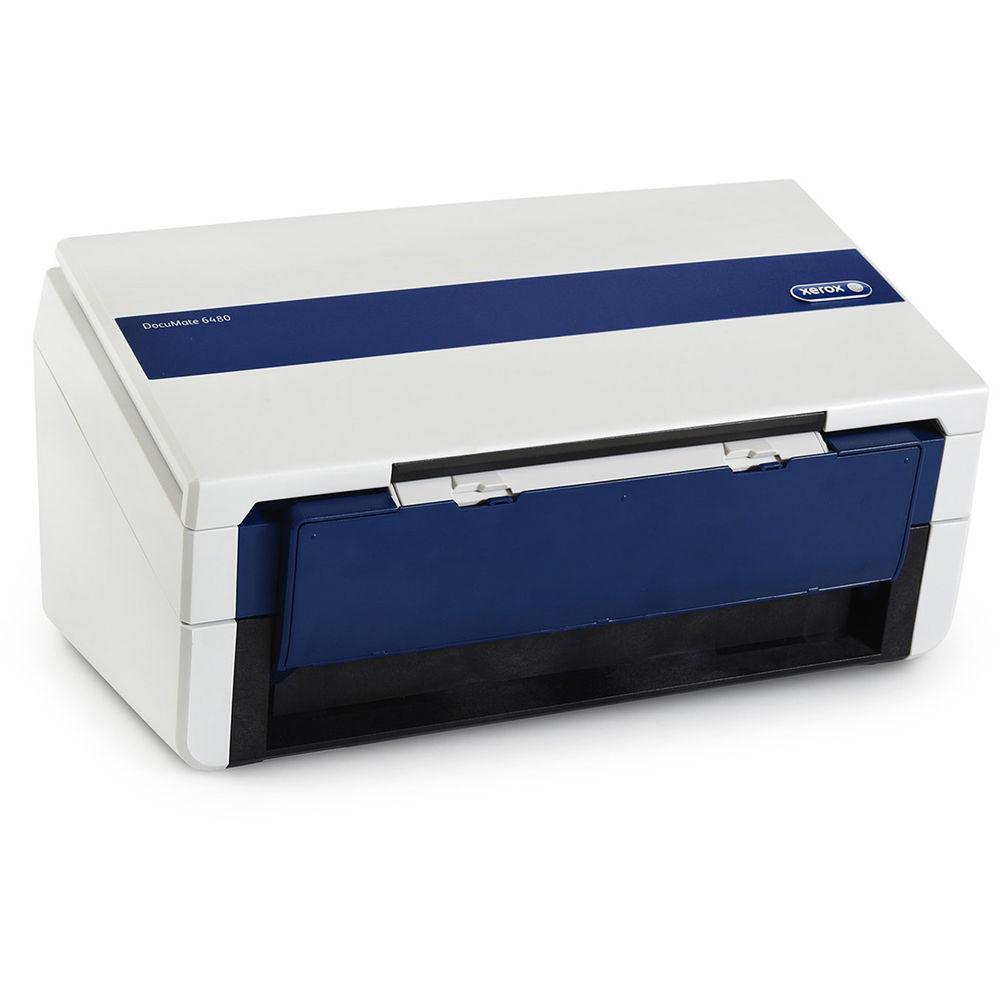

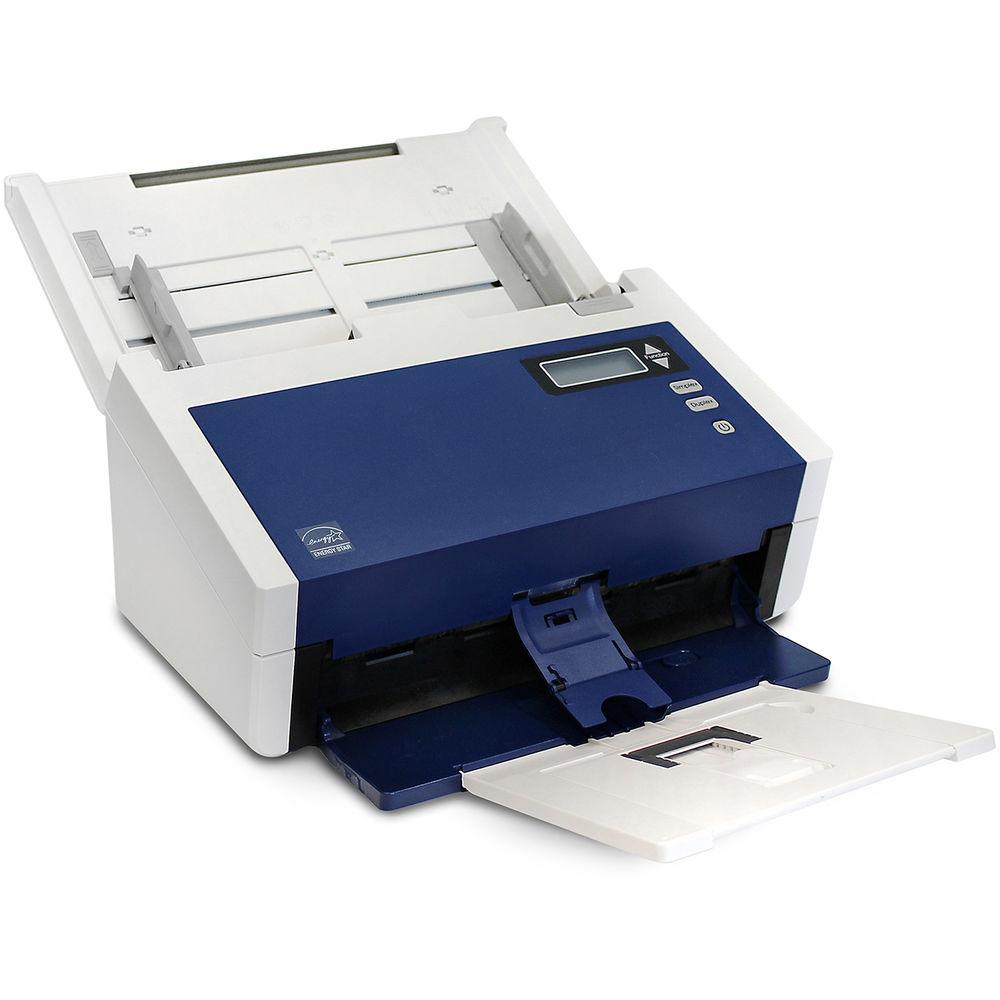

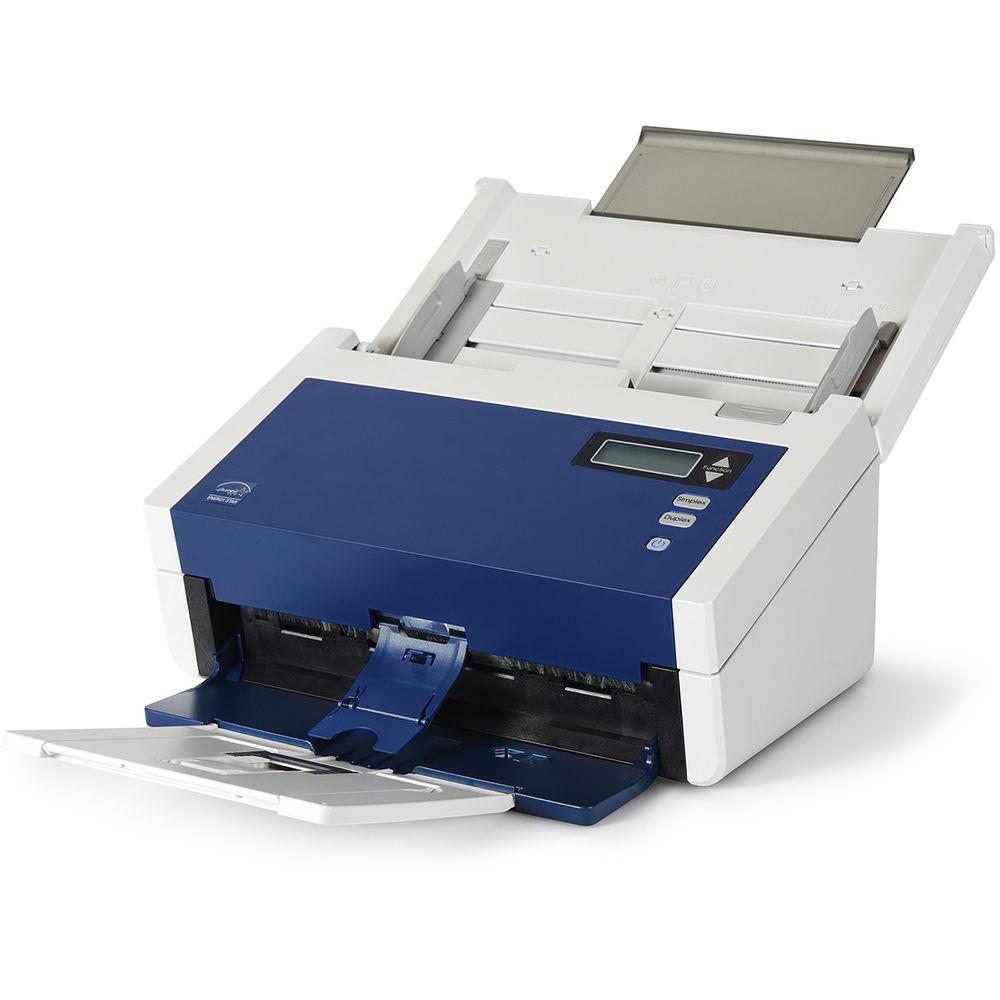

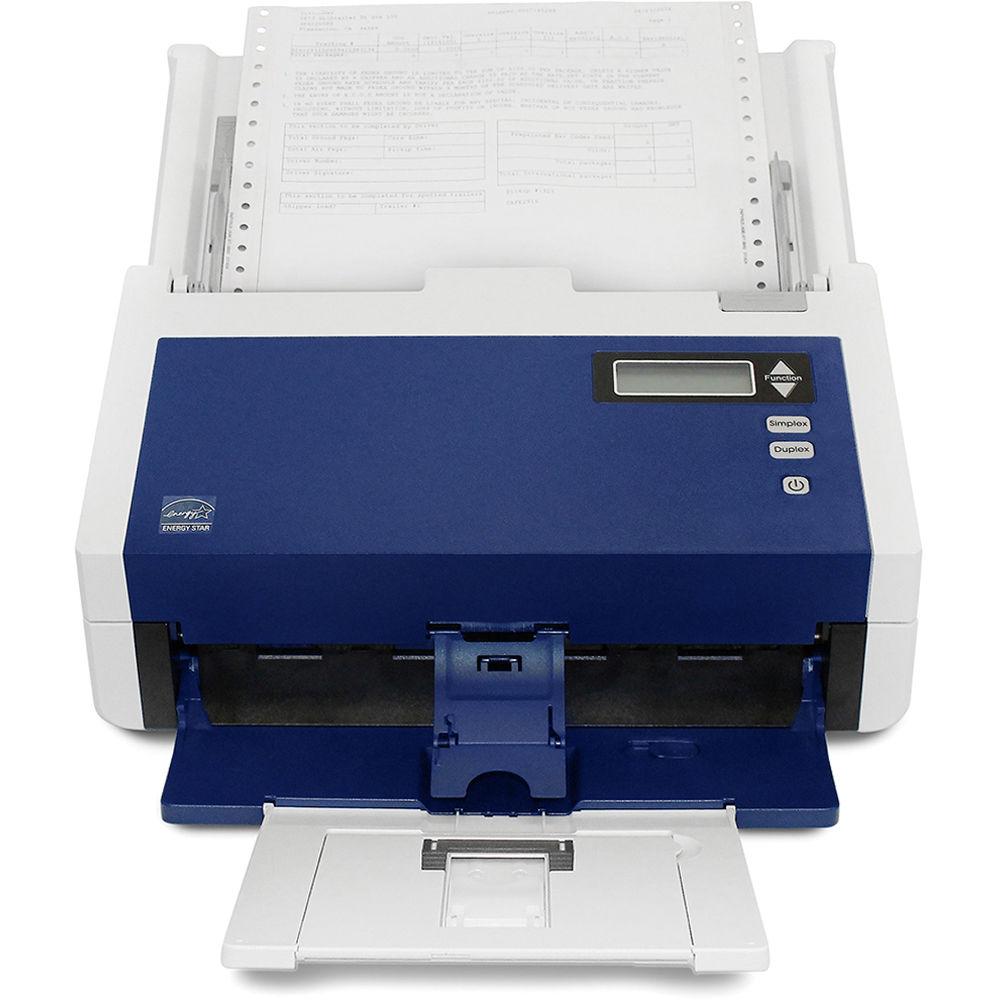

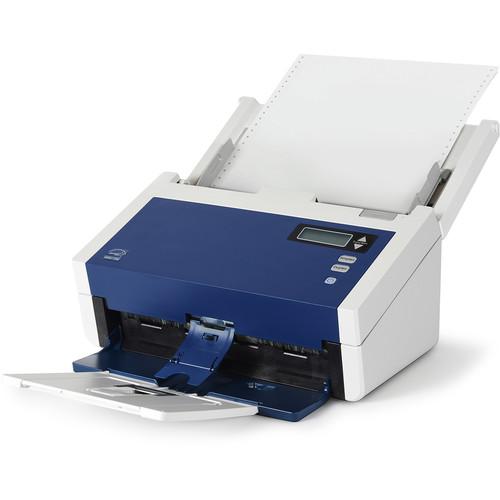

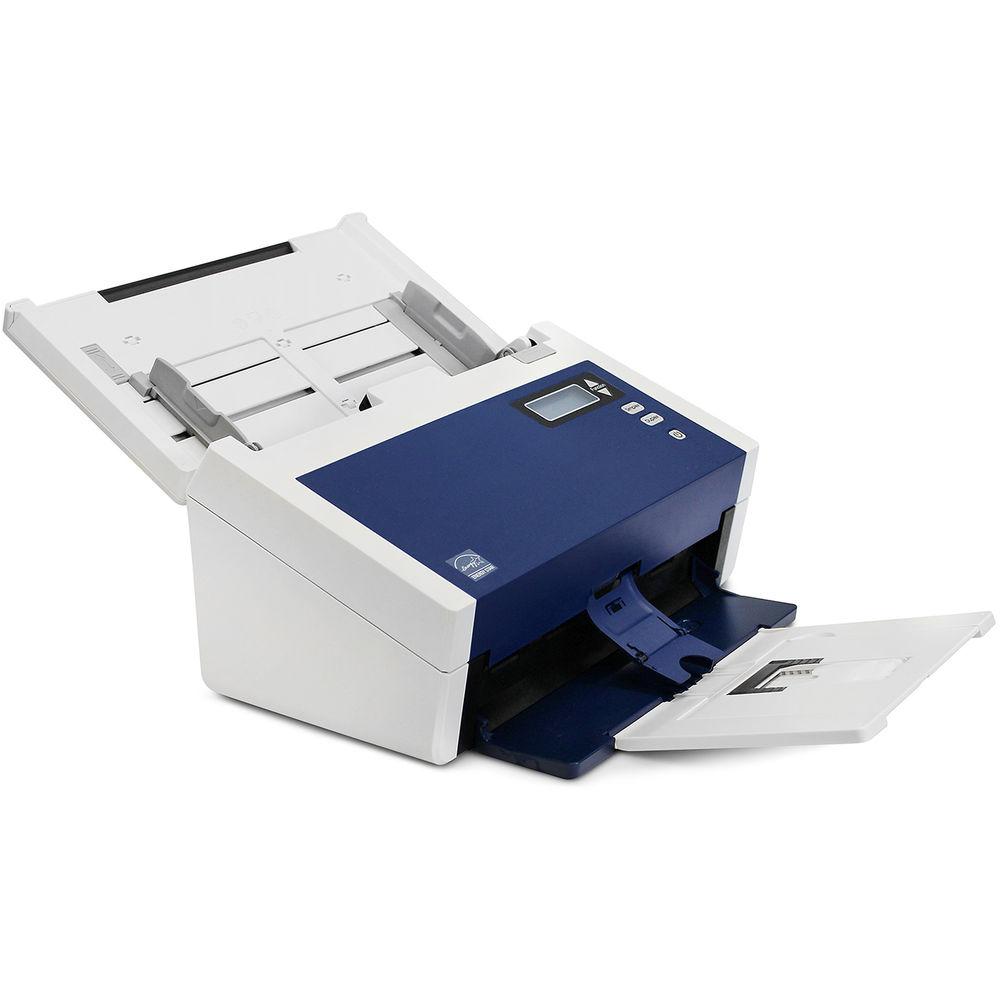

Product description Designed for efficient high-volume scanning, the DocuMate 6480 from Xerox is a duplex ADF scanner with a spacious input tray that can hold up to 120 sheets at a time. It produces files at optical resolutions of up to 600 dpi, featuring a maximum scan area of 8.5 x 236" at 200 dpi while accepting media as wide as 9.5" such as dot-matrix paper. With impressive scan speeds, the unit digitizes documents at 88 ppm at 200 dpi and 80 ppm at 300 dpi, connecting to the computer via USB 3.0 for quick data transmission as well. The DocuMate 6480 can reach interpolated resolutions of up to 1200 dpi thanks to Visioneer Acuity image enhancement software, which can also improve the clarity of your image and automatically crop it and straighten it at the touch of a button. Additional editing can be done with other bundled software, all of which is included with the product on a DVD. Additionally, this unit has a rated duty cycle of 10,000 pages per day. - Features
-
- Duplex ADF scanner with an optical resolution of 600 dpi for crisp imaging, reaching interpolated resolutions of up to 1200 dpi with Acuity software
- Accepts documents as big as 9.5 x 236" such as dot matrix tractor feed paper while offering a maximum scan area of 8.5 x 236"
- Minimum document size of 2 x 2", supports standard business cards
- Reaches impressive scan speeds of 88 ppm at 200 dpi and 80 ppm at 300 dpi, for both black and white and color paper
- High capacity input tray at the top can hold up to 120 mixed-size documents for sequential scanning
- Rated duty cycle of 10,000 pages per day
- USB 3.0 connectivity for fast transfer speeds
- Included Software
-
- Visioneer Acuity enables your scanner to improve the clarity of your scan, as well as automatically crop and straighten it
- Visioneer OneTouch allows your document to be sent to an email, printer, specific folder, or several cloud destinations
- Nuance Power PDF provides a host of tools for creating, editing, and sharing PDF files and offers Microsoft Office support
- Nuance OmniPage Ultimate is a precise optical character recognition (OCR) software designed for turning your scanned images into editable, formatted text
- Nuance PaperPort can be used to organize and manage all your scanned files, allowing for improved workflow
UPC: 785414118861 In the Box Xerox DocuMate 6480 Duplex Scanner USB Cable Power Supply Power Cable DVD with Drivers and Bundled Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Xerox DocuMate 6480 Duplex Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXerox 6480 Specs | Maximum dpi Resolution | 1200 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 176 ipm (Color, Grayscale) | | Simplex Speed | 88 ppm (Color) | | Maximum Document Width | 9.5" / 24.1 cm | | Maximum Document Length | 236" / 599.4 cm | | Color Depth | 48-Bit (Internal)
24-Bit (External) | | Grayscale Bit-Depth | 16-Bit (Internal)
8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF | | Life Expectancy | 10000 Sheets per Day | | Connectivity | USB 3.0 | | Wireless Connectivity | None | | Media Types | Business Card, Checks, ID Card, Plain Paper | | Paper Weight | 7 to 110 lb / 28 to 413 gsm | | Maximum Paper Thickness | 49.2 mil / 1.25 mm | | Operating System Compatibility | Windows | | Light Source | LED | | Image Sensor | 1 x Charge-Coupled Device (CCD) | | Control Panel | 5 Buttons | | Drivers | TWAIN, WIA, ISIS | | Maximum Sheet Capacity | 120 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, WEEE, RoHS | | Operating Humidity | 10 to 90% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Maximum Power Consumption | 24 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2 A | | DC Input Power | 24 VDC at 2 A | | Power Source | AC Adapter | | Dimensions | 12.4 x 9.4 x 26.8" / 31.6 x 23.9 x 68.0 cm | | Weight | 10.36 lb / 4.7 kg | | | | Package Weight | 14.055 lb | | Box Dimensions (LxWxH) | 15.9 x 11.45 x 10.9" |
