User Manual for Xerox Duplex Travel Scanner Click to enlarge the picture
Contents of the user manual for the Xerox Duplex Travel Scanner
- Product category: Portable Scanners Xerox
- Brand: Xerox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xerox Portable Scanners
 |
User manual for the Xerox Duplex Travel Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xerox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xerox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xerox product will considerably shorten its lifespan!
|

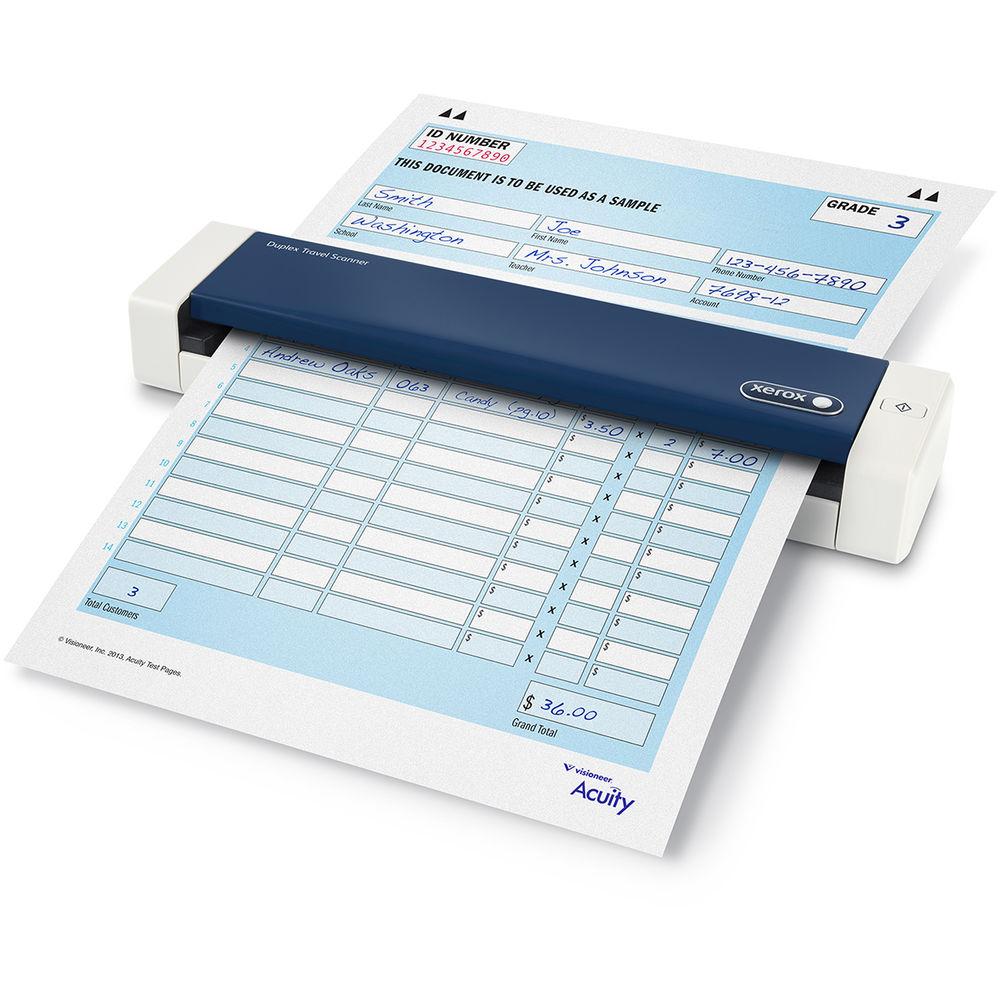

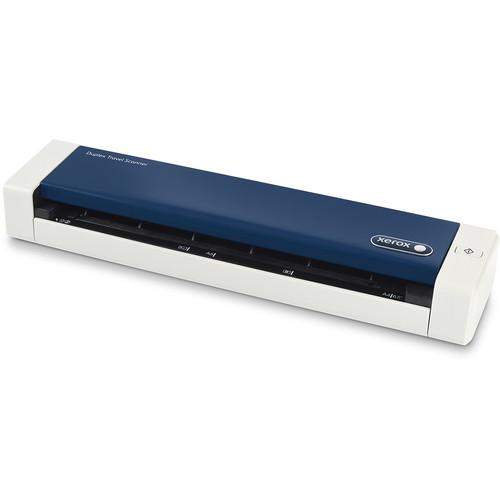

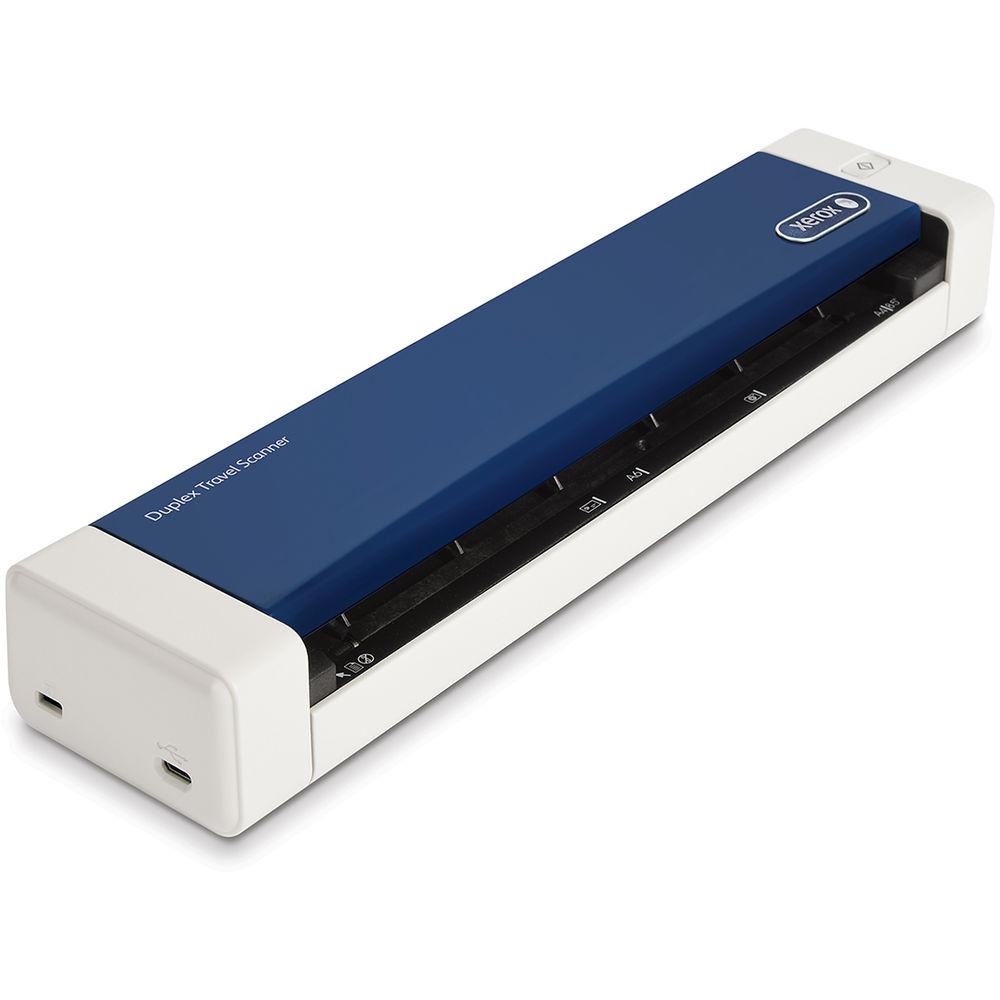

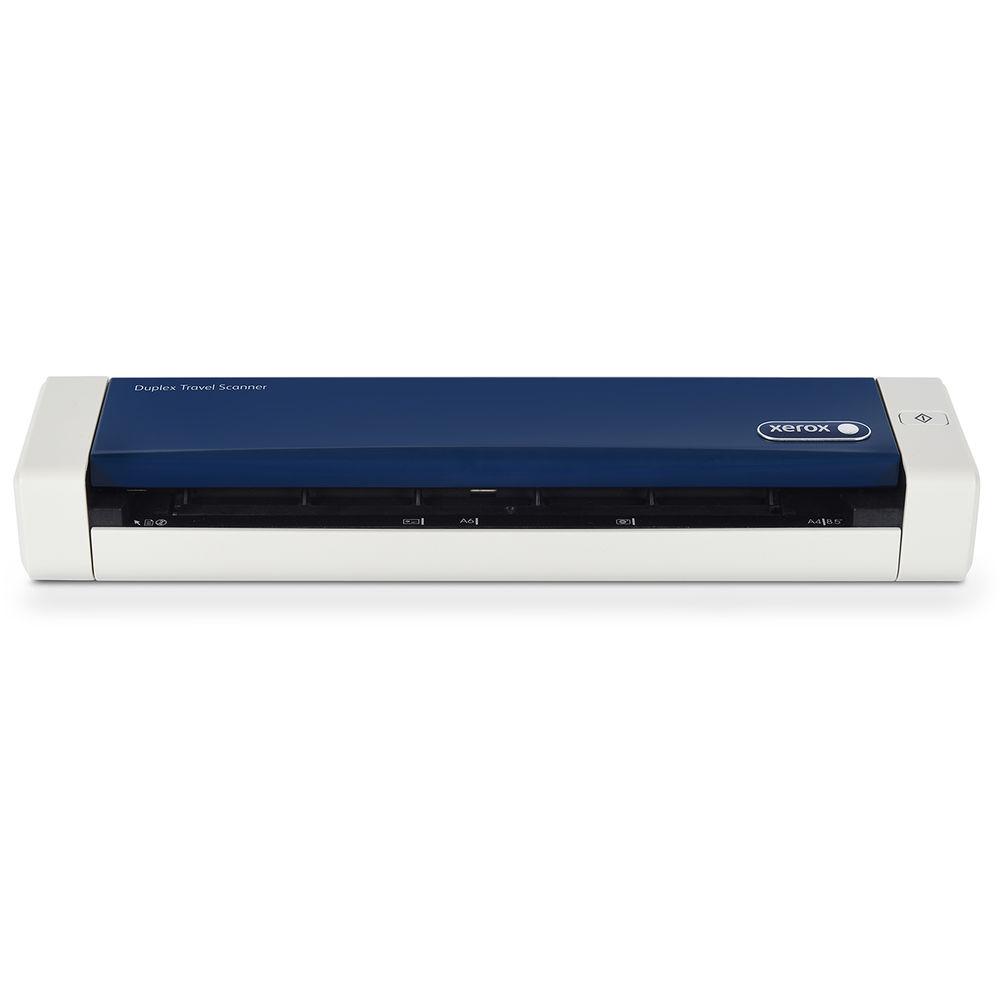

Product description When you are constantly on the move and want to maintain a digital workflow, the Duplex Travel Scanner from Xerox will make an ideal companion. It is a lightweight 1.1 lb scanner that easily fits into a bag and is powered directly by its USB connection. The scanner also uses a 600 dpi optical resolution to ensure sharp scans and can work with documents from 1.5 x 1.5" up to 8.5 x 32" banners with equal ease by using the duplexing single-sheet feeder. It even accepts plastic ID cards and photographs. Additionally, users will be able to work quickly with a scan speed of about 8 seconds per page and they can access a continuous feed mode for multi-sheet documents.
In order to get the most out of this scanner, it comes supplied with a software suite to get your started. Able to work with both Windows and Mac thanks to standard TWAIN, WIA, and ICA support, users can also enjoy software that provides advanced functionality. This includes Visioneer OneTouch for creating automated workflows and Visioneer Acuity for advanced image corrections and ensuring the highest quality. Also, it offers Nuance OmniPage Pro for accurate optical character recognition and layout retention for using the text in other programs, Nuance PaperPort for document management, and Nuance PDF Converter for creating advanced PDFs. UPC: 785414118007 In the Box Xerox Duplex Travel Scanner Carrier Sheet Calibration Sheet Cleaning Cloth USB 2.0 Cable Carrying Bag Driver and Software DVD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Xerox Duplex Travel Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXerox XTS-D Specs | | | Scan Sensor | CIS | | Optical Resolution | 600 dpi | | Interpolated Resolution | 1200 dpi | | Color Depth | Internal
Color: 48-bit
Grayscale: 16-bit
External
Color: 24-bit
Grayscale: 8-bit
Monochrome: 1-bit | | Scan Speed | 8 seconds per page | | Duplex Scanning | Yes | | Duty Cycle | Daily: 100 pages | | | | Paper Handling | Automatic Document Feeder | | Media Types | Plain Paper
Plastic Cards
Photos | | Media Sizes | Minimum: 1.5 x 1.5" / 3.8 x 3.8 cm
Maximum: 8.5 x 32.0" / 21.6 x 81.3 cm | | Media Weight | 16-32 lb / 60-120 gsm | | Media Thickness | Up to 31.5 mil / 0.8 mm | | Capacity | ADF: 1 sheet | | | | Interface | USB 2.0 | | Scanner Drivers | TWAIN
WIA
ICA | | OS Compatibility | Windows
macOS / Mac OS X | | | | Light Source | RGB LED | | Front Panel Controls | 1 Button | | Power Requirements | 5 VDC, 0.5 A | | Power Supply | USB | | Power Consumption | Operating: 2.5 W
Sleep: 1 W
Off: 0.5 W | | Operating Conditions | Temperature: 50 to 95°F / 10 to 35°C
Humidity: 15 to 85% | | Dimensions | 11.5 x 2.6 x 1.6" / 29.1 x 6.7 x 4.0 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 2.36 lb | | Box Dimensions (LxWxH) | 13.9 x 9.2 x 2.7" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
