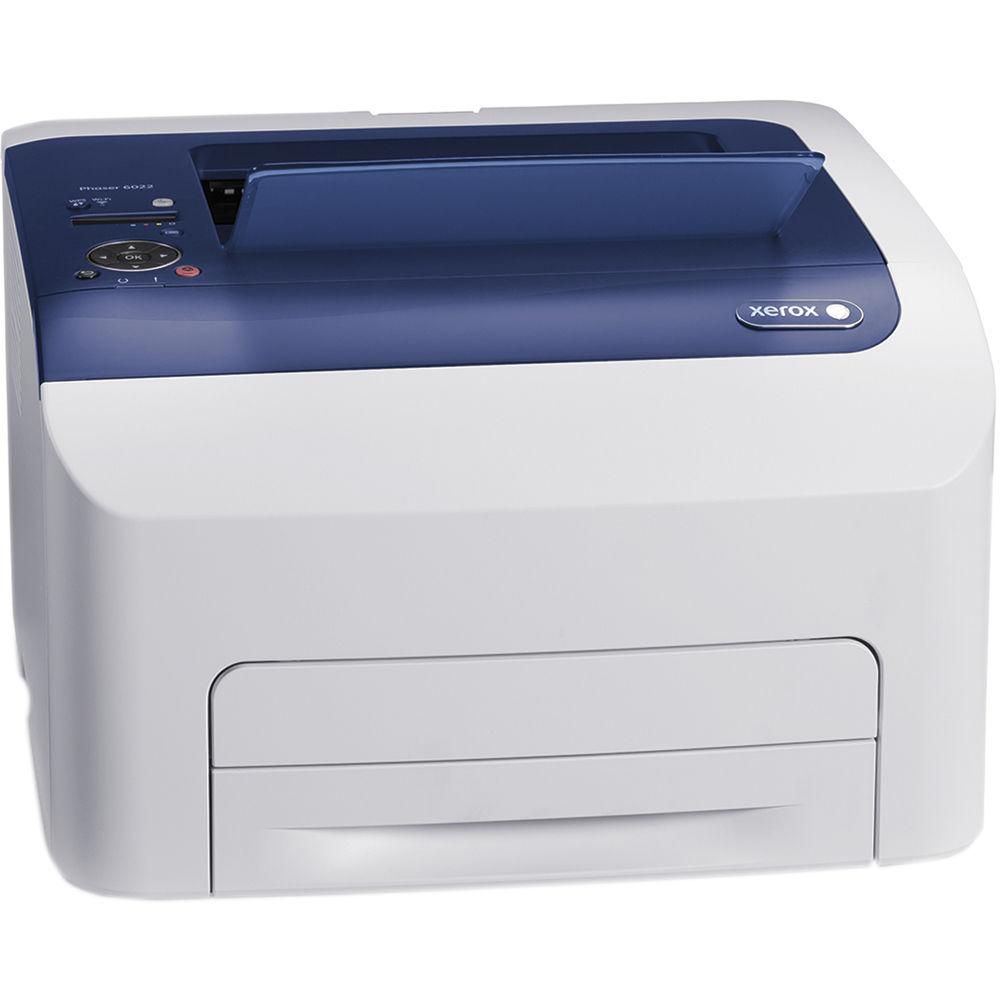

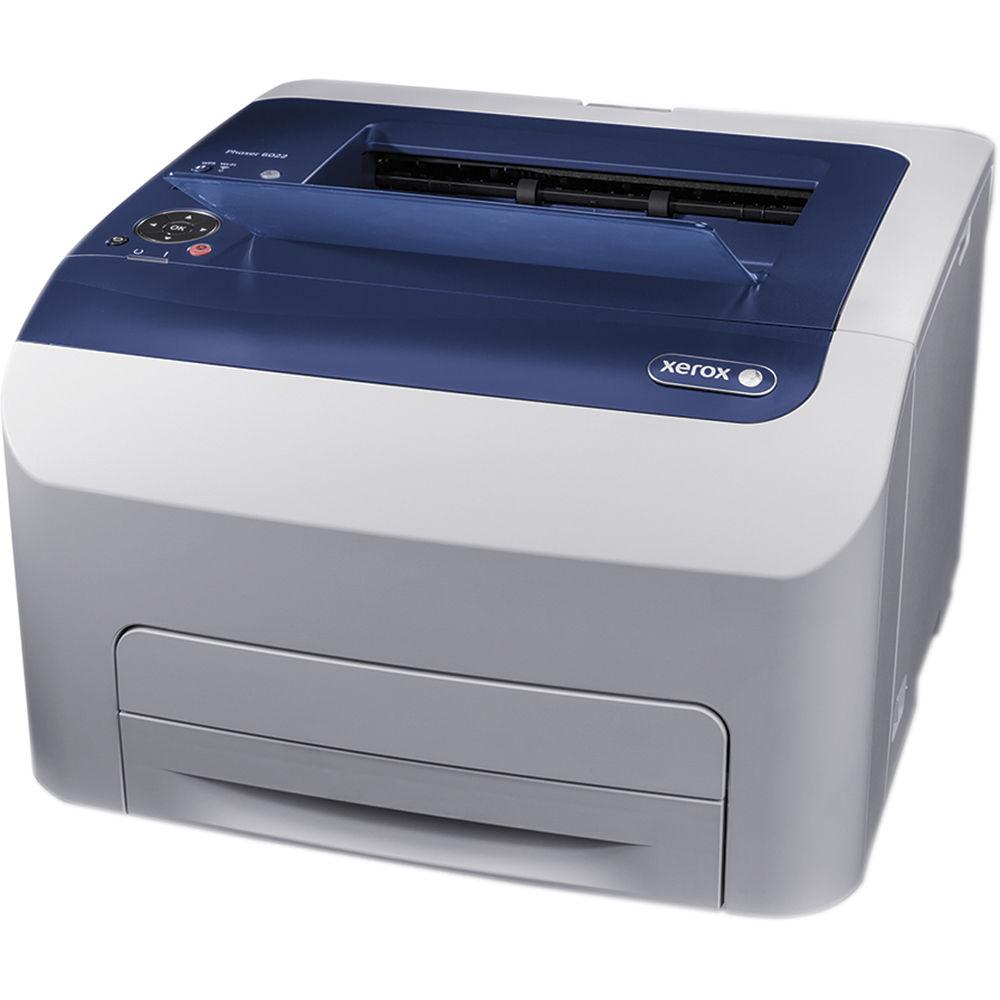

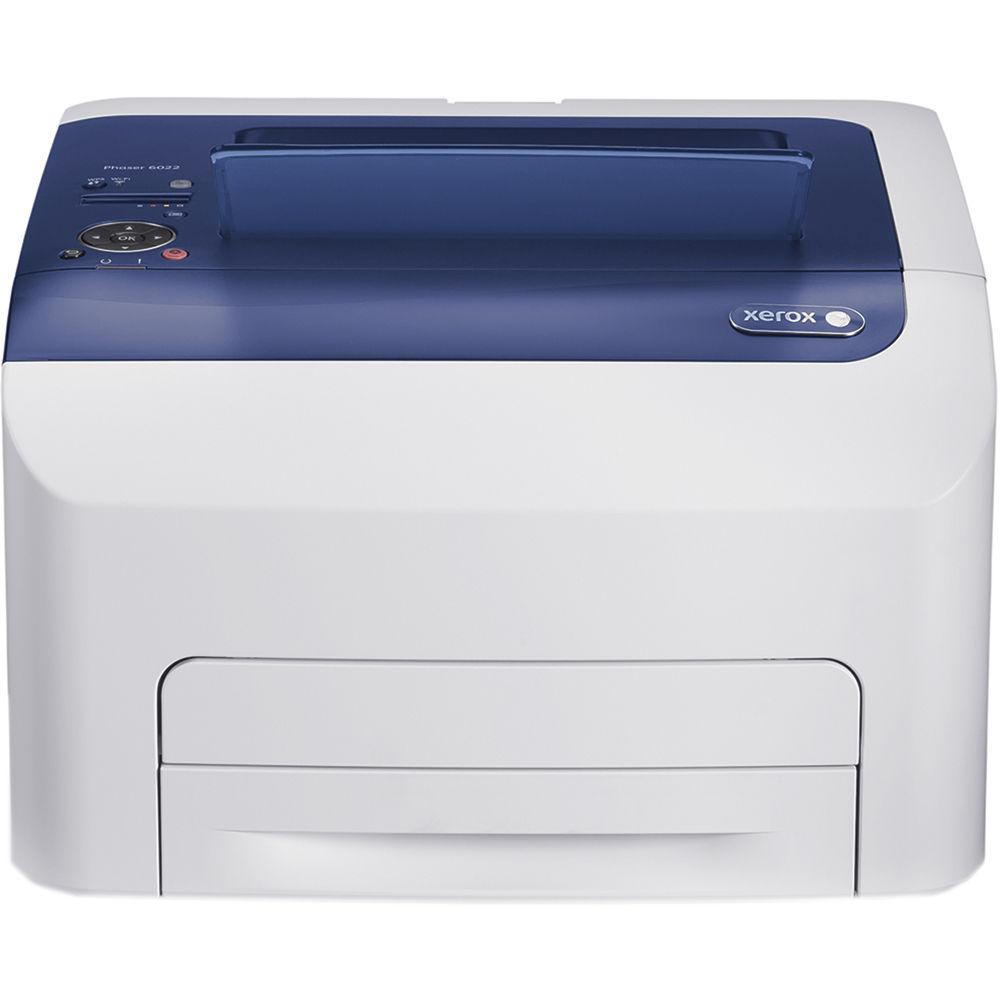

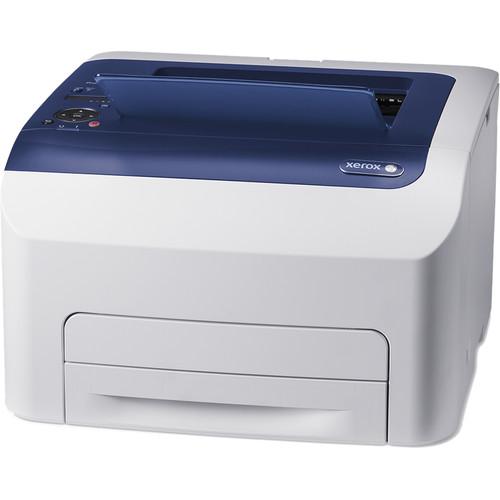

User Manual for Xerox Phaser 6022 Color LED Printer Click to enlarge the picture
Contents of the user manual for the Xerox Phaser 6022 Color LED Printer
- Product category: Laser Printers Xerox
- Brand: Xerox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xerox Laser Printers
 |
User manual for the Xerox Phaser 6022 Color LED Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xerox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xerox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xerox product will considerably shorten its lifespan!
|
Product description Print wirelessly and embrace high resolution 1200 x 2400 dpi enhanced imagery with the Phaser 6022 Color LED Printer from Xerox. Able to deliver up to 18 ppm, this capable unit will dramatically improve the productivity of your home or small office. It features a 150-sheet input tray which can handle all of your basic document sizes from 3 x 5" index cards to legal-size 8.5 x 14" documents. It is also quick to get going with a first print out time of 12 seconds. With built-in Wi-Fi users will be able to print directly from their mobile devices using Apple AirPrint, Google Cloud Print, Mopria-certified applications, and Wi-Fi Direct.
The printer is capable of handling numerous large jobs thanks to a monthly duty cycle of about 30,000 pages. Additionally, it offers both USB 2.0 and Ethernet in addition to Wi-Fi for enabling a variety of different setups. - Native Adobe PostScript 3 support
UPC: 095205867923 In the Box Xerox Phaser 6022 Color LED Printer Starter Toner Cartridges (~500 Pages) USB Cable Power Cord Software and Documentation CD Limited 1-Year Warranty More info from Xerox Table of Contents
|
Upload User Manual
Have you got an user manual for the Xerox Phaser 6022 Color LED Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXerox 6022 Specs | | | Printing Technology | Hi-Q LED | | Maximum Resolution | 1200 x 2400 dpi enhanced | | Print Speed | 18 ppm | | First Print Out Speed | Black & White: 12 seconds
Color: 13 seconds | | Print Color | CMYK | | Duplex Printing | No | | Printer Duty Cycle | Monthly: 30,000 pages
Recommended Monthly Volume: 1,500 pages | | Print Features | Image Options (Standard, Photos, Presentation, Design, POP), Color Balance Adjust, PANTONE Color Calibrated Solid-color Simulations, Auto Screening (Standard, Fineness, Gradation), N-up, Watermark, Custom Page Sizes, Fit to Page, Scaling, Reduce/Enlarge, Draft Mode, Collation, Bidirectional Print Drivers, Job Monitoring | | | | Paper Handling | Input tray
Output tray | | Paper Types | Plain, Bond, Lightweight Cardstock, Lightweight Glossy Card Stock, Envelopes, Labels, Recycled, Plain-Reloaded, Bond-Reloaded, Lightweight Card Stock Reloaded, Lightweight Glossy Card Stock Reloaded, Recycled-Reloaded | | Paper Sizes | Input Tray: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm | | Media Weight | 16 lb bond to 60 lb cover / 60 to 163 gsm | | Paper Capacity | Input Tray: 150 sheets
Output Tray: 100 sheets | | | | Interface | USB 2.0
Ethernet
Wi-Fi | | Mobile Printing Features | Apple AirPrint, Google Cloud Print, Mopria Print Service Plug-In, Wi-Fi Direct | | OS Compatibility | Windows 8/8.1, 7, Vista, XP (v3), Server 2008, Server 2003 (32/64-bit)
Server 2012 R2, Server 2012, Server 2008 R2 (64-bit)
Mac OS X 10.5.8-10.9.x
Red Hat Enterprise Linux 6 Desktop (32/64-bit)
SUSE Linux Enterprise Desktop 11 (32/64-bit)
Ubuntu 12.04 (32/64-bit) | | Processor | 525 MHz | | Memory | 256 MB | | Fonts | 81 PostScript
81 PCL
16 PDF | | Printer Language | Adobe Postscript 3
PCL 5c
PCL 6
Adobe PDF Direct
TIFF
JPEG | | Security | Secure HTTPS (SSL/TLS)
Secure IPP
SSL
IP Filtering
IPv6
SNMP v3
IPsec
WEP(64/128-bit)
WPA2-PSK (AES) and WPA/WPA2-PSK (Mixed Mode)
Wi-Fi
WEP(64/128-bit)
WPA2-PSK (AES)
WPA/WPA2-PSK (Mixed Mode) | | | | Warm-Up Time | From Power Save: 35 seconds | | Power Requirements | 110-127 VAC, 50/60 Hz, 7 A | | Power Consumption | Printing: 340 W
Standby: 45 W
Power Save: 10 W
Sleep: 3.5 W | | Certifications | UL 60950-1/CSA 60950-1-07, 2nd Edition
FCC Part 15 Class B
FCC Part 68
CE marked
Low Voltage Directive 2006/95/EC; EN 60950-1, 2nd Edition
EMC Directive 2004/108/EC; EN 55022, Class B; EN 55024
REACH Directive 1907/2006
R&TTE Directive 1999/5/EC
RoHS Directive 2011/65/EU
WEEE Directive 2012/19/EU
Section 508 ADA
EU Commission Regulation 1275/2008 as amended by (EU) No 801/2013 (ErP Lot 26)
FCC part 15.247 / 15.407 (U.S. Wi-Fi)
RSS 210 (Canadian Wi-Fi)
EN 300328 / 301893 (European Wi-Fi)
ENERGY STAR
EPEAT Bronze (United States)
Microsoft WHQL
Nordic ECO Declaration
EAC/NOM
Blue Angel (meet spec, not certified)
GS Mark
PANTONE
ECOLOGO
Xerox Green World Alliance
USB 2.0 Hi-Speed
Wi-Fi Certified
Apple AirPrint
Apple Universal Binaries
Apple Bonjour
Google Cloud Print
IPv6 Ready
Mopria certified | | Acoustic Noise | Sound Pressure
Printing: < 49.1 dB(A)
Standby: < 21.9 dB(A) | | Operating Conditions | Temperature: 50 to 90°F / 10 to 32°C
Humidity: 10 to 85% | | Dimensions | 15.6 x 15.7 x 9.7" / 39.7 x 39.8 x 24.6 cm | | Weight | 27.3 lb / 12.4 kg | | | | Package Weight | 35.05 lb | | Box Dimensions (LxWxH) | 19.9 x 19.8 x 14.9" |
