User Manual for Xerox VersaLink C500 N Color Laser Printer Click to enlarge the picture
Contents of the user manual for the Xerox VersaLink C500 N Color Laser
- Product category: Laser Printers Xerox
- Brand: Xerox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xerox Laser Printers
 |
User manual for the Xerox VersaLink C500 N Color Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xerox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xerox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xerox product will considerably shorten its lifespan!
|

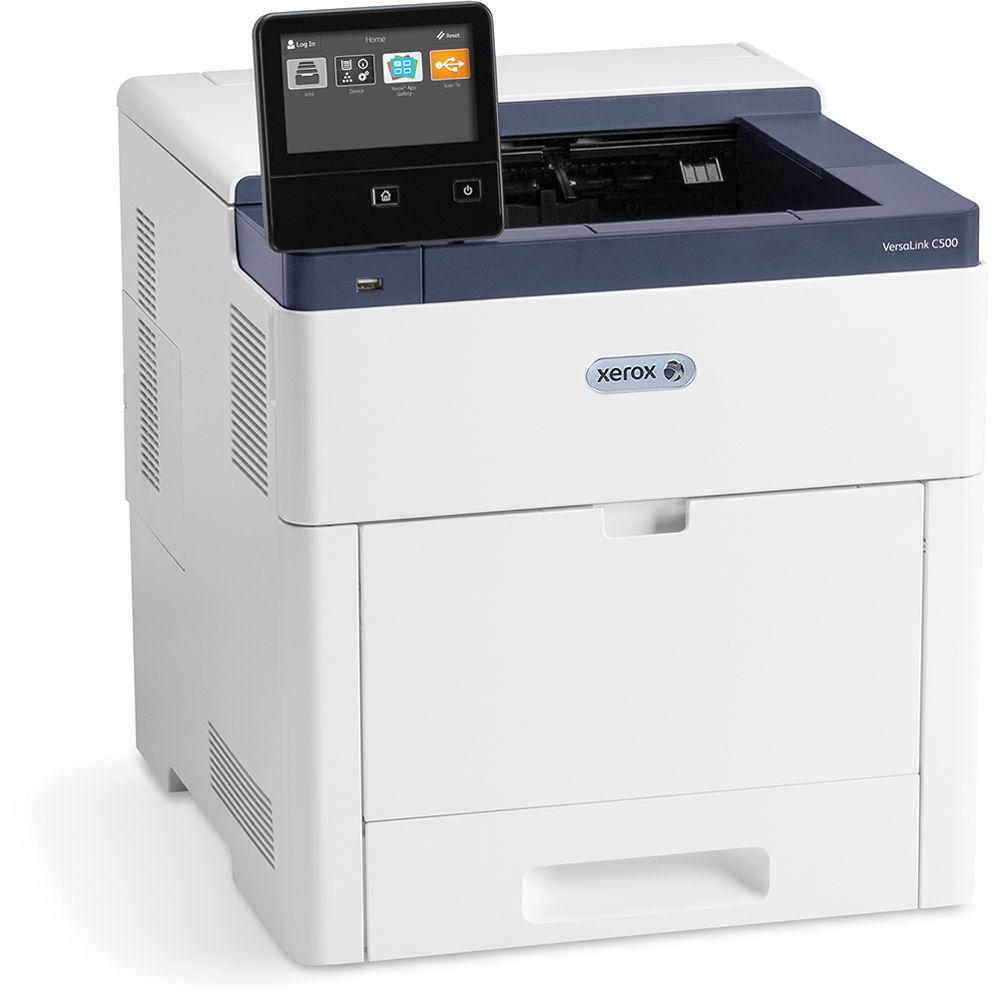

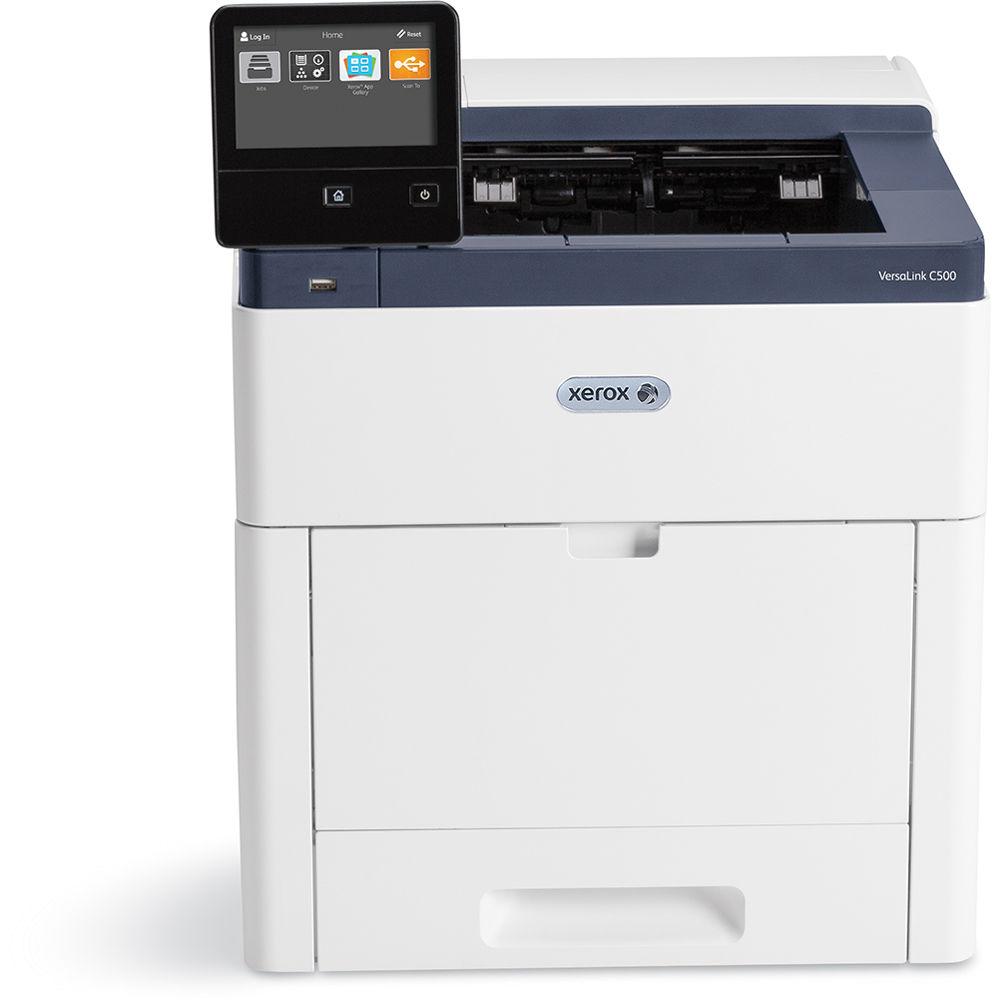

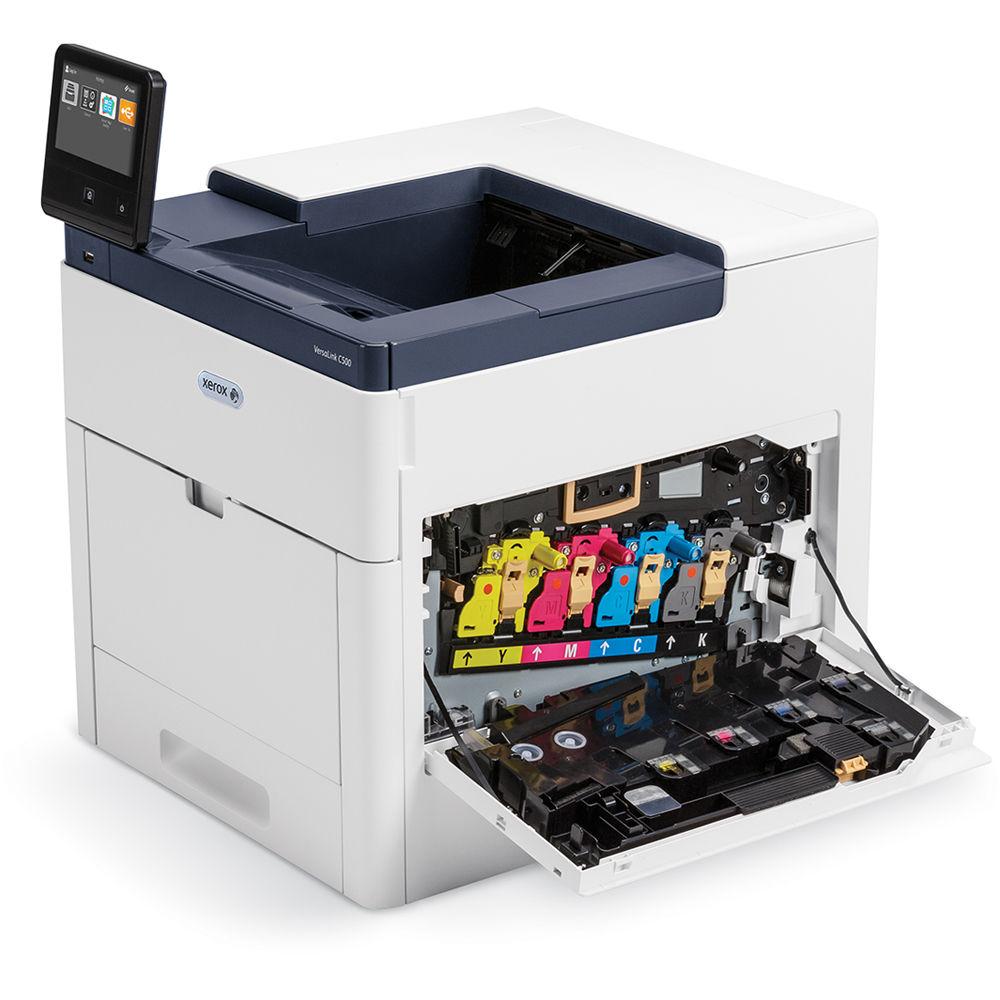

Product description Fast and reliable, the VersaLink C500/N Color Laser Printer from Xerox will let your team improve productivity by offering speedy 45 ppm printing in full color. The C500 will ensure documents are of the highest quality with a print resolution of 1200 x 2400 dpi and you can get started quickly with a first print out time of just 10 seconds in color. Thanks to Ethernet networking and NFC connectivity, wireless operation and mobile printing is supported with minimal setup required.
Media handling is provided by either a 150-sheet bypass tray or a 550-sheet input tray, both of which accept paper up to 8.5 x 14" in size. A rated monthly duty cycle of 120,000 pages ensures reliability even with many large jobs being produced. Operation is made easy through the implementation of a 5" color touchscreen and a front-side USB for direct printing from a portable flash drive. Additionally, a USB 3.0 interface can be used for a direct connection to a computer. - Print
-
- Color laser printing technology offers the ability to produce high-resolution graphics and text at up to 1200 x 2400 dpi.
- Users will enjoy speedy printing with a maximum printing rate of 45 ppm in simplex.
- The first print can be made in just 10 seconds for color.
- A monthly duty cycle of 120,000 pages per month and a recommended monthly volume of up to 8000 pages.
- Standard print features include application defaults, bi-direction real-time status, booklet creation, draft mode, job identification, job monitoring, personal print, print from USB, sample set, saved job, scaling, secure print, skip blank pages, store and recall driver settings, and Xerox Earth Smart driver settings.
- A front-facing USB port supports walk-up printing from a portable storage device using PDF, JPEG, TIFF, XPS, or PDF/A file formats.
- Print directly from a compatible phone or tablet, as long as both the device and the printer are connected to the same network.
- Supported applications include Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-In for Android, and Mopria.
- Media Handling
-
- A 150-sheet bypass tray will work with a range of media types ranging in size from 3 x 5" up to 8.5 x 14".
- Standard is a 550-sheet input tray for media from 3 x 7.5" to 8.5 x 14" for most jobs.
- Four optional 550-sheet trays or a 2000-sheet high-capacity feeder can be installed if extra capacity is desired. Also, an optional finisher and mailbox are available.
- Paper types supported include bond, plain, cardstock, hole-punched, labels, letterhead, lightweight cardstock, heavyweight cardstock, pre-printing, recycled, and custom.
- General
-
- An advanced 5" color touchscreen is present for intuitive operation and clear view of settings and status.
- This unit will warm up in about 11 seconds from sleep and boot up from off in 52 seconds.
- USB 3.0 and Ethernet connections are available for standard wired setups and networking.
- For wireless operation, NFC Tap-to-Pair technology enables devices to directly communicate and set up connections by simply placing them in close proximity to one another.
- 2GB of memory is available for improved processing of large files.
- The built-in font library includes 136 PostScript fonts and 83 PCL fonts.
- Advanced device management and accounting options are available for tracking and controlling printers remotely.
- Numerous security features and encryption options are standard for ensuring data is kept safe.
UPC: 095205847765 In the Box Xerox VersaLink C500/N Color Laser Printer 106R03859 Standard Capacity Cyan Toner Cartridge 106R03860 Standard Capacity Magenta Toner Cartridge 106R03861 Standard Capacity Yellow Toner Cartridge 106R03862 Standard Capacity Black Toner Cartridge Power Cord Software and Documentation CD Limited 1-Year Warranty More info from Xerox Table of Contents
|
Upload User Manual
Have you got an user manual for the Xerox VersaLink C500 N Color Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXerox C500/N Specs | | | Printing Technology | Laser | | Print Resolution | 1200 x 2400 dpi | | Print Speed | Simplex: 45 ppm | | First Print Out Speed | Color: 10 seconds
Black & White: 8.5 seconds | | Duplex Printing | No | | Ink Type | Toner | | Ink Palette | Black
Cyan
Magenta
Yellow | | Ink Cartridge Configuration | 4 individual cartridges | | Printer Duty Cycle | Monthly: 120,000 pages
Recommended Monthly Volume: Up to 8,000 pages | | Printer Language | HP PCL 6
HP PCL 5e
PDF
Adobe PostScript 3
XPS
TIFF
JPEG
HP-GL | | Maximum Printable Area | 4 mm from edge of paper | | | | Paper Handling | Bypass Tray 1
Input Tray 2
Output Tray | | Media Sizes | Bypass Tray 1: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm
Input Tray 2: 3 x 7.5" to 8.5 x 14" / 7.6 x 19 cm to 21.6 x 35.6 cm | | Media Weight | Bypass Tray 1: 16 lb bond to 80 lb cover / 60 to 220 gsm
Input Tray 2: 16 lb bond to 80 lb cover / 60 to 220 gsm | | Paper Capacity | Bypass Tray 1: 150 sheets
Input Tray 2: 550 sheets
Output Tray: 500 sheets | | Stapler | No | | | | Interface | USB 3.0
Ethernet
NFC | | Direct Printing | USB port
Apple AirPrint
Google Cloud Print
Xerox Print Service Plug-In for Android
Mopria | | Processor | 1.05 GHz Dual-Core | | Memory | 2 GB | | Hard Disk | Optional | | Compatible Operating Systems | Windows
macOS/OS X
Linux
Citrix
RedHat Enterprise
IBM AIX 7.2
HP-UX 11iv3
Oracle Solaris 11.3
Fedora Core 24
SUSE 13.2 | | | | Front Panel Controls | 5" / 12.7 cm color touchscreen | | Warm-Up Time | 11 seconds | | Power Requirements | 110-127 VAC, 50/60 Hz, 12 A | | Power Consumption | Maximum: 730 W
Ready: 74 W
Sleep: 0.9 W | | Acoustics | Power Emissions: 7.2 B(A) (Operating), 4.9 B(A) (Standby)
Pressure Emissions: 56.2 dB(A) (Operating), 33.6 dB(A) (Standby) | | Operating Conditions | Temperature: 50 to 90°F / 10 to 32°C
Humidity: 15 to 85% | | Storage Conditions | Temperature: 32 to 95°F / 0 to 35°C
Humidity: 15 to 85% | | Dimensions (WxDxH) | 16.9 x 18.4 x 17.5" / 42.7 x 46.6 x 44.3 cm | | Weight | 61 lb / 27.6 kg | | | | Package Weight | 75.0 lb | | Box Dimensions (LxWxH) | 25.0 x 23.5 x 22.0" |
