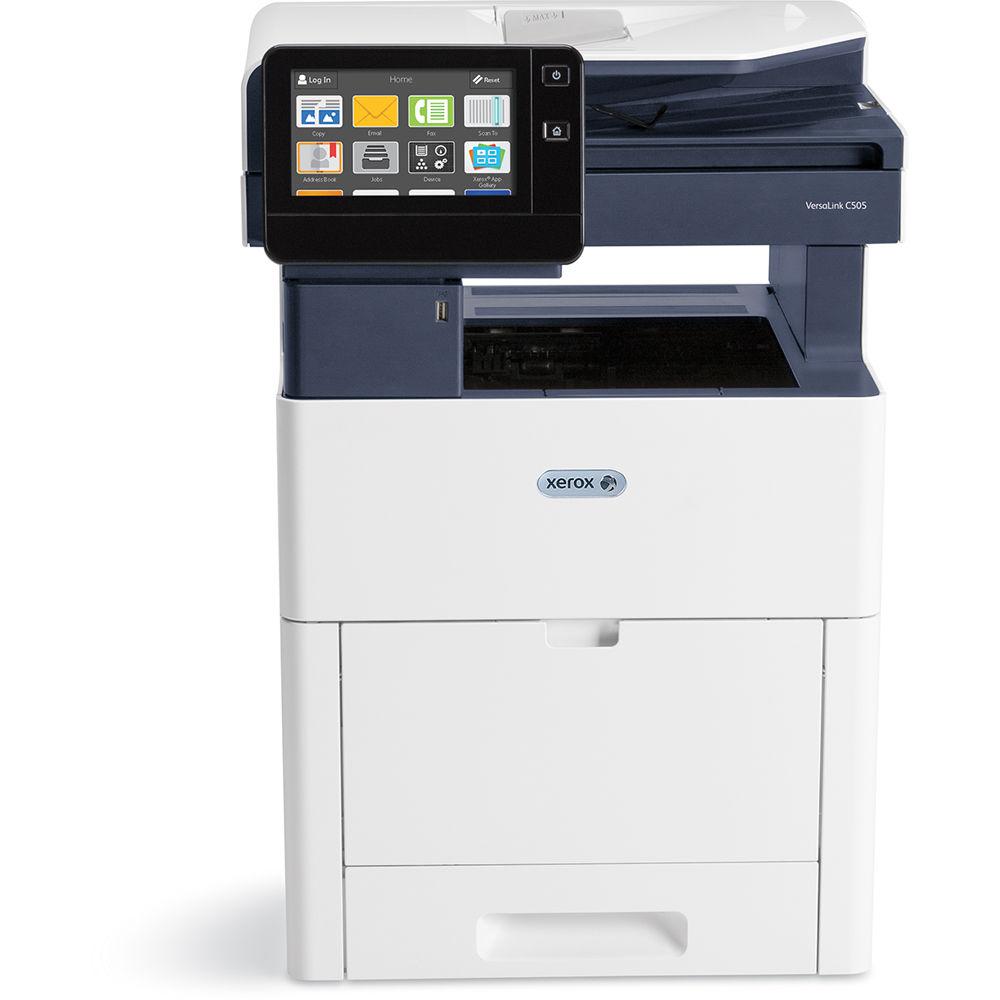

User Manual for Xerox VersaLink C505 S All-In-One Color Laser Printer Click to enlarge the picture
Contents of the user manual for the Xerox VersaLink C505 S All-In-One Color
- Product category: Laser Printers Xerox
- Brand: Xerox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xerox Laser Printers
|
User manual for the Xerox VersaLink C505 S All-In-One Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xerox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xerox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xerox product will considerably shorten its lifespan!
|
Product description Able to keep up with demanding and fast-paced teams, the VersaLink C505/S All-In-One Color Laser Printer from Xerox is able to amplify the capabilities of your office through its speedy printing, scanning, and copying functions. For the main function of printing this full-color tool offers outstanding speeds of up to 45 ppm as well as automatic duplexing and resolutions of up to 1200 x 2400 dpi. Users will also enjoy versatile media handling through either a 150-sheet bypass tray and a 550-sheet input tray, which both accept paper up to 8.5 x 14" in size.
For copying and scanning, the C505/S uses either a 100-sheet single-pass duplexing ADF or an 8.5 x 14" flatbed. This unit has an optical scan resolution of 600 x 600 dpi for sharp prints and can perform duplex operations via the ADF. For easy, intuitive operation a large 7" color touchscreen is located on the front of the printer. Also, there is a front-side USB port for direct printing and scanning from and to portable storage devices. For connectivity, users have the choice of USB 3.0, Ethernet, and even via NFC, which can be used for setting up fast connections with mobile devices. - Print
-
- Color laser printing technology offers the ability to produce high-resolution graphics and text at up to 1200 x 2400 dpi.
- Users will enjoy speedy printing with a maximum printing rate of 45 ppm in simplex and 44 ppm in duplex.
- The first print can be made in just 9 seconds.
- Automatic duplexing is available for quickly producing two-sided documents and saving paper.
- A monthly duty cycle of 120,000 pages per month and a recommended monthly volume of up to 8000 pages.
- Standard print features include application defaults, bi-direction real-time status, booklet creation, draft mode, job identification, job monitoring, personal print, print from USB, sample set, saved job, scaling, secure print, skip blank pages, store and recall driver settings, two-sided printing, and Xerox Earth Smart driver settings.
- A front-facing USB port supports walk-up printing from a portable storage device using PDF, JPEG, TIFF, XPS, or PDF/A file formats.
- Print directly from a mobile device via Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-In for Android, or Mopria-certified devices.
- Scan
-
- Both a flatbed and single-pass duplex ADF are present in the C505/S for scanning documents at an optical resolution of up to 600 x 600 dpi.
- The flatbed features a scan area of 8.5 x 14" while the ADF supports media from 5.5 x 5.5" up to 8.5 x 14" in size.
- Users will enjoy speedy scanning at rates up to 43 ipm for black & white and 42 ipm for color in simplex mode and 73 ipm for black & white and 55 ipm for color in duplex mode.
- The printer can scan concurrently with other operations.
- Bit depths of 24-bit in color and 8-bit in grayscale are used for accurate color and smooth gradations in your images.
- Supported scan file formats include JPG, TIFF (single- and multi-page), XPS (single- and multi-page), PDF (single- and multi-page), searchable PF, password-protected PDF, linearized PDF, and PDF/A.
- WIA and TWAIN drivers are supported when set up with a network.
- Scan destination options include home, USB, email, and network (FTP or SMB).
- Copy
-
- Users can produce copies quickly, with speeds of up to 45 cpm in simplex and duplex.
- A maximum copy resolution of 600 x 400 dpi is available.
- First copy out times of 7 seconds for color and 5 seconds for black & white ensure quick startup.
- Up to 999 copies can be made at one time.
- Copies can have input:output configured as 1:1, 1:2, 2:2, and 2:1.
- Users can reduce or enlarge documents from 25-400% in 1% increments.
- Copying can be performed concurrently with scanning and printing.
- Standard copy features include automatic background suppression, book copying with center erase, collation, darkness control, edge erase, ID card copy, N-up, reduction/enlargement, image shift, original type, sample copy, and sharpness.
- Media Handling
-
- A 150-sheet bypass tray will work with a range of media types ranging in size from 3 x 5" up to 8.5 x 14".
- Standard is a 550-sheet input tray for media from 3 x 7.5" to 8.5 x 14" for most jobs.
- For copying and scanning a 100-sheet single-pass duplex automatic document feeder is available which supports media from 5.5 x 5.5" up to 8.5 x 14".

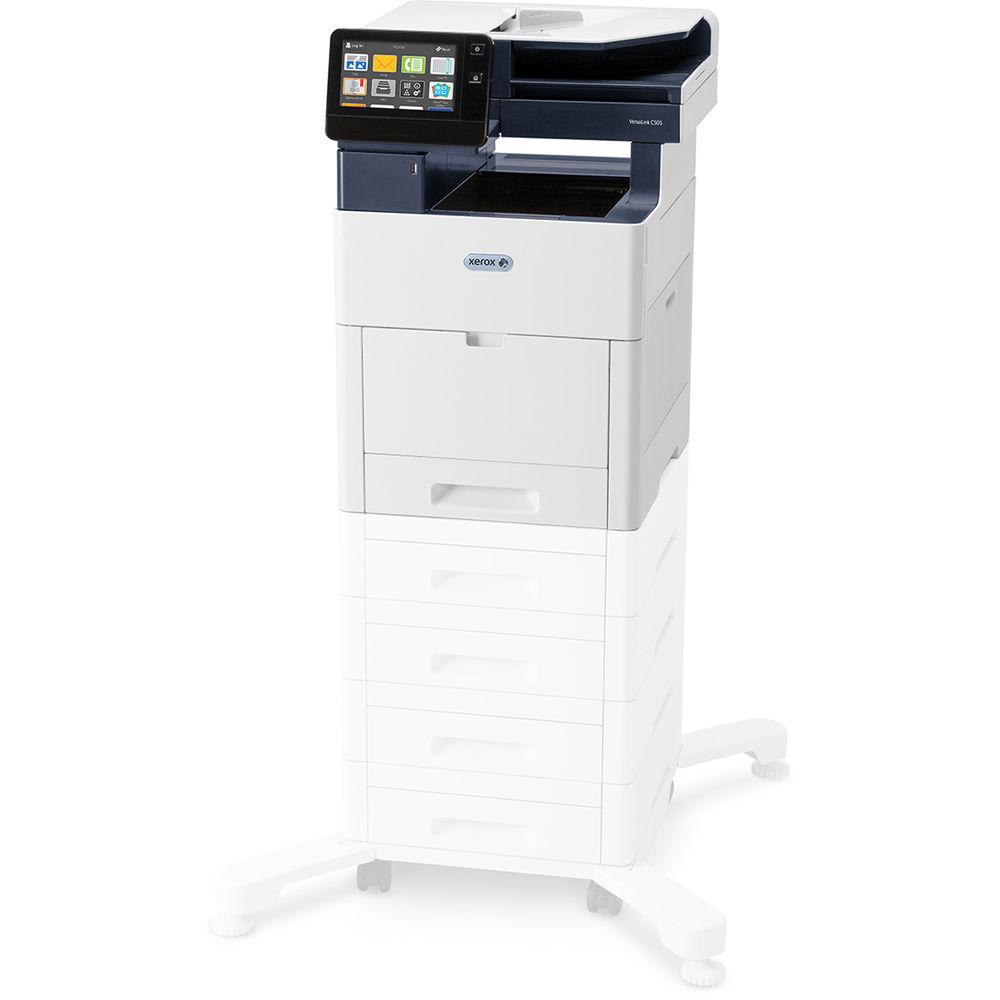

- Four optional 550-sheet trays or a 2000-sheet high-capacity feeder can be installed if extra capacity is desired. Also, an optional finisher and mailbox are available.
- Paper types supported include bond, plain, cardstock, hole-punched, labels, letterhead, lightweight cardstock, heavyweight cardstock, pre-printing, recycled, and custom.
- General
-
- An advanced 7" color touchscreen is present for intuitive operation and clear view of settings and status.
- This unit will warm up in about 11 seconds from sleep and boot up from off in 65 seconds.
- USB 3.0 and Ethernet connections are available for standard wired setups and networking.
- For wireless operation, NFC Tap-to-Pair technology enables devices to directly communicate and set up connections by simply placing them in close proximity to one another.
- 4GB of memory is available for improved processing of large files.
- The built-in font library includes 136 PostScript fonts and 83 PCL fonts.
- Advanced device management and accounting options are available for tracking and controlling printers remotely.
- Numerous security features and encryption options are standard for ensuring data is kept safe.
UPC: 095205847833 In the Box Xerox VersaLink C505/S All-In-One Color Laser Printer - 106R03859 Standard Capacity Cyan Toner Cartridge
- 106R03860 Standard Capacity Magenta Toner Cartridge
- 106R03861 Standard Capacity Yellow Toner Cartridge
- 106R03862 Standard Capacity Black Toner Cartridge
- Power Cord
- Software and Documentation CD
- Limited 1-Year Warranty
More info from Xerox Table of Contents
|
Upload User Manual
Have you got an user manual for the Xerox VersaLink C505 S All-In-One Color Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXerox C505/S Specs Functions | Print Scan Copy | | Printing Technology | Laser | Print Resolution | 1200 x 2400 dpi | Print Speed | Simplex: 45 ppm Duplex: 44 ppm | First Print Out Speed | 9 seconds | Duplex Printing | Yes | Ink Type | Toner | Ink Palette | Black Cyan Magenta Yellow | Ink Cartridge Configuration | 4 individual cartridges | Printer Duty Cycle | Monthly: 120,000 pages Recommended Monthly Volume: Up to 8,000 pages | Printer Language | HP PCL 6 HP PCL 5e PDF Adobe PostScript 3 XPS TIFF JPEG HP-GL | | Scanner Type | Flatbed ADF | Optical Resolution | 600 x 600 dpi | Scan Area | Flatbed: Up to 8.5 x 14" / 21.6 x 35.6 cm ADF: 5.5 x 5.5" to 8.5 x 14" / 14 x 14 cm to 21.6 x 35.6 cm | Scan Speed | Simplex: 43 ipm (Black & White) / 42 ipm (Color) Duplex: 73 ipm (Black & White) / 55 ipm (Color) | Duplex Scanning | Yes | Bit Depth | Color: 24-bit Grayscale: 8-bit | Scan File Format | JPG TIFF XPS PDF Searchable PDF Password-protected PDF Linearized PDF PDF/A | Scanner Drivers | TWAIN WIA | | Copy Resolution | 600 x 400 dpi | Copy Speed | Simplex: 45 cpm Duplex: 45 cpm | First Copy Time | Color: 7 seconds Black & White: 5 seconds | Copy Size | Flatbed: Up to 8.5 x 14" / 21.6 x 35.6 cm ADF: 5.5 x 5.5" to 8.5 x 14" / 14 x 14 cm to 21.6 x 35.6 cm | Duplex Copying | Yes | Number of Copies | Up to 999 | Reduction/Enlargement | 25-400% | | Paper Handling | Bypass Tray 1 Input Tray 2 Automatic Document Feeder Output Tray | Media Sizes | Bypass Tray 1: 3 x 5" to 8.5 x 14" / 7.6 x 12.7 cm to 21.6 x 35.6 cm Input Tray 2: 3 x 7.5" to 8.5 x 14" / 7.6 x 19 cm to 21.6 x 35.6 cm ADF: 5.5 x 5.5" to 8.5 x 14" / 14 x 14 cm to 21.6 x 35.6 cm | Media Weight | Bypass Tray 1: 16 lb bond to 80 lb cover / 60 to 220 gsm Input Tray 2: 16 lb bond to 80 lb cover / 60 to 220 gsm ADF: 16 lb bond to 32 lb bond / 60 to 128 gsm | Paper Capacity | Bypass Tray 1: 150 sheets Input Tray 2: 550 sheets ADF: 100 sheets Output Tray: 400 sheets | Stapler | No | | Interface | USB 3.0 Ethernet NFC | Direct Printing | USB port Apple AirPrint Google Cloud Print Xerox Print Service Plug-In for Android Mopria | Processor | 1.05 GHz Dual-Core | Memory | 4 GB | Hard Disk | Optional | Compatible Operating Systems | Windows macOS/OS X Linux Citrix RedHat Enterprise IBM AIX 7.2 HP-UX 11iv3 Oracle Solaris 11.3 Fedora Core 24 SUSE 13.2 | | Front Panel Controls | 7" / 17.8 cm color touchscreen | Warm-Up Time | 11 seconds | Power Requirements | 110-127 VAC, 50/60 Hz, 12 A | Power Consumption | Maximum: 730 W Ready: 89 W Sleep: 0.9 W | Acoustics | Power Emissions: 7.2 B(A) (Operating), 4.9 B(A) (Standby) Pressure Emissions: 56.2 dB(A) (Operating), 33.6 dB(A) (Standby) | Operating Conditions | Temperature: 50 to 90°F / 10 to 32°C Humidity: 15 to 85% | Storage Conditions | Temperature: 32 to 95°F / 0 to 35°C Humidity: 15 to 85% | Dimensions (WxDxH) | 18.5 x 19.9 x 25.3" / 47 x 50.3 x 64.4 cm | Weight | 77.2 lb / 35 kg | | Package Weight | 96.8 lb | Box Dimensions (LxWxH) | 31.0 x 26.0 x 23.0" |
