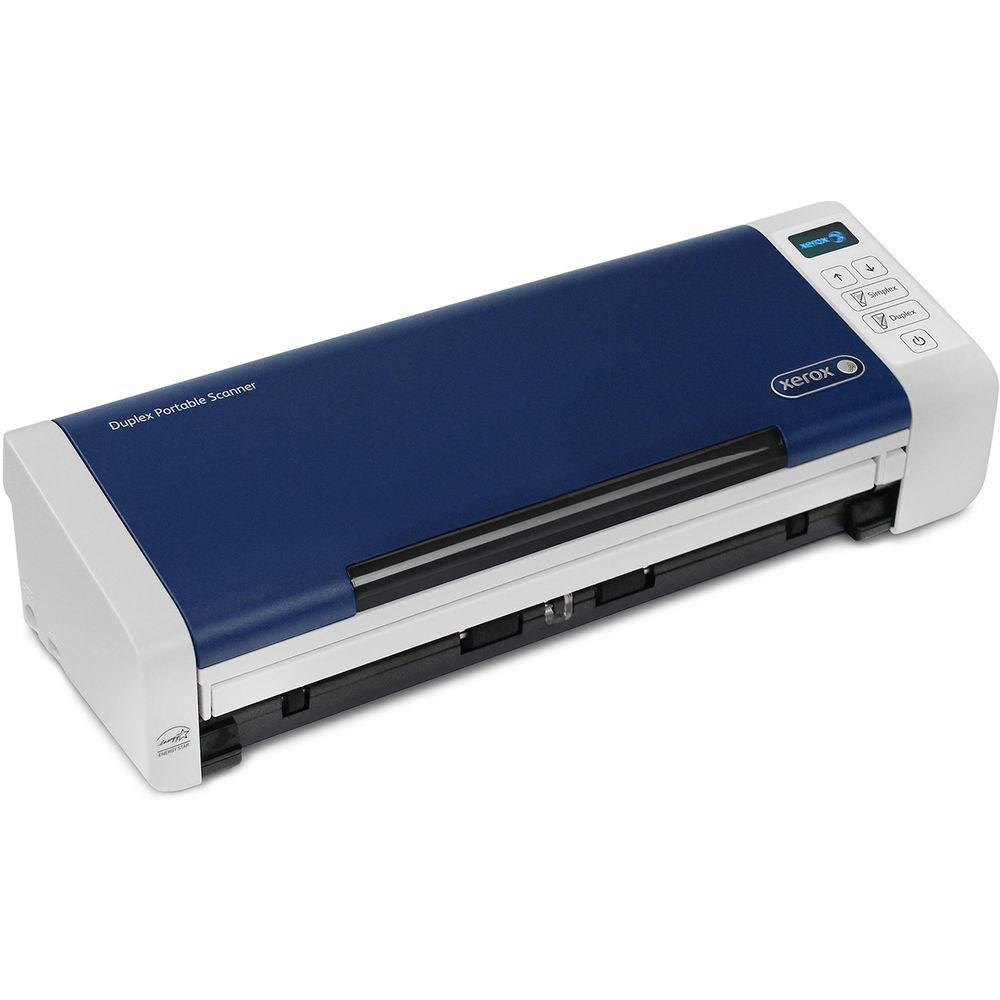

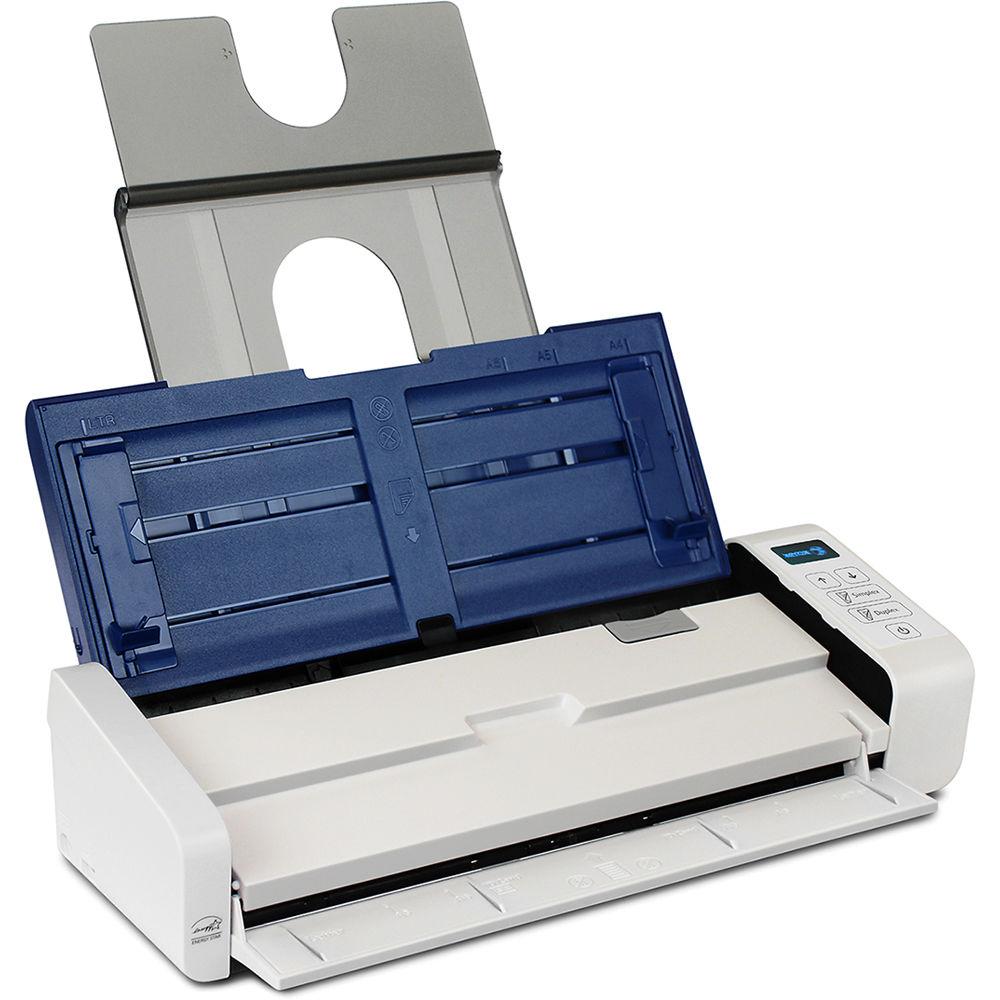

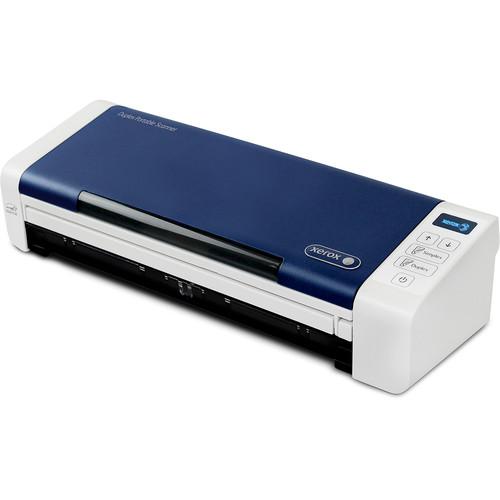

User Manual for Xerox XDS-P Duplex Portable Scanner Click to enlarge the picture
Contents of the user manual for the Xerox XDS-P Duplex Portable Scanner
- Product category: Flatbed & Document Scanners Xerox
- Brand: Xerox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xerox Flatbed & Document Scanners
 |
User manual for the Xerox XDS-P Duplex Portable Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xerox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xerox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xerox product will considerably shorten its lifespan!
|
Product description Designed for those constantly on the move, the XDS-P Duplex Portable Scanner from Xerox is a mobile ADF scanner capable of digitizing documents, business cards, plastic ID cards, and photos. It features a 600 dpi optical resolution to ensure high quality images and can work with documents from 2.25 x 2" up to 8.5 x 118" with equal ease. When used with the included AC adapter, the scanner offers full functionality and can scan A4 documents as fast as 20 pages per minute at 200 dpi. The unit can also be powered via USB for increased portability, where it slows down to 8 ppm with the ADF or around 8 seconds per page with front feed scanning. The XDS-P offers a 24-bit external color depth for sharp and detailed scans, and is designed for reliability with a rated duty cycle of 1000 sheets per day. Thanks to Visioneer's Acuity image enhancement, you can improve the clarity of your scan and automatically crop and straighten the image at the touch of a button. Additional editing can be done with other bundled software, all of which is included with the product on a DVD. The XDS-P scanner is compatible with both Mac and Windows computers. - Features
-
- ADF duplex mobile scanner that supports media as large as 8.5 x 118"; scans business cards, plastic ID cards, photos, and paper documents
- Optical resolution of 600 dpi and color depth of 24-bit help ensure high image quality
- Maximum scan speed of 20 ppm with AC adapter, slows down to 8 ppm when powered via USB
- Input tray holds up to 20 sheets of plain paper
- USB 2.0 slot for connecting to computer, works with Windows or Mac operating systems
- Included Software for Windows
-
- Visioneer Acuity enables your scanner to improve the clarity of your scan, as well as automatically crop and straighten it
- Visioneer OneTouch allows your document to be sent to an email, printer, specific folder, or several cloud destinations
- Abbyy Business Card Reader transfers contact information from business cards directly into your smartphone, or into its own digital catalog
- Abbyy Fine Reader Sprint is an optical character recognition (OCR) tool that can convert your scans into several editable file formats, including searchable PDFs
- Findo is a search app that can help you find scanned files and sort them according to your needs
- Nuance PaperPort can be used to organize and manage your files as well as easily create PDFs
- Included Software for Mac
-
- TWAIN driver offers several features of the Acuity software, including blank page removal, auto rotate, and auto color detect tools
- Abbyy Fine Reader Sprint is an optical character recognition (OCR) tool that can convert your scans into several editable file formats, including searchable PDFs
- Findo is a search app that can help you find scanned files and sort them according to your needs
- Visioneer Scan Utility is a simple scanning application, allowing you to set the file format and destination folder for your scan
UPC: 785414119134 In the Box Xerox XDS-P Duplex Portable Scanner - ADF Pad Assembly
- USB Cable
- Power Adapter and Supply
- DVD with Drivers and Software
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Xerox XDS-P Duplex Portable Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXerox Duplex Portable Scanner Specs | Optical Resolution | 600 dpi | | Duplex Speed | 40 ipm (Color, Grayscale) | | Simplex Speed | 20 ppm (Color) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 118" / 299.7 cm | | Color Depth | 48-Bit (Internal)
24-Bit (External) | | Grayscale Bit-Depth | 16-Bit (Internal)
8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF, Manual | | Life Expectancy | 1000 Sheets per Day | | Connectivity | USB 2.0 | | Wireless Connectivity | None | | File Formats | BMP, JPEG, PDF, TIFF | | Media Types | Business Card, ID Card, Photo, Plain Paper | | Paper Weight | 16 to 28 lb / 50 to 105 gsm | | Maximum Paper Thickness | 49.2 mil / 1.25 mm | | Operating System Compatibility | macOS/OS X, Windows | | Light Source | LED | | Image Sensor | 1 x Contact Image Sensor (CIS) | | Control Panel | 5 Buttons | | Drivers | TWAIN, ISIS, ICA | | Maximum Sheet Capacity | 20 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, EPEAT, RoHS | | Operating Humidity | 10 to 90% | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Maximum Power Consumption | 11.4 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | DC Input Power | 24 VDC at 1.5 A | | Power Source | AC Adapter, USB | | Dimensions | 11.8 x 10.0 x 10.0" / 29.9 x 25.5 x 25.4 cm | | Weight | 3.31 lb / 1.5 kg | | | | Package Weight | 5.085 lb | | Box Dimensions (LxWxH) | 15.1 x 7.3 x 6.85" |
