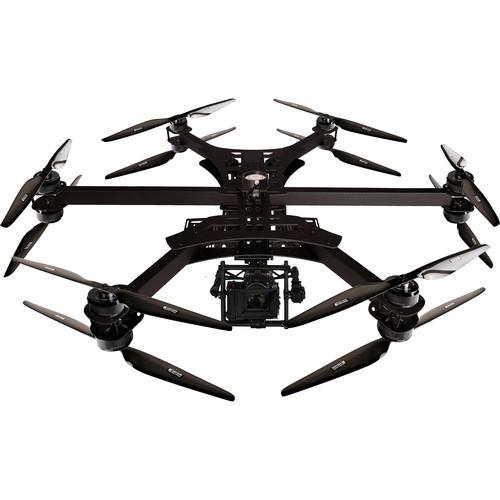

User Manual for xFold rigs Dragon X12 U11 Drone with 3-Axis Gimbal for DSLR Cinema Cameras Click to enlarge the picture
Contents of the user manual for the xFold rigs Dragon X12 U11 Drone
- Product category: See All Drones xFold rigs
- Brand: xFold rigs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for xFold rigs See All Drones
|
User manual for the xFold rigs Dragon X12 U11 Drone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any xFold rigs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official xFold rigs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a xFold rigs product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More The Dragon X12 U11 Drone from xFold rigs comes in ready-to-fly (RTF) bundle with everything needed to capture aerial footage. The heavy lifter is designed to carry loads up to 100 lb. It features the gStabi H16 3-axis digital gyro-stabilized gimbal for DSLR/cinema cameras. It includes two remotes and a Connex zero latency video downlink system that operate within 1.2 miles. Once filming is done for the day, the Dragon drone folds down to a 35.4 x 19.7" footprint for easy transport. In addition to the gimbal and video downlink, this ready-to-fly bundle features two 14-channel xFold/Futaba transmitters (radio controllers), two flight batteries, one custom flight case for the aircraft, and one hard-shell case for the radios/gimbal. - Professional aerial cinema platform
- 3-axis gimbal for DSLR/cinema camera
- Gimbal supports up to 16 lb
- Amimon CONNEX 1080p60 video downlink
- 600mW VTX 5.8 GHz downlink for pilot
- Taray 3k weave carbon fiber frame
- Customized DJI A2 flight control system
- Recommended payloads up to 100 lb
- Flies up to 1 hour with Red Epic
- Includes custom flight case for aircraft and hard-shell case for radios/gimbal
- Two flight batteries included
In the Box xFold rigs Dragon X12 U11 Drone with 3-Axis Gimbal for DSLR/Cinema Cameras (RTF) Custom Flight Case for Aircraft Hardshell Case for Radios/Gimbal DJI A2 Flight Controller 2 x Flight Batteries Limited 1-Year Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the xFold rigs Dragon X12 U11 Drone with 3-Axis Gimbal for DSLR Cinema Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersxFold rigs X12 U11 RTF Specs | Construction | Toray 3K weave carbon fiber frame | | Flight Control System | DJI A2 Flight Controller | | Motors | xFold custom 120 Kv | | ESC | xFold 80 Amp Pro (6 to 12S) | | Power | Minimum: 10,000 mAh (6S configuration)
Up to 20,000 mAh (12S configuration) | | Battery | Dual battery standard; up to four-battery configuration | | Radio | Two xFold / Futaba commercial 14-channel center sprung | | Video Downlink | 600 mW VTX 5.8 GHz (pilot)
Connex HD 1080p video (0 latency up to 1.2 miles / 2 km) | | Gimbal | gStabi H16, 3-Axis Digital Gyro-Stabilized | | Monitor | 7" super slim FPV monitor
IPS panel HD 1280 x 800 resolution | | Batteries | 2 x 21,000 mAh (25C), in 12S series configuration | | Telemetry | iOSD Mark | | Flight Time | Approximately 16 mins | | Dimensions | Folded Copter (L x W): 35.4 x 19.7" (89.9 x 50.0 cm)
Copter in Flight Configuration (L x W x H): 53.7 x 62.0 x 32.0" (136.4 x 157.5 x 81.3 cm) | | Weight | 42.65 lb (19.35 kg) including motors, props, flight controller, and landing gear |
