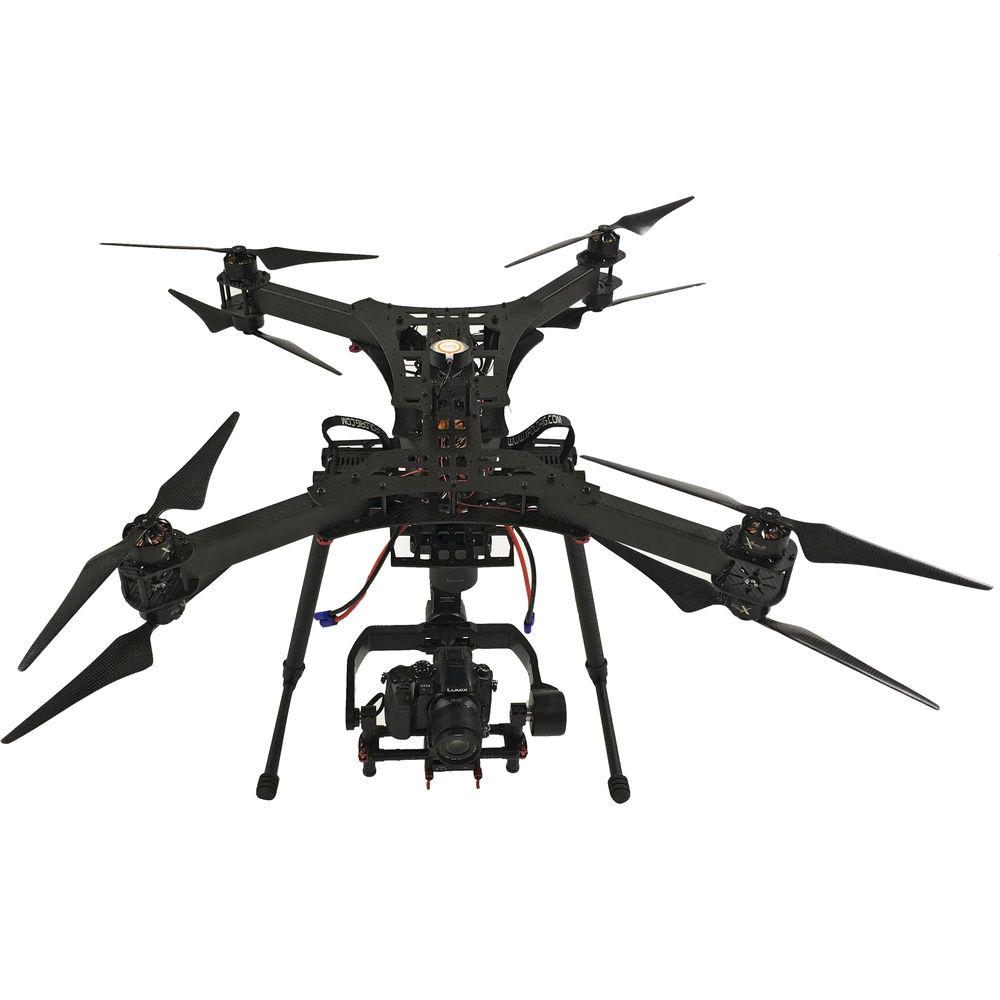

User Manual for xFold rigs Mapper X8 Quadcopter with 3-Axis Gimbal for GoPro Action Cameras Click to enlarge the picture
Contents of the user manual for the xFold rigs Mapper X8 Quadcopter with
- Product category: See All Drones xFold rigs
- Brand: xFold rigs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for xFold rigs See All Drones
 |
User manual for the xFold rigs Mapper X8 Quadcopter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any xFold rigs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official xFold rigs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a xFold rigs product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More fqucwftxadueczuqtudwccsxszbzsd The Mapper X8 Quadcopter from xFold rigs comes in ready-to-fly (RTF) bundle for aerial videographers shooting with a GoPro or similar action camera. It has a payload capacity of up to 15 lb. The Mapper X8 Quadcopter includes a 3-axis brushless gimbal, a 600mW VTX 5.8 GHz video downlink, and a 7" FPV monitor with two 32-channel receivers. Once filming is done for the day, the drone folds down to a 17.9 x 11.7" footprint for easy transport. In addition to the gimbal and video downlink, this ready-to-fly bundle features two 14-channel xFold/Futaba transmitters (radio controllers), a NAZA V2 flight control system, two 8000mAh flight batteries, and a hard-shell travel case. - Four frame arms with two motors per arm configuration
- Payload capacity up to 15 lb
- 3-axis gimbal for GoPro compatibility
- 600mW VTX 5.8 GHz video downlink
- Taray 3K weave carbon fiber frame
- NAZA V2 flight control system
- 2.4 BTU ground station with 50 waypoints
- Recommended propeller size from 12 to 15"
- Two batteries and hard-shell case included

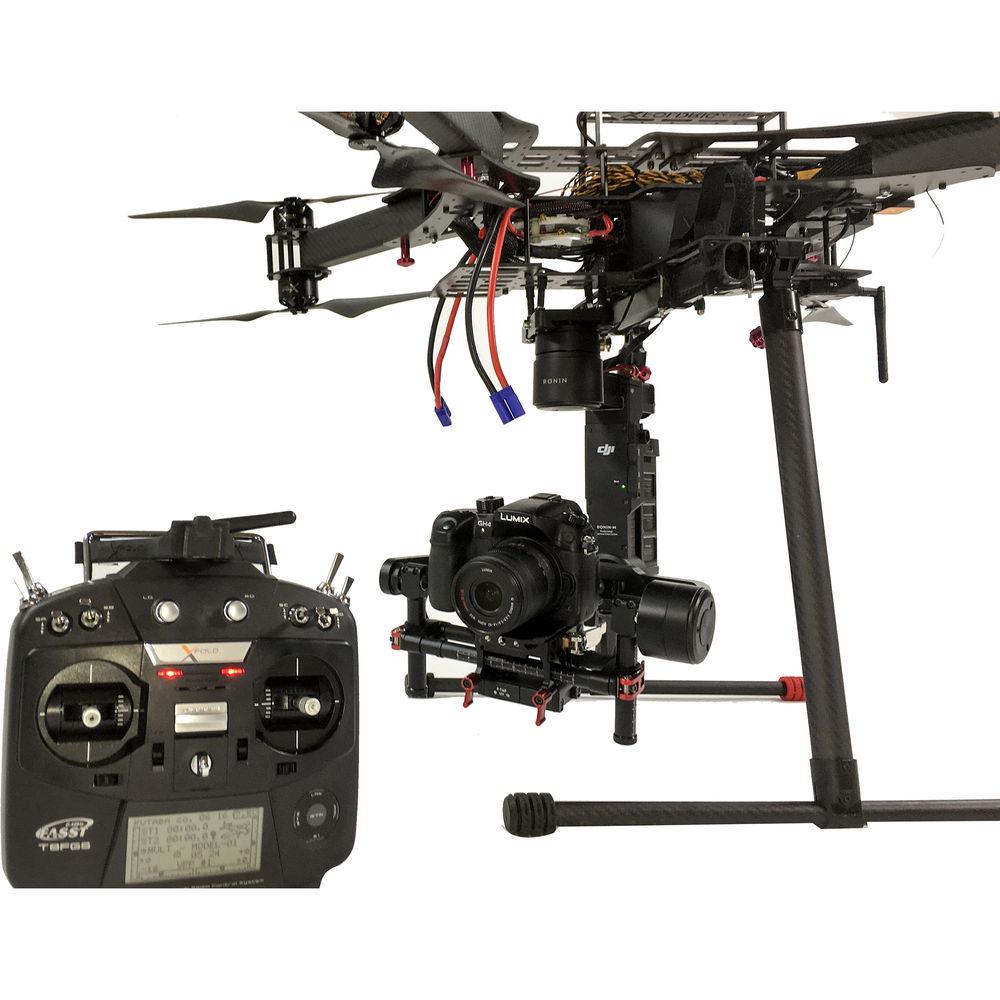

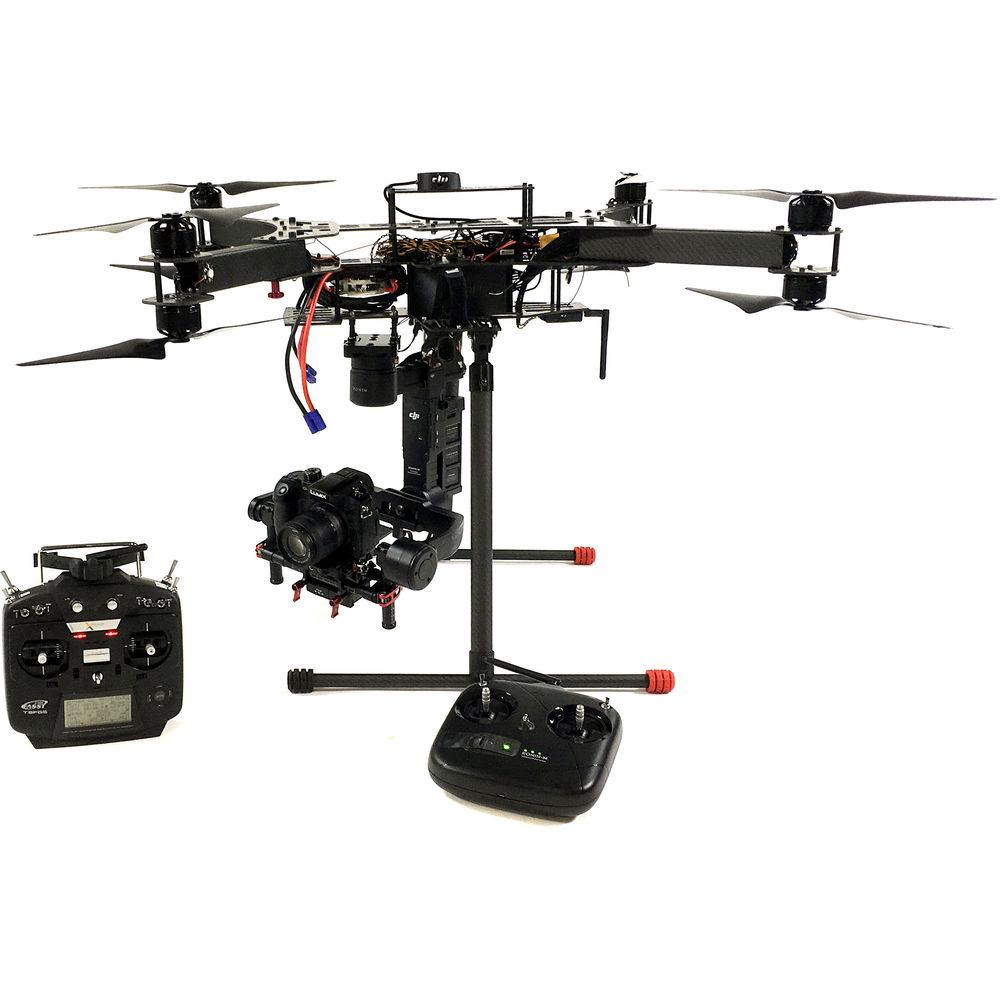

In the Box xFold rigs Mapper X8 Quadcopter with 3-Axis Gimbal for GoPro Action Cameras (RTF) xFold / Futaba Commercial 14 Transmitter (Radio Controller) NAZA V2 Flight Control System 3-Axis Gimbal for GoPro or Similar Action Camera 7" FPV Monitor with 32-Channel Diversity Receiver 600mW VTX 5.8 GHz Video Downlink 2 x 8000mAh Flight Batteries Hard-shell Transport Case Limited 1-Year Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 fqucwftxadueczuqtudwccsxszbzsd Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the xFold rigs Mapper X8 Quadcopter with 3-Axis Gimbal for GoPro Action Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersxFold rigs Mapper X8 Specs | Payload Capacity | Up to 15 lb / 6.8 kg | | Frame | Toray 3K weave carbon fiber frame | | Flight Control System | Naza V2 GPS, 2.4 BTU Ground Station with 50 waypoints (Pix4D Month) | | Motors | xFold custom 400 Kv | | ESC | xFold 40 Amp | | Power | 6000 to 16,000 mAh (6S configuration) | | Battery | 2 x 8000 mAh (35c) | | Radio | xFold / Futaba commercial 14-channel center sprung | | Video Downlink | 600 mW VTX, 5.8 GHz | | Gimbal | 3-axis with GoPro compatibility | | Monitor | 7" super slim FPV monitor
Built-in battery, dual 32-channel 5.8 GHz diversity receivers | | Telemetry | iOSD Mark | | Flight Time | 16 mins
Approximately 40 mins with different battery / prop / payload configuration | | Dimensions | Folded Copter (L x W): 17.9 x 11.7" / 455 x 298 mm
Copter in Flight Configuration (L x W x H): 23.6 x 22.6 x 24" / 60 x 57 x 61 cm
Propeller Size: 15 x 4.5" / 381 x 114.3 mm | | Weight | 8.6 lb / 3.9 kg (including motors, props, flight controller, and landing gear) |
