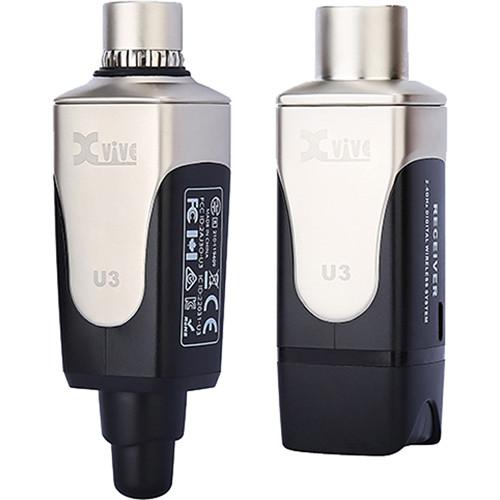

User Manual for Xvive Audio U3 2.4 GHz Digital Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Xvive Audio U3 2.4 GHz Digital
- Product category: Wireless Systems Xvive Audio
- Brand: Xvive Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Xvive Audio Wireless Systems
 |
User manual for the Xvive Audio U3 2.4 GHz Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Xvive Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Xvive Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Xvive Audio product will considerably shorten its lifespan!
|
Product description - Xvive U3 Microphone Wireless System demo by Glenn Delaune
- Wireless Metal

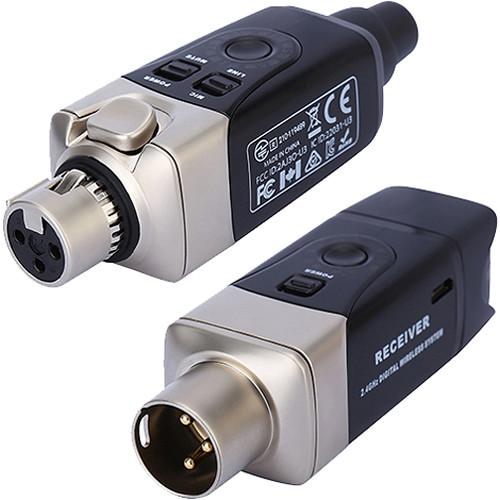

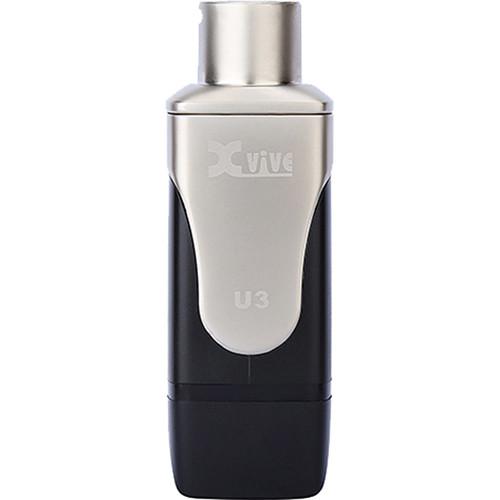

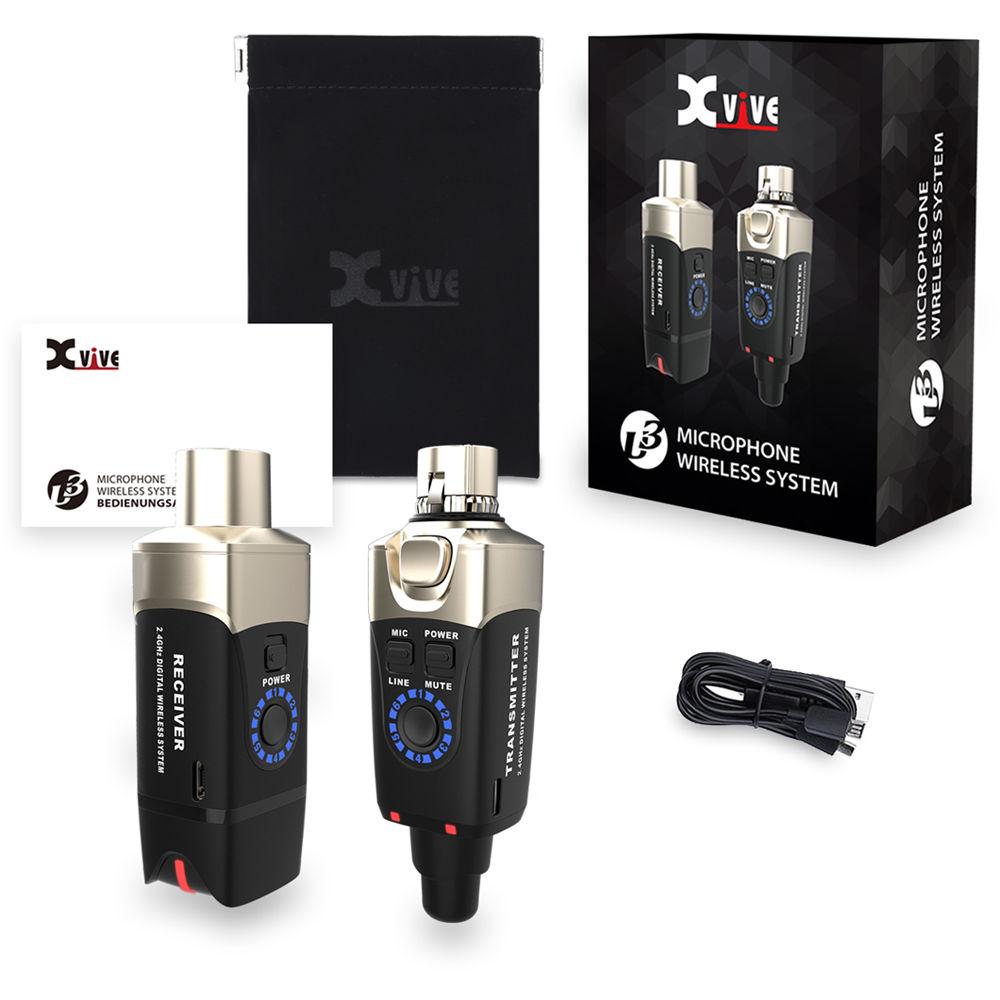

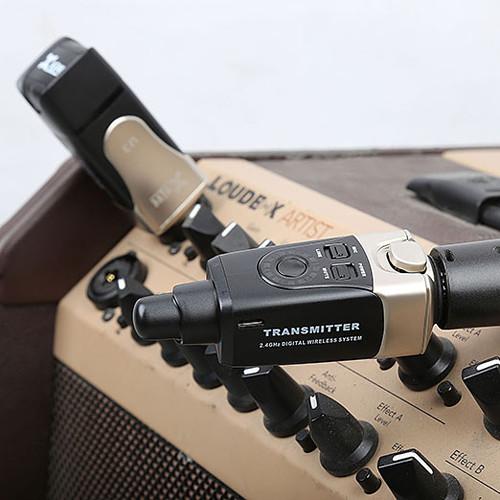

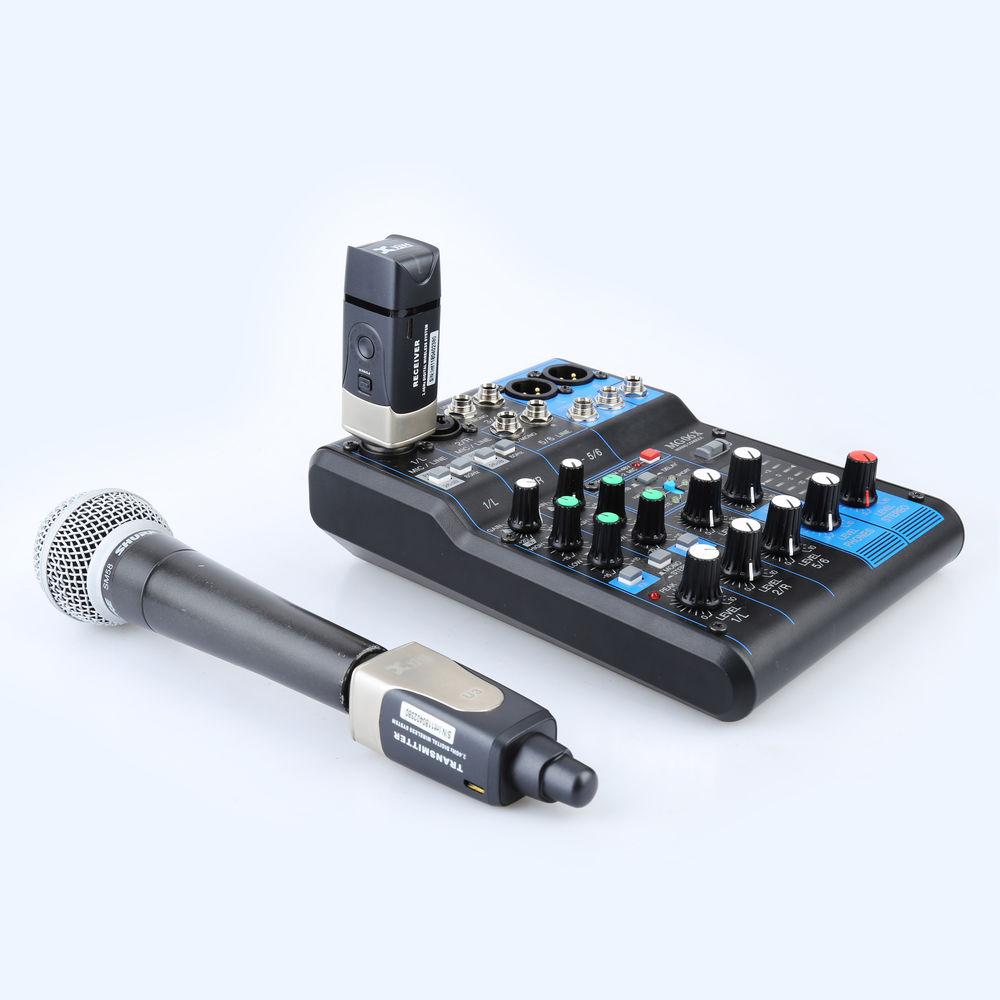

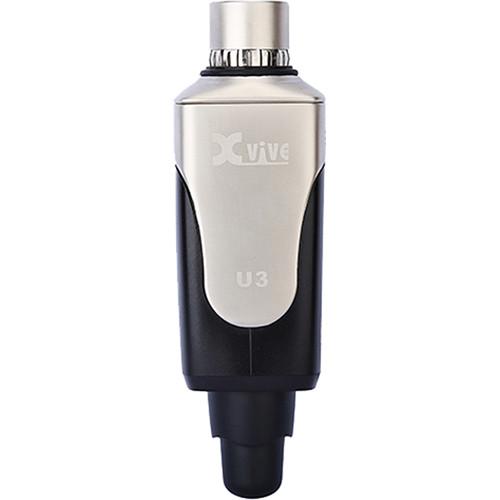

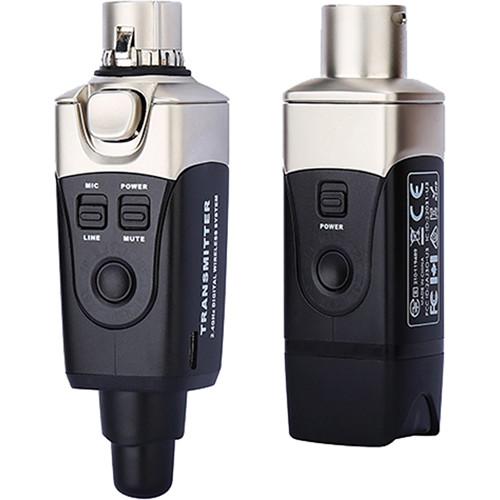

Turn your dynamic microphone into wireless with the U3 2.4 GHz Digital Wireless Microphone System from Xvive Audio. It features a 2.4 GHz wireless band, 20 Hz to 20 kHz frequency response, and less than 5 ms latency. The system works up to a 90' range, and includes two rechargeable batteries with a five-hour life for both receiver and transmitter units. The transmitter plugs into a dynamic microphone or into DI or XLR output gear, and the receiver plugs into a live sound mixer, portable PA system, or a recorder. This system broadcasts on six channels simultaneously, and is suitable for live vocals, presentations, video productions, and houses of worship. In the Box Xvive Audio U3 2.4 GHz Digital Wireless Microphone System 2 x Rechargeable Batteries USB Cable Bag Limited 1-Year Warranty User Manual PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Xvive Audio U3 2.4 GHz Digital Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXvive Audio XVIVE U3 Specs | Wireless | 2.4 GHz | | Tuning Bandwidth | 2400 to 2483.5 MHz | | Frequency Response | 20 Hz to 20 kHz (-3 dB) | | Latency | <5 ms | | Channels | Up to 6 simultaneous channels | | Range | Up to 90' / 27 m | | Audio | High Resolution 24-bit / 48 kb/s | | Dynamic Range | 110 dB | | SNR | 110 dB | | RF Sensitivity | -88 dBm | | Total Harmonic Distortion | 0.2% | | RF Output Power | 10 mW E.I.R.P. max | | Ports | Transmitter: 1 x XLR male input
1 x USB
Receiver: 1 x XLR female output
1 x USB | | Maximum Input Level | Mic Mode: 2.8 V p-p
Line Mode: 7 V p-p | | Maximum Output Level | 2.8 V p-p | | Gain Adjustment Range | Mic: 0 dB
Line: -10 dB | | Antenna Type | 1/4 Wave Sleeve Dipole, non-removable on transmitter and receiver | | Antenna Impedance | 50 Ohms | | Impedance | Transmitter: 15 kOhms, 1 kHz
Receiver: 470 Ohms, 1 kHz | | Battery | 3.7 V rechargeable Li-ion, 860 mA for transmitter and receiver | | Rechargeable Battery Life | 5 hours | | Operating Temperature | -0.4 to 134.6°F / -18 to 57°C | | Housing | Molded plastic and cast metal | | Dimensions | Transmitter: 1.2 x 1.1 x 3.9" / 3.1 x 2.9 x 9.8 cm
Receiver: 1.2 x 1.1 x 3.9" / 3.1 x 2.9 x 9.8 cm | | Weight | Transmitter: 3.3 oz / 93 g
Receiver: 3.2 oz / 92 g | | | | Package Weight | 0.92 lb | | Box Dimensions (LxWxH) | 6.4 x 4.4 x 2.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Xvive Audio U3 2.4 GHz Digital Wireless Microphone System
| Subject: Connected to a Mixer with phantom power engaged. | | Date: 15.06.2022 16:29:25 | Name: LUIS CARBONELL | | Will this unit work on a mixer if the universal phantom power is ON | | Post reply |
