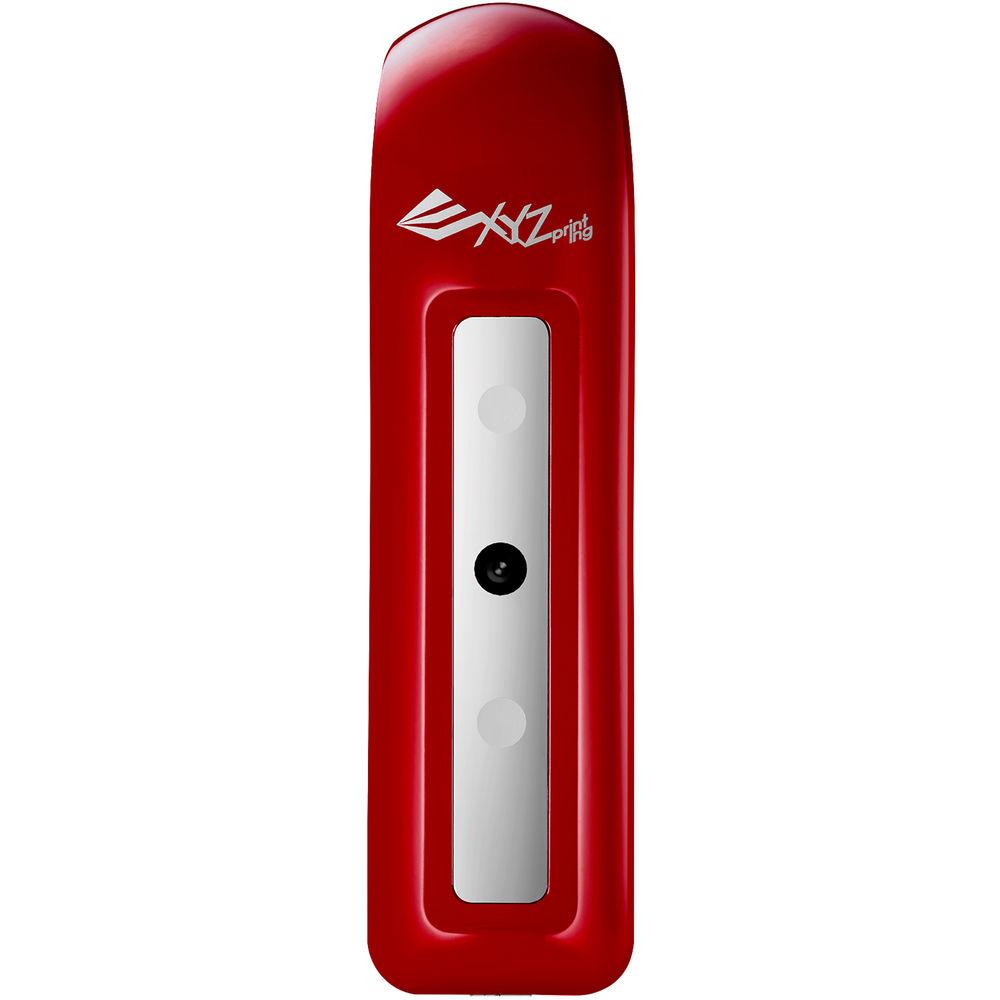

Product description The 3D Scanner Pro from XYZprinting utilizes an Intel RealSense camera, allowing you to scan objects in Head, Object, and Full Body modes at a resolution of 640 x 480 @ 30 fps. Its scan volume ranges from 2 x 2 x 2" to 39.3 x 39.3 x 78.7", while it allows for an operating range of 3.93-27.55" and a scanning distance of 5.9 - 9.84". This device can be used to create original or modified digital replicas. It outputs XYZscan Handy / STL files, OBJ, and PLY files, and is compatible with Windows 8.1 (64-bit) and above.
Minimum recommended hardware requirements include a 4th Generation Intel Core i5 processor, 4GB RAM (8GB recommended), an NVIDIA GeForce GTX 750 Ti (or above) with 2GB VRAM for desktops, and an NVIDIA GeForce GTX 840m (or above) with 2GB VRAM for laptops. Devices with integrated Intel RealSense Scan modules are not supported, and neither are Windows Surface tablets. General Features - Full Body Mode

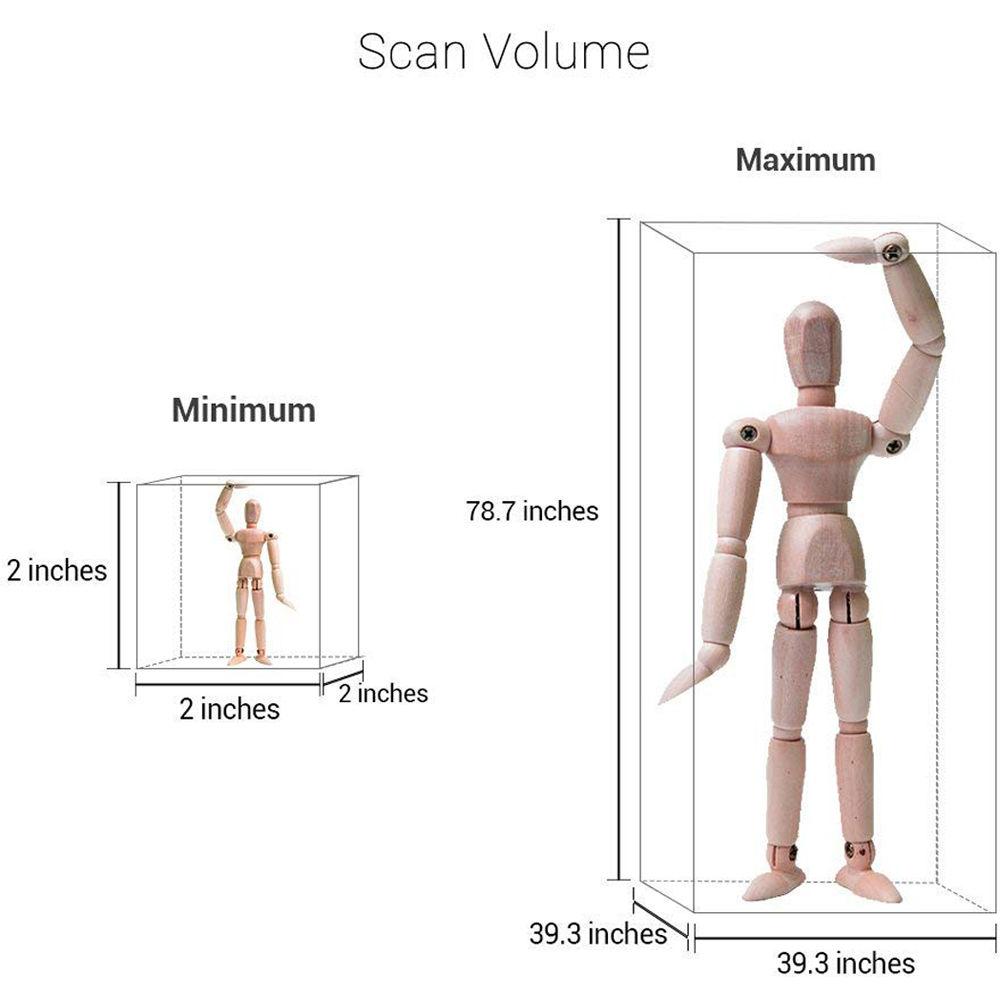

- The three scanning modes include head, object, and full body, all of which are available in the updated version of XYZscan Handy. The maximum scan volume reaches 39.3 x 39.3 x 78.7". Large objects may also be scanned in Full Body mode.
- Real Sense, Real Powerful
- Powered by an Intel RealSense module, the XYZprinting 3D Scanner Pro is fast in both scanning ability and processing speed. It allows for a 3.93-27.55" operating range with a wide scanning distance of 5.9-9.84", and a resolution of 640 x 480 at 30 fps.
- Scan with Ease
- The XYZprinting Handheld 3D Scanner Pro has a compact and light design that allows you to move it around the desired target for scanning with ease. No large or complicated equipment is necessary.
- Portability

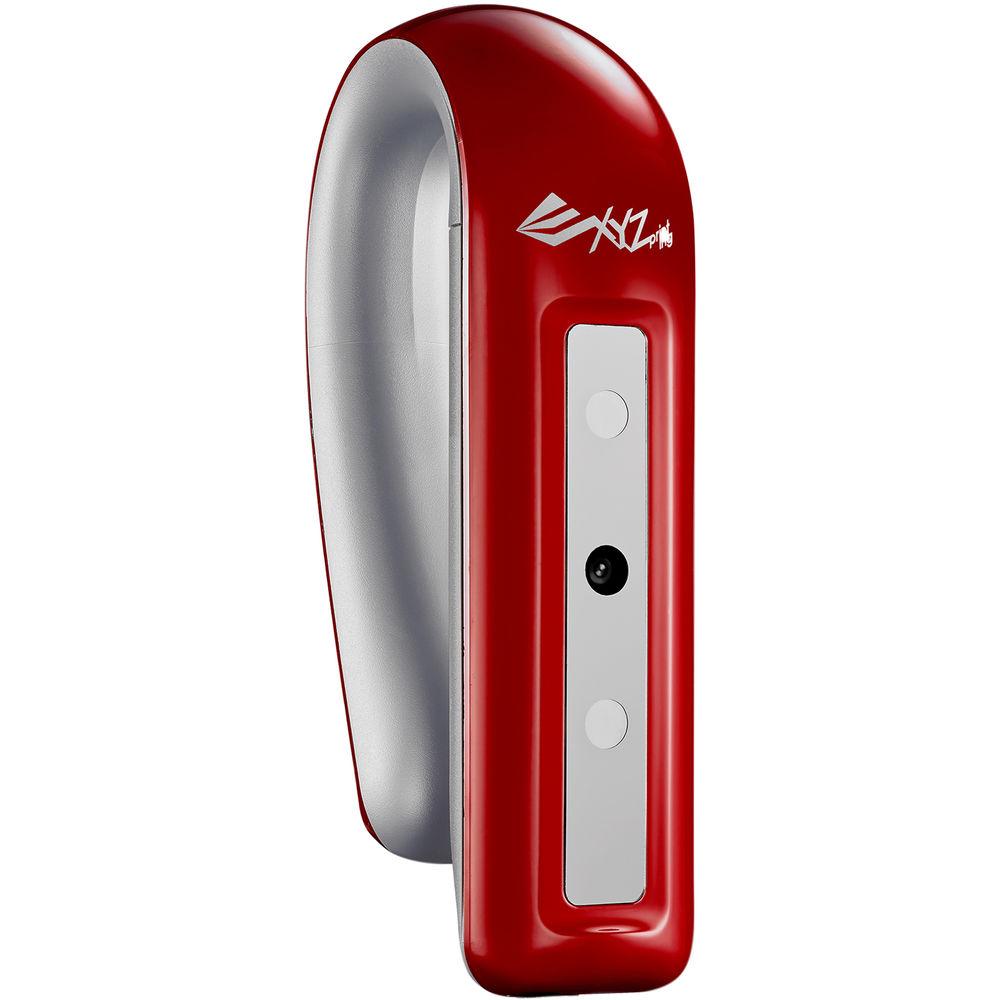

- Use the clip on the back of the XYZprinting 3D Scanner Pro to a tablet, laptop, or almost any other of your favorite devices for increased portability.
- Scan and Print
- Turn your physical world into digital replicas, where you can modify them, and then reproduce them with 3D printing. Need to replace that broken part that you can't find in stores? Want to make a gift for someone but don't know how to 3D model it? Simply scan the desired objects to recreate them in different sizes, or change it completely to create new ones.
- How It Works
- Hold the scanner horizontally with your left hand, keep it at the specified distance from the target, and move the scanner steadily around the target to capture the images at different angles. View digital replicas on your computer in just a few minutes and then bring the replicas to life with your 3D printer.
- Compatibility
- Devices with a built-in Intel RealSense Scan modules are not supported. Windows Surface Tablets are also not supported.
UPC: 840710109156 In the Box XYZprinting 3D Scanner Pro Limited 90-Day Warranty from Purchase Date Limited 180-Day Warranty upon Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting 3D Scanner Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting 3SH1AXUS00K Specs | Scan Engine | Intel Real Sense Camera | | Maximum Scan Volume | Head Mode: 15.7 x 9.84 x 15.7" / 39.88 x 24.99 x 39.88 cm
Object Mode: 23.6 x 23.6 x 11.8" / 59.9 x 59.9 x 30.0 cm
Body Mode: 39.3 x 39.3 x 78.7" / 99.8 x 99.8 x 199.9 cm | | Minimum Scan Volume | 2.0 x 2.0 x 2.0" / 5.1 x 5.1 x 5.1 cm | | Scan Resolution | 1.0-2.5 mm | | Depth Image Size | 640 x 480 @ 30 fps | | Color Image Size | 640 x 480 @ 30 fps | | Operating Range | Head, Object, and Full Body Modes: 3.93 x 27.55" / 9.98 x 69.98 cm | | Data Interface | USB 3.0 | | | | Output File Types | XYZScan Handy / STL, OBJ, and PLY | | Operating System | Windows 8.1 (64-bit) and above | | | | Minimum Hardware Requirements | 4th Generation Intel Core i5 CPU
4 GB RAM (8 GB Recommended)
NVIDIA GeForce GTX 750Ti with 2GB VRAM (or above, for desktops)
NVIDIA GeForce GTX GTX 840m with 2GB VRAM (or above, for laptops) | | | | Dimensions | 1.6 x 6.18 x 2.4" / 4.06 x 15.7 x 6.1 cm | | Weight | 8.4 oz / 238.0 g | | | | Package Weight | 0.845 lb | | Box Dimensions (LxWxH) | 8.55 x 4.35 x 3.75" |
