Product description

  • XYZscan Multi Scan Introduction

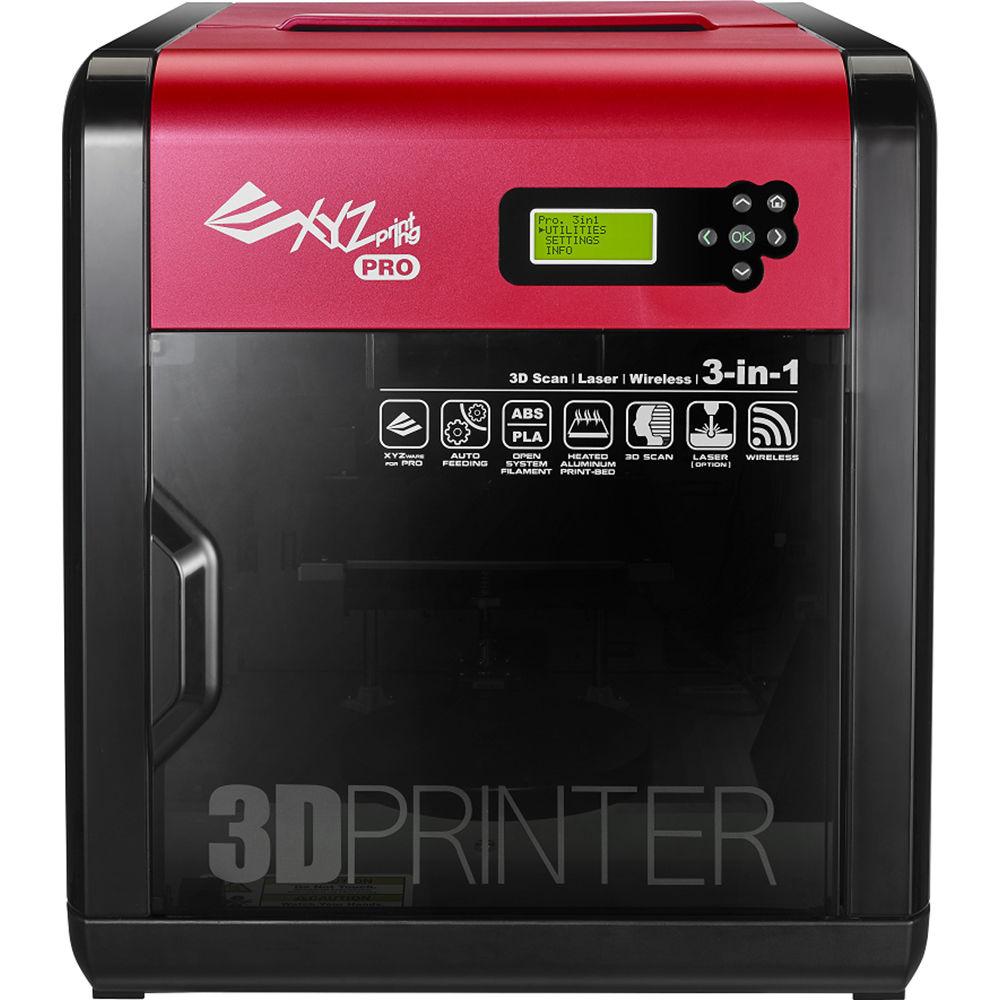

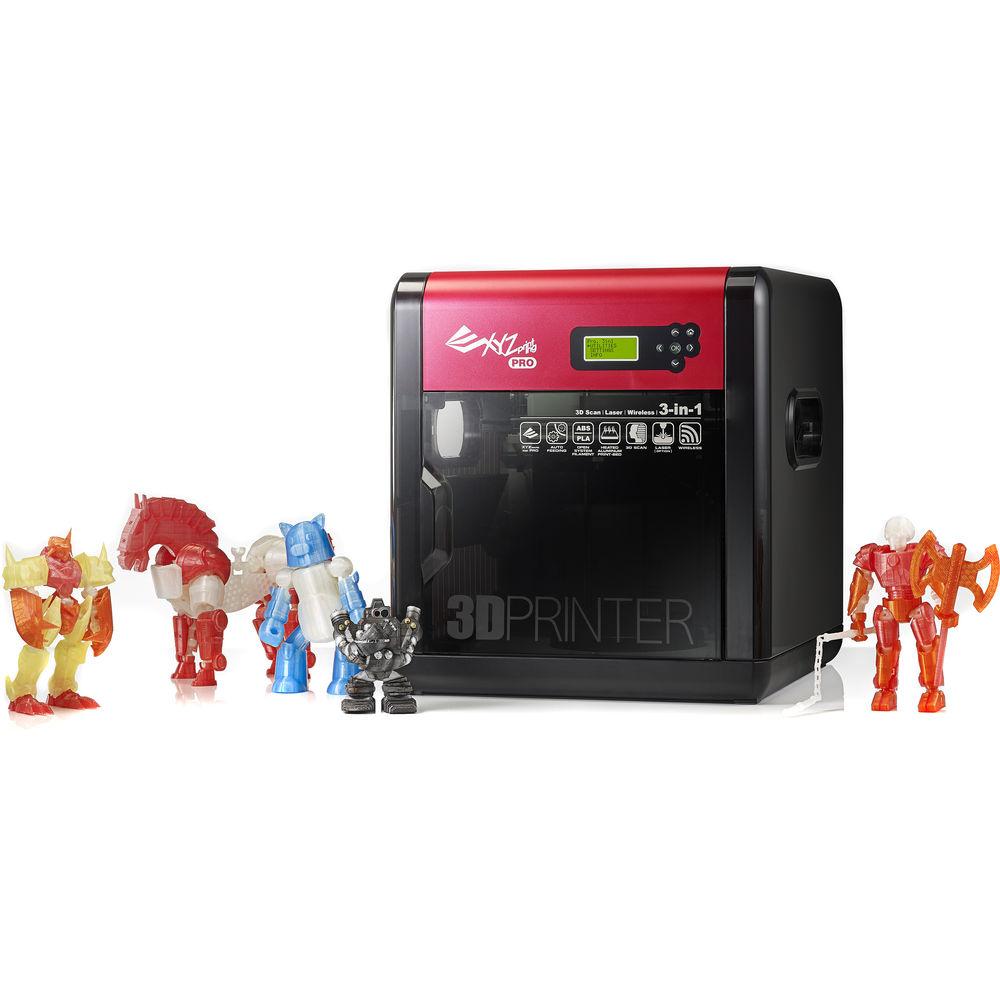

With a build volume of 7.9 x 7.9 x 7.5", the da Vinci 1.0 Pro 3-in-1 3D Printer from XYZprinting features a layer resolution of 20-400 microns and is able to utilize 1.75mm ABS & PLA filaments via its auto-loading filament system. It is equipped with a 3D scanner, a single extruder nozzle, an enclosed and heated aluminum print bed, and a 2.6" LCD display. Users may print their compatible STL files or XYZ's proprietary 3W files via wired USB 2.0 or Wi-Fi connectivity. Using the XYZgallery app for Android, users may also print via Wi-Fi using their compatible Android device.

This 3D printer also comes bundled with software that allows users to adjust settings such as speed and print support. One of the print support settings is Retraction, which helps print objects without any streaking or smudges that can occur when the extruder moves across the print. Additionally, an optional laser engraver add-on allows designs to be etched on materials such as wood, leather, and cardboard.

The da Vinci 1.0 Pro 3-in-1 3D Printer is hardware-compatible with 32- & 64-bit Intel Core i3 or above PCs with at least 4GB of memory. It is software-compatible with Windows 7 or above, and Mac OS X 10.10 (64-bit) and above, Linux 14.04 and 16.04, plus Android 5 and above and iOS 9 and above on iPad only. It may be equipped with an optional laser engraver. Additionally, a power cord is included.

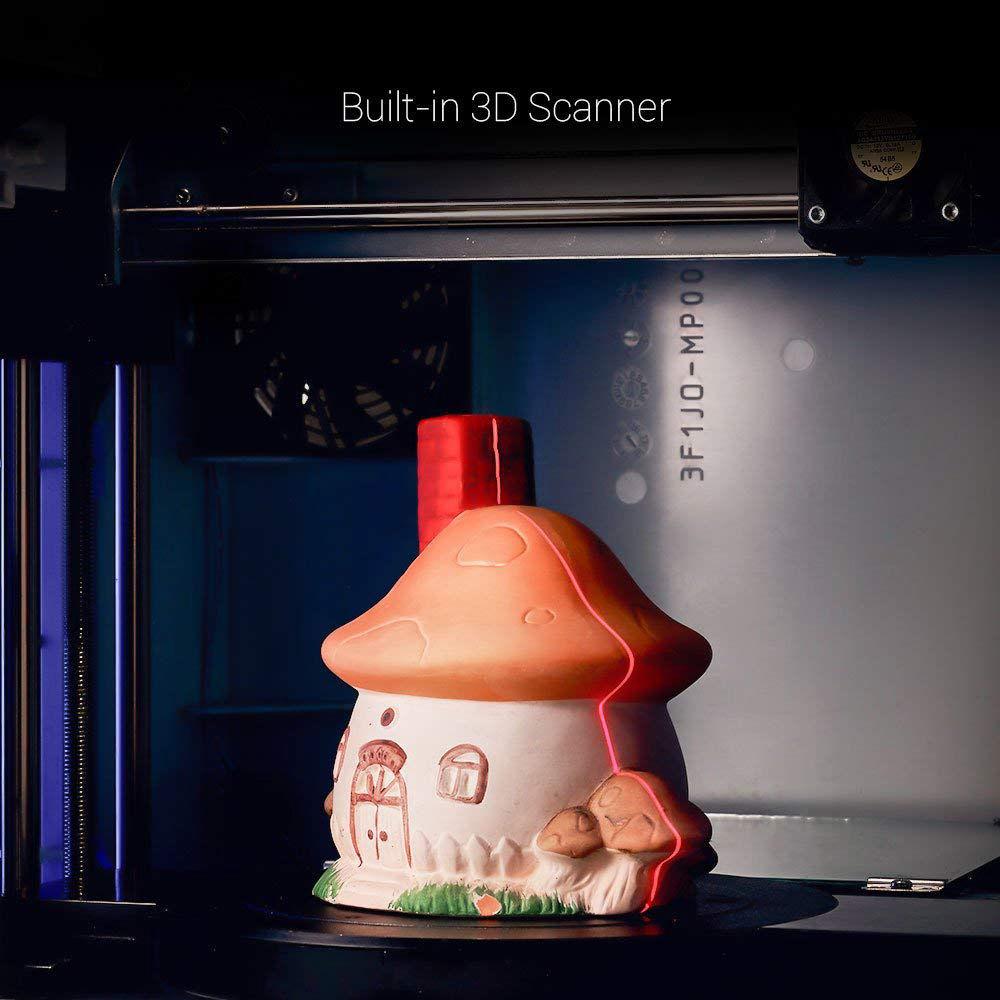

3D Scanning

    Edit Finished Scans
  • Finished scans are fully editable; you can scale them, reposition them, and use different post-production software to give your prints a unique finish.
    Multi-Scan Function:
  • Scan your models in multiple angles and the software will merge them into one image to provide the best possible results.
    Dual-Laser Scanning Technology
  • Dual-laser scanning technology helps with distortion-free capture of every single detail.
    Scanning Platform
  • The scanning platform automatically rotates 360°.
    Automatic Imaging
  • Automatic imaging takes only 5 minutes.

3D Printing

    Calibration System
  • An intuitive calibration system uses specially designed knobs and detection software which guide you in the right direction.
    Aluminum Print Bed
  • The aluminum print bed allows for an even distribution of heat which decreases the chances of warpage.
    Extruder
  • The extruder design allows you to quickly release it from its container for easy cleaning and replacement.

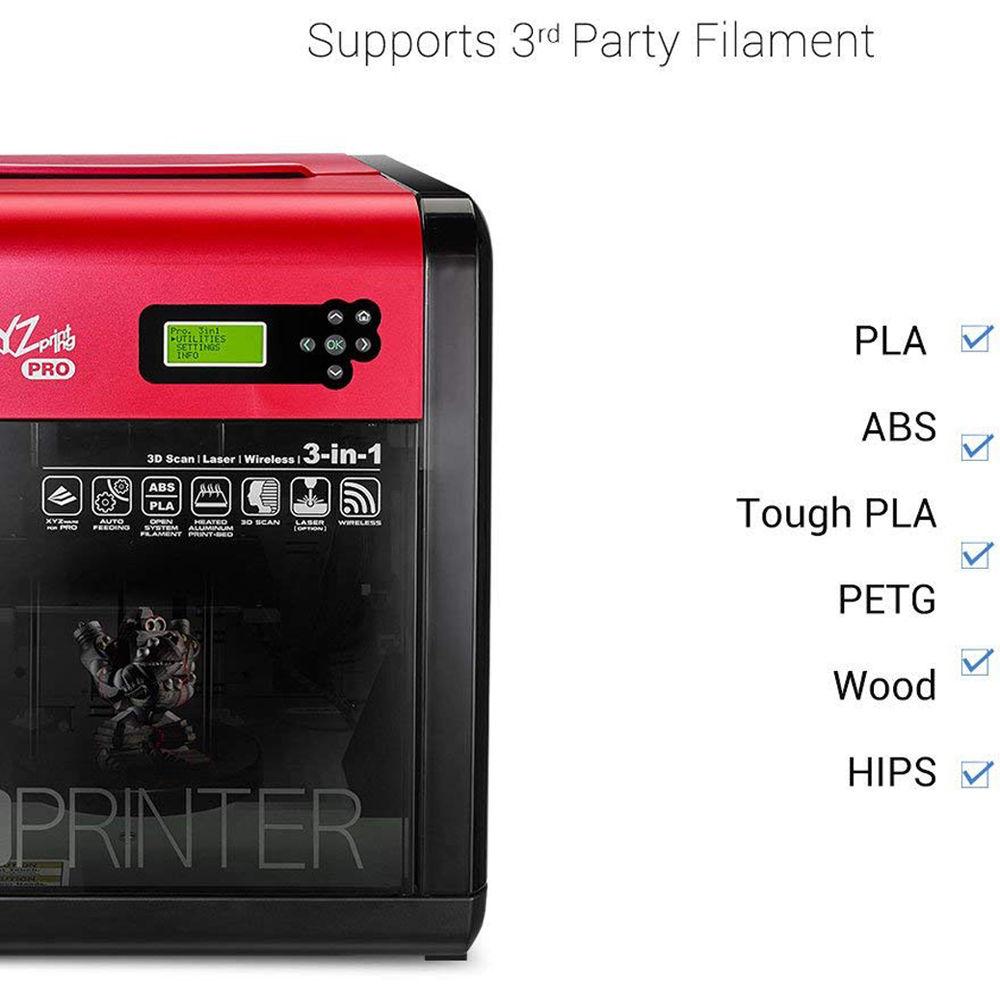

    Filaments
  • The da Vinci 1.0 Pro 3-in-1 is able to use third party 1.75mm ABS and PLA filaments

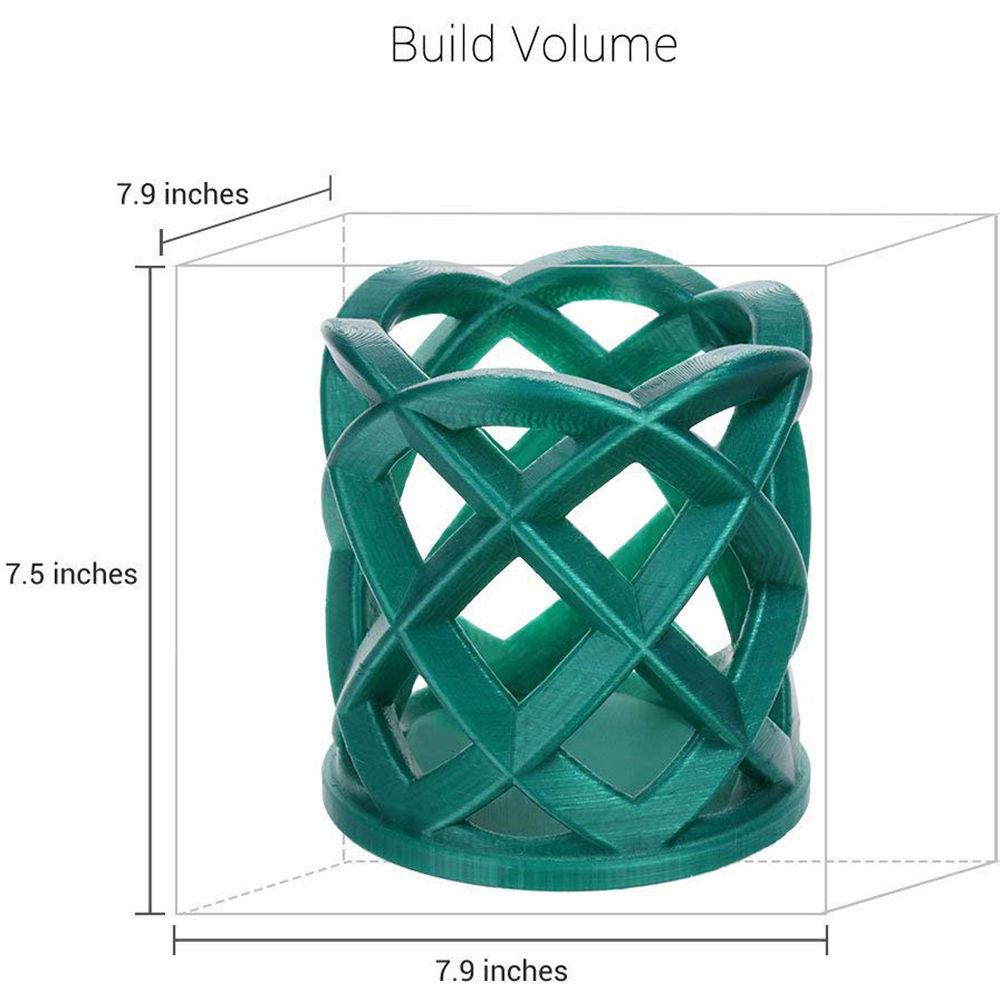

    Build Size
  • The da Vinci 1.0 Pro 3-in-1 features a build size of 7.9 x 7.9 x 7.5".

General Features

    Laser Engraving (Optional Module)
  • The da Vinci Pro 3-in-1 has an optional laser engraver module that can be used to engrave your creative designs onto various materials such as paper, cardboard, leather, wooden boards, and plastic surfaces with an engraving area of 7.8 x 7.8".
    XYZware Pro: Faster Slicing, More Control
  • The XYZware Pro enables you to adjust nozzle and print bed temperature, speed, print support, and retraction settings. It also has improved slicing speeds and is compatible with third party g-codes, such as Cura and Slic3r

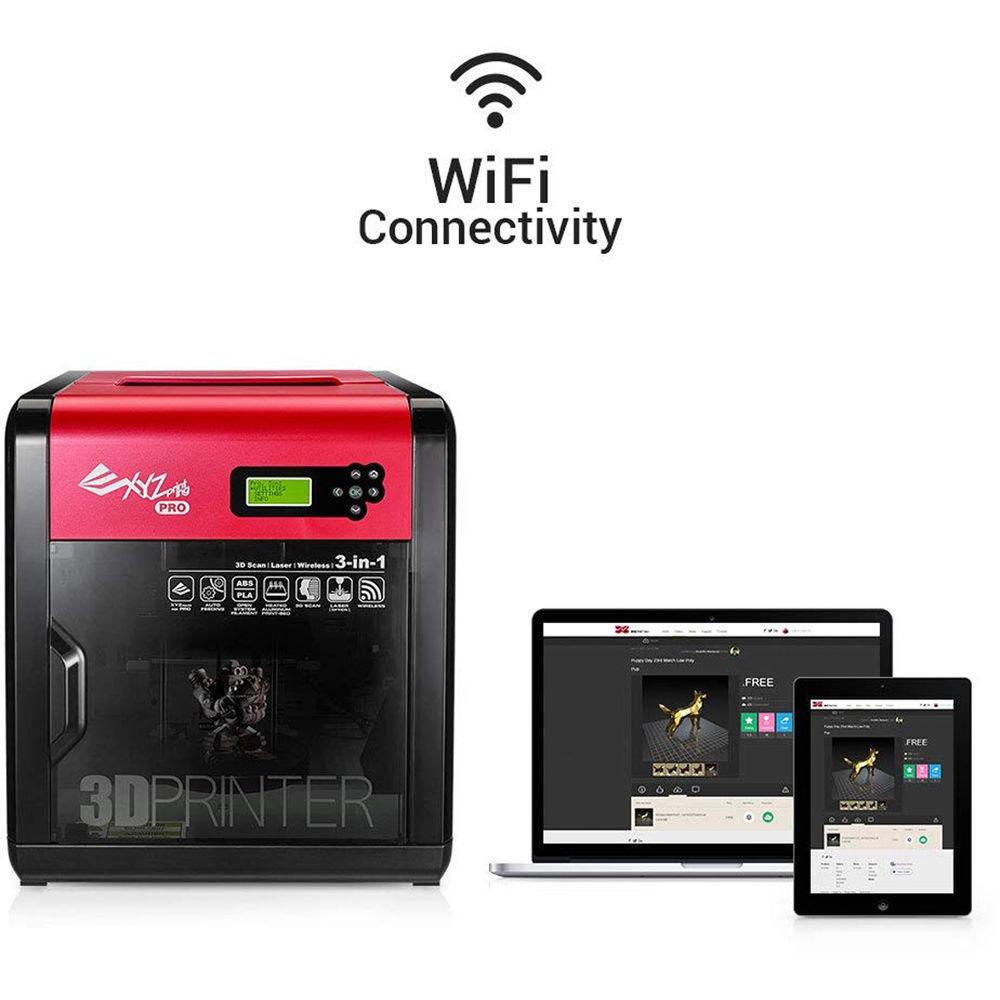

    Connect from Virtually Anywhere in Your Home Network
  • The da Vinci Pro 3-in-1 has built in wireless local area network (Wireless LAN) connectivity, allowing it to connect to your laptop or desktop computer from virtually anywhere in your home, school, or office.
UPC: 840710102522 In the Box XYZprinting da Vinci 1.0 Pro 3-in-1 3D Printer
  • Power Cord
  • Limited 90-Day Extruder Module, Print Bed, and Motor Modules Warranty
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the XYZprinting da Vinci 1.0 Pro 3-in-1 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    XYZprinting 3F1ASXUS00K Specs

    Print Technology (Marketed as )
    Build Volume 7.9 x 7.87 x 7.5" / 20.0 x 20 x 19.0 cm Using 1 Extruder
    Layer Resolution (XY Axis) 20 micron / 0.02 mm
    100 micron / 0.1 mm
    200 micron / 0.2 mm
    300 micron / 0.3 mm
    400 micron / 0.4 mm
    Number of Extruders 1
    Extruder Nozzle Diameter 400 micron / 0.4 mm
    Extruder Nozzle Temperature 338 to 464°F / 170 to 240°C
    Print Speed Maximum: 120 mm/s
    Positioning Precision XY Axis: 12.5 micron / 0.0125 mm
    Z Axis: 0.4 micron / 0.0004 mm
    Filament Diameter 1.75 mm
    Filament Compatibility ABS, HIPS, PETG, PLA, Wood
    Build Area Enclosed
    Filament Spool Storage Internal
    Camera No
    3D Scanner Yes
    Build Plate Composition Aluminum
    Magnetic No
    Heated Yes
    Build Plate Temperature 105 to 194°F / 40 to 90°C
    Leveling Self-Leveling
    USB 2.0 Ports 1 x Type B
    Supported Wi-Fi Standards 802.11n, 802.11g, 802.11b
    Mobile App Connectivity Yes
    Software Supported 3D File Types .3w, .gcode, .obj, .stl
    Mac OS X Compatibility 10.10 and Above
    Windows Compatibility 7 and Above
    Linux Compatibility Yes
    iOS Compatibility 9 And Above
    Android Compatibility 5 And Above
    Power Requirements 100 to 240 VAC
    Operating Temperature 59 to 89°F / 15 to 32°C
    Operating Humidity 30 to 60%
    Storage Temperature 50 to 104°F / 10 to 40°C

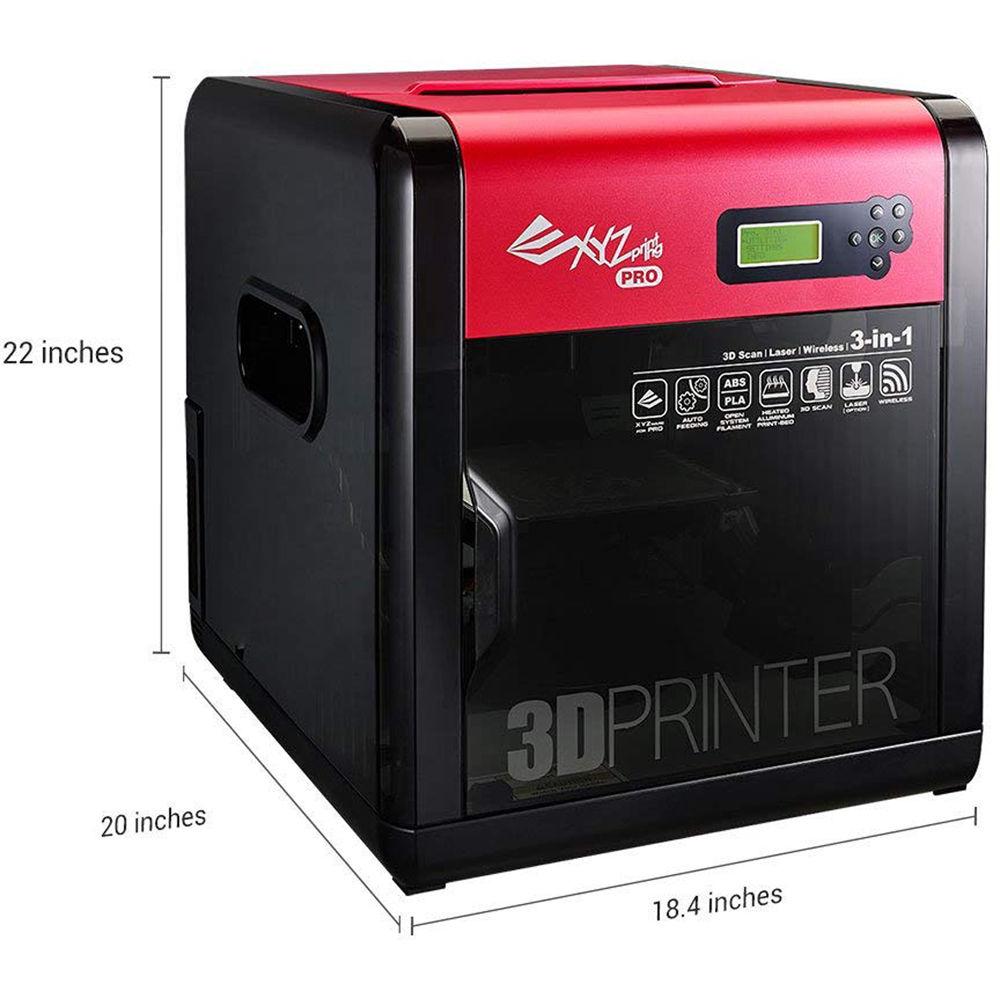

    Dimensions (W x H x D) 18.4 x 20.00 x 22.00" / 46.74 x 50.8 x 55.88 cm
    Weight 50.71 lb / 23 kg
    Package Weight 60.5 lb
    Box Dimensions (LxWxH) 26.7 x 23.4 x 21.8"
