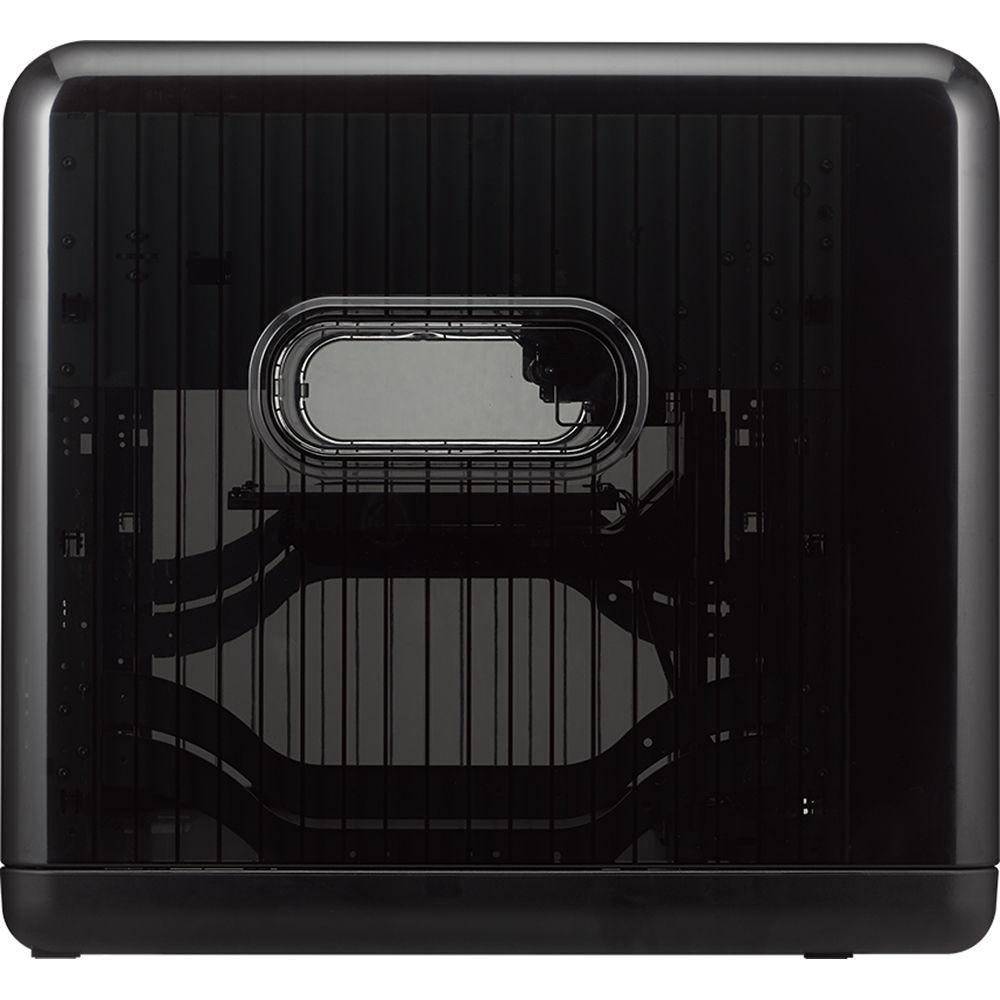

User Manual for XYZprinting da Vinci 1.0 Pro 3D Printer Click to enlarge the picture
Contents of the user manual for the XYZprinting da Vinci 1.0 Pro 3D
- Product category: 3D Printers XYZprinting
- Brand: XYZprinting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for XYZprinting 3D Printers
 |
User manual for the XYZprinting da Vinci 1.0 Pro 3D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any XYZprinting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official XYZprinting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a XYZprinting product will considerably shorten its lifespan!
|
Product description - XYZprinting da Vinci 1.0 Pro unboxing
- da Vinci 1.0 Pro. - First-time Printing

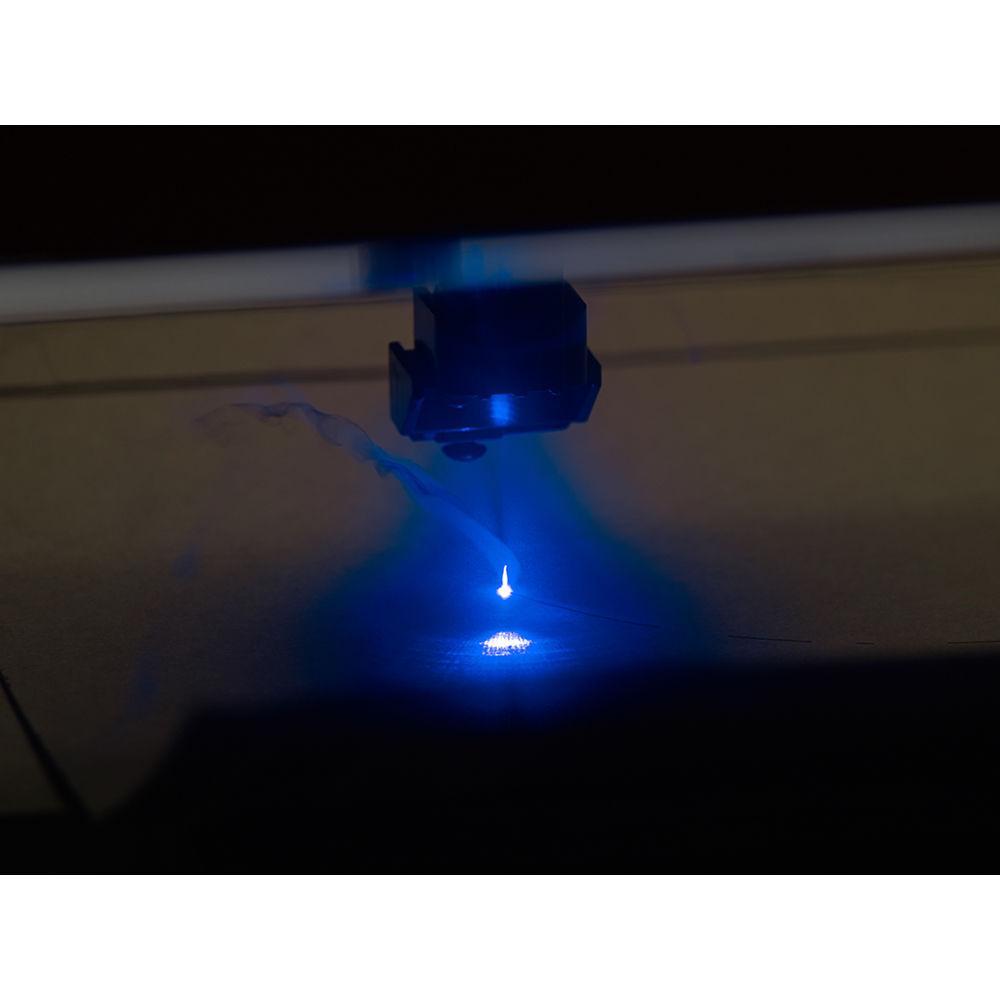

- Da Vinci 1.0 pro - Instructions for the Laser Engraving Module
- da Vinci 1.0 Pro Calibration Fail Trouble Shooting & Z-Offset Adjustment

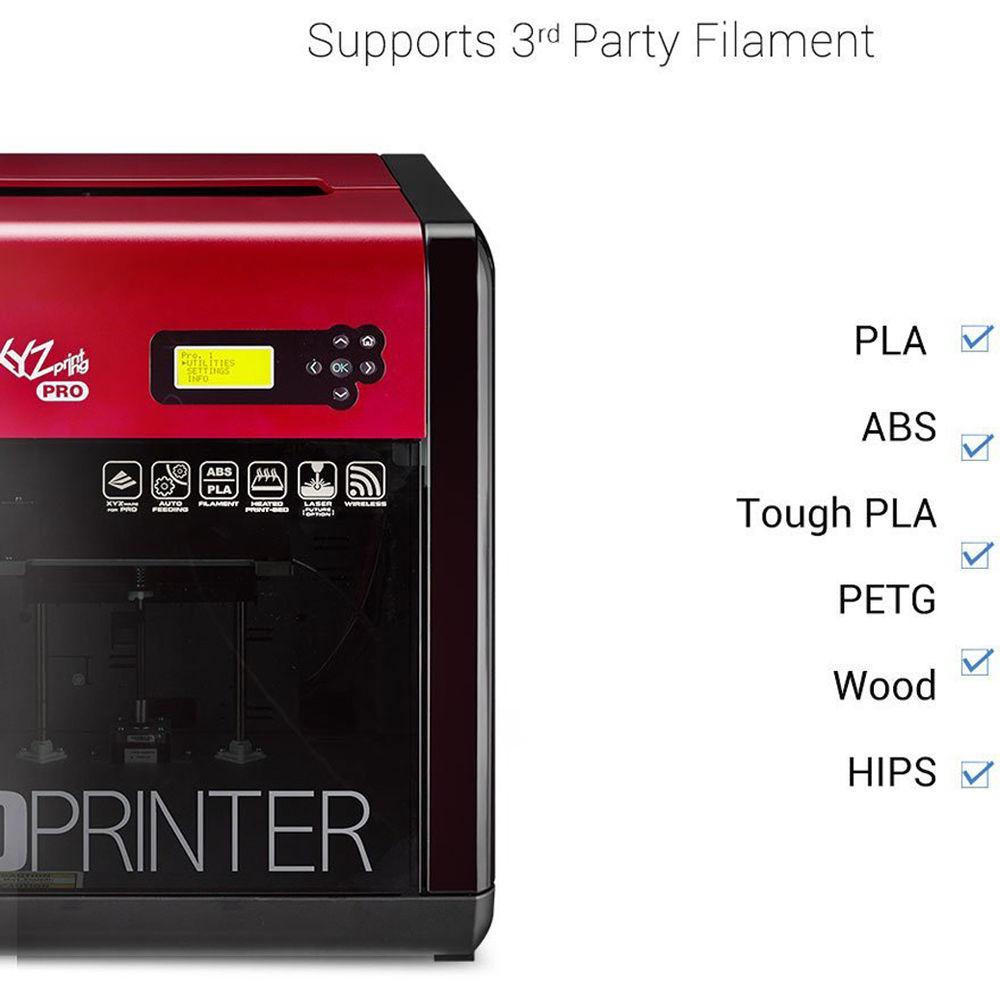

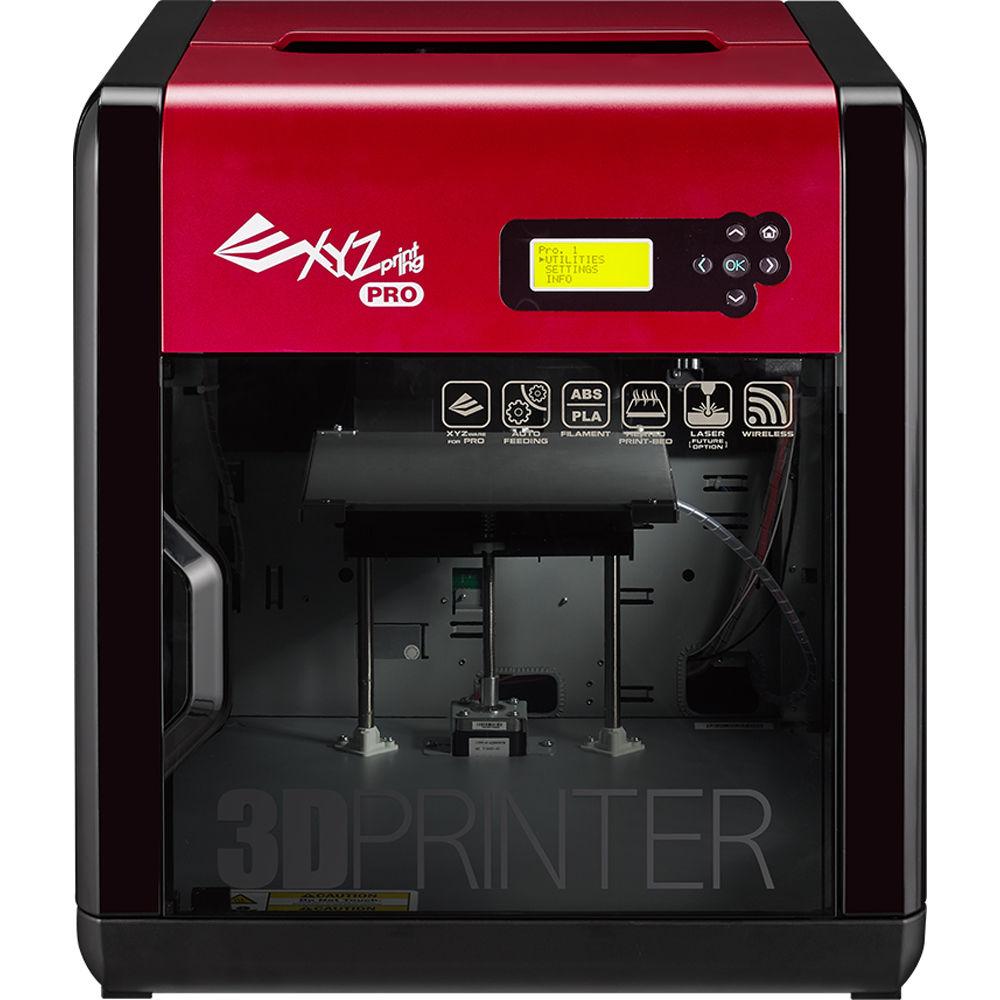

The da Vinci 1.0 Pro 3D Printer from XYZprinting allows you to adjust the temperature settings for the extruder nozzle and aluminum print bed, which makes it compatible with third-party 1.75mm filaments. Select your favorite filament brand for an optimal 3D printing experience. The da Vinci Pro also has an auto-loading filament system that will ensure the filament is loaded correctly and ready for use. General Features - XYZware for Pro
- The da Vinci Pro comes bundled with software that enables you to adjust multiple settings, such as speed, print support, and Retraction. By being able to provide settings for Retraction, you can print objects without any streaking or smudges that occur when the extruder moves across the print.

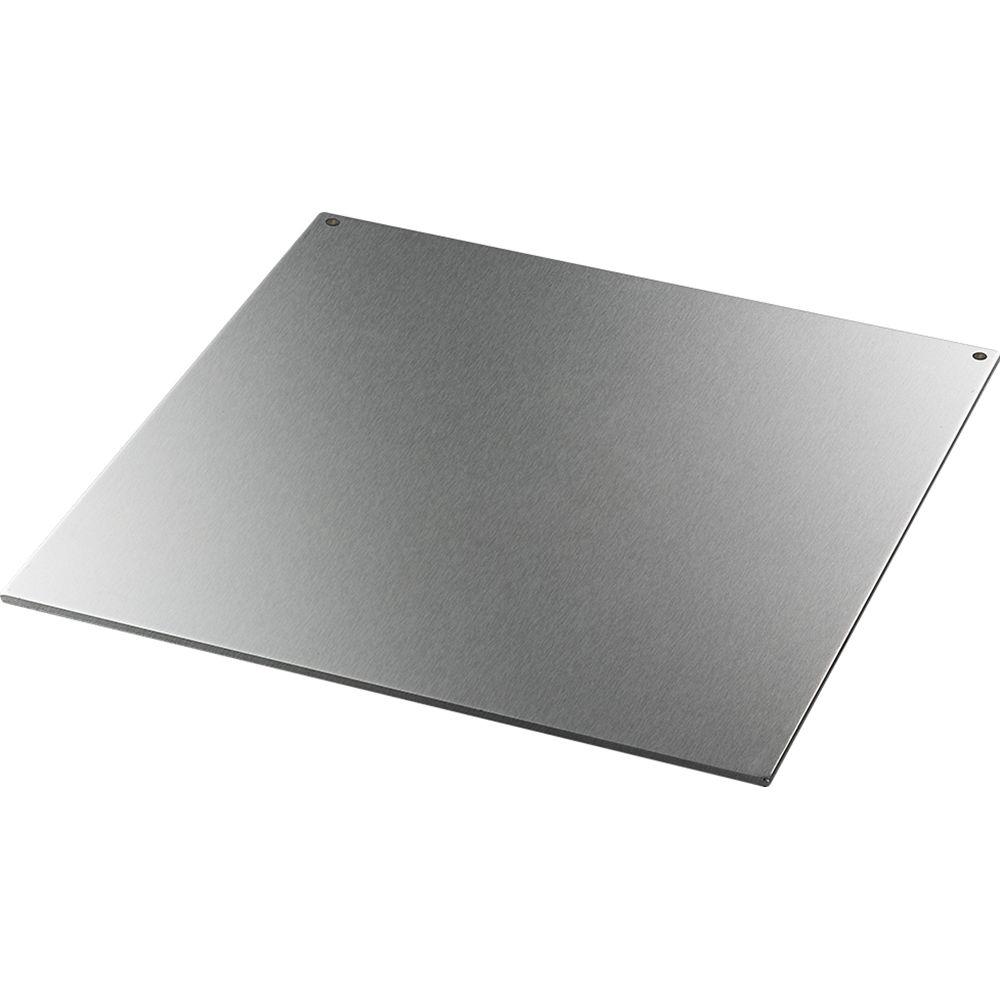

- Aluminum Print Bed
- The aluminum print bed makes for a durable heating surface that rapidly distributes heat evenly and decreases the chances of print warping better than the common glass print bed. Simply cover the bed with masking tape, adjust the heat setting appropriately, and watch your prints stick to the print bed with ease.
- Frustration-Free Calibration
- The da Vinci 1.0 Pro has an intuitive calibration system that uses specially designed knobs and detection software that guides you in the right direction. Follow the instructions as they appear on the screen and turn the knobs accordingly for an easy calibration experience.
- Connect to Your Home Network
- The da Vinci 1.0 Pro has Wi-Fi connectivity. It allows you to wirelessly send print jobs when connected to your home network by using Windows and Mac computers, as well as the XYZgallery app available on Android devices. Send your own designs from your computer, or access the thousands of 3D models available in the XYZgallery app from your Android device.

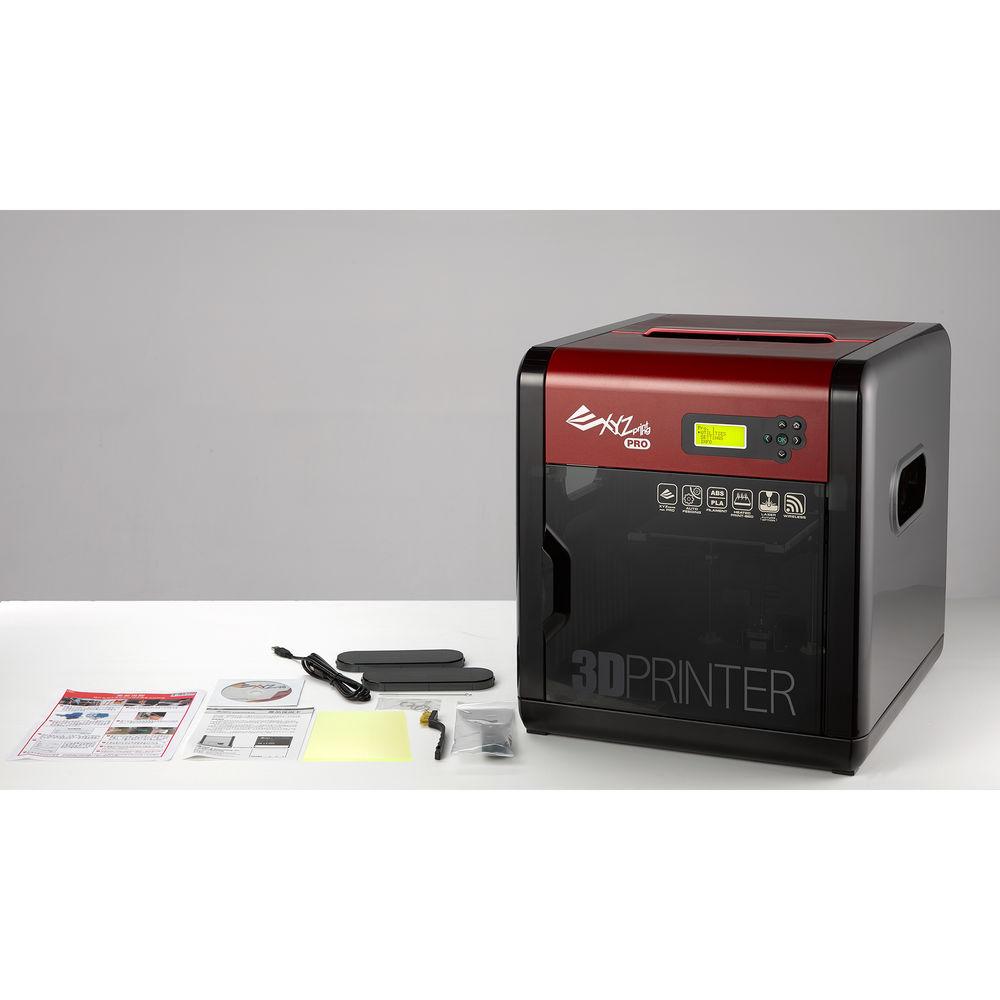

UPC: 840710108180 In the Box XYZprinting da Vinci 1.0 Pro 3D Printer Limited 90-Day Warranty (Extruder Module, Print Bed, and Motor Modules) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting da Vinci 1.0 Pro 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting 3F1AWXUS00K Specs | | | Print Technology | (Marketed as ) | | Build Volume | 7.8 x 7.8 x 7.8" / 19.8 x 19.81 x 19.8 cm Using 1 Extruder | | Layer Resolution (XY Axis) | 20 micron / 0.02 mm
100 micron / 0.1 mm
200 micron / 0.2 mm
300 micron / 0.3 mm
400 micron / 0.4 mm | | Number of Extruders | 1 | | Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 338 to 464°F / 170 to 240°C | | Print Speed | Maximum: 120 mm/s | | Positioning Precision | XY Axis: 12.5 micron / 0.0125 mm

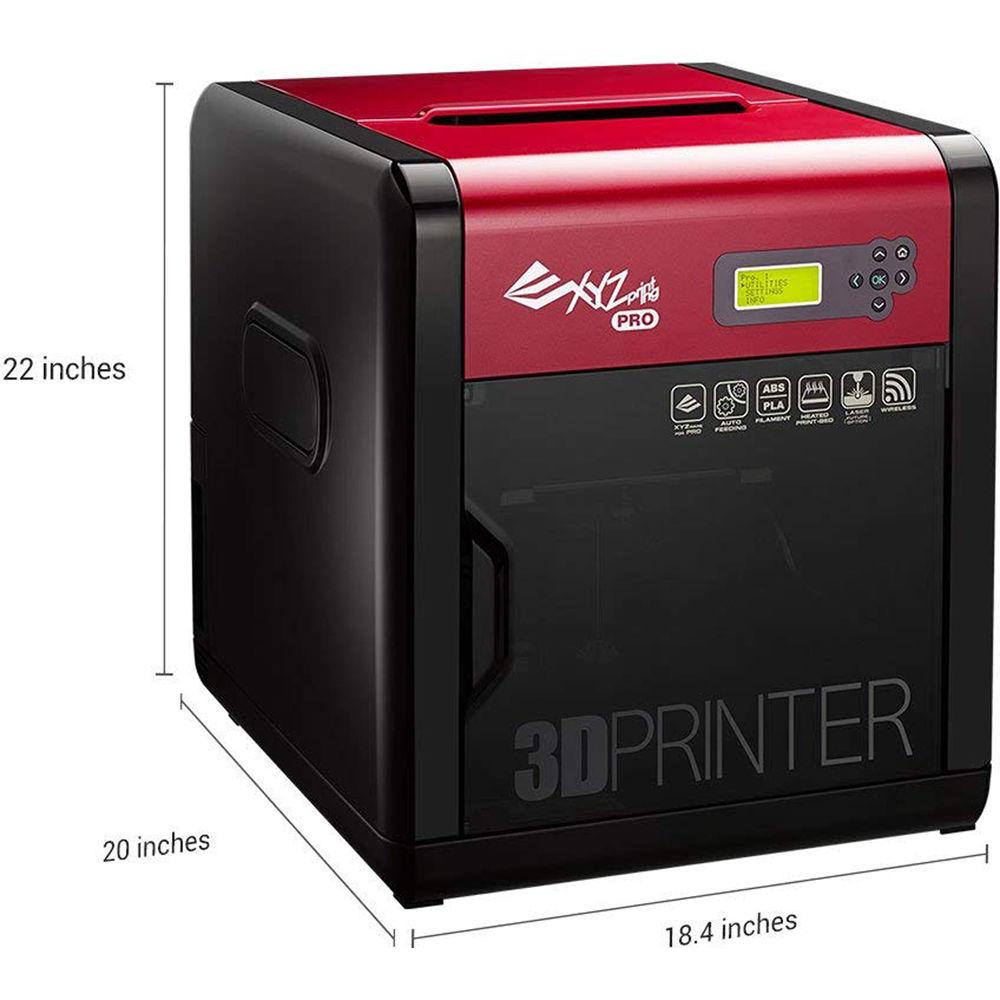

Z Axis: 0.4 micron / 0.0004 mm | | Filament Diameter | 1.75 mm | | Filament Compatibility | ABS, HIPS, PETG, PLA, Wood | | | | Build Area | Enclosed | | Filament Spool Storage | Internal | | Camera | No | | 3D Scanner | No | | | | Build Plate Composition | Aluminum | | Heated | Yes | | Build Plate Temperature | 105 to 194°F / 40 to 90°C | | Leveling | Self-Leveling | | | | USB 2.0 Ports | 1 x Type B | | Supported Wi-Fi Standards | 802.11n, 802.11g, 802.11b | | | | Software Supported 3D File Types | .3w, .gcode, .obj, .stl | | Mac OS X Compatibility | 10.10 and Above | | Windows Compatibility | 7 and Above | | Linux Compatibility | Yes | | Android Compatibility | Yes | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Operating Temperature | 59 to 89°F / 15 to 32°C | | Operating Humidity | 30 to 60% | | Storage Temperature | 50 to 104°F / 10 to 40°C | | Dimensions (W x H x D) | 18.4 x 20.00 x 22.00" / 46.74 x 50.8 x 55.88 cm | | Weight | 50.71 lb / 23.00 kg | | | | Package Weight | 57.8 lb | | Box Dimensions (LxWxH) | 27.0 x 23.0 x 21.0" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
