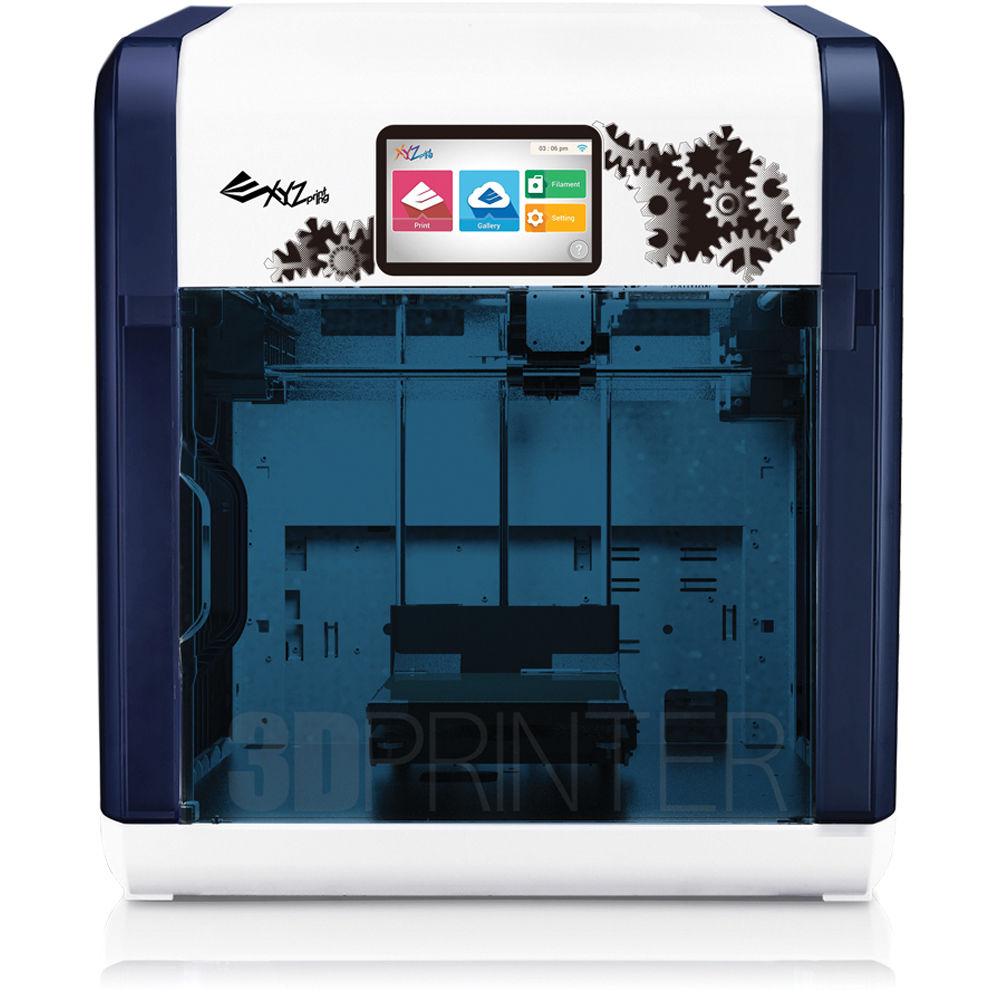

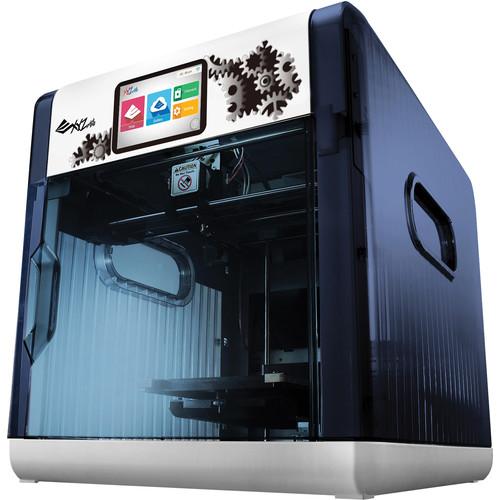

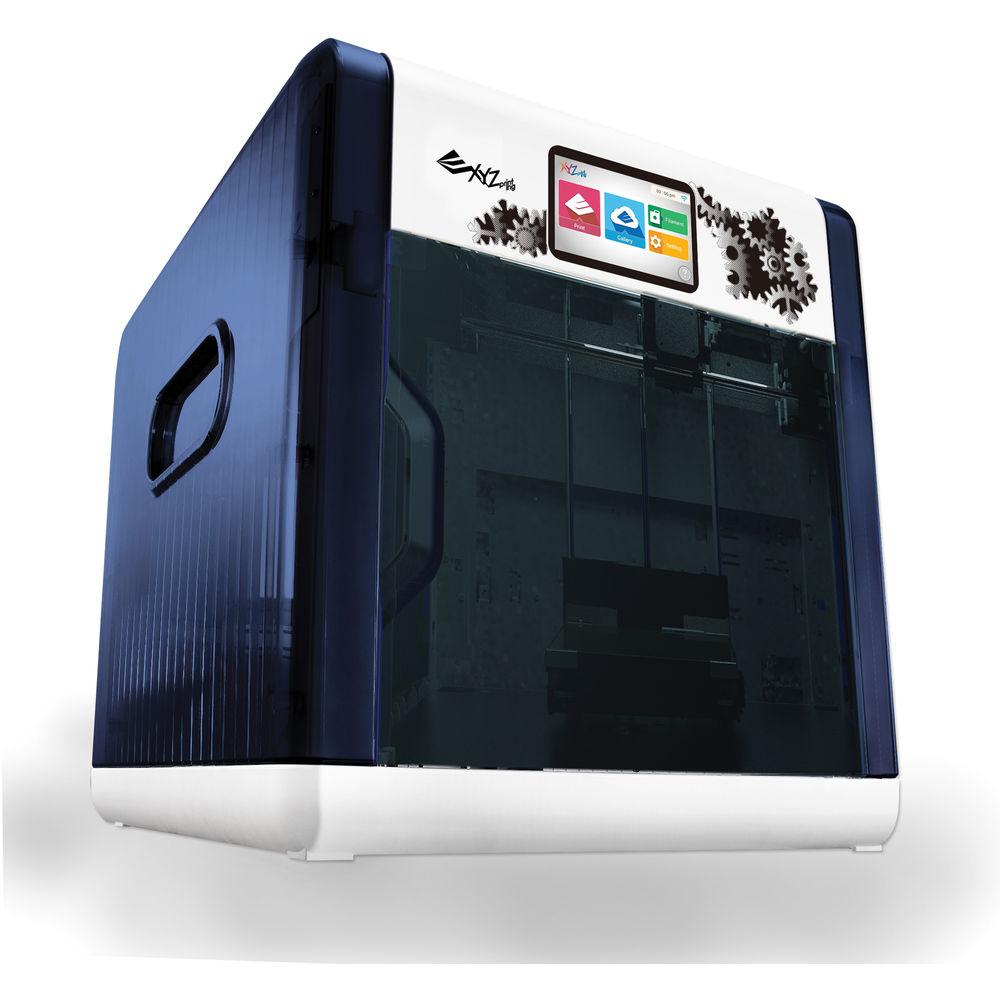

User Manual for XYZprinting da Vinci 1.1 Plus 3D Printer Click to enlarge the picture
Contents of the user manual for the XYZprinting da Vinci 1.1 Plus 3D
- Product category: 3D Printers XYZprinting
- Brand: XYZprinting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for XYZprinting 3D Printers
 |
User manual for the XYZprinting da Vinci 1.1 Plus 3D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any XYZprinting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official XYZprinting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a XYZprinting product will considerably shorten its lifespan!
|
Product description - da Vinci 1.1 Plus - Unboxing
Print in ABS and PLA up to a maximum build volume of 7.8 x 7.8 x 7.8" with the da Vinci 1.1 Plus 3D Printer from XYZprinting. Create detailed objects in resolutions as fine as 100 microns. Alternatively, choose the Ultra Fast speed setting to print your designs in 400-micron resolution when greater precision isn't required. The enclosed printing area both protects users from hot machinery during printing and maintains the high temperatures required for successful printing with ABS plastic. Filament is fed into the da Vinci Plus from proprietary cartridges that can be refilled with more filament when empty.The included XYZWare software will accept .STL files and convert them to .3W files for printing on the da Vinci Plus. Use the printer as a completely standalone device with the included USB drive or Wi-Fi, or connect it to your computer via a USB 2.0 cable or Ethernet. Download the XYZapp for Apple or Android to gain access to thousands of 3D designs you can print from anywhere. The da Vinci Plus will also capture your 3D prints during production and send picture updates routinely to your XYZapp.
Navigate the da Vinci Plus with the onboard 5" LCD color touchscreen panel. The printer ships fully assembled and, being plug-and-play, is ready to print out of the box. Also included with the da Vinci Plus are one filament cartridge, a glue stick, several post-production tools, and a USB flash drive containing the user manual, XYZware software, and a print sample. It is compatible with Mac and Windows operating systems. In the Box XYZprinting da Vinci 1.1 Plus 3D Printer Filament Cartridge Cartridge Locker USB Flash Drive Glue Stick Scraper Copper Brush Cleaning Brush Cleaning Wires 2 x Side Cover Plate USB Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting da Vinci 1.1 Plus 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting 3F11XXUS00J Specs | | | Build Volume | 7.8 x 7.8 x 7.8" / 19.8 x 19.81 x 19.8 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 to 400 micron / 0.1 to 0.4 mm (4 Settings) | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Filament Compatibility | 1.75 mm Diameter:
ABS, PLA | | | | Build Area Type | Enclosed | | Build Plate Features | Manual Leveling | | Filament Spool Storage | Proprietary Cartridge | | 3D Scanner | No | | Monitoring Camera | Yes | | | | Wired Connections | 1 x RJ45
1 x USB Type-A (USB 2.0)
1 x USB Type-B (USB 2.0) | | Wi-Fi | Yes | | Media Card Slots | Yes | | | | Supported Operating Systems | Android (Version Unspecified)
Windows 7 or Later
iOS (Version Unspecified)
macOS X 10.8 or Later | | Supported 3D File Types | .3w, .stl | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions (W x H x D) | 18.4 x 20 x 22" / 46.74 x 50.8 x 55.88 cm | | Weight | 59.5 lb / 27 kg | | | | Package Weight | 57.0 lb | | Box Dimensions (LxWxH) | 27.5 x 23.5 x 21.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
