User Manual for XYZprinting da Vinci Jr. 1.0 3-in-1 3D Printer Click to enlarge the picture
Contents of the user manual for the XYZprinting da Vinci Jr. 1.0 3-in-1
- Product category: 3D Printers XYZprinting
- Brand: XYZprinting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for XYZprinting 3D Printers
 |
User manual for the XYZprinting da Vinci Jr. 1.0 3-in-1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any XYZprinting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official XYZprinting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a XYZprinting product will considerably shorten its lifespan!
|

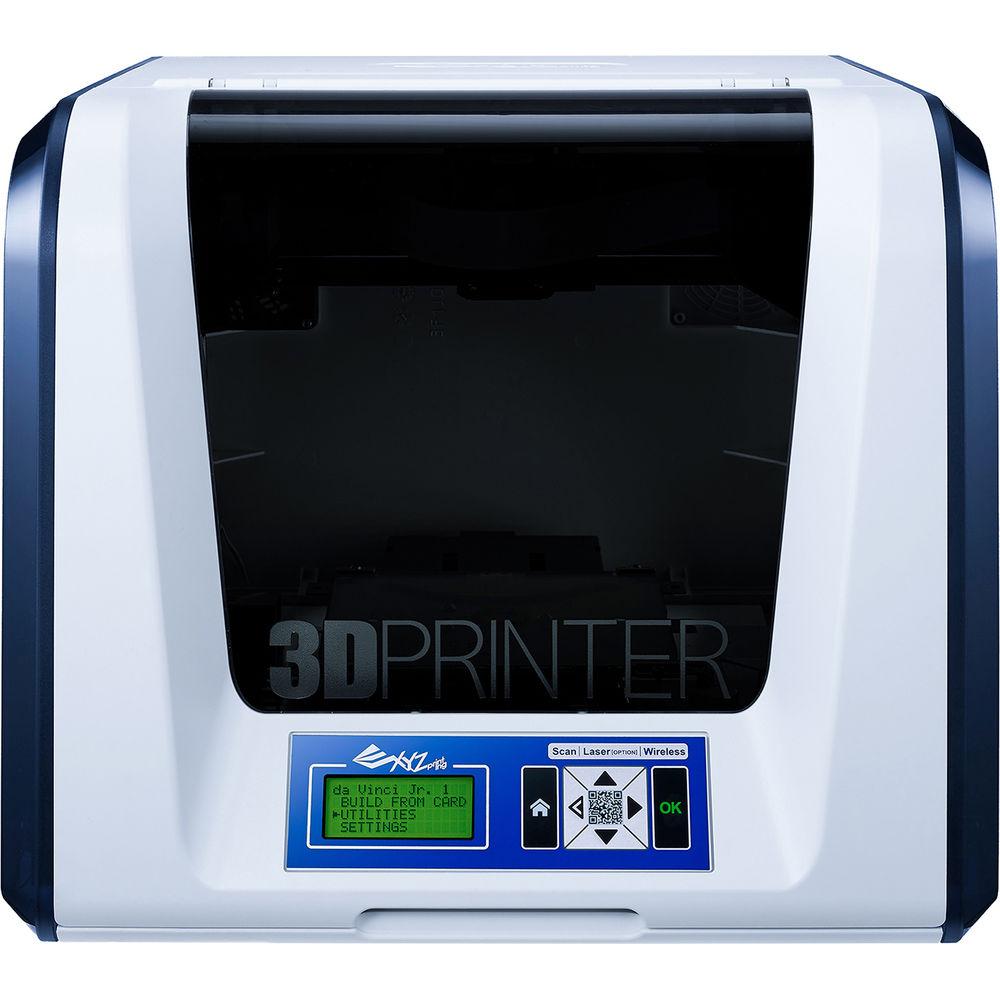

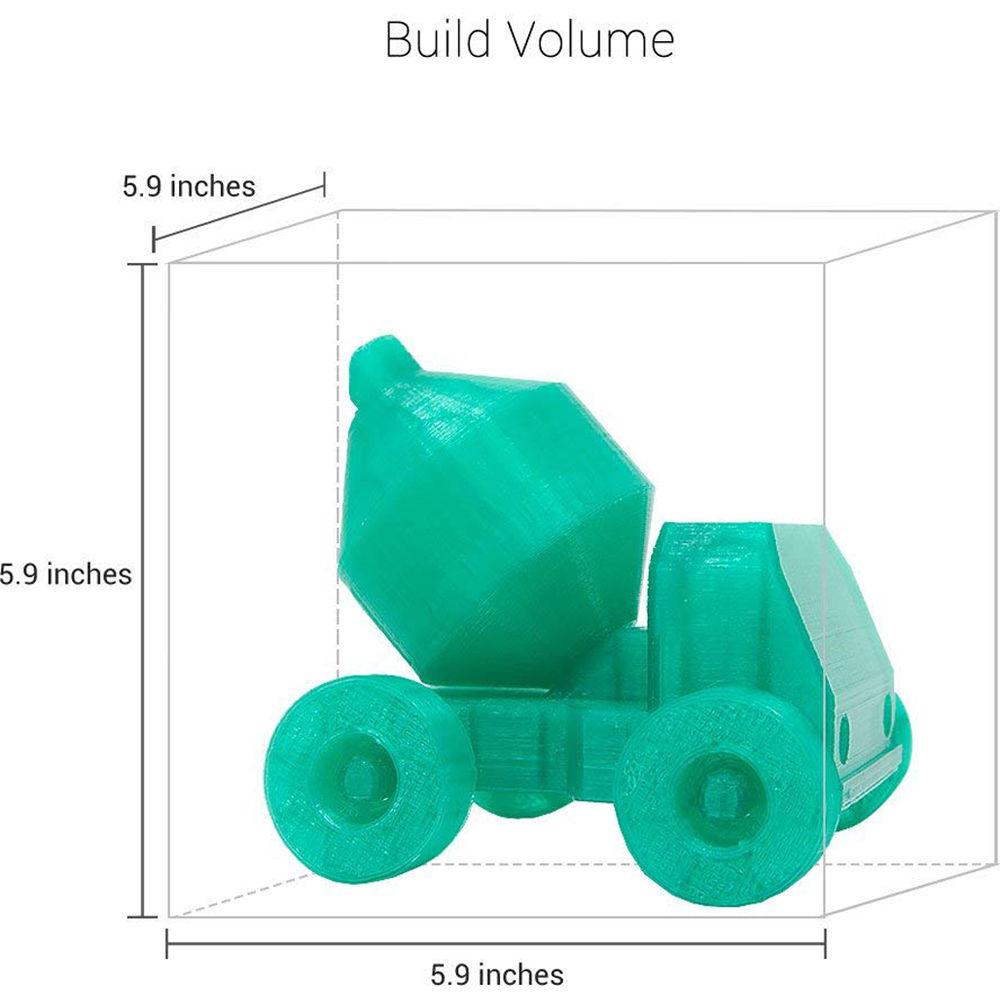

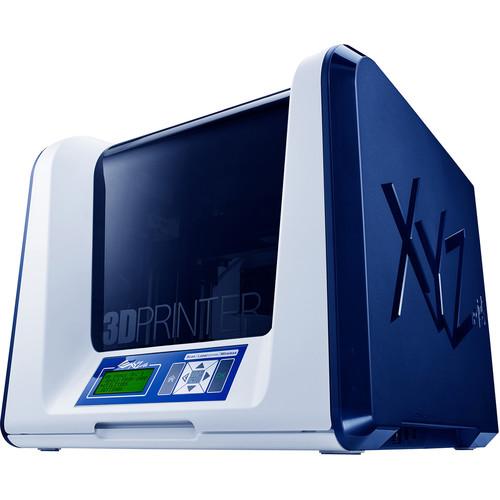

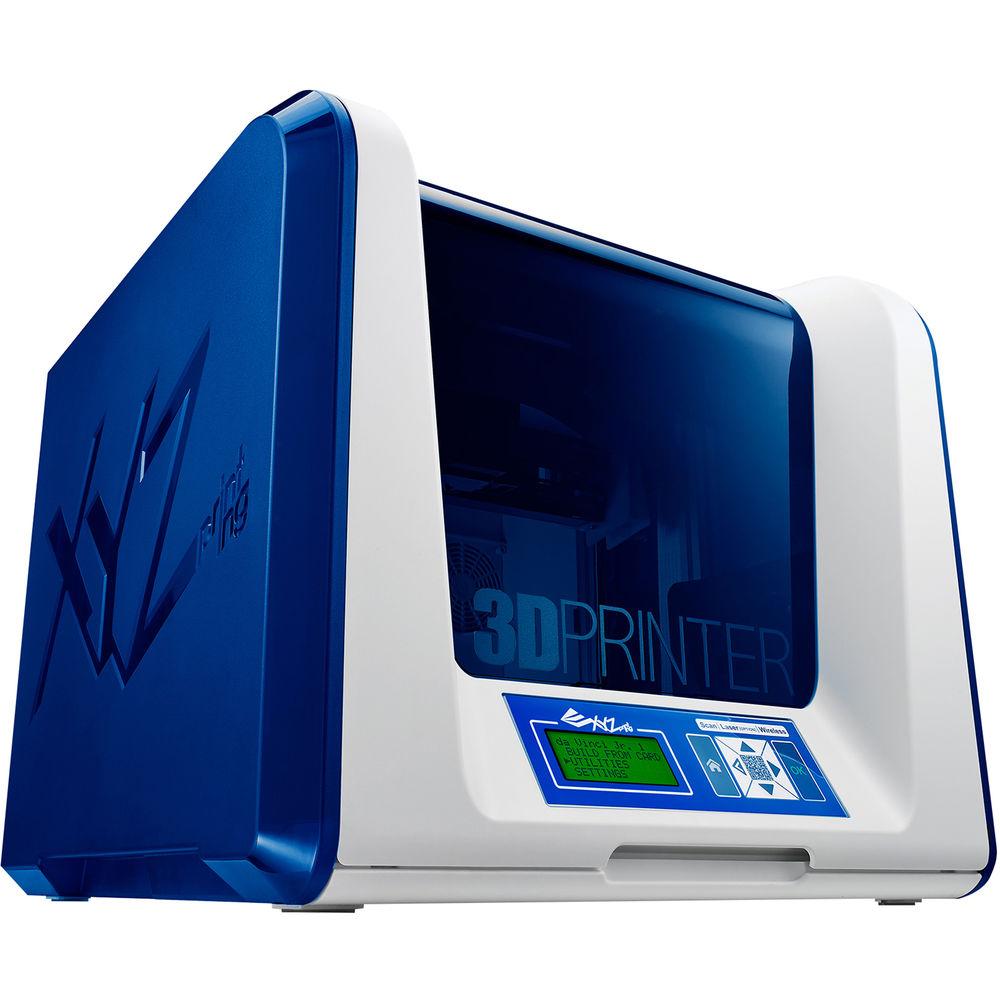

Product description With a build volume of 5.9 x 5.9 x 5.9", the da Vinci Jr. 1.0 3-in-1 3D Printer from XYZprinting features a layer resolution of 100-400 microns and is able to utilize 1.75mm PLA filaments via its auto-loading filament system. It is equipped with a 3D scanner, a single extruder nozzle, an enclosed and non-heated print bed, and a 2.6" LCD display. Users may print their compatible STL files or XYZ's proprietary 3W files via wired USB 2.0, 802.11b/g/n Wi-Fi, or SDHC cards up to 32GB in size. Using the XYZgallery app for iOS and Android, users may also print using their mobile devices.
This 3D printer also comes bundled with XYZware, which allows users to design, customize, and print digital 3D models. It can also import STL files and create realistic simulated objects, as well as print out real products. Also bundled is XYZscan software, which is a 3D object scanner assistant that can conduct 3D scans, provide previews of files, and output files into a copy work via XYZware. Additionally, an optional laser engraver add-on allows designs to be etched on materials such as paper, cardboard, leather, wood, and plastic.
The da Vinci Jr. 1.0 3-in-1 3D Printer is hardware-compatible with 32- & 64-bit PCs running Windows 7 and above with at least 4GB of memory, as well as 64-bit Macs running OS X 10.8 and above with at least 4GB of memory. Included is a guide tube, a feeding path cleaning wire, five cleaning wires, a USB cable, three pieces of bed tape, a filament spool axle ring, a scan bed, a cleaning brush, a scraper, an SD card, a power adapter, a power cord, bundled filament, a feeding tube grip, and a calibrating plate. General Features - Eco-Friendly and Safe Design

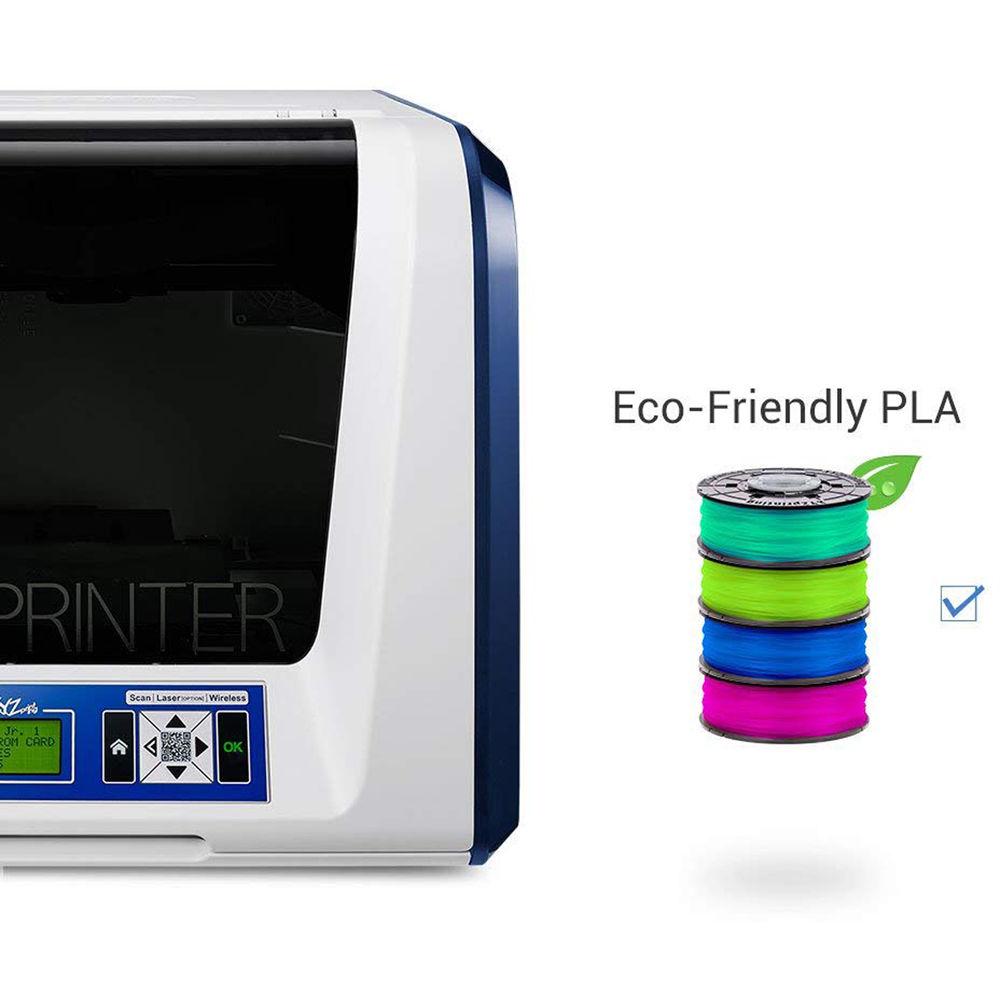

- The da Vinci Jr. 1.0 3-in-1 uses non-toxic, biodegradable PLA filament only. XYZprinting's PLA is extracted from natural materials such as corn, sugarcane, and other sugar-containing crops and passes several requirements to ensure that it is DEHP-free and heavy metal-free. Users can enjoy 3D printing for themselves and others without worrying about toxic materials. Its enclosed design also provides a safe printing environment for homes, offices, classrooms, or makerspaces

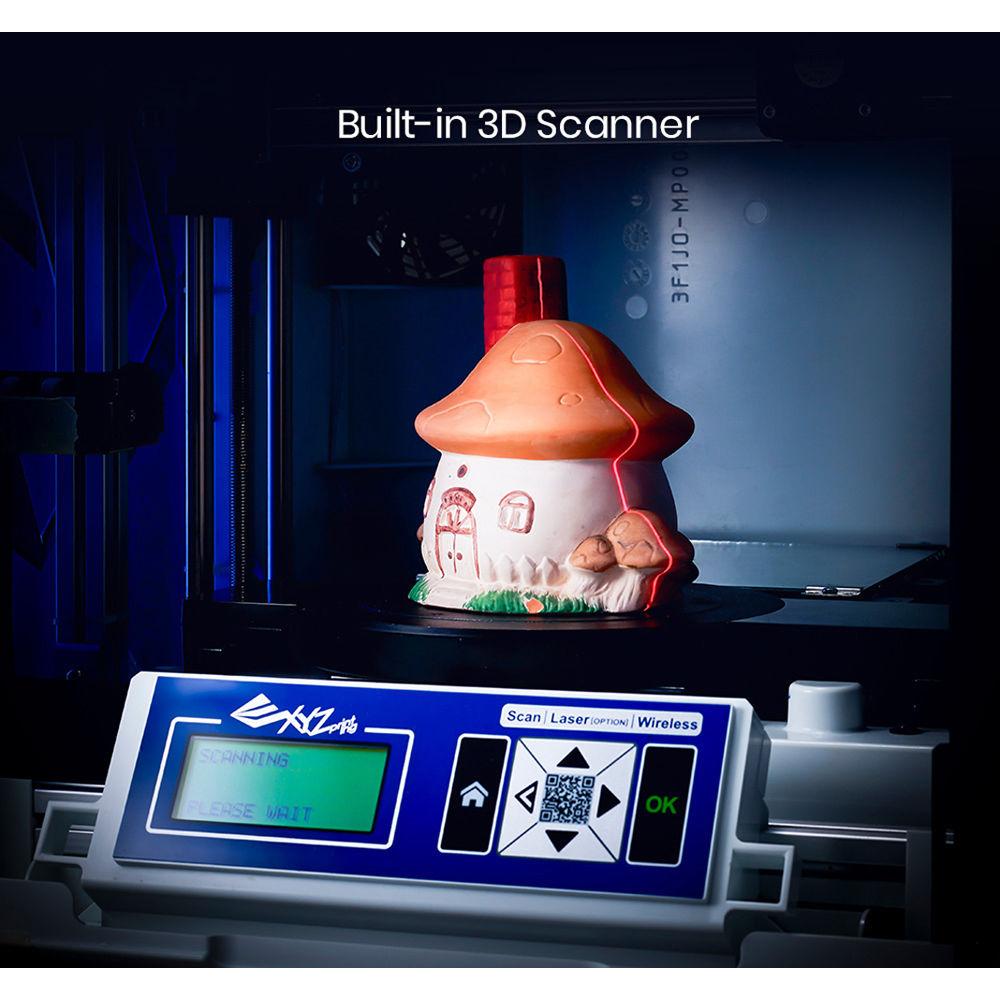

3D Scanning - 360° rotating platform for full object scanning
- Rapid scanning in around 5 minutes
- High-resolution laser module
- Scan size: 1.18 x 1.18" to 4.72 x 4.72" / 3 x 3cm to 12 x 12cm
- Scan resolution: 0.01" / 0.25mm
3D Printing - Press-and-release extruder
- Environmentally-friendly and non-toxic filament (1.75mm PLA)
- An optional 0.3mm extruder produces higher resolution and more intricate prints at 50 microns
Auto-Calibration - The da Vinci Jr. 1.0 3-in-1 uses an intuitive 9-point calibration detection system that helps determine that distance between the extruder and the print bed. After it finishes detection, it adjusts the extruder accordingly to ensure you have high quality prints

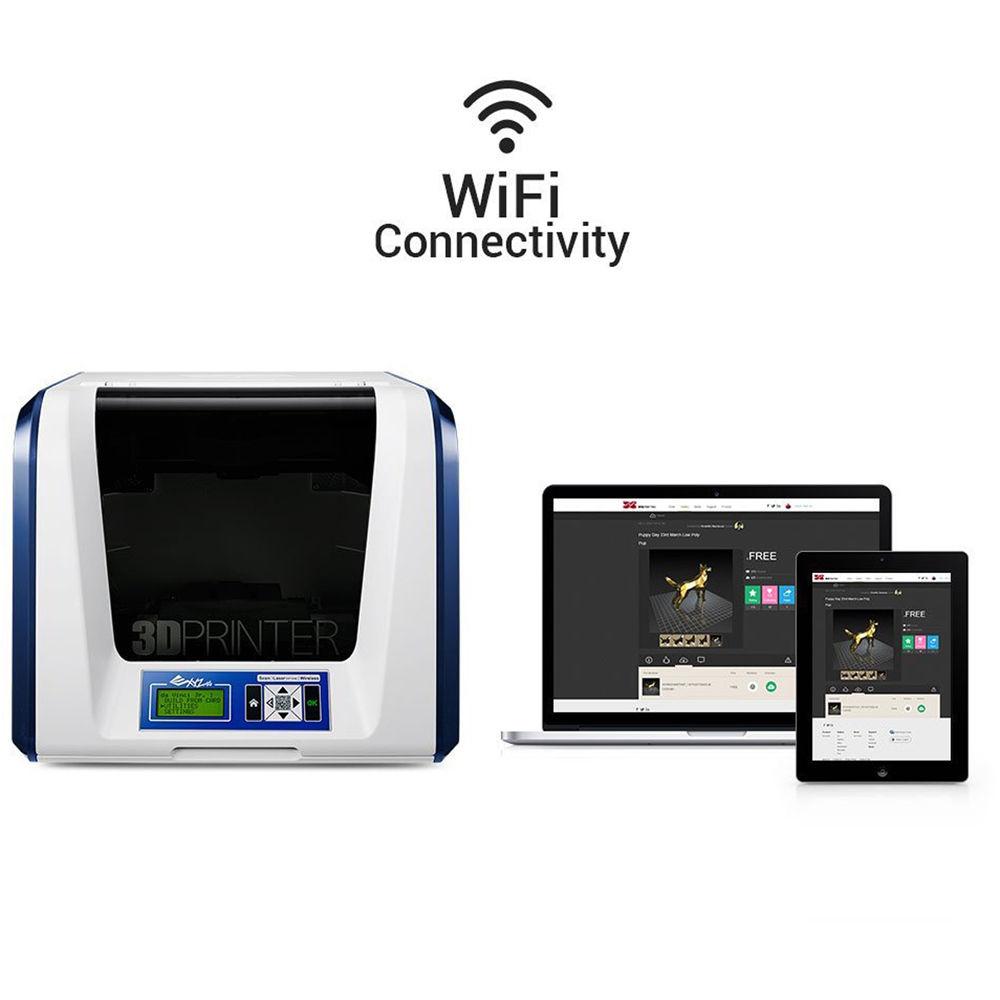

Wi-Fi Connectivity - Print directly from a computer in your local area network
- Use the XYZgallery app to print directly from iOS and Android devices
- Built-in SD card slot for convenient printing that supports SDHC cards up to 32GB
XYZmaker - Make your dreams into reality with the free and downloadable version of XYZmaker 3D modeling design software for beginners

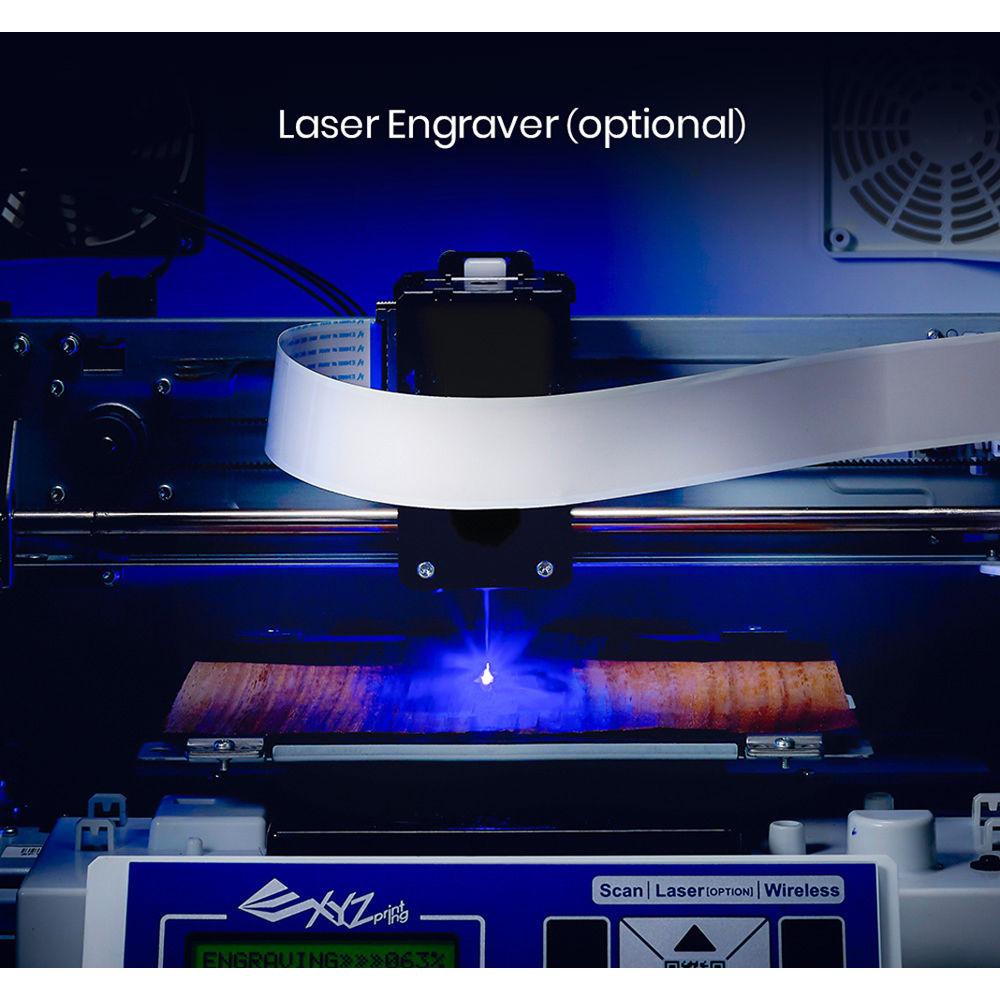

Laser Engraver (Optional) - Engrave your own creative path on various materials such as paper, cardboard, leather, wood, and plastic
UPC: 840710104991 In the Box XYZprinting da Vinci Jr. 1.0 3-in-1 3D Printer 1 x Guide Tube 1 x Feeding Path Cleaning Wire 5 x Cleaning Wires 1 x USB Cable 3 x Bed Tapes 1 x Filament Spool Axle Ring 1 x Scan Bed 1 x Cleaning Brush 1 x Scraper 1 x SD Card 1 x Power Adapter 1 x Power Cord 1 x Bundled Filament 1 x Feeding Tube Grip 1 x Calibrating Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting da Vinci Jr. 1.0 3-in-1 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting 3F1JSXUS00B Specs | | | Build Volume | 5.9 x 5.9 x 5.9" / 15.0 x 14.99 x 15.0 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 to 400 micron / 0.1 to 0.4 mm (4 Settings) | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Print Speed | 100 mm/s | | Filament Compatibility | 1.75 mm Diameter:
PLA | | | | Build Area Type | Enclosed | | Build Plate Features | Auto Leveling | | Filament Spool Storage | Internal | | 3D Scanner | Yes | | Monitoring Camera | No | | | | Wired Connections | 1 x USB Type-B (USB 2.0) | | Wi-Fi | Wi-Fi 4 (802.11n) | | Media Card Slots | 1 x SDHC | | | | Supported Operating Systems | Windows 7 or Later

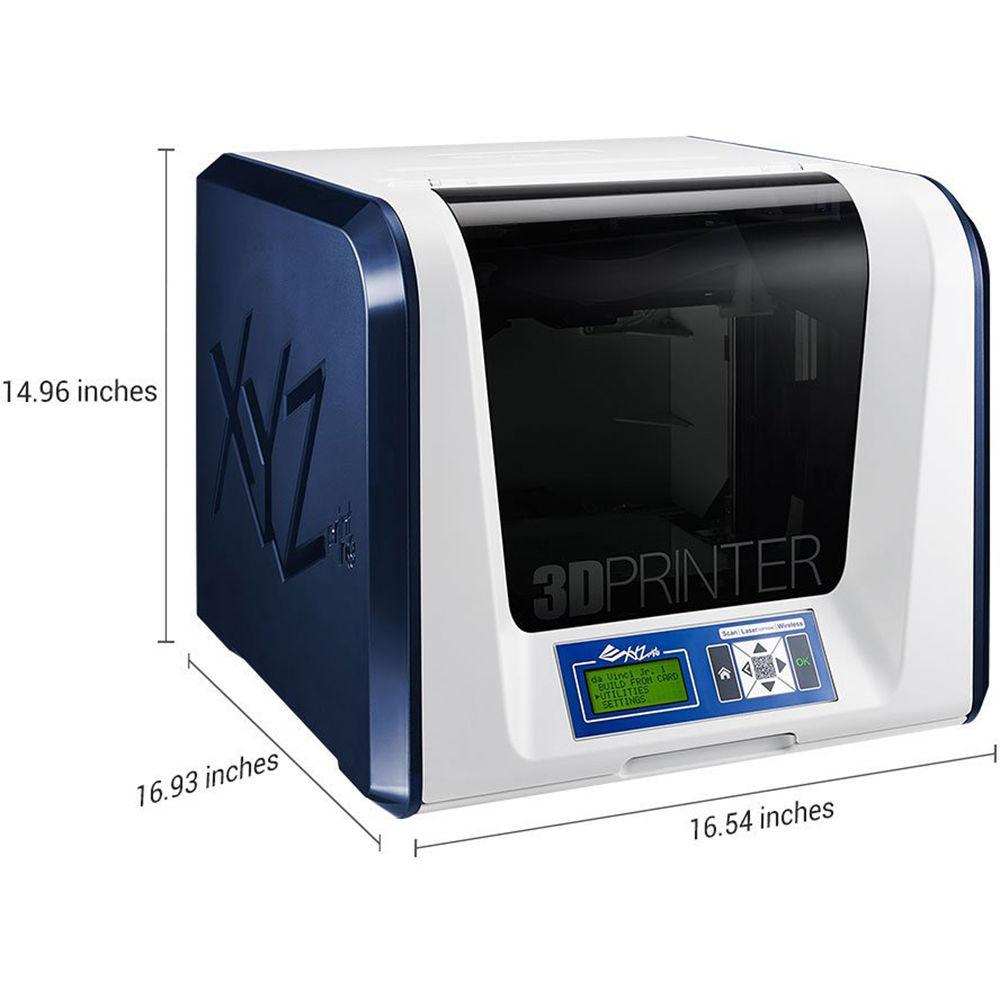

macOS X 10.8 or Later | | Supported 3D File Types | .3w, .stl | | | | Dimensions (W x H x D) | 16.5 x 15 x 16.9" / 41.91 x 38.1 x 42.93 cm | | Weight | 26.5 lb / 12 kg | | | | Package Weight | 37.5 lb | | Box Dimensions (LxWxH) | 23.0 x 21.5 x 19.2" |
