User Manual for XYZprinting da Vinci Jr. 1.0 Pro 3D Printer Click to enlarge the picture
Contents of the user manual for the XYZprinting da Vinci Jr. 1.0 Pro
- Product category: 3D Printers XYZprinting
- Brand: XYZprinting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for XYZprinting 3D Printers
 |
User manual for the XYZprinting da Vinci Jr. 1.0 Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any XYZprinting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official XYZprinting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a XYZprinting product will considerably shorten its lifespan!
|
Product description Breaking Into 3D Printing with XYZprintings da Vinci Lineup Read More - da Vinci Jr. 1.0 Pro - Unboxing

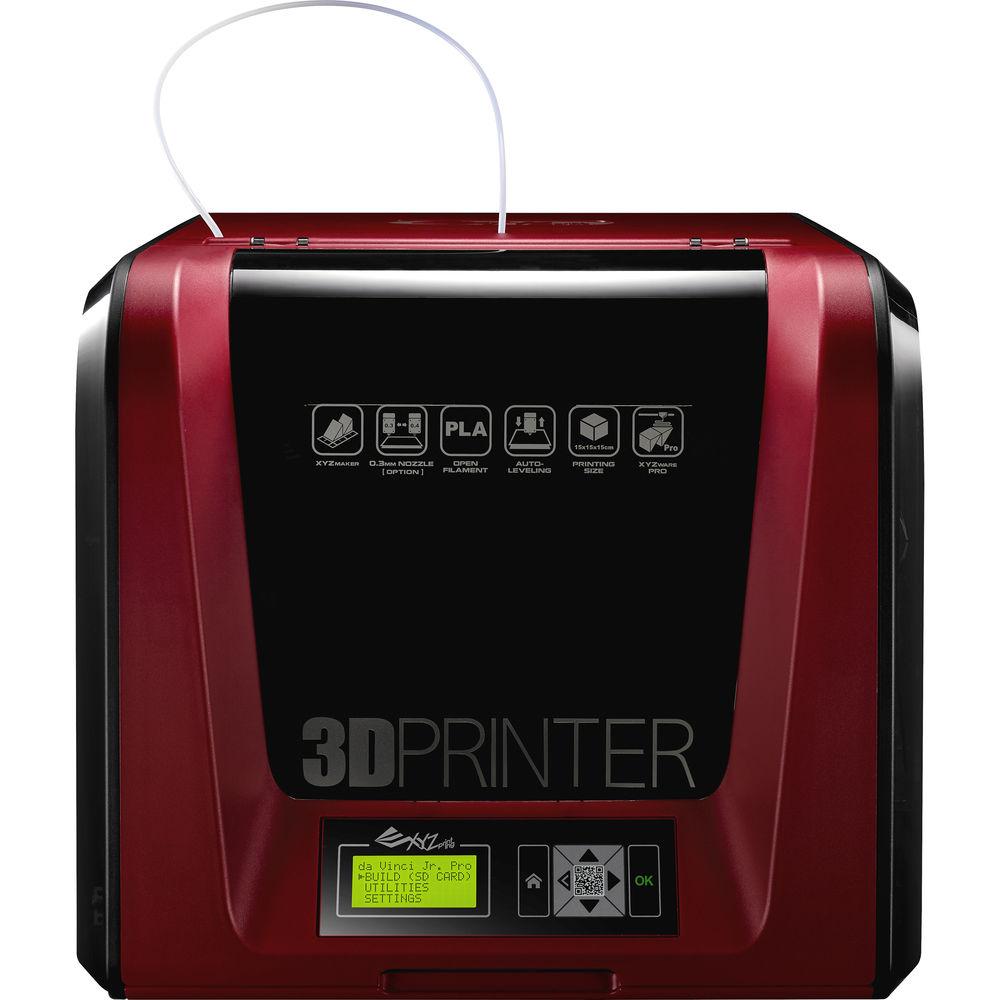

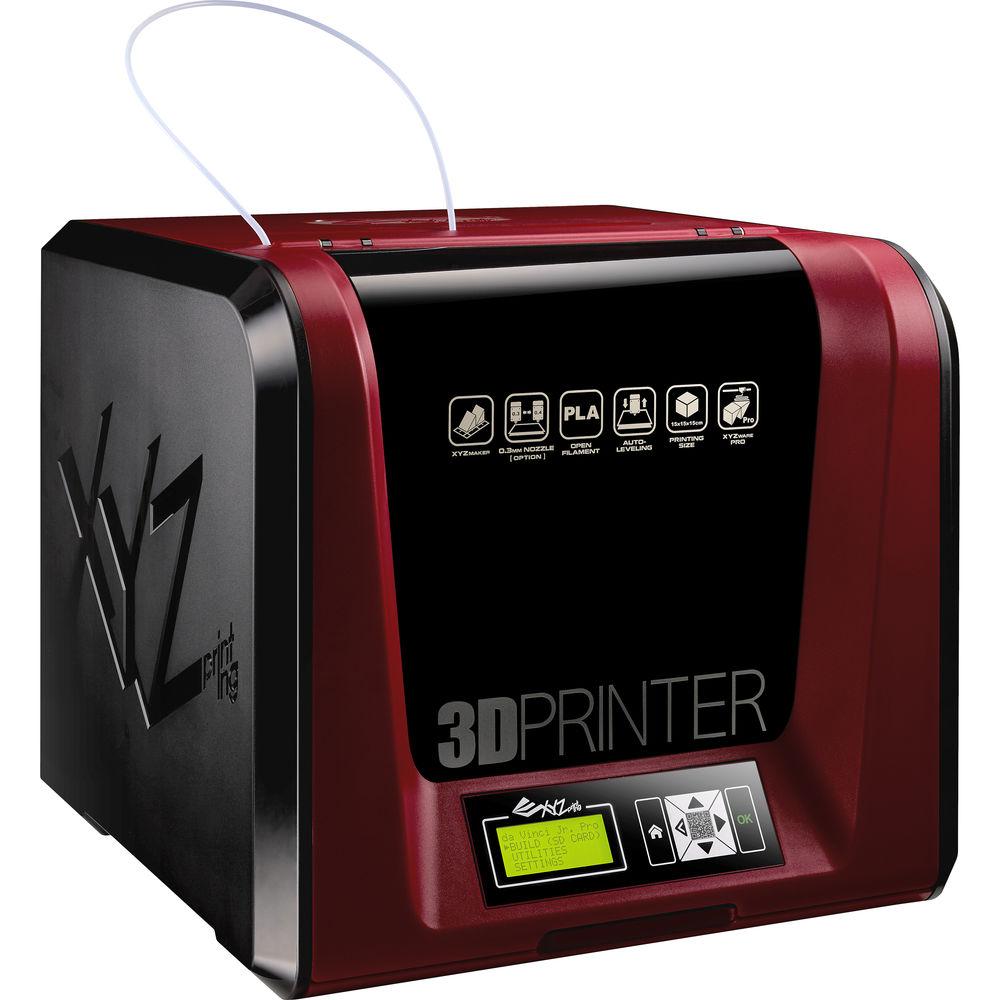

Designed as a compact 3D printer designed for professionals, the da Vinci Jr. 1.0 Pro 3D Printer from XYZprinting features Fused Filament Fabrication (FFF) printing technology; a build volume of 5.9 x 5.9 x 5.9"; a layer resolution of 20 to 400 microns; a maximum print speed of 100mm/s; and the ability to utilize 1.75mm PLA filaments via its auto-loading filament system. It is equipped with a single extruder nozzle, an enclosed and non-heated print bed, and a 2.6" display. Users may print their compatible .stl files, XYZ's proprietary .3w and .nkg files, Windows .3mf files, or third party gcodes, such as Cura and Slic3r via wired USB Type-B connectivity or SD cards (up to 32GB).
To help keep things running smoothly, this 3D printer uses a 9-point auto-calibration system that determines the distance between the extruder and the print bed so that the extruder may be adjusted accordingly. It also comes bundled with XYZware Pro software and is hardware-compatible with 32- & 64-bit PCs running Windows 7 and above and 64-bit Macs running OS X 10.10 and above with at least 8GB of memory, plus Linux 14.04 or 16.04. Included is a guide tube, a feeding path cleaning pin, five cleaner wires, a USB cable, three pieces of bed tape, a filament spool axle ring, a cleaning brush, a scraper, an SD card, a power adapter, a power cord, and bundled filament. General Features - Print with 3rd Party Filament
- The da Vinci Jr. 1.0 Pro has adjustable temperature settings for the extruder nozzle, helping to make it compatible with 3rd party 1.75mm PLA filaments. With its auto-loading filament system, the da Vinci Jr. 1.0 Pro helps ensure that filament is fed properly.
- Auto-Calibration System
- The da Vinci Jr. 1.0 Pro uses a 9-point calibration detection system that helps to accurately determine the distance between the extruder and the print bed.
- XYZware Pro
- XYZware Pro software has increased the maximum printing speed to 100mm/s, decreasing the time you have to wait for your prints to be finished. With adjustable software settings, you can also change the nozzle and print bed temperature, speed, print support, and retraction settings. XYZware Pro is compatible with third party g-codes, such as Cura, and Slic3r.
- 0.3mm Nozzle Upgrade
- A 0.3mm diameter extruder is available as a separate purchase for the da Vinci Jr. series and it is well-suited for intricate print jobs. The 0.3mm diameter extruder can provide a smoother print surface at a resolution of 50 microns.
- Improved Wind Duct Extruder Design for Better Prints
- The da Vinci Jr. 1.0 Pro features an improved wind duct design which helps enhance the cooling effect to provide smoother printing performance.
UPC: 840710105653 In the Box XYZprinting da Vinci Jr. 1.0 Pro 3D Printer Guide Tube Feeding Path Cleaning Pin USB Cable Filament Spool Axle Ring Cleaning Brush Scraper SD Card Power Adapter Power Cord Bundled Filament 3 x Pieces of Bed Tape 5 x Cleaner Wires Limited 90-Day Extruder Module, Print Bed, and Motor Modules Warranty Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting da Vinci Jr. 1.0 Pro 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting 3F1JPXUS00B Specs | | | Build Volume | 5.9 x 5.9 x 5.9" / 15.0 x 14.99 x 15.0 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 20 to 400 micron / 0.02 to 0.4 mm (5 Settings) | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 374 to 464°F / 190 to 240°C | | Positioning Precision | XY Axis: 12.5 micron / 0.0125 mm
Z Axis: 0.4 micron / 0.0004 mm | | Print Speed | 160 mm/s | | Filament Compatibility | 1.75 mm Diameter:
PETG, PLA, Wood | | | | Build Area Type | Enclosed | | Build Plate Features | Auto Leveling | | Build Plate Temperature | 104 to 194°F / 40 to 90°C | | Build Plate Composition | Glass | | Filament Spool Storage | Internal | | 3D Scanner | No | | Monitoring Camera | No | | | | Wired Connections | 1 x USB Type-B (USB 2.0) | | Wi-Fi | None | | Media Card Slots | 1 x SDHC | | | | Supported Operating Systems | Linux (Version Unspecified)
Windows 7 or Later

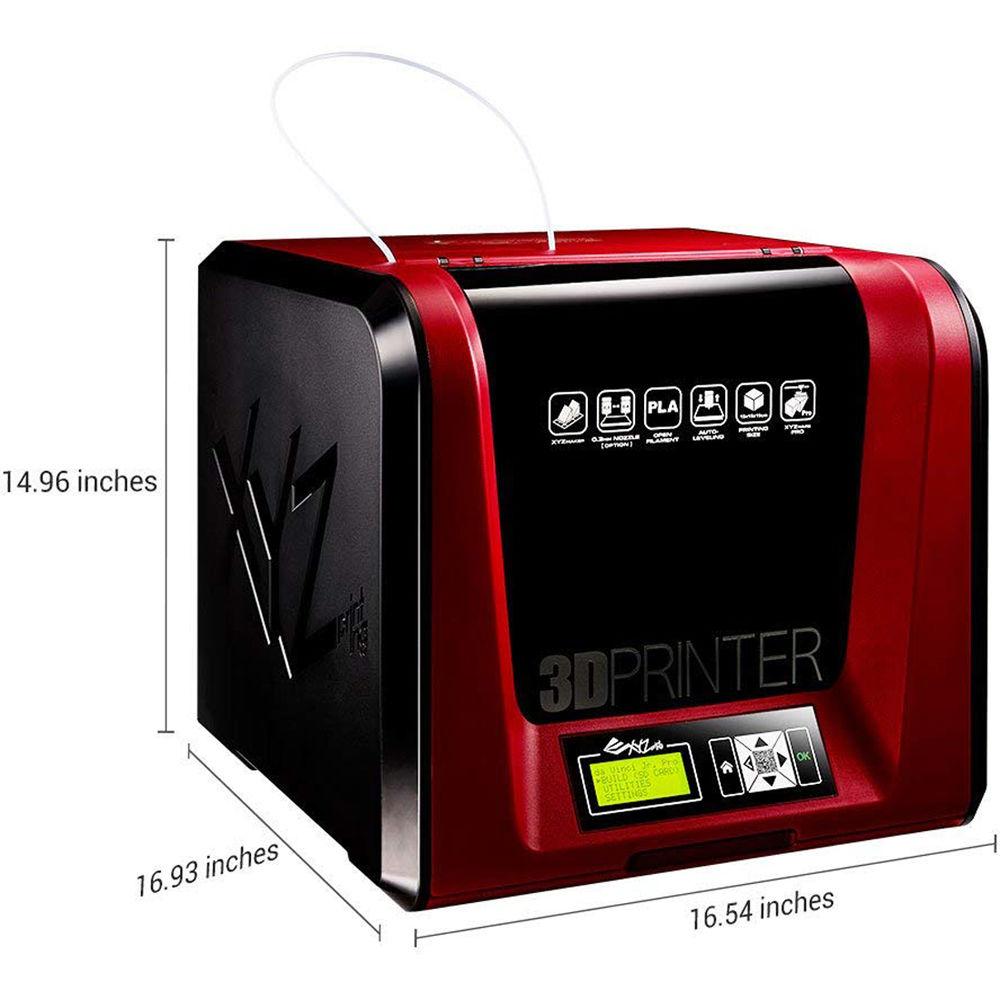

macOS X 10.1 or Later | | Supported 3D File Types | .3w, .gcode, .stl | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 59 to 89°F / 15 to 32°C | | Operating Humidity | 30 to 60% | | Storage Temperature | 50 to 104°F / 10 to 40°C | | Dimensions (W x H x D) | 16.5 x 15 x 16.9" / 41.91 x 38.1 x 42.93 cm | | Weight | 26.5 lb / 12 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 23.3 x 19.9 x 19.0" |
