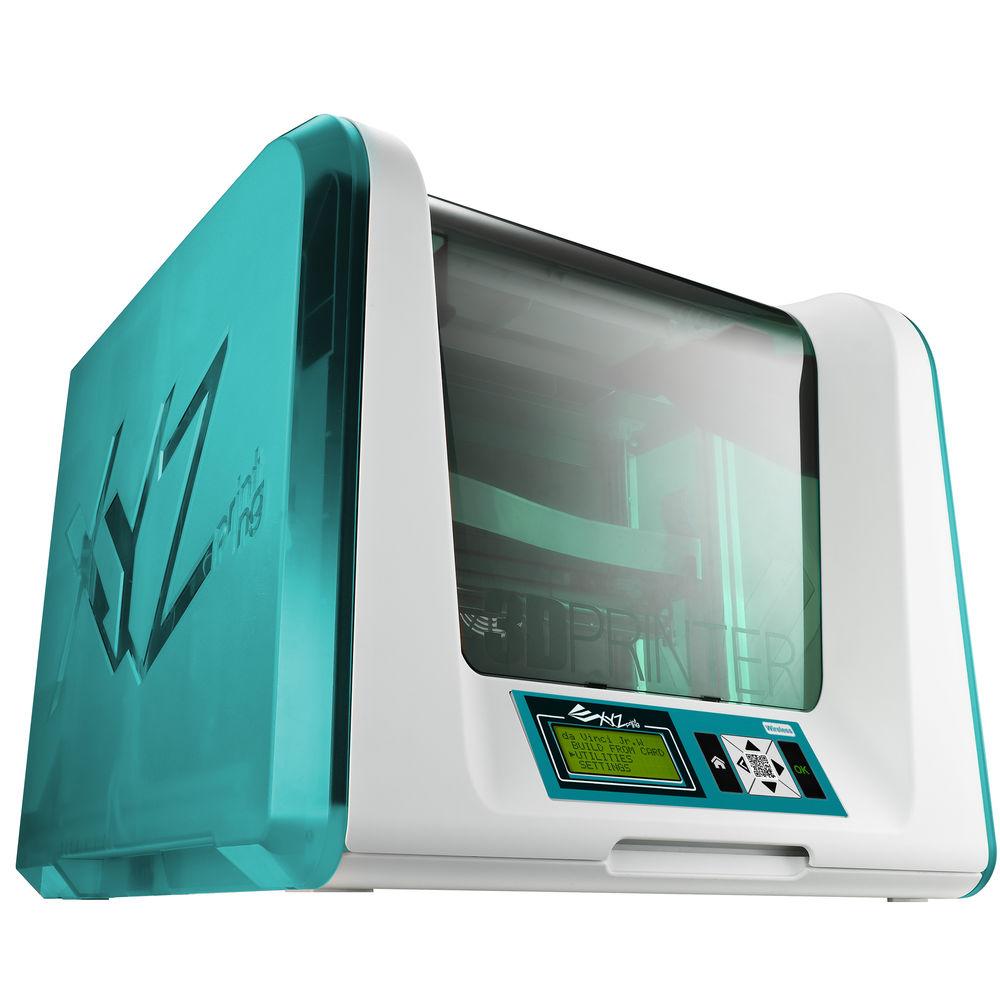

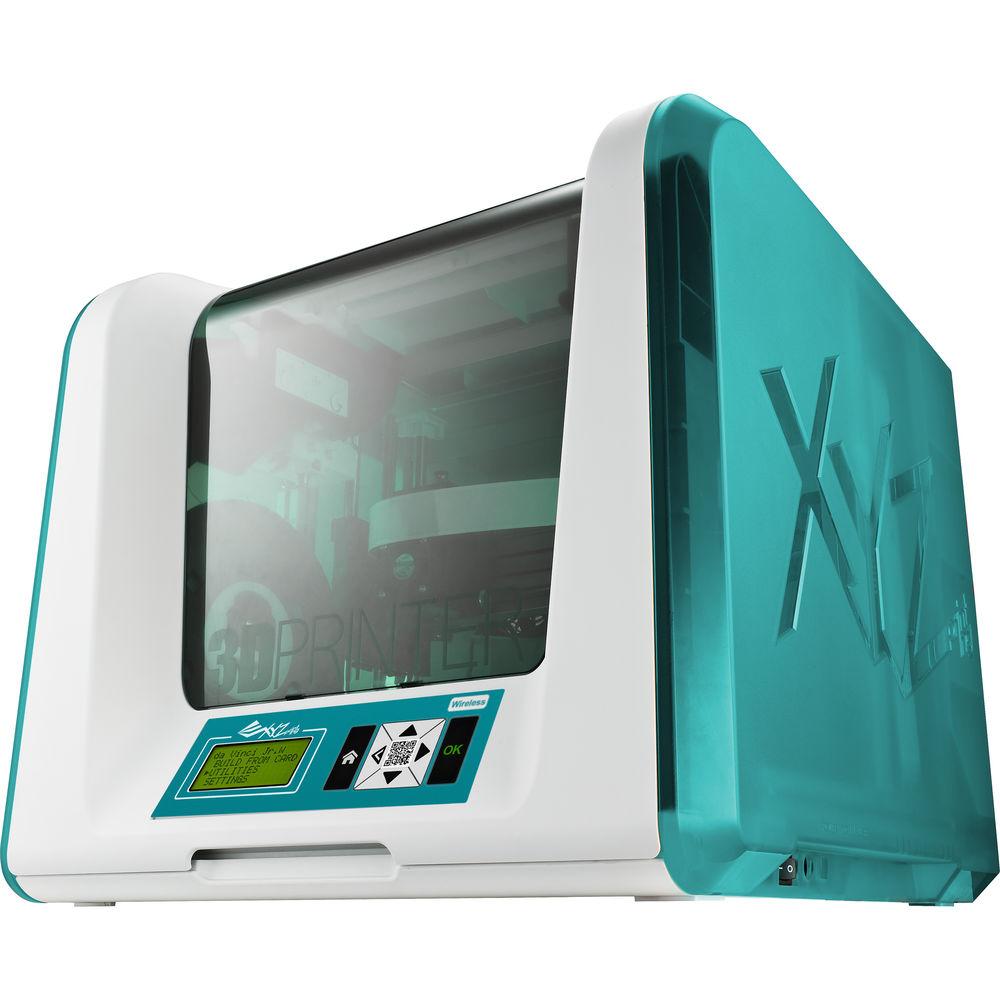

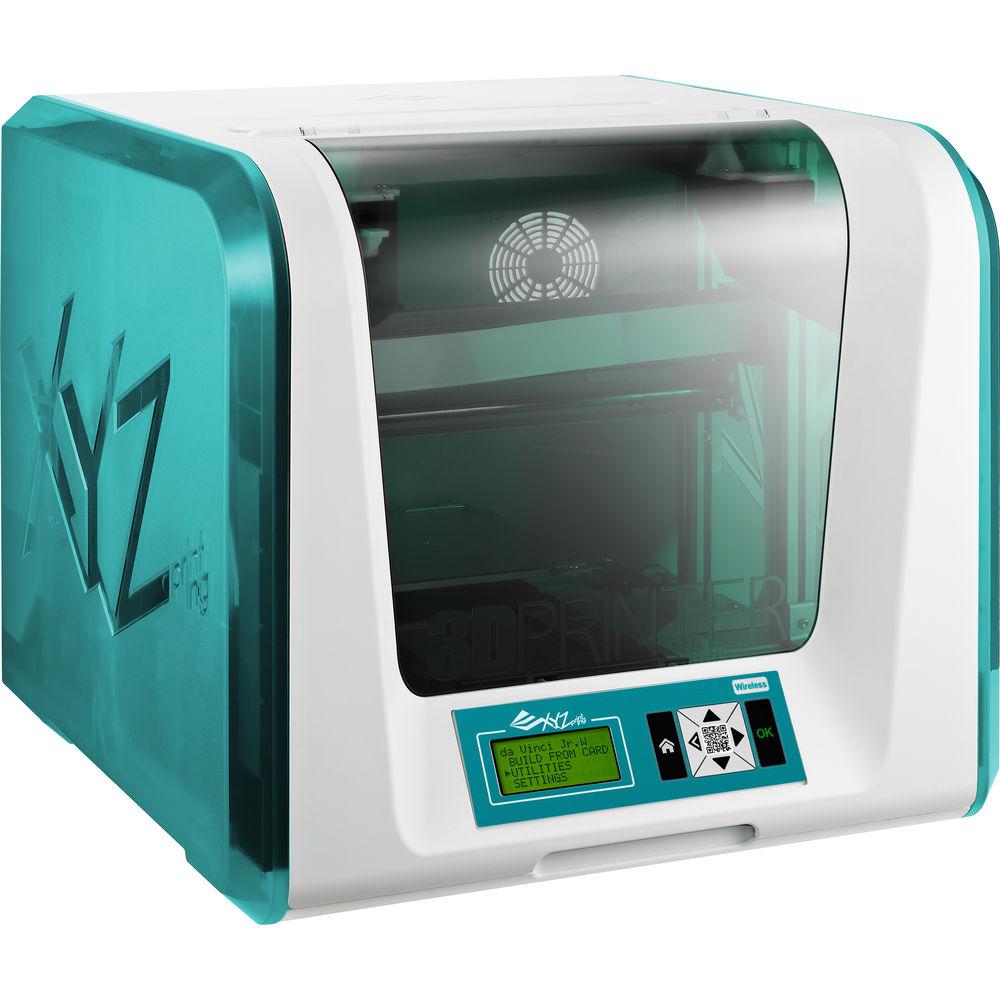

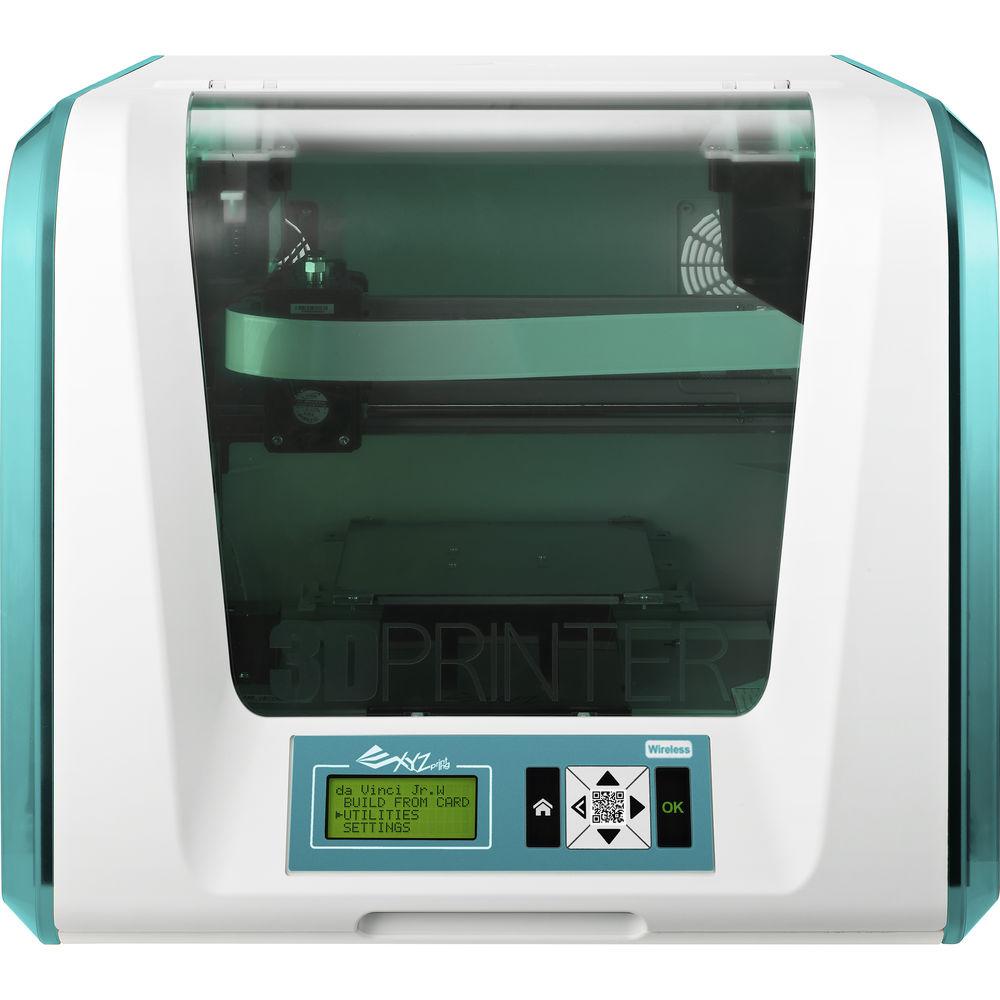

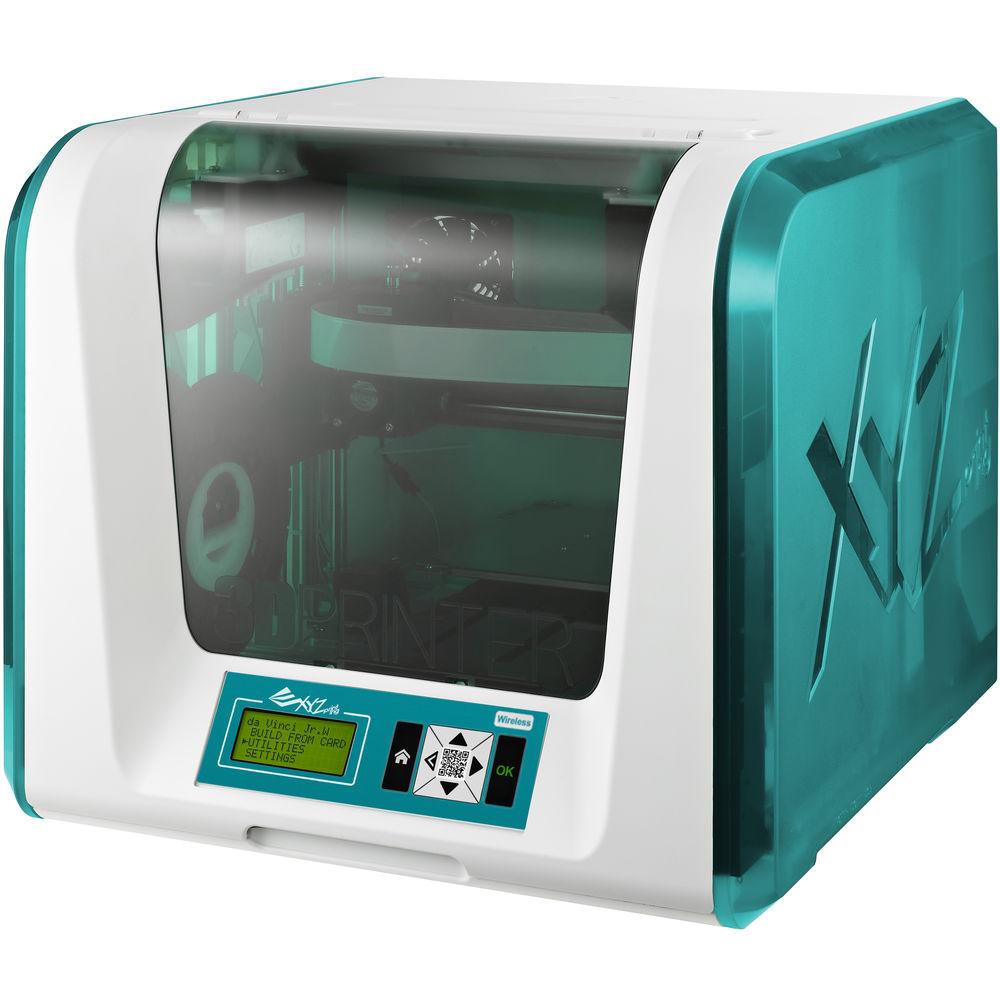

User Manual for XYZprinting da Vinci Jr. 1.0w 3D Printer Click to enlarge the picture
Contents of the user manual for the XYZprinting da Vinci Jr. 1.0w 3D
- Product category: 3D Printers XYZprinting
- Brand: XYZprinting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for XYZprinting 3D Printers
 |
User manual for the XYZprinting da Vinci Jr. 1.0w 3D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any XYZprinting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official XYZprinting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a XYZprinting product will considerably shorten its lifespan!
|
Product description - da Vinci Jr. 1.0w - Wi-Fi Connection Setup (Mac)
- da Vinci Jr. 1.0w - Wi-Fi Connection Setup (PC)
Designed for kids of all ages, as well as first-time 3D printer users, the da Vinci Jr. 1.0w 3D Printer from XYZprinting features a build volume of 5.9 x 5.9 x 5.9", a layer resolution of 100 to 400 microns, a maximum print speed of 100mm/s, and the ability to utilize 1.75mm PLA filaments via its auto-loading filament system. It is equipped with a single extruder nozzle, an enclosed and non-heated print bed, and a 2.6" LCD display. Users may print their compatible STL files or XYZ's proprietary 3W files via wired USB 2.0 connectivity, SD cards (up to 32GB), or Wi-Fi connectivity.
To help keep things running smoothly, this 3D printer uses a 9-point auto-calibration system that determines the distance between the extruder and the print bed so that the extruder may be adjusted accordingly. It also comes bundled with XYZware software and is hardware-compatible with 32- & 64-bit PCs and 64-bit Macs with at least 4GB of memory. It is software-compatible with Windows 7 or above and Mac OS X 10.8 (64-bit) and above, as well as Android 4.0 and above and iOS 7 and above on iPads only. Additionally, a power cord is included. General Features - Maximum Print Speed
- The da Vinci Jr. 1.0w features a maximum print speed of 100mm/s. This requires that your XYZ software be updated to version 2.1.12.1 or above.
- Wi-Fi Connectivity
- With Wi-Fi connectivity, the da Vinci Jr. 1.0w allows anyone to wirelessly send 3D files from their Windows and Mac computers to their 3D printer from virtually anywhere in their local area network.
- Big Things Come in Small Packages
- The da Vinci Jr. 1.0w has a build size of 5.9 x 5.9 x 5.9" and a resolution of 100 to 400 microns. Its design allows for the inclusion of an auto-feeding filament system which takes the PLA filament to the extruder to help ensure that the filament is loaded properly and is ready to print.
- 2nd Generation Auto-Calibration System
- The da Vinci Jr. 1.0w uses an intuitive 9-point calibration detection system that determines the distance between the extruder and the print bed along the Z-axis. After it finishes detection, it adjusts the extruder accordingly to ensure that you have the best possible prints.
- Maintenance
- The da Vinci Jr. 1.0w features a fluid press-and-release extruder which makes for an easy extruder replacement or cleaning experience. Simply open up your 3D printer and press the release button, and the replacement or cleaning process can be done within a few seconds.
- Print Smart, Print Green
- The da Vinci Jr. 1.0w uses non-toxic, biodegradable PLA in easy-to-install filament spools. This 3D printer also uses a compact design that consumes only 75W of power.
- 3D Printer for Homes and Schools
- With its fully enclosed design and non-heated print bed, the da Vinci Jr. 1.0w is well suited for kids of all ages as well as first-time 3D printer users. The 2nd Generation Auto-calibration system helps ensure that the print bed and extruder are at the appropriate print level, while Wi-Fi connectivity allows print jobs to be sent from virtually anywhere in your home or the classroom.
- Free XYZ 3D Resources
- XYZmaker 3D Design Software, XYZ 3D Gallery, XYZprinting STEAM 3D Printing Education Curriculum, XYZware 3D Printing Software.
UPC: 840710102539 In the Box XYZprinting da Vinci Jr. 1.0w 3D Printer Starter PLA Filament (300g) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting da Vinci Jr. 1.0w 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting 3F1JWXUS00B Specs | | | Print Technology | Fused Filament Fabrication (FFF) | | Build Volume | 5.9 x 5.9 x 5.9" / 15.0 x 14.99 x 15.0 cm Using 1 Extruder | | Layer Resolution (XY Axis) | 100 micron / 0.1 mm
200 micron / 0.2 mm
300 micron / 0.3 mm
400 micron / 0.4 mm | | Number of Extruders | 1 | | Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Print Speed | Maximum: 100 mm/s | | Filament Diameter | 1.75 mm | | Filament Compatibility | PLA | | | | Build Area | Enclosed | | Camera | No | | 3D Scanner | No | | | | Memory Card Slot | Yes, 1 x SDHC | | Supported Wi-Fi Standards | Yes | | Mobile App Connectivity | Yes | | | | Software Supported 3D File Types | .3w, .stl | | Mac OS X Compatibility | 10.8 and Above | | Windows Compatibility | 7 and Above | | Linux Compatibility | No | | iOS Compatibility | 7 And Above iPad only | | Android Compatibility | 4.0 And Above | | | | Dimensions (W x H x D) | 16.54 x 14.96 x 16.93" / 42.01 x 38.00 x 43.00 cm | | Weight | 26.4 lb / 12.0 kg | | | | Package Weight | 35.0 lb | | Box Dimensions (LxWxH) | 22.9 x 21.5 x 18.5" |
