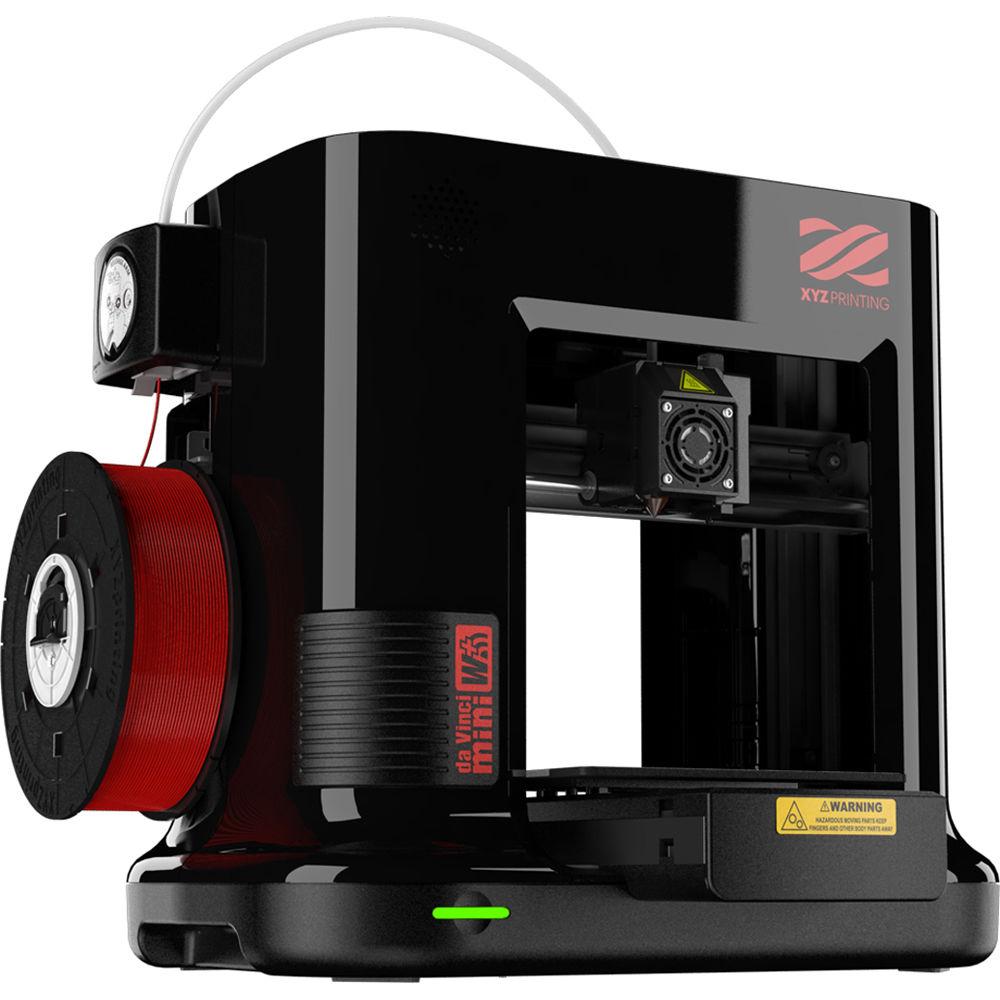

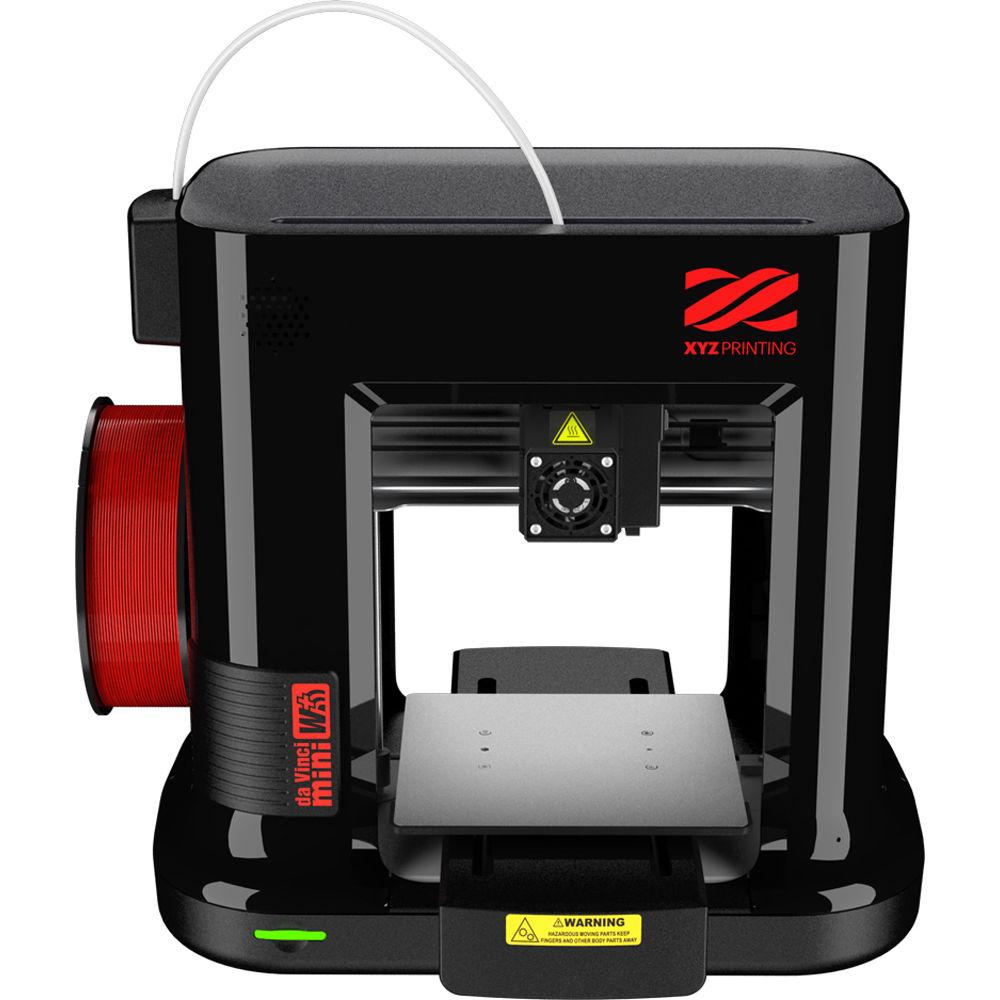

User Manual for XYZprinting da Vinci Mini 3D Printer Click to enlarge the picture
Contents of the user manual for the XYZprinting da Vinci Mini 3D Printer
- Product category: 3D Printers XYZprinting
- Brand: XYZprinting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for XYZprinting 3D Printers
 |
User manual for the XYZprinting da Vinci Mini 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any XYZprinting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official XYZprinting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a XYZprinting product will considerably shorten its lifespan!
|

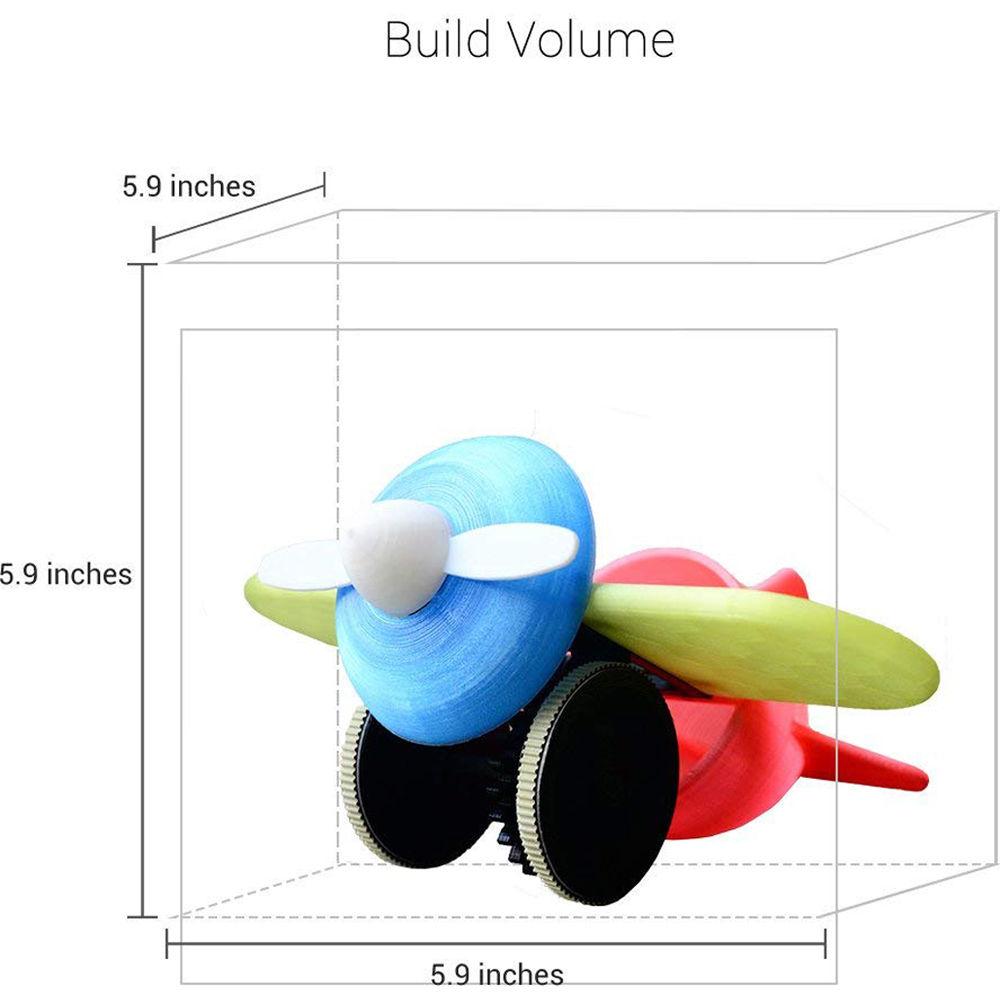

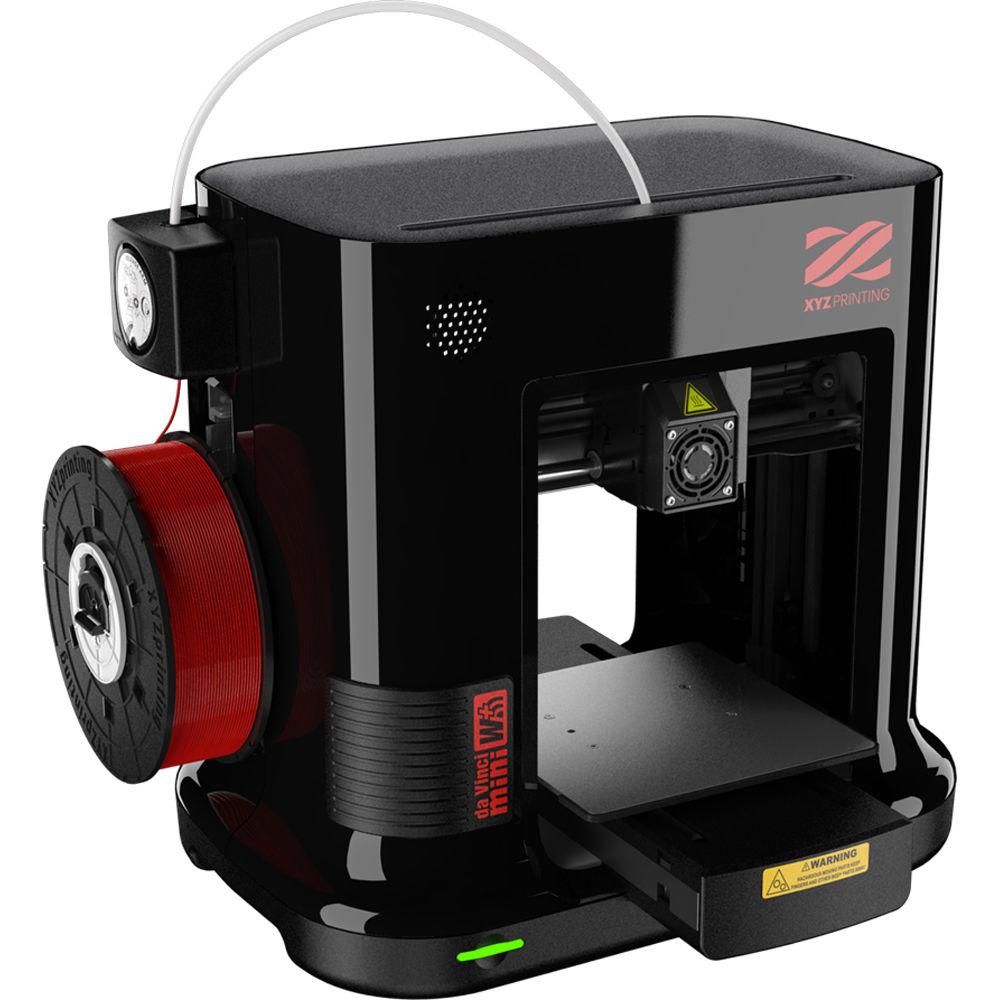

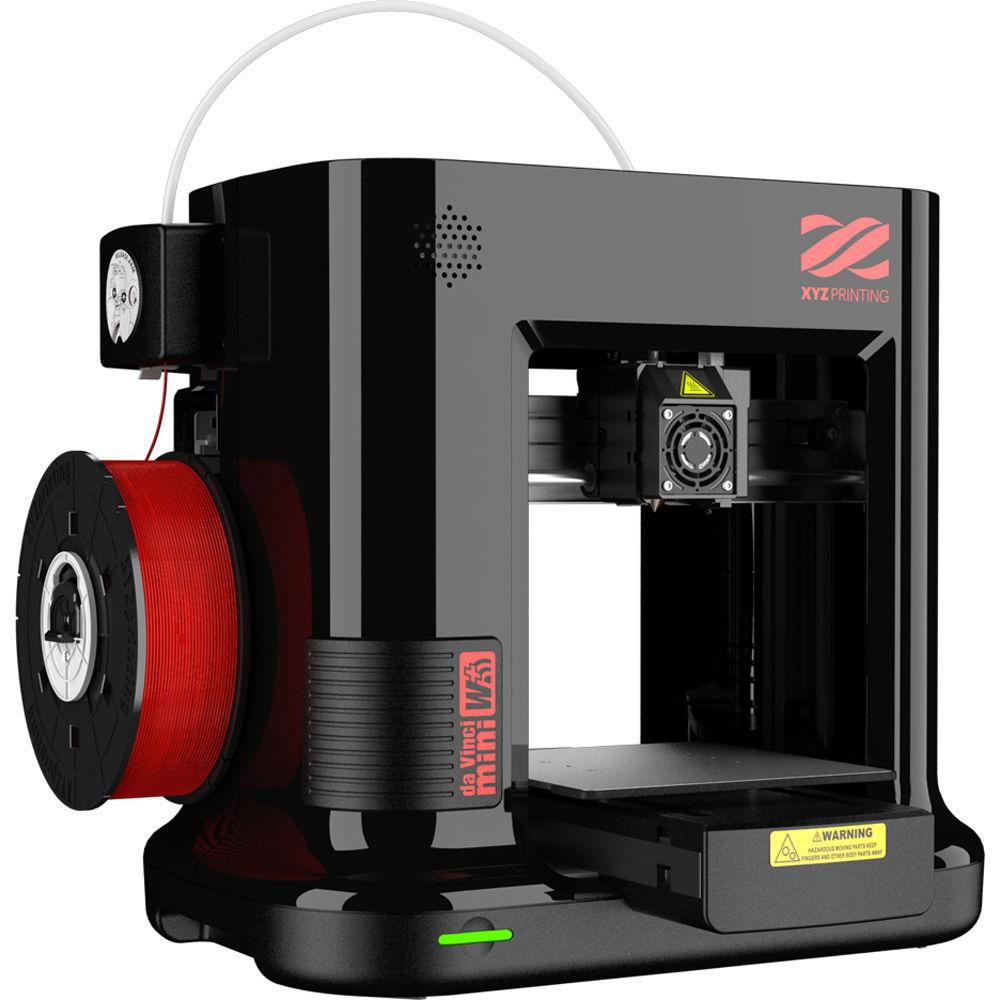

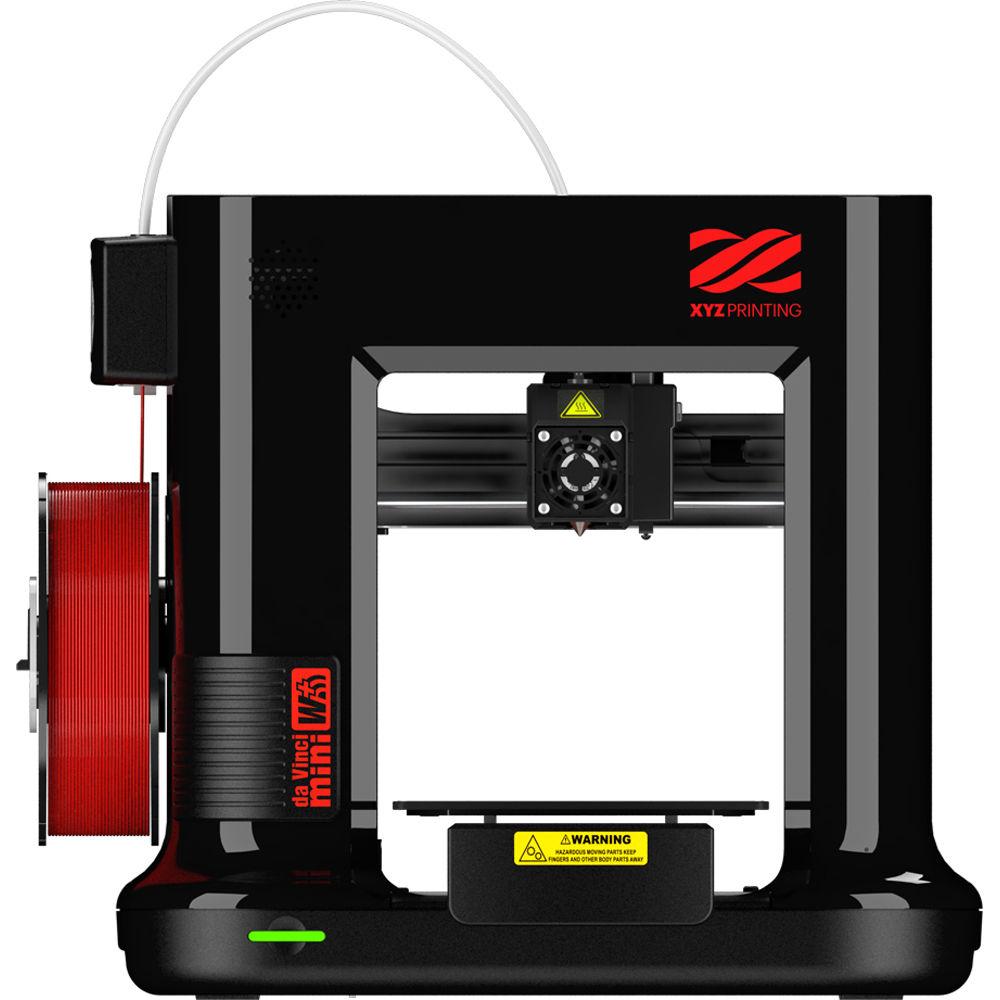

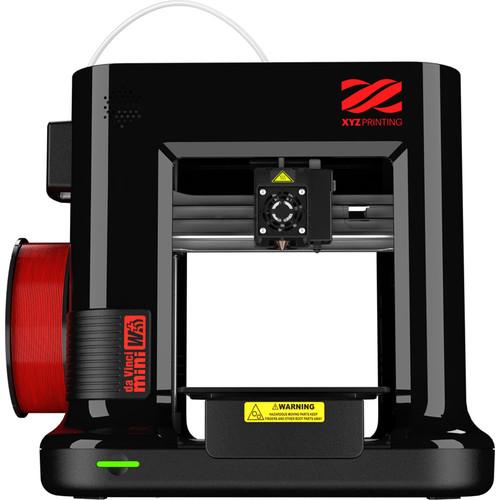

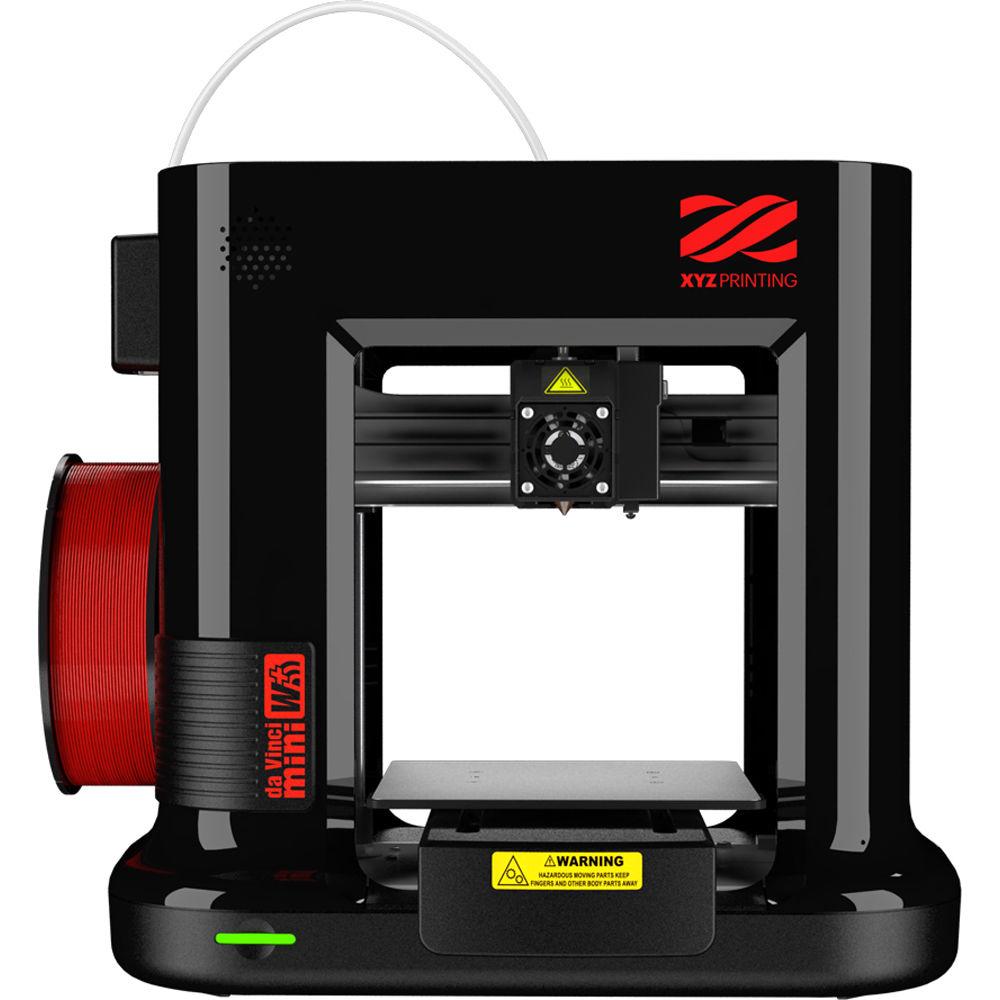

Product description Designed for beginners, the black da Vinci Mini 3D Printer from XYZprinting is 30% smaller than the da Vinci Jr. 1.0, yet features the same open and non-heated aluminum print bed, 5.9 x 5.9 x 5.9" build volume, 100-400-micron layer resolution, and the ability to utilize 1.75mm PLA filaments. It has been built using Fused Filament Fabrication (FFF) technology, is equipped with a single extruder nozzle that has a diameter of 400 microns (0.4mm), and users may print their compatible STL, 3MF, and proprietary XYZ (3W) files using wired USB 2.0 connectivity or 802.11b/g/n Wi-Fi.To keep things running smoothly, the da Vinci Mini 3D Printer uses auto-calibration, while an LED status indicator serves to indicate various system states. Supported operating systems include Windows 7 and above, as well as Mac OS X 10.8 and above. When used under Windows, 32/64-bit operating systems with 4GB or more RAM are supported, while use with a Mac requires a 64-bit system with 4GB or more RAM. Free XYZmaker 3D modeling software is also available as a download, as are over 4500 3D models from the XYZ 3D Gallery. General Features - Compact and Productive
- The da Vinci Mini is 30% smaller than da Vinci Jr. 1.0 and has a 5.9 x 5.9 x 5.9" aluminum print bed for larger and finer prints.
- Enjoy Printing from Almost Anywhere in Your Home
- The da Vinci Mini can connect wirelessly to your home network for easy 3D printing throughout your home, office, or classroom. Use XYZware to connect to your network and experience its updated slicing precision and computing efficiency, shortening the preparation time required before printing.
- Eco-Friendly and Family Safe Printing

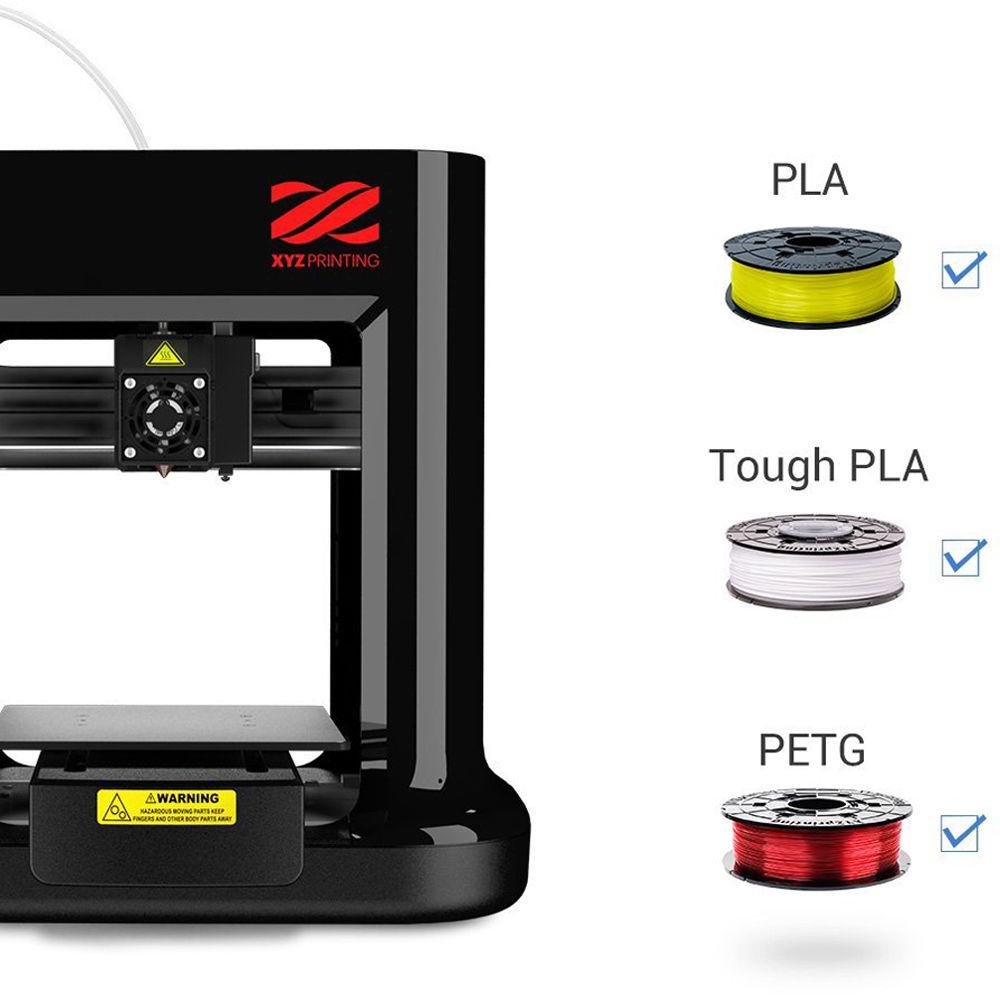

- The da Vinci Mini filaments are made using PLA plastics derived from cornstarch, making them biodegradable and non-toxic. XYZprinting filaments are tested extensively and are DEHP-free and heavy-metal free. This filament is safe for the environment and your home.
- XYZprinting 3D Gallery
- Start your 3D printing adventure by downloading some of the 4,500+ free 3D models available from the online XYZ 3D Gallery. XYZprinting has nine categories that include everything from toys and games, to art pieces and educational items.
- XYZmaker
- Make your dreams into reality with the free downloadable version of XYZmaker 3D modeling design software for beginners.
- XYZprinting STEAM
- Students and teachers get free access to XYZprinting's online curriculum education program, XYZprinting STEAM, which helps K-12 Science, Technology, Engineering, Arts, and Mathematics educators to incorporate 3D printing into their classroom.
- LED Status Indicator
- The da Vinci Mini streamlines its printing function through a single-button print design as well as providing different colored LEDs to indicate printing conditions.
- Green Light: Standby mode
- Red Light: A general error has occurred
- Flashing Red light: A serious error has occurred
- Orange Light: Printing mode
- Flashing Orange Light: Printing has stopped
UPC: 840710112378 In the Box XYZprinting da Vinci Mini 3D Printer (Black) Power Cord Limited 180-Day Warranty (for unregistered products) Limited 1-Year Warranty (from date of purchase, for registered products) Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting da Vinci Mini 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting Da Vinci Mini Specs | | | Build Volume | 5.9 x 5.9 x 5.9" / 15.0 x 14.99 x 15.0 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 to 400 micron / 0.1 to 0.4 mm (4 Settings) | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Filament Compatibility | 1.75 mm Diameter:
PLA | | | | Build Area Type | Open | | Build Plate Composition | Aluminum | | Filament Spool Storage | External | | 3D Scanner | No | | Monitoring Camera | No | | | | Wi-Fi | Wi-Fi 4 (802.11n) | | Media Card Slots | Yes | | | | Supported Operating Systems | Windows 7 or Later

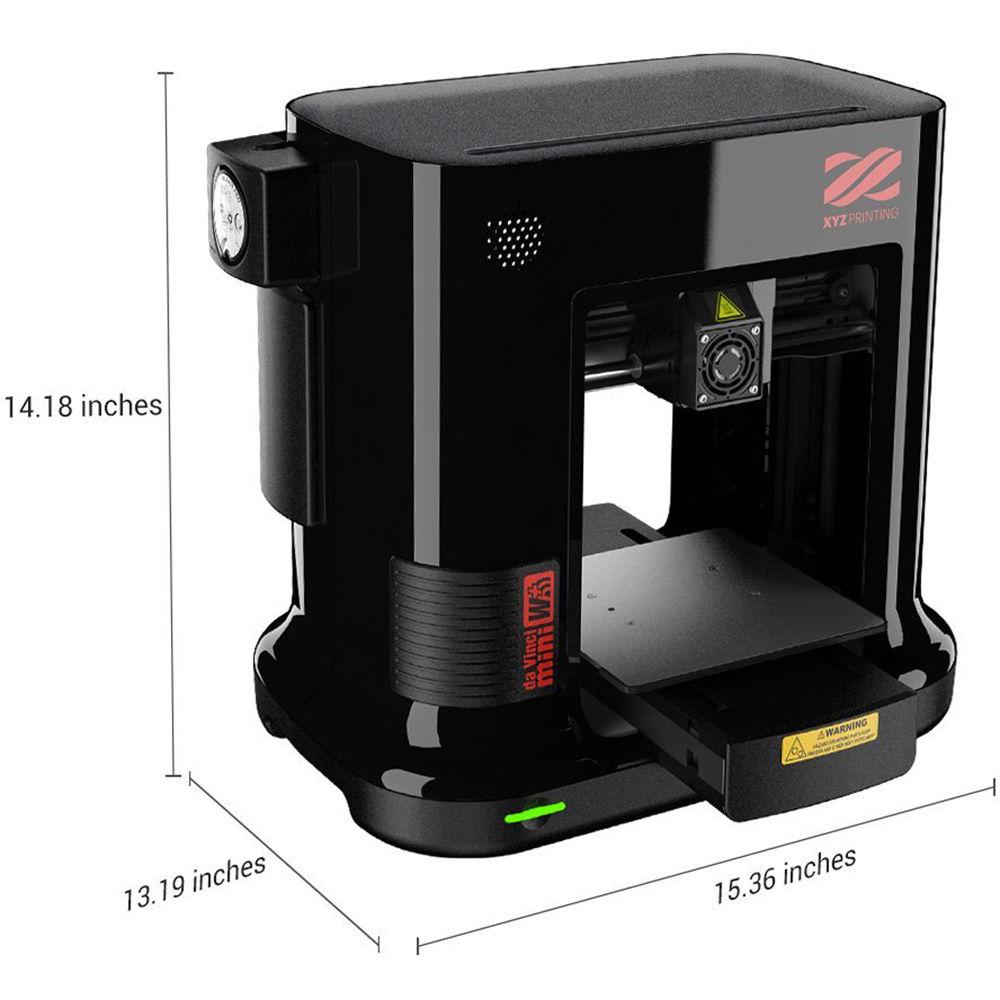

macOS X 10.8 or Later | | Supported 3D File Types | .3w, .stl | | | | Dimensions (W x H x D) | 15.8 x 14.3 x 13.2" / 401.32 x 363.22 x 335.28 mm | | Weight | 24.2 lb / 11 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 24.8 lb | | Box Dimensions (LxWxH) | 19.7 x 18.5 x 15.5" |
