User Manual for XYZprinting da Vinci Super 3D Printer Click to enlarge the picture
Contents of the user manual for the XYZprinting da Vinci Super 3D Printer
- Product category: 3D Printers XYZprinting
- Brand: XYZprinting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for XYZprinting 3D Printers
 |
User manual for the XYZprinting da Vinci Super 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any XYZprinting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official XYZprinting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a XYZprinting product will considerably shorten its lifespan!
|

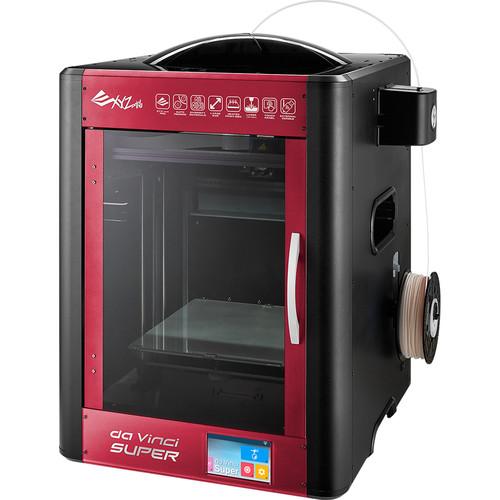

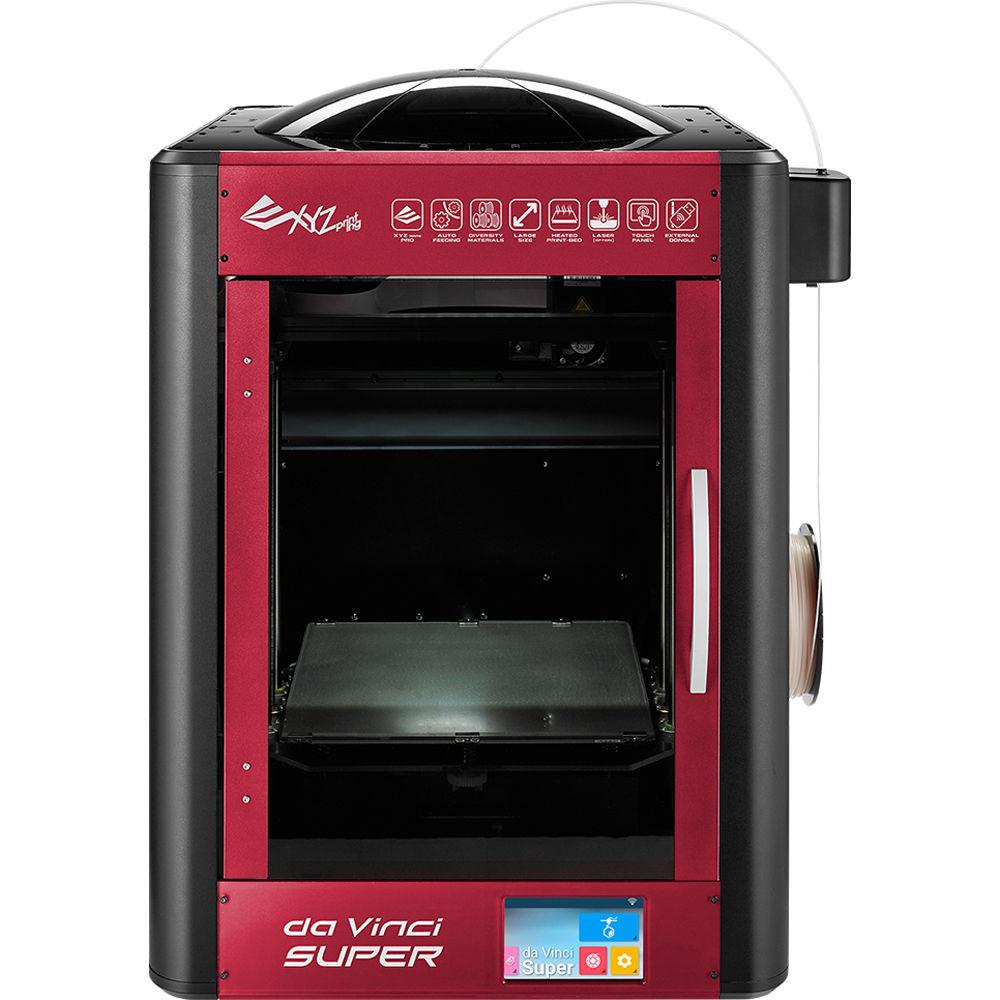

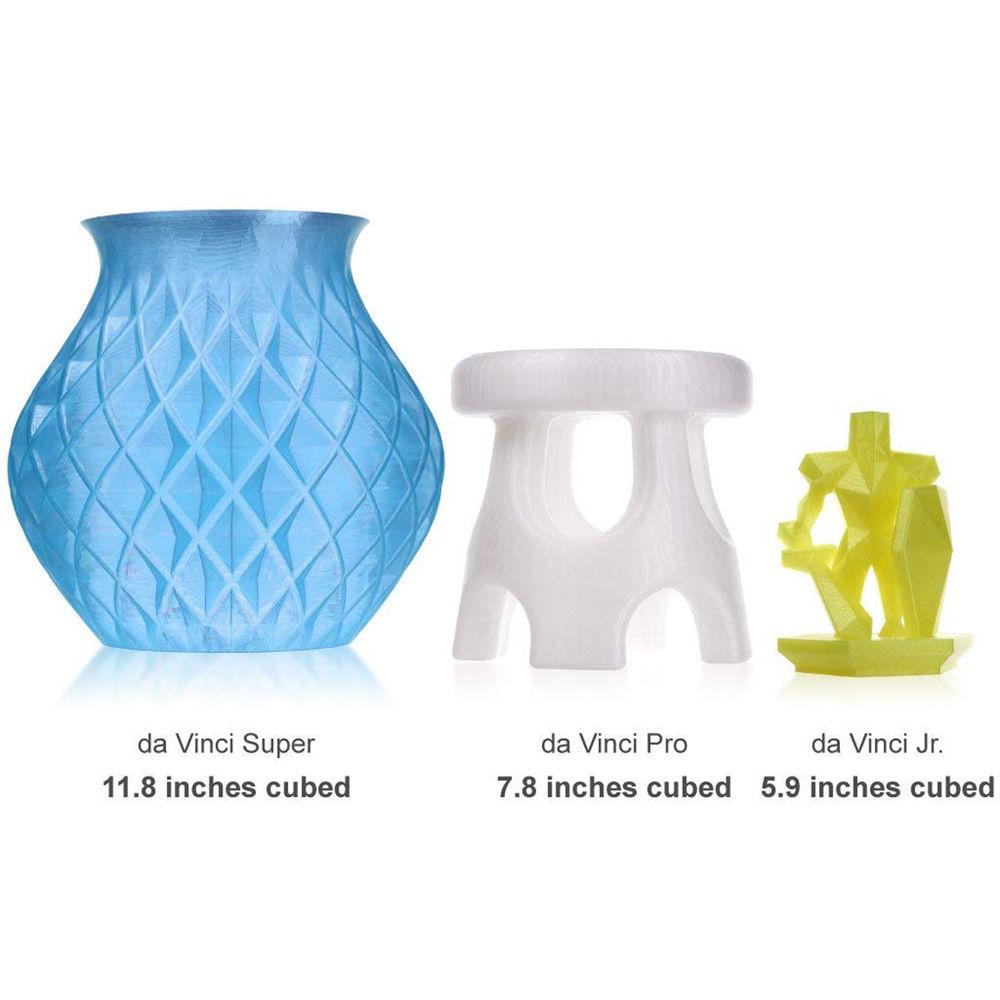

Product description The da Vinci Super 3D Printer from XYZprinting features a large build volume at 11.8" cubed. The enclosed print area features a heat-resistant glass printing platform with automatic calibration. The intelligent quick-release nozzle has filament auto feeding. The open filament system can support third-party 1.75mm filaments. Print from USB or Wi-Fi using a Mac or Windows computer. Keep track of your 3D print progress with the integrated 5" touchscreen. - Multiple Filaments to Choose From

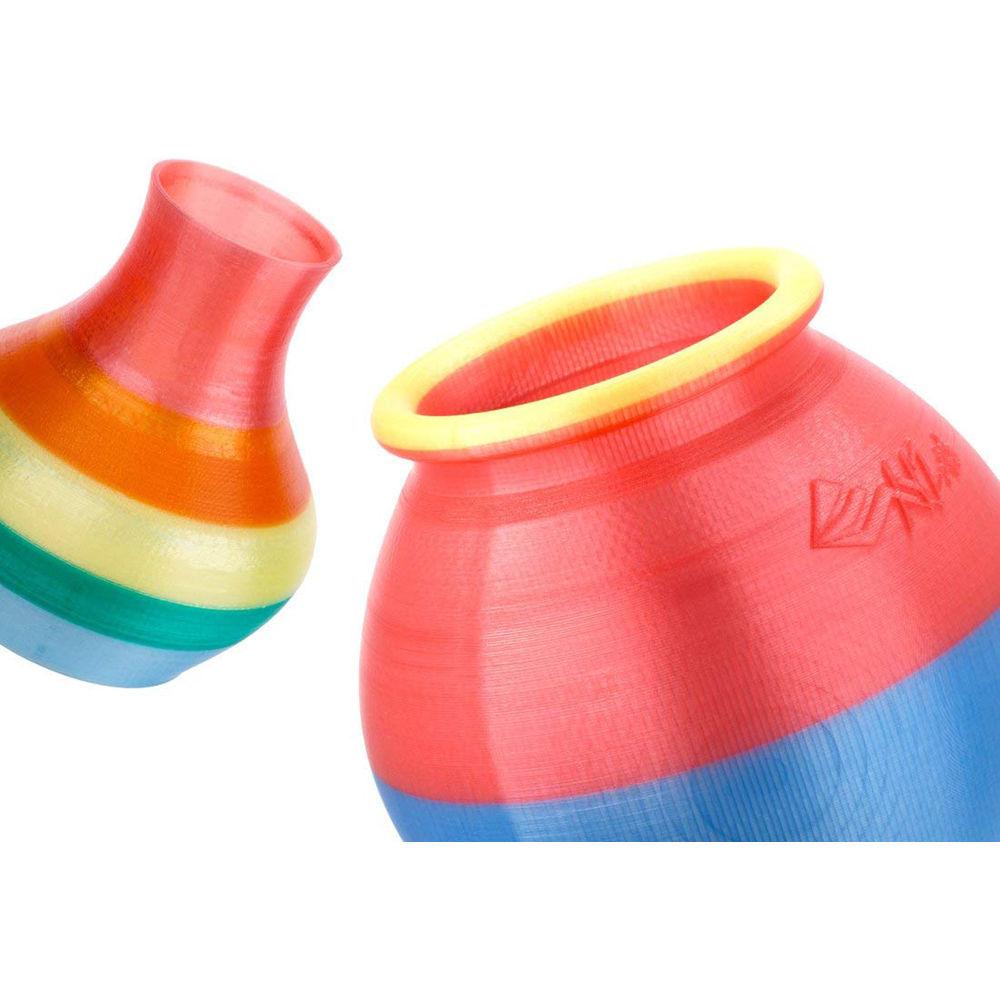

- The da Vinci Super supports up to five different kinds of filament materials, including ABS, PLA, TPE, tough PLA, and PETG.
- Open Filament System
- With an open filament system, you can use third-party 1.75mm filaments with the da Vinci Super.
- Power Failure Recovery and Pause, Restart Prints
- If your power turns off unexpectedly, the da Vinci Super will save your printing job and continue after your power is restored.
- Upgraded Hardware
- Upgraded with automatic platform calibration, heat-resistant glass printing platform, intelligent quick-release nozzle, and intuitive interface, the da Vinci Super is easy to use and allows you to print large objects without sacrificing quality or user experience.
- Safety First
- The printing process will stop when the front door or top cap is open during printing. This prevents young children from touching the moving parts inside.
UPC: 840710111302 In the Box XYZprinting da Vinci Super 3D Printer USB 2.0 Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting da Vinci Super 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting da Vinci Super Specs | | | Build Volume | 11.8 x 11.8 x 11.8" / 30.0 x 29.97 x 30.0 cm | | Number of Extruders | 1 | | Layer Resolution | Z Axis: 20 to 400 micron / 0.02 to 0.4 mm | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm
600 micron / 0.6 mm
800 micron / 0.8 mm | | Extruder Nozzle Temperature | 500°F / 260°C | | Positioning Precision | XY Axis: 12.5 micron / 0.0125 mm
Z Axis: 0.4 micron / 0.0004 mm | | Print Speed | 300 mm/s | | Filament Compatibility | 1.75 mm Diameter:
ABS, HIPS, Nylon, PETG, PLA | | | | Build Area Type | Enclosed | | Build Plate Features | Auto Leveling, Heated | | Build Plate Temperature | 104 to 212°F / 40 to 100°C | | Build Plate Composition | Glass | | Filament Spool Storage | External | | | | Wired Connections | 1 x USB Type-A (USB 2.0) | | Wi-Fi | Wi-Fi 4 (802.11n) | | Media Card Slots | Yes | | | | Supported Operating Systems | Windows 7 or Later
macOS X 10.1 or Later | | Supported 3D File Types | .3cp, .3mf, .3w, .gcode, .stl | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 59 to 90°F / 15 to 32°C | | Storage Temperature | 32 to 100°F / 0 to 37°C | | Dimensions (W x H x D) | 23.7 x 28.8 x 23.8" / 601.98 x 731.52 x 604.52 mm | | Weight | 78.3 lb / 35.5 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 105.6 lb | | Box Dimensions (LxWxH) | 32.0 x 28.5 x 28.0" |
