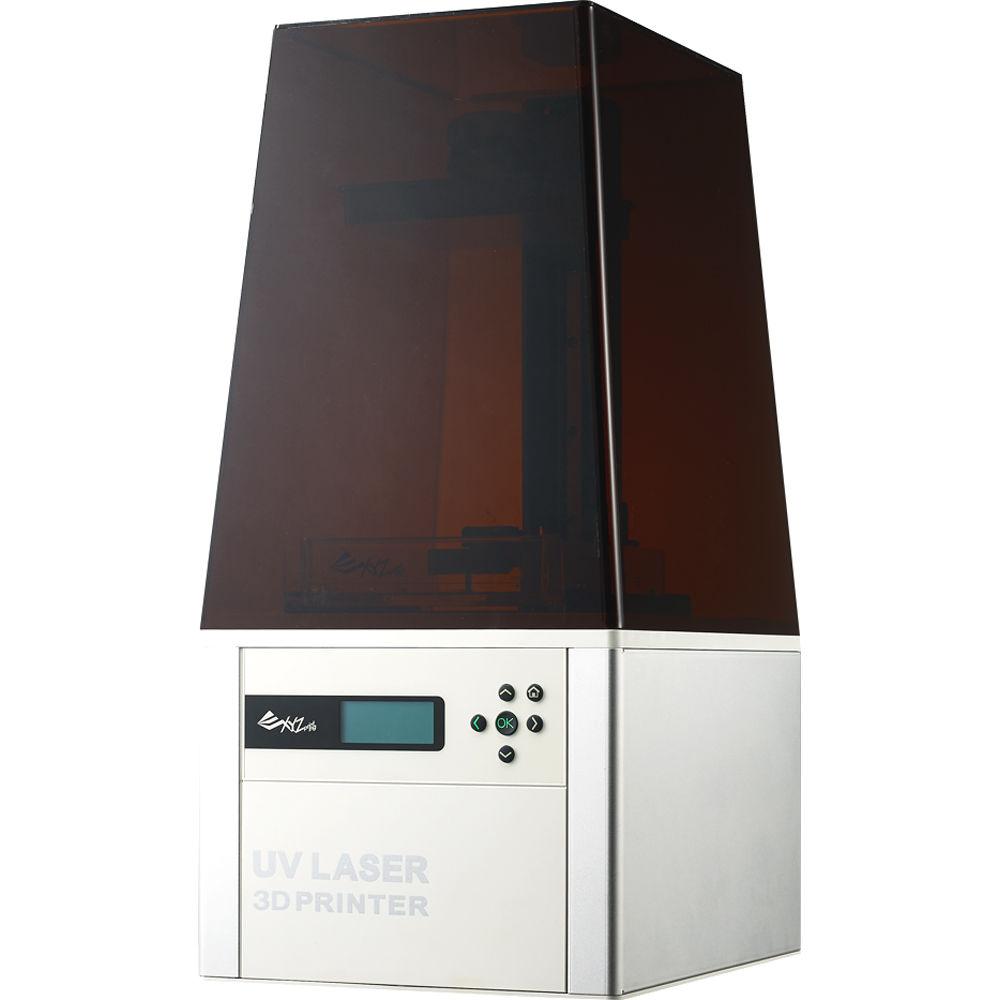

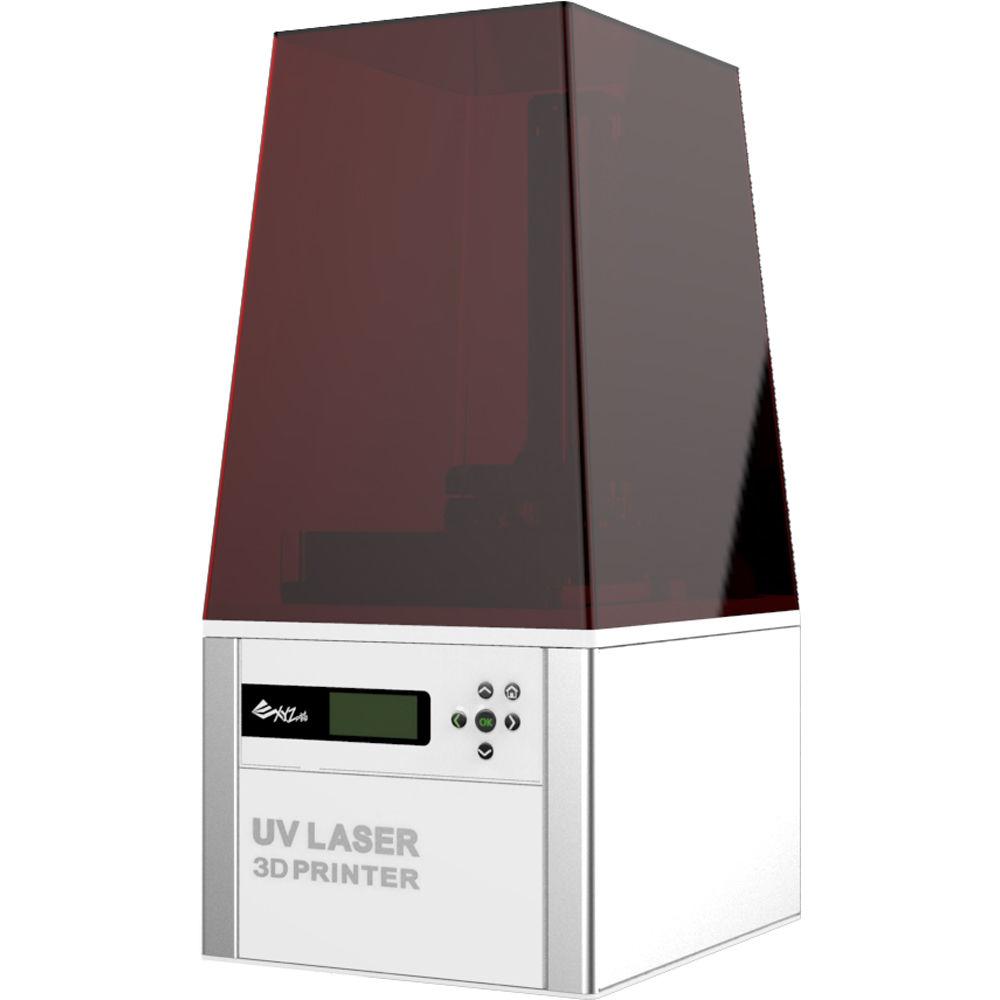

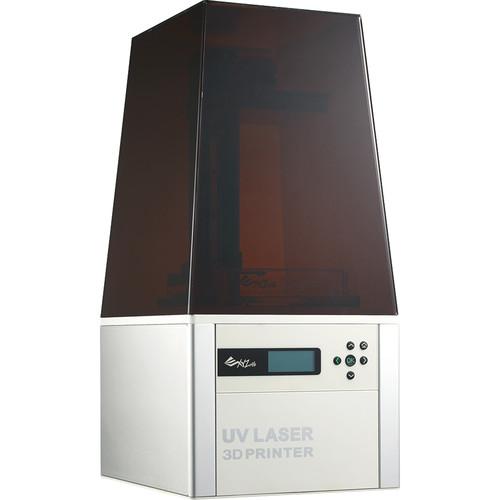

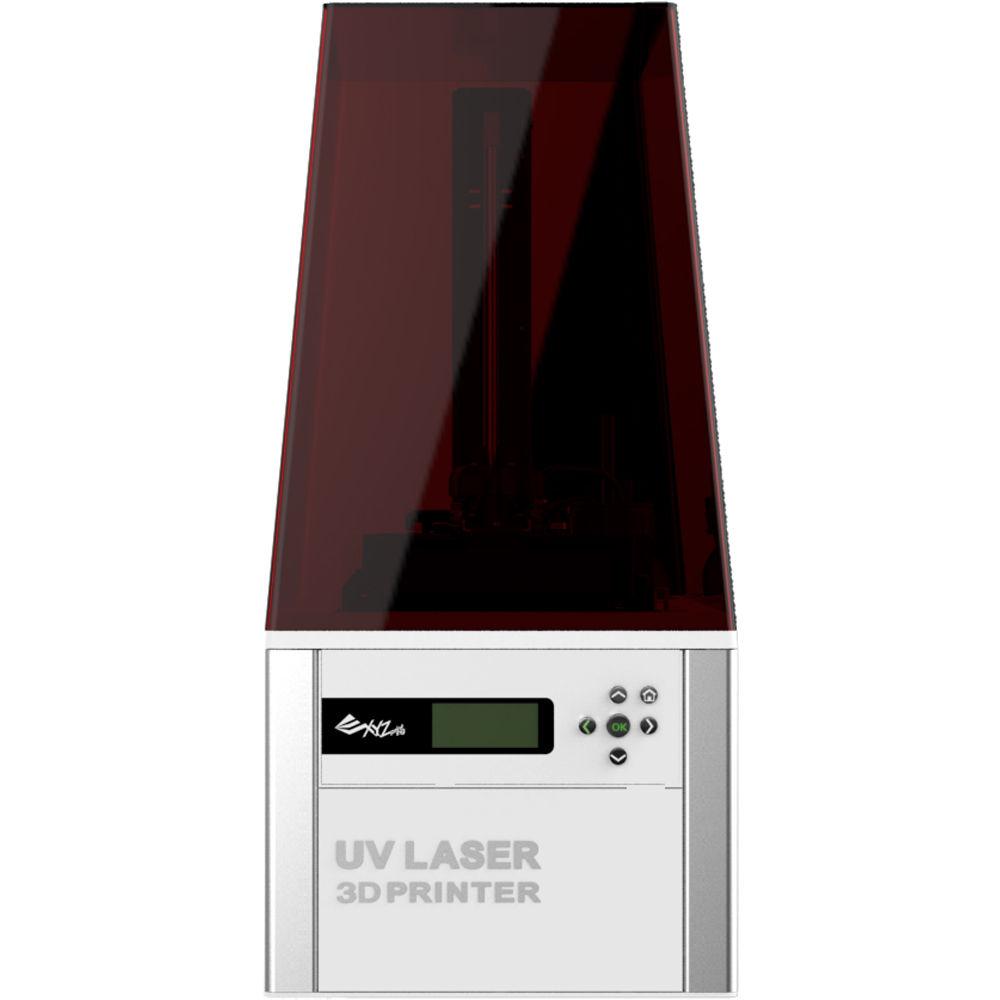

User Manual for XYZprinting Nobel 1.0 Stereolithography 3D Printer Click to enlarge the picture
Contents of the user manual for the XYZprinting Nobel 1.0 Stereolithography 3D Printer
- Product category: 3D Printers XYZprinting
- Brand: XYZprinting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for XYZprinting 3D Printers
 |
User manual for the XYZprinting Nobel 1.0 Stereolithography 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any XYZprinting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official XYZprinting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a XYZprinting product will considerably shorten its lifespan!
|
Product description - XYZprinting Nobel 1.0 - First-time Printing
- XYZprinting Nobel 1.0 - Post Processing
- XYZprinting Nobel 1.0 - Horizon Calibration
Utilize the fine precision of stereolithography technology to build your 3D designs with the Nobel 1.0 3D Printer from XYZprinting. Different to FDM printers that extrude filament to build prints, stereolithography uses a UV laser to trace designs in liquid photopolymer resin, curing and solidifying it layer by layer until a three-dimensional object emerges.

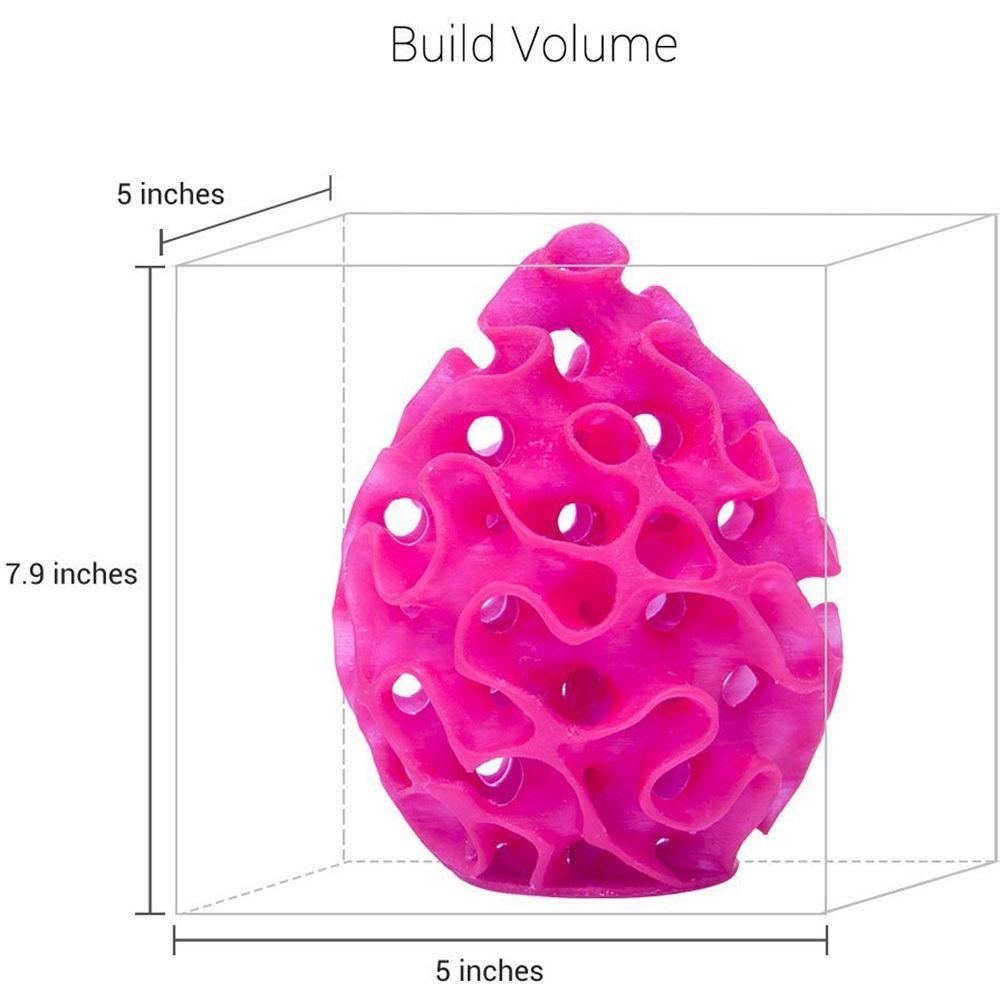

The Nobel printer can print objects up to 5 x 5 x 7.9" and can achieve print precision up to 25 microns along the Z axis, and 300 microns along the x/y axis. The Nobel is a standalone printer that requires no software to operate. Simply insert a USB stick with your design in .stl or .3w format and choose settings on the 2.6" display screen. You can also send files to the printer by attaching a USB cable from your computer to the Nobel printer.

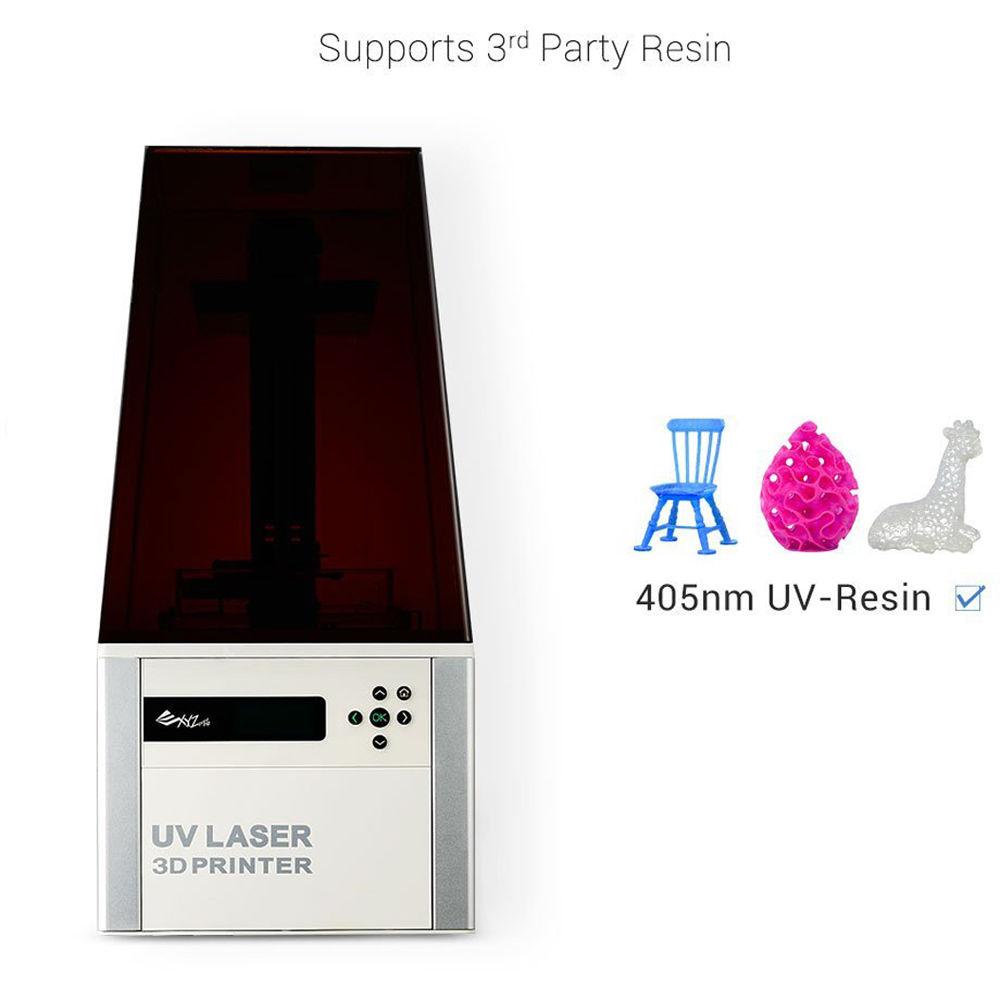

The Nobel's UV Laser 405nm Class 1 certification means it is safe for home use. The all-enclosed design protects users from ultraviolet rays during printing and ensures that printing byproducts aren't released outside the printing area.

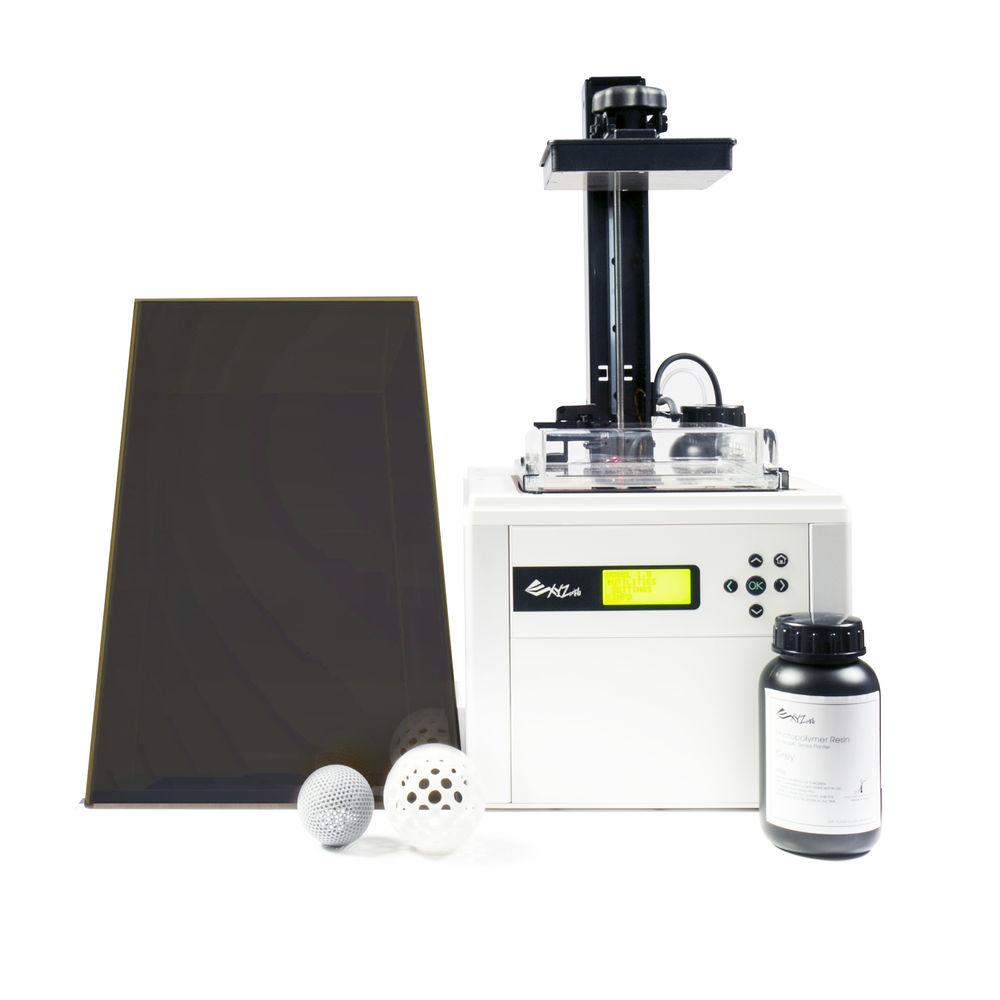

One bottle of resin is included with the Nobel printer, so you can start printing right away. UPC: 840710108005 In the Box XYZprinting Nobel 1.0 Stereolithography 3D Printer Bottle of Photopolymer Resin USB Flash Drive USB Cable Scraper Pair of Gloves Rinse Basket Power Adapter Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting Nobel 1.0 Stereolithography 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting 3L10XXUS00C Specs | | | Print Technology | SLA (Stereolithography) | | Build Volume | 5 x 5 x 7.9" / 12.7 x 12.7 x 20.1 cm | | Layer Resolution | XY Axis: 300 micron / 0.3 mm
Z Axis: 25 to 100 micron / 0.025 to 0.1 mm (3 Settings) | | | | Build Area Type | Enclosed | | Monitoring Camera | No | | | | Wired Connections | 1 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1) | | Wi-Fi | None | | Media Card Slots | Yes | | | | Supported Operating Systems | Windows 7 or Later

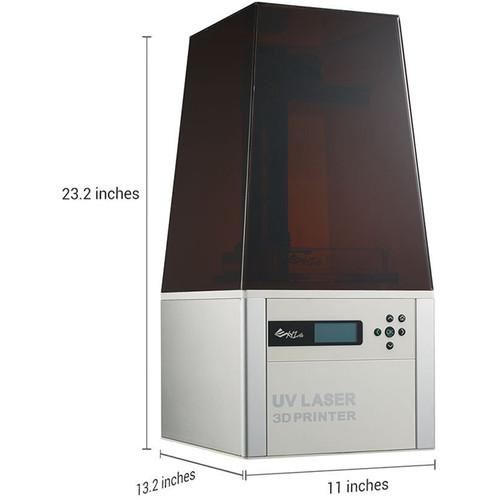

macOS X 10.8 or Later | | Supported 3D File Types | .3w, .stl | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 64 to 95°F / 18 to 35°C | | Operating Humidity | 40 to 80% | | Dimensions (W x H x D) | 11 x 13.2 x 23.2" / 27.94 x 33.53 x 58.93 cm | | Weight | 21.2 lb / 9.6 kg | | | | Package Weight | 28.8 lb | | Box Dimensions (LxWxH) | 27.0 x 20.0 x 16.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
