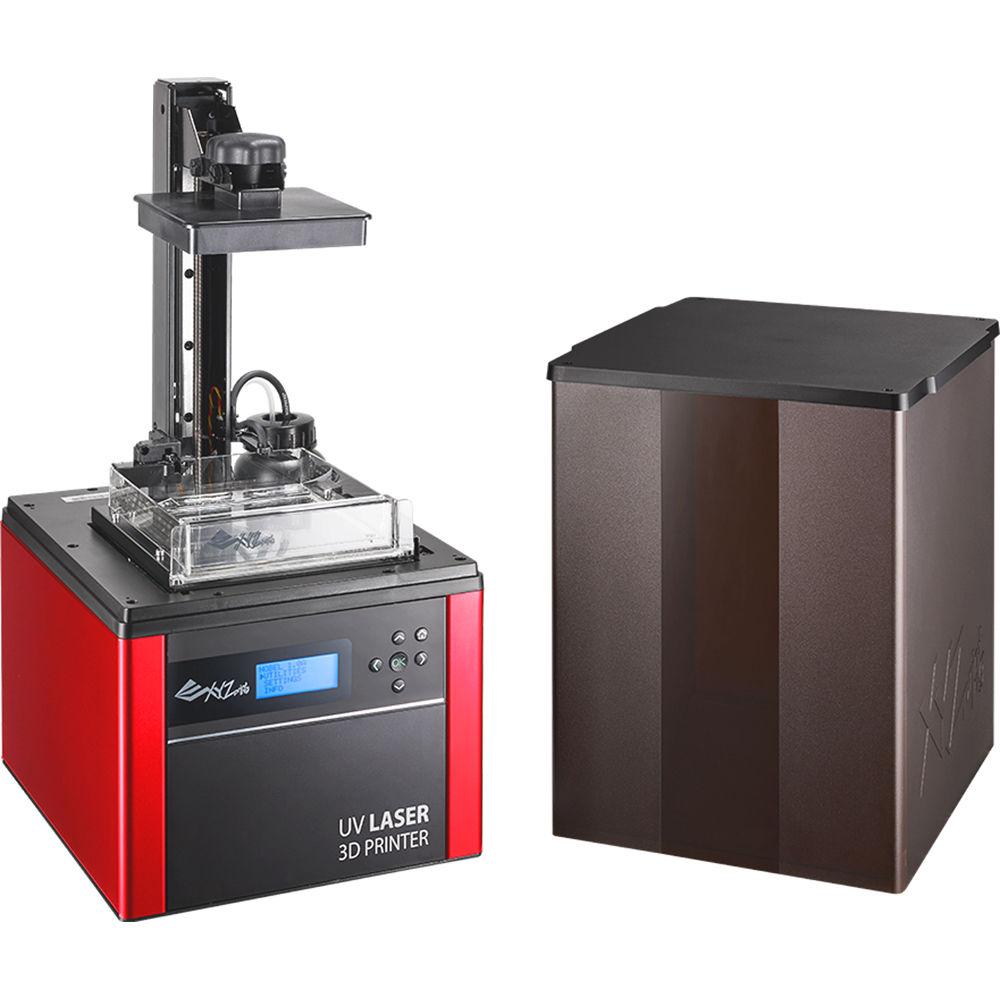

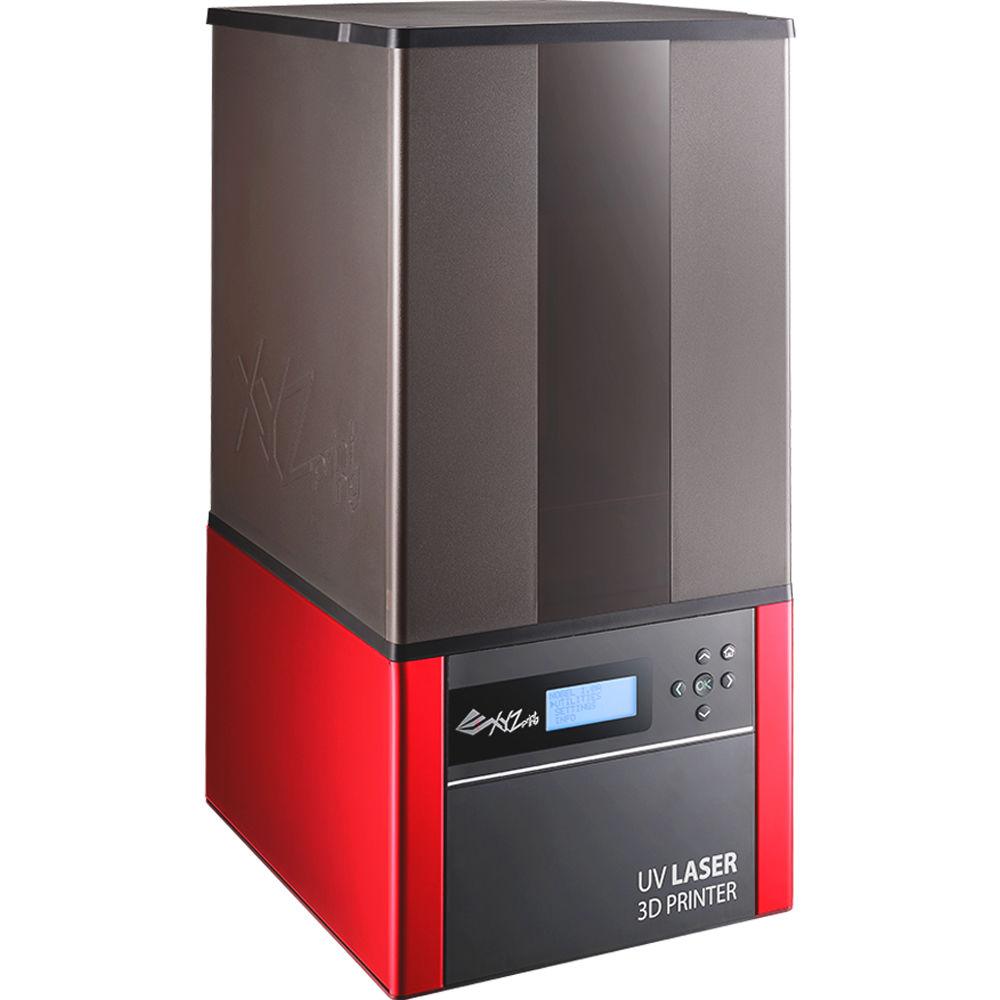

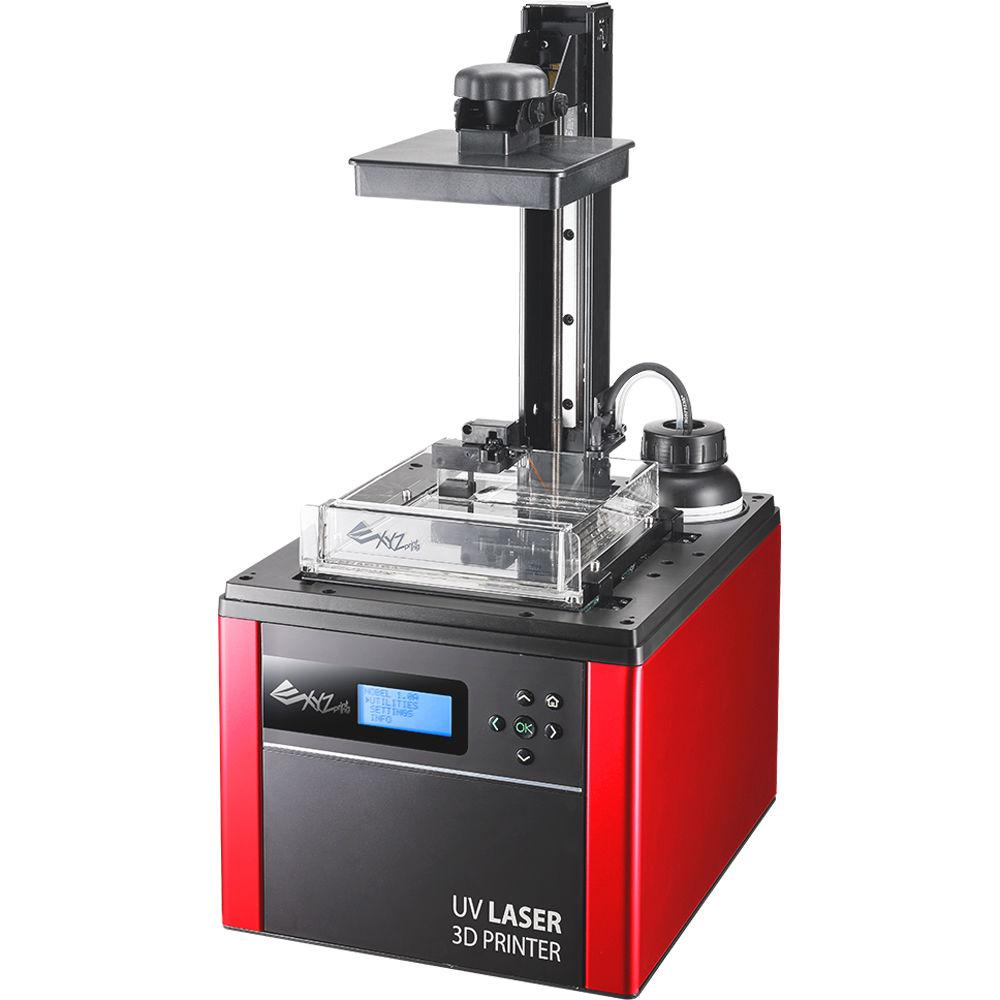

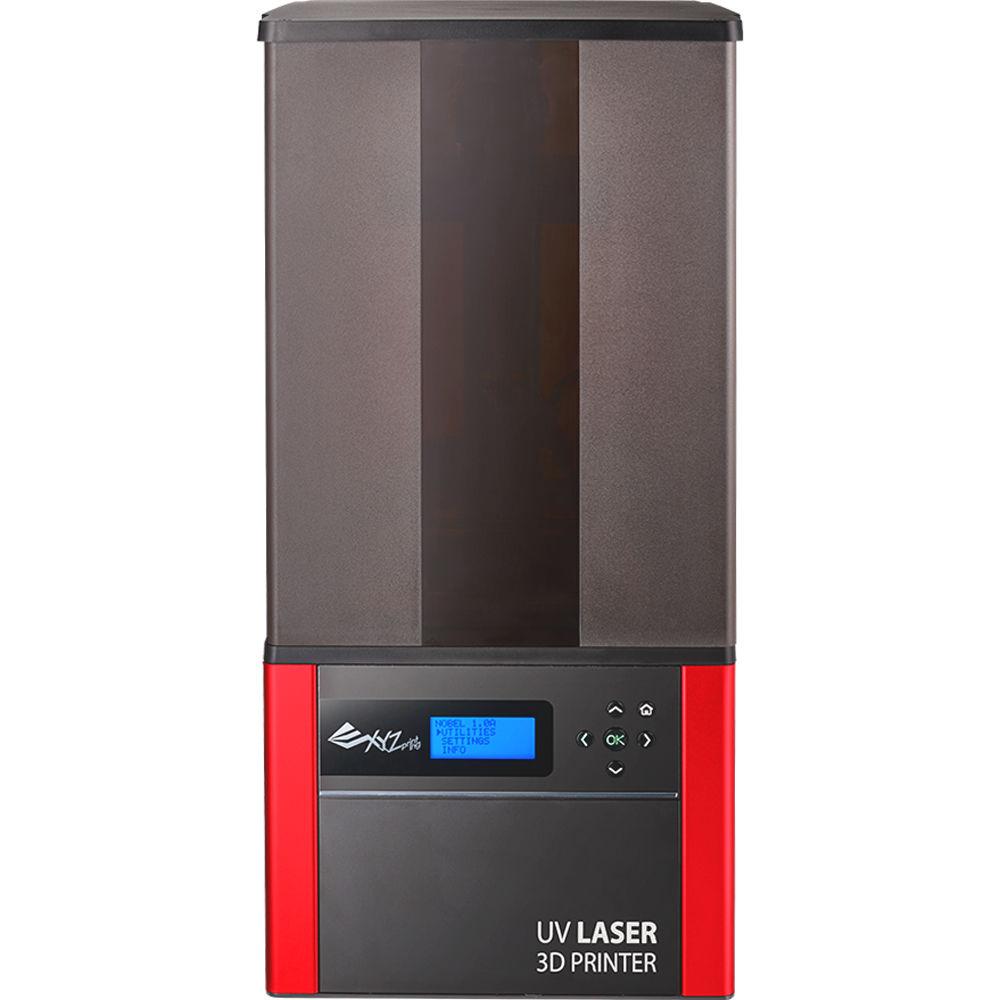

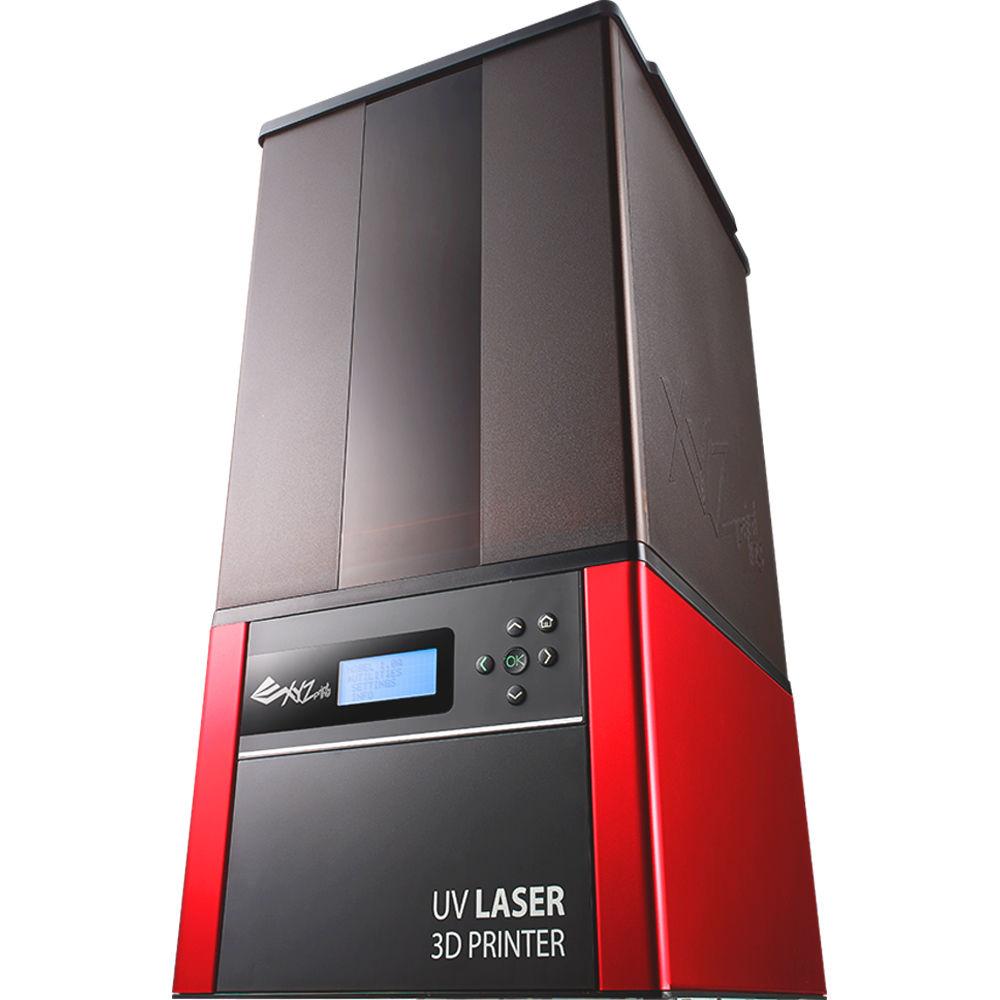

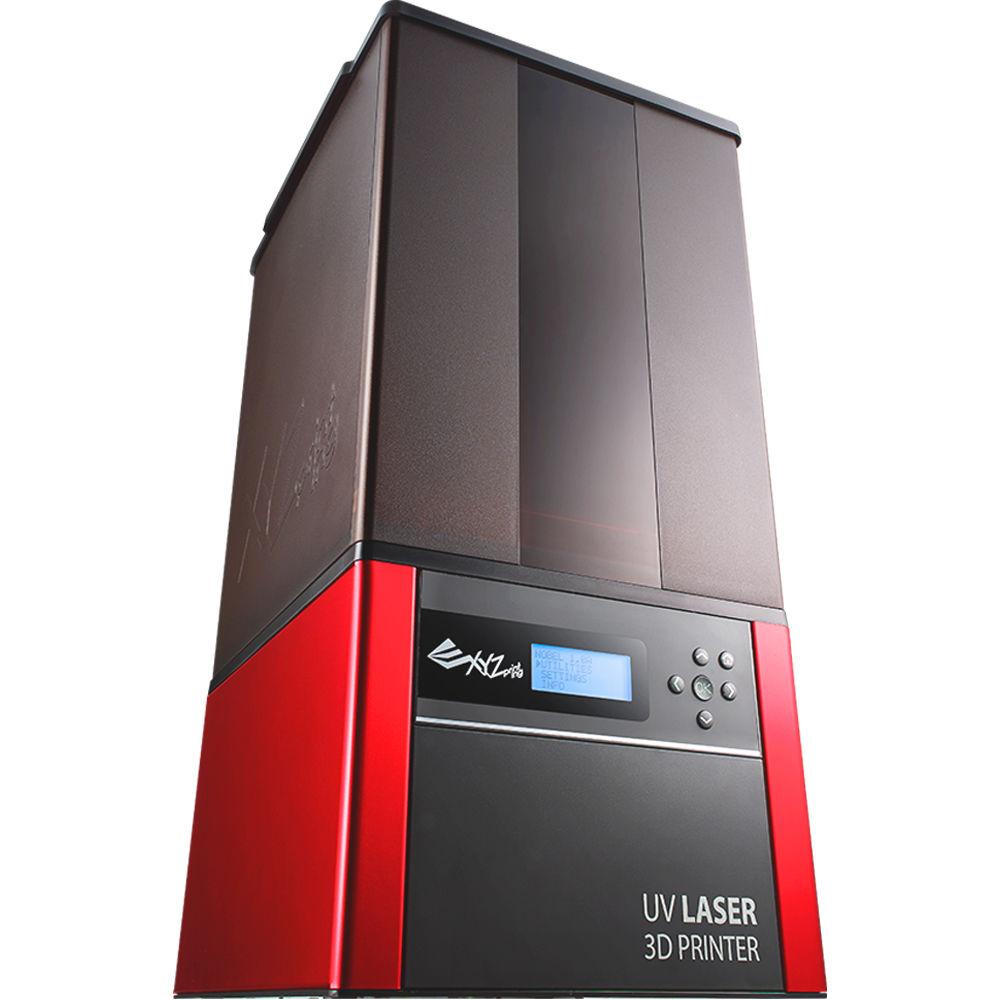

User Manual for XYZprinting Nobel 1.0A 3D Printer Click to enlarge the picture
Contents of the user manual for the XYZprinting Nobel 1.0A 3D Printer
- Product category: 3D Printers XYZprinting
- Brand: XYZprinting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for XYZprinting 3D Printers
 |
User manual for the XYZprinting Nobel 1.0A 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any XYZprinting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official XYZprinting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a XYZprinting product will considerably shorten its lifespan!
|
Product description The Nobel 1.0A 3D Printer from XYZprinting has an enhanced Laser Scanning Unit (LSU) that improves the resolution of the engine's laser to 130 microns on the X/Y axis, while also providing resolution options of 25, 50, and 100 microns on the Z axis. It utilizes Stereolithography Apparatus (SL) printing technology; a build volume of 5 x 5 x 7.87"; and builds prints using a photosensitive polymer resin that is cured using an ultraviolet laser. Users may print their compatible STL files, 3WS, and 3WN files via wired USB Type-B connectivity or USB flash media.
The Nobel 1.0A 3D Printer is compatible with systems running Windows 7 and above, as well as Mac OS 10.8 and above. Included is a power adapter, a power cable, a nozzle cap, an inner tube, a USB flash drive, a USB cable, starter resin, a scraper, gloves, a resin tank, and a rinse basket. General Features - Laser Scanning Unit (LSU)
- The Nobel 1.0A SL Laser 3D printer has an enhanced Laser Scanning Unit (LSU) that improves the precision of the engine's laser to 130 microns of X/Y resolution and up to 25 microns of layer thickness. The LSU results in higher accuracy for complex and intricate details.
- Smart Integration
- The Nobel 1.0A monitors the printing process and displays the remaining amount of resin at any time. The printer has an auto-filling resin system to ensure that users have the proper amount of resin before every print.
- Different Materials for More Versatile Applications
- The Nobel 1.0A is compatible with various resin materials, such as multi-colored acrylic resins, flexible resin, and castable resin. Each of these resins provide their own unique application, from creating durable prototypes to creating castable jewelry.
- Create Your Own Masterworks
- The Nobel 1.0A is the second-generation stereolithography (SL) 3D printer developed by XYZprinting that uses a UV laser system to cure photopolymer resins. Its improved hardware and compatibility with different resin materials makes the Nobel 1.0A a versatile 3D printer.
UPC: 840710108197 In the Box XYZprinting Nobel 1.0A 3D Printer Power Adapter Power Cable Nozzle Cap Inner Tube USB Flash Drive USB Cable Starter Resin Scraper Gloves Rinse Basket Resin Tank Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting Nobel 1.0A 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting 3L10AXUS00H Specs | | | Print Technology | SLA (Stereolithography) | | Build Volume | 5 x 5 x 7.8" / 12.7 x 12.7 x 19.8 cm | | Layer Resolution | XY Axis: 130 micron / 0.13 mm
Z Axis: 25 to 100 micron / 0.025 to 0.1 mm (3 Settings) | | | | Build Area Type | Enclosed | | 3D Scanner | No | | Monitoring Camera | No | | | | Wired Connections | 1 x USB Type-A (USB 2.0)
1 x USB Type-B (USB 2.0) | | Wi-Fi | None | | Media Card Slots | None | | | | Supported Operating Systems | Windows 7 or Later
macOS X 10.8 or Later | | Supported 3D File Types | .3w, .stl | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 64 to 82°F / 17 to 27°C | | Operating Humidity | 40 to 80% | | Dimensions (W x H x D) | 11 x 13.2 x 23.2" / 279.4 x 335.28 x 589.28 mm | | Weight | 21.2 lb / 9.6 kg | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 27.0 x 20.5 x 16.0" |
