User Manual for XYZprinting UV Curing Chamber Click to enlarge the picture
Contents of the user manual for the XYZprinting UV Curing Chamber
- Product category: 3D Printer Accessories XYZprinting
- Brand: XYZprinting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for XYZprinting 3D Printer Accessories
 |
User manual for the XYZprinting UV Curing Chamber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any XYZprinting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official XYZprinting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a XYZprinting product will considerably shorten its lifespan!
|

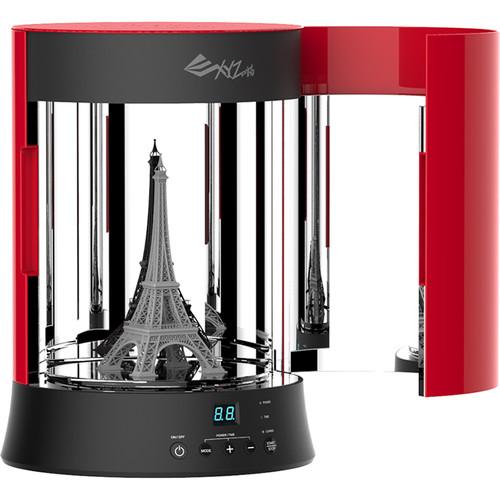

Product description The UV Curing Chamber from XYZprinting is a compact and simplified device with a 360° roundtable, a reflective mirror, and the ability to cure prints up to 7.1 x 7.9". It outputs steady, focused, and consistent UV light at frequencies of 370-405nm for curing prints made with photopolymer resins, which helps to increase their hardness and durability. Using UV LED diodes, the lamp can last for up to 10,000 hours. Included is a power adapter and a power cord. General Features - Large Curing Space
- The XYZprinting UV Curing Chamber has a compact and simplified designed in order to be placed in labs, offices, and other professional spaces. It's a space-saver, but the max curing size reaches 7.1 x 7.9".
- 360° Curing Design
- The XYZprinting UV Curing Chamber features a 360° turntable and a reflective inner mirror. The UV device outputs steady, focused, and consistent UV lights to quickly cure prints made with photopolymer resins. The curing process increases the hardness and durability of the printed products.
- UV LED Light Ensures Green and Great Experience
- Unlike some of the other UV chambers that use mercury lamps, XYZprinting's UV Curing Chamber uses UV LED diodes. The light source produces no ozone, which is more environment-friendly and energy-saving. The lamp life can last up to 10,000 hours, ensuring you can cure your prints for a long time.
- Compatibility
- The XYZprinting UV Curing Chamber is CE certified worldwide. Its UV LED wavelength ranges 370-405nm, so it is not only compatible with XYZprinting's general, flexible, and castable resin, it is also compatible with most of the SLA printers in the market. The UV Curing Chamber is a solid choice for designers, makers, and professionals.
UPC: 840710109347 In the Box XYZprinting UV Curing Chamber Power Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the XYZprinting UV Curing Chamber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersXYZprinting 3UD10XUS00K Specs | Light Source | UV LED λ 385 nm | | UV LED Lamp Power | 16 W | | Max Curing Size | Ø x H: 7.1 x 7.9" / 180 x 200 mm | | Max Turntable Payload | 3.3 lb / 1.5 kg | | Cure Time | 1-60 minutes (timer included) | | Compatible Material | Photopolymer Resin | | Power Adapter | 24 VDC / 2.5 A | | Dimensions | 10 x 10 x 13.85" / 25.4 x 25.4 x 35.18 cm | | Weight | 8.8 lb / 4 kg | | | | Package Weight | 11.15 lb | | Box Dimensions (LxWxH) | 17.7 x 14.4 x 13.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
