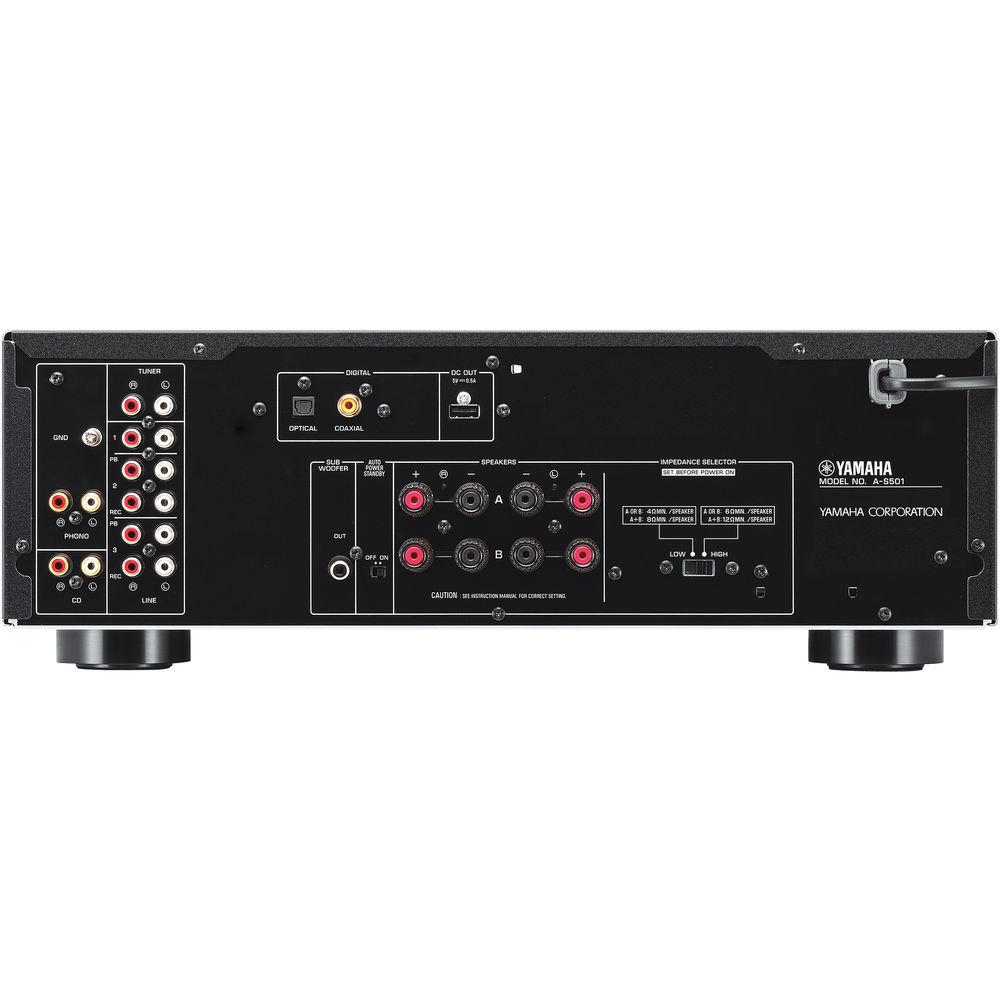

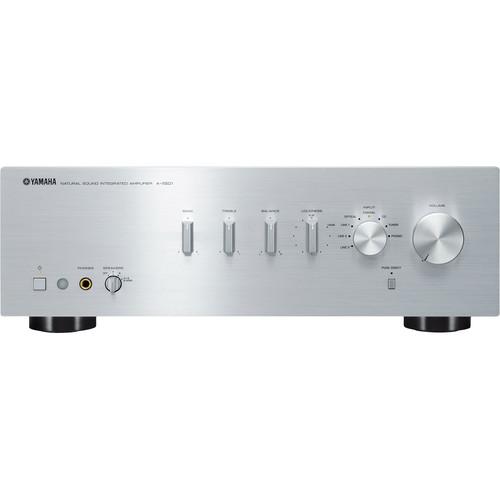

Yamaha A-S501 Integrated Amplifier

Search your instruction manual in PDF to download

User Manual for Yamaha A-S501 Integrated Amplifier

Click to enlarge the picture
Yamaha A-S501 Integrated Amplifier Contents of the user manual for the Yamaha A-S501 Integrated Amplifier
  • Product category: Amplifiers Yamaha
  • Brand: Yamaha
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Yamaha Amplifiers

Yamaha A-S501 Integrated Amplifier Yamaha A-S501 Integrated Amplifier
User manual for the Yamaha A-S501 Integrated Amplifier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Yamaha product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!



Product description

Expand your listening horizons with the silver A-S501 Integrated Amplifier from Yamaha. Featuring up to 100W per channel of RMS power at 6 ohms, this amp is equipped with digital inputs for connecting devices like televisions and Blu-ray/DVD players. It offers dual stereo outputs, giving you the ability to power two sets of speakers in different rooms and switch between them, or have them both playing at the same time. To increase the bass output of your sound system, there's also a terminal for connecting a subwoofer.

To reduce distortion and degradation and produce the cleanest possible sound, the A-S501 employs Pure Direct Mode. Activated via a button on the front of the unit, this mode causes input signals to bypass unused circuits and cuts off those circuits' power supply. To further ensure quality sound, the amplifier's continuously variable loudness control allows you to balance low and high frequency sounds so you can hear a full tonal range at any volume.

This Yamaha amplifier was built with energy efficiency in mind, and uses a power management system to switch itself to idle mode when not in use. The A-S501's internal circuitry mirrors itself symmetrically to produce higher signal purity and lower degradation. The chassis is reinforced with a solid center bar to reduce vibration and features a brushed aluminum front panel and knobs. The system comes with a remote control for easy operation.
    Pure Direct Mode
  • The Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.
    Continuously Variable Loudness Control
  • The A-S501 features an analog loudness control on the front panel, which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low- and high-frequency sounds, providing full tonal range at any volume level, compensating for the natural loss in the human ear of high and low frequencies at soft levels.
    Direct Symmetrical Design
  • This amplifier's left and right channels are organized in a straight, symmetrical layout for limiting distortion and increasing signal purity.
    Anti-Resonance Chassis
  • The base of the A-S501's chassis is reinforced with a solid center bar to increase rigidity support and vibration damping, which limits resonance.
    Dual System Capable
  • You can connect two separate speaker systems in different rooms and switch between them or have them both play at the same time by switching the dial on the front of the unit.
    Phono MM Terminal
  • You can connect a turntable with an MM phono cartridge to play vinyl records, allowing you to enjoy records in addition to modern media sources.
    Auto Power Standby Function
  • This amplifier puts itself into standby mode when it detects that it hasn't been used in approximately 8 hours, minimizing power consumption.
    Remote Control
  • Control your music from afar with the included remote, finished to match the design of the amplifier. The remote comes with batteries and can also be used to control a Yamaha CD player.
    Connection for Bluetooth Wireless Adapter
  • With the optional YBA-11 Bluetooth Wireless Adapter, you'll be able to stream music wirelessly from a Bluetooth capable mobile phone or a PC to the network receiver. This amplifier features a DC-out connection on the rear panel to power the adapter.
    Rotary Encoder Input Selector
  • The rotary encoder makes it quick and easy to select input sources, and the LEDs clearly show which source is selected so you can easily switch between them, even in a dark room.
UPC: 027108948768 In the Box Yamaha A-S501 Integrated Amplifier (Silver)
  • Remote Control
  • 2 x AA Batteries
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Yamaha A-S501 Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Yamaha A-S501 Specs

    RMS Output Power 6 Ohms, 20 Hz to 20 kHz, 0.038% THD: 100 W + 100 W
    8 Ohms, 20 Hz to 20 kHz, 0.019% THD: 85 W + 85 W
    Dynamic Power per Channel 8 Ohms: 130 W
    6 Ohms: 150 W
    4 Ohms: 185 W
    2 Ohms: 220 W
    Power Bandwidth 0.04% THD, 42.5 W, 8 Ohms: 10 Hz to 50 kHz
    Damping Factor 1 kHz, 8 Ohms: ≥240
    Input Sensitivity/Impedance Phono (MM): 3.0 mV / 47 kOhms
    CD, etc.: 200 mV / 47 kOhms
    Maximum Input Voltage Phono (MM) (1 kHz, 0.03% THD): ≥45 mV
    CD, etc. (1 kHz, 0.5% THD): ≥2.2 V
    Output Level and Impedance Rec Out: ≤200 mV / 1.0 kOhms
    Subwoofer Out (Cut-Off Frequency: 100 Hz): 3.5 V / 1.2 kOhms
    Headphone Output Impedance CD, etc. (Input 1 kHz, 200 mV, 8 Ohms): 430 mV / 470 ohms
    Frequency Response With Pure Direct: 20 Hz to 20 kHz, 0±0.5 dB
    Without Pure Direct: 10 Hz to 100 kHz, 0±1.0 dB
    RIAA Equalization Deviation ±0.5 dB
    Total Harmonic Distortion (THD) Phono (MM) to Rec Out (20 Hz to 20 kHz, 2.5 V) ≤0.03%
    CD, etc. to Speakers (20 Hz to 20 kHz, 45 W, 8 Ohms): ≤0.019%
    Signal-to-Noise Ratio Phono (MM) (5 mV Input Shorted): ≥82 dB
    CD, etc., with Pure Direct On (200 mV Input Shorted): ≥99 dB
    Residual Noise 40 μV (IHF-A Network)
    Channel Separation CD, etc. (5.1 kOhms Input Shorted, 1 kHz): 65 dB or more
    CD, etc. (5.1 kOhms Input Shorted, 10 kHz): 50 dB or more
    Tone Control Bass
    Boost/Cut (20 Hz): ± 10 dB
    Turnover Frequency: 400 Hz
    Treble
    Boost/Cut (20 kHz): ± 10 dB
    Turnover Frequency: 3.5 kHz
    Loudness Control Attenuation (1 kHz, Continuous): -30 dB
    Digital Audio Format PCM (2-channel), 192/176.4/96/88.2/48/44.1/32 kHz
    PCM Word Depth 24-bit / 16-bit
    Input 5 x RCA
    1 x Phono for turntable
    1 x Optical
    1 x Coaxial
    Output 2 x RCA
    4 x Speaker terminal
    1 x Subwoofer
    1 x Headphone
    1 x DC (accessory power)
    Terminals Gold-plated RCA (CD, phono, coaxial) and speaker terminals
    Cabinet (Chassis) Design: Reinforced with solid center bar
    Finish: Brushed aluminum
    Power Supply 120 VAC, 60 Hz
    Power Consumption In Use: 240 W
    Maximum: 510 W
    Standby: 0.5 W
    Capacitors 12,000 μF block capacitors
    Dimensions (W x H x D) 17.1 x 5.9 x 15.2" (43.5 x 15.1 x 38.7 cm)
    Weight 22.7 lb (10.3 kg)
    Package Weight 26.0 lb
    Box Dimensions (LxWxH) 21.0 x 8.5 x 7.5"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5.0 of 5

    This product has already been rated by 38 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Yamaha A-S501 Integrated Amplifier

    Subject: QUERY
    Date: 27.07.2021 17:38:15Name: J.J. MICHAEL MOUTOU
    Hi. Mr./Mrs.
    I owned a yamaha integrated amplifier A-S501.
    I want to built a new loudspeaker cabinet. What does the term 'damping factor of 240' means? Is the amplifier capacity is 240 watts?
    Is this amplifier equipped with a 6 ohms/ 8 ohms function for loudspeakers?
    Should i search for loudspeakers of 8 ohms only or can I look for 6 ohms also?
    Finally, can i play loudspeakers 8 ohms 100 watts RMS with the amplifier?
