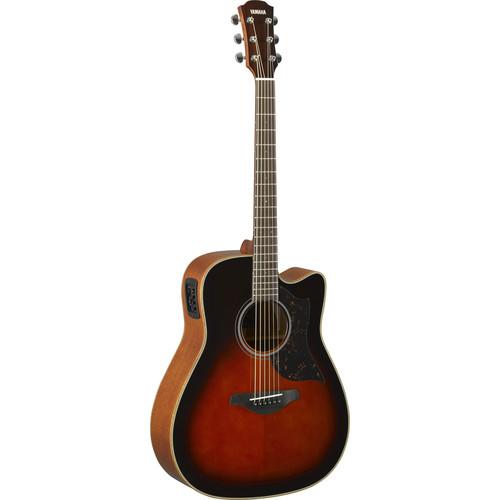

User Manual for Yamaha A1M Western Acoustic Electric Cutaway Guitar Click to enlarge the picture
Contents of the user manual for the Yamaha A1M Western Acoustic Electric Cutaway
- Product category: Acoustic Guitars Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Acoustic Guitars
|
User manual for the Yamaha A1M Western Acoustic Electric Cutaway contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The A1M from Yamaha is an acoustic/electric guitar with a traditional Western cutaway body, featuring a solid sitka spruce top, mahogany back and sides, and a tobacco brown sunburst finish. Its single cutway body was developed with scalloped bracing for louder, richer acoustic sounds, and allows players unfettered access to the higher frets. The African mahogany 3-ply neck features a 20-fret rosewood fingerboard with hand-rolled edges, which provide added comfort while playing. For electronics, the A1M is outfitted with a System72 preamp and SRT piezo pickups to ensure solid plugged-in performance. The preamp offers several advanced features including a volume control, a built-in tuner, a 3-band EQ, and a mid-frequency control. The A1M ships with a soundhole cover and a hex wrench. -
- Body Shape: Traditional Western cutaway body
- Scale Length: 25.6" / 650.0mm
- Body Length: 19.9" / 505.0mm
- Total Length: 41.2" / 1,046.0mm
- Body Width: 16.2" / 412.0mm
- Body Depth: 3.9 to 4.6" / 100.0 to 118.0mm
- Nut Width: 1.7" / 43.0mm
- String Spacing: 0.4" / 11.0mm
- Top Material: Solid sitka spruce with scalloped bracing
- Back Material: Mahogany
- Side Material: Mahogany
- Neck Material: 3-ply African Mahogany
- Fingerboard Material: Rosewood
- Fingerboard Radius: 15.7" / 400.0mm
- Bridge Material: Rosewood
- Nut Material: Urea
- Saddle Material: Urea
- Bridge Pins: Black ABS with white dot
- Tuners: Die-cast chrome (TM29T)
- Body Binding: Mahogany + cream
- Soundhole Inlay: Black + white
- Pickguard: Tortoise pattern
- Body Finish: Gloss
- Neck Finish: Matte
- Electronics: SYSTEM72 + SRT piezo pickup
- Controls: Vol/3-band EQ/Tuner/Mid FQ
- Connections: Line out
- Accessories: Soundhole cover, Hex wrench
UPC: 889025111140 In the Box Yamaha A1M Western Acoustic/Electric Cutaway Guitar (Tobacco Brown Sunburst) Soundhole Cover Hex Wrench Limited Lifetime Warranty for Top, Neck, Back & Sides Limited 1-Year Warranty for Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha A1M Western Acoustic Electric Cutaway Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha A1M TBS Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Dreadnought | | Cutaway | Single-Cutaway | | Body Wood | Top: Sitka Spruce
Back, Sides: Mahogany | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Rosewood | | Number of Frets | 20 | | Scale Length | 25.6" / | | Radius | 15.7" OR | | Nut Width | 43 mm | | Bridge Type | Rosewood | | Pickguard | Yes | | Pickups | Bridge: Piezo | | Controls | Tone Control: x 3
Volume Control: x 1 | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 42.0 x 17.0 x 6.0" |
