User Manual for Yamaha AC5M Concert Cutaway Acoustic Electric Guitar Click to enlarge the picture
Contents of the user manual for the Yamaha AC5M Concert Cutaway Acoustic Electric
- Product category: Acoustic Guitars Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Acoustic Guitars
 |
User manual for the Yamaha AC5M Concert Cutaway Acoustic Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

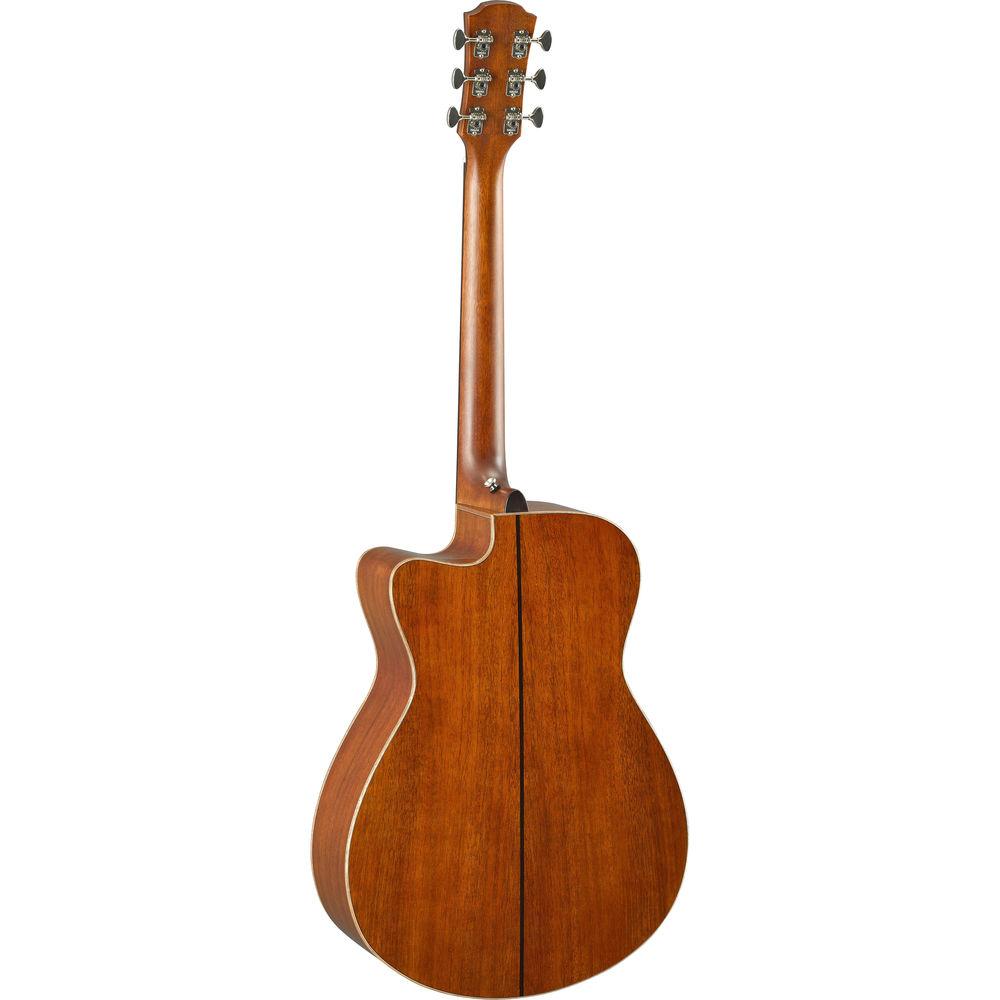

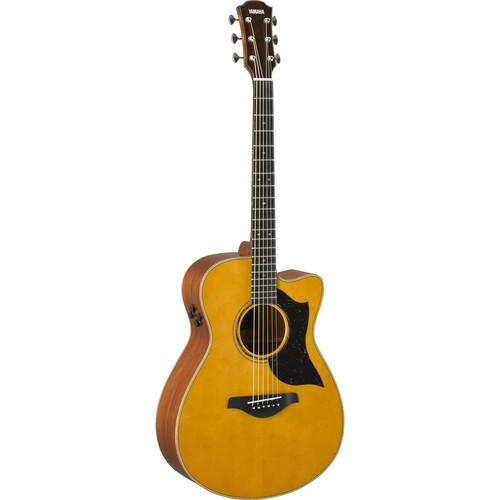

Product description The Yamaha AC5M is an acoustic/electric guitar in a concert cutaway body, featuring a solid sitka spruce top and a mahogany body with natural gloss finish. The single cutaway body was developed with a scalloped bracing for louder, richer acoustic sounds and allows players unfettered access to the higher frets. The African mahogany 3-ply neck features an ebony fingerboard with 20 frets and provides a comfort while playing.
For electronics, the Yamaha AC5M is outfitted with a System71 preamp and SRT piezo pickups to ensure solid plugged-in performance. The preamp offers several advanced features including a volume control, a 2-band EQ, auto feedback reduction, and a blend control plus mic selection. The Yamaha AC5M ships with a soundhole cover and a hex wrench. - SRT2 Electronics
-
- From a piezo sound that cuts through a mix, to a warm, pure, acoustic sound that is recorded using vintage microphones in the recording studio, the SRT2 pickup allows you to reproduce a sound that you can really use on stage. With the SRT2, you can mix these two sounds to attain the exact balance you want to achieve, and a distinctive tone
- SRT Pickup
-
- Yamaha's proprietary SRT pickup design uses individual elements for each string, to give an ultra-clear, ultra-wide bandwidth signal with far better dynamic response and tonal accuracy than a regular, ribbon-type piezo pickup
- High Comfort Neck
-
- Extensive research with players, luthiers and guitar techs has given the A-Series the feel and playability that today's acoustic-electric players want. Whether switching from electric to acoustic onstage, recording a session with intricate open tunings, or practicing at home. These superb guitars feature a straighter neck taper for easier high-fret playing, and hand-rolled fingerboard edges to achieve a played-in feel
- General Features
-
- Body Shape: Concert body cutaway
- Scale Length: 25.6" / 650.0 mm
- Body Length: 19.6" / 497.0 mm
- Total Length: 40.9" / 1,038.0 mm
- Body Width: 15.0" / 380.0 mm
- Body Depth: 3.9 to 4.7" / 100.0 to 120.0 mm
- Nut Width: 1.7" / 43.0 mm
- String Spacing: 0.4" / 11.0 mm
- Top Material: Solid sitka spruce with scalloped bracing
- Body Material: Solid mahogany
- Neck Material: African mahogany 3ply
- Fingerboard Material: Ebony
- Fingerboard Radius: 15.7" / 400.0 mm
- Bridge Material: Ebony
- Nut Material: Tusq
- Saddle Material: Tusq
- Bridge Pins: Black ABS with white dot
- Tuners: Chrome Gotoh open-gear tuners
- Body Binding: Mahogany + cream
- Soundhole Inlay: Rosewood + mahogany + black + white
- Pickguard: Tortoise pattern
- Body Finish: Gloss
- Neck Finish: Matte
- Electronics: SYSTEM71 + SRT piezo pickup
- Controls: Vol/mic select (2 types), treble, bass controls, SRT-piezo blend + AFR
- Connections: Line Out
- Accessories: Soundhole cover, hex wrench

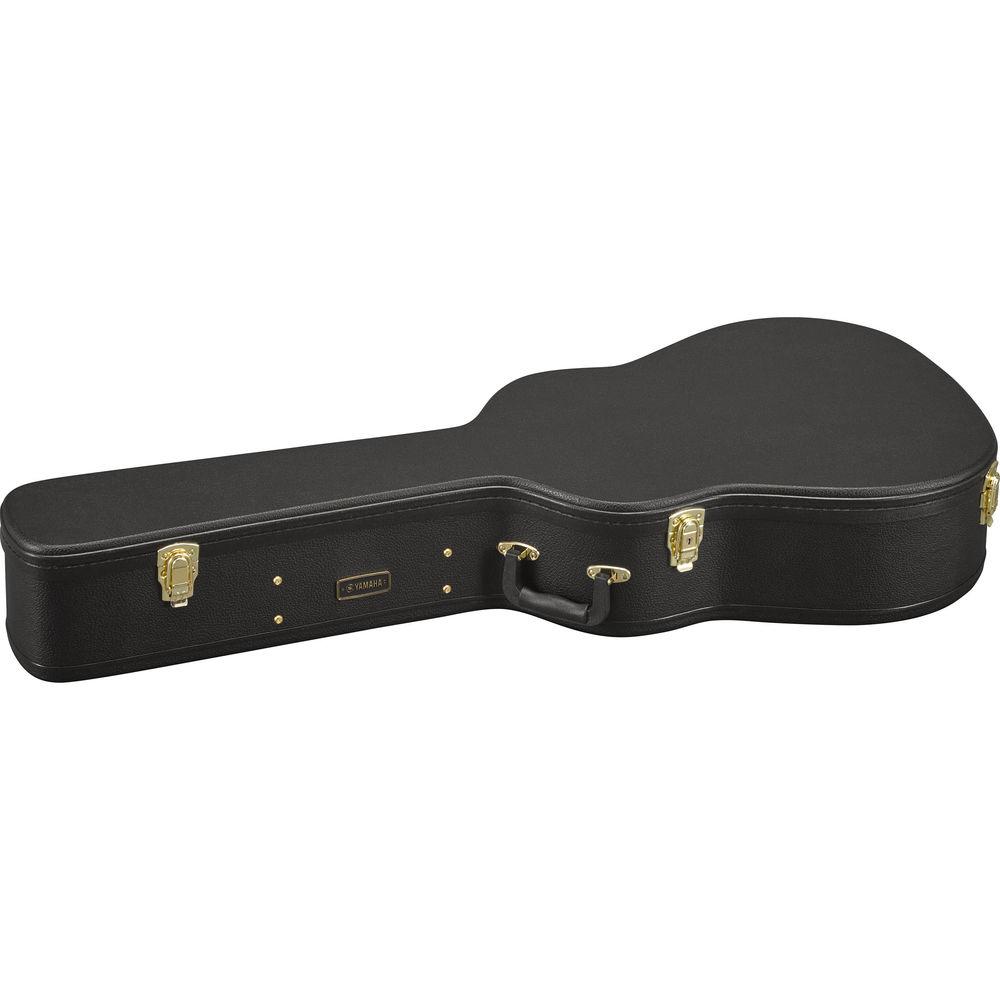

- Case: Hard-shell
UPC: 889025106740 In the Box Yamaha AC5M Concert Cutaway Acoustic/Electric Guitar (Mahogany) Hard-Shell Case Soundhole Cover Hex Wrench Limited 1-Year Warranty for Parts & Labor Lifetime Warranty for Top, Neck, Back & Sides Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha AC5M Concert Cutaway Acoustic Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha AC5M VN Specs | Right/Left Handed | Right-Handed | | Number of Strings | 6 | | Body Type | Concert | | Cutaway | Single-Cutaway | | Body Wood | Top: Sitka Spruce
Back, Sides: Mahogany | | Neck Type | Set Neck | | Neck Wood | Mahogany | | Fingerboard | Ebony | | Number of Frets | 20 | | Scale Length | 25.6" / | | Radius | 15.7" | | Nut Width | 43 mm | | Bridge Type | Rosewood | | Pickguard | Yes | | Pickups | Bridge: Piezo | | Controls | Tone Control: x 2
Volume Control: x 1
Balance Control: x 2 |
